Omax 5.0mp High Sensitivity Microscope Camera

SKU: A3550UPA-R75

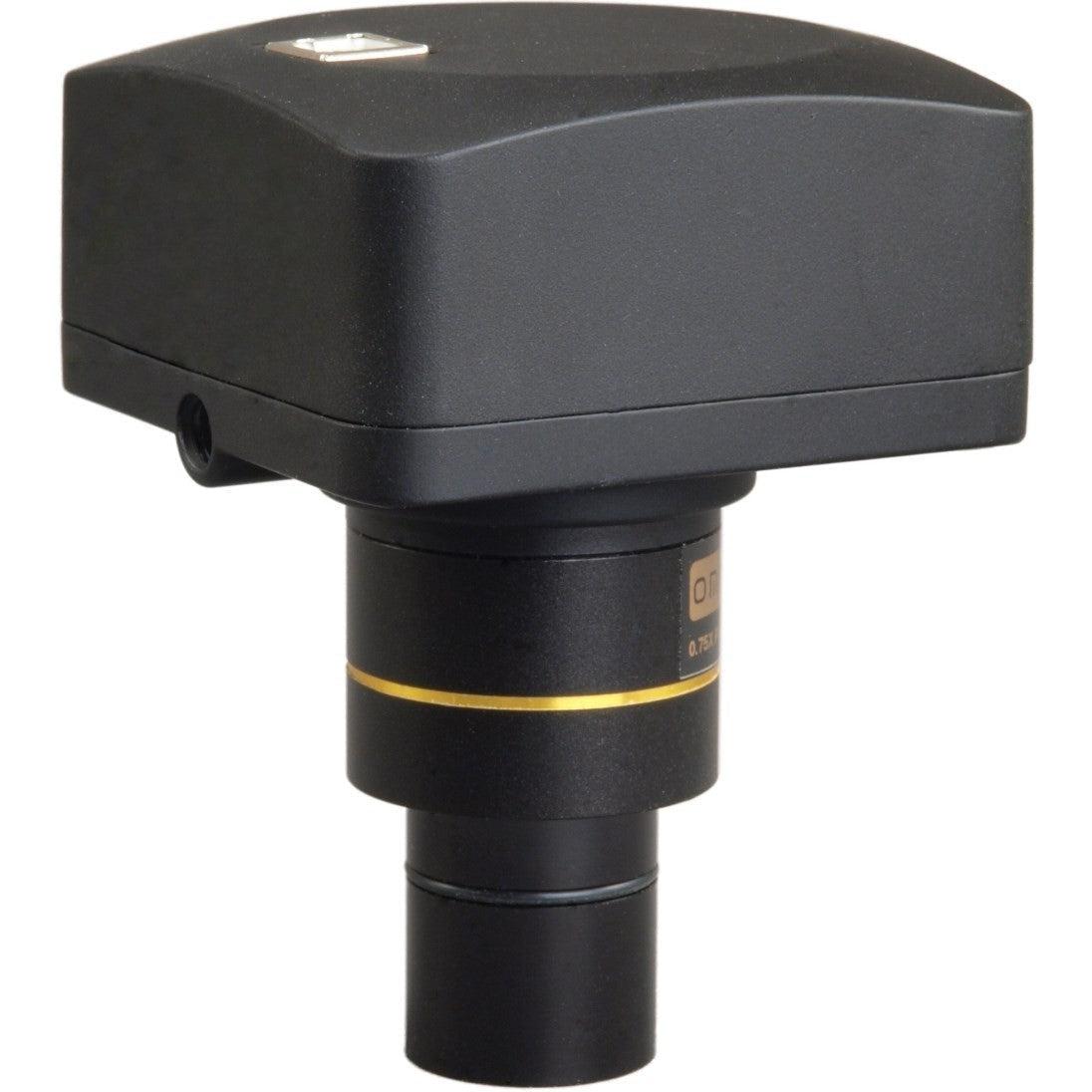

Omax 5.0mp High Sensitivity Microscope Camera
Omax 5.0mp High Sensitivity Microscope Camera
×

Omax 5.0mp High Sensitivity Microscope Camera

SKU: A3550UPA-R75


When will I receive it?

Have a question about this product?


Print this page

Our Price

or 12 months interest free

Gem

or 6 easy payments of $761.50

Laybuy

or 4 easy payments of $1,142.25

Afterpay

Loading

About this product

  • 5MP (2560x1920) high resolution color digital camera
  • Advanced editing, processing and measuring software included
  • Compatible with Windows, Mac OS and Linux operating system
  • 0.75X reduction lens and 0.01mm calibration slide included
  • Install on standard C-mount or insert into 23.2mm eyepiece tube directly

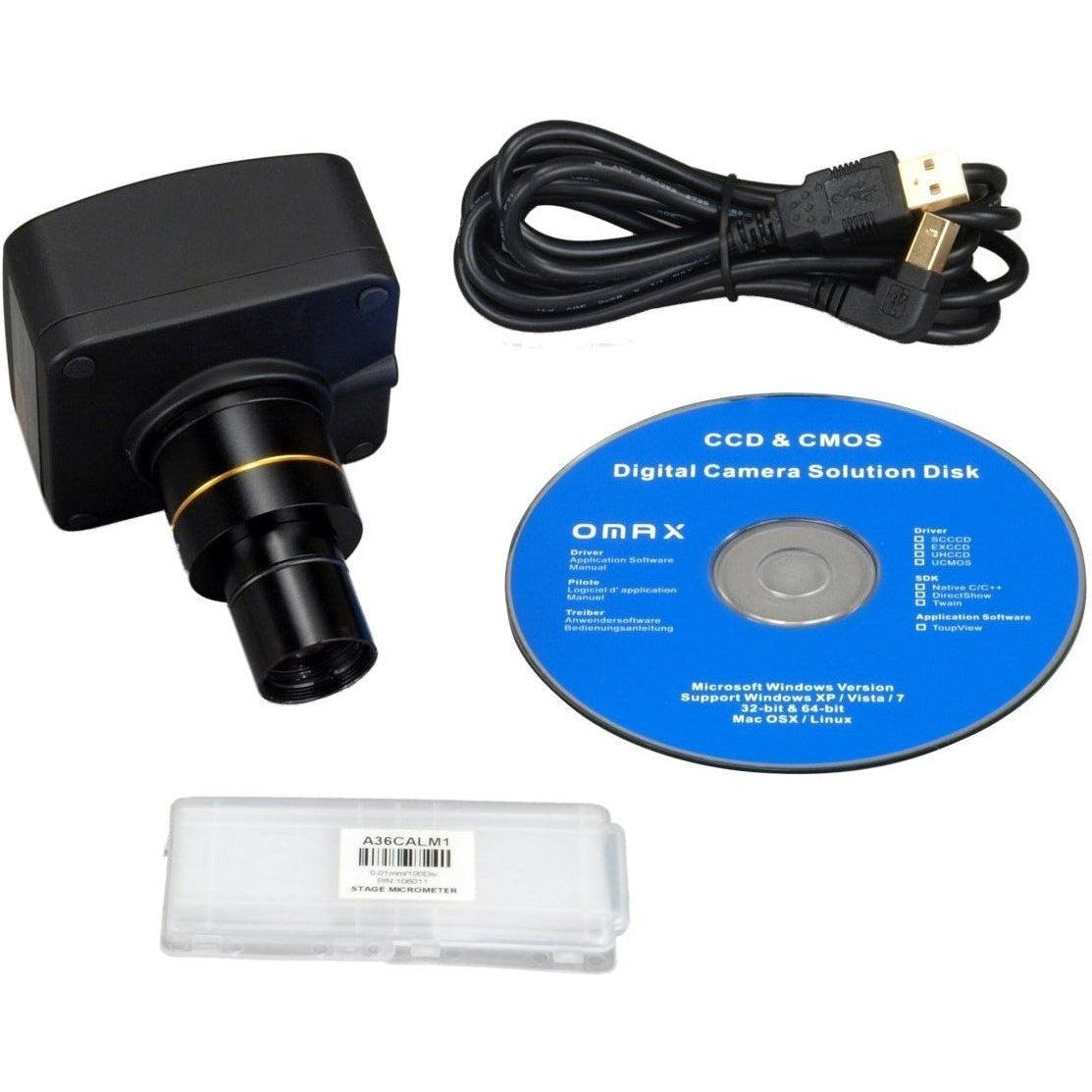

  • This high speed 5MP USB 2.0 CCD microscope digital camera comes packed with a reduction lens, a USB cable, two adapters, and a 0.01mm calibration slide. The CCD sensor has higher light sensitivity than a standard CMOS sensor, which will provide much better results in darkfield or fluorescence microscopy. The digital camera captures still microscopy images, streams live videos on your computers and is compatible with Windows, Mac OS X, and Linux (see version information below). The user-friendly software for Windows offers advanced features including Stitching, EDF (Extended Depth of Focus), video recording, and measurement functions. Live video and still image capture can be set in different resolutions simultaneously. The 0.75X reduction lens allows for a larger field of view. You can edit and process images in a manner similar to PhotoShop.

    The Windows software included allows you to make notes, shapes, watermarks, and precise measurements with ease. You can analyze, present, and share images of samples and specimens by simply connecting the camera to your computer's USB port, and inserting the lense into your microscope's eye-tube or trinocular port. Featuring built-in C-mount compatibility and a 23.2mm reduction lens adapter, our camera can be attached to any instrument with a C-mount or a 23mm, a 30mm and a 30.5mm photo port. The camera is equipped with a Sony CCD colour sensor and comes with a high-speed USB 2.0 cable, four mounting sizes (23.2mm, 30mm, 30.5mm, and 25.4mm C-mount), and instructions.

    FEATURES:

    • 5MP (2560x1920) high resolution color digital camera
    • Advanced editing, processing and measuring software included
    • Compatible with Windows, Mac OS and Linux operating system
    • 0.75X reduction lens and 0.01mm calibration slide included
    • Install on standard C-mount or insert into 23.2mm eyepiece tube directly

    HARDWARE:

    • Model: A3550UPA-R75
    • Image sensor: Sony 2/3" color CCD
    • Resolution: 2560x1920 pixels (5M pixels)
    • Pixel size: 3.4 um x 3.4 um
    • SNR: 62dB
    • Dynamic Range 70dB
    • Frame speed: 4.5fps at 2560x1920, 9fps at 1280x960
    • Interface: USB 2.0
    • Reduction lens: 0.75X, fit to 23.2mm eyepiece tube
    • 0.01 mm calibration slide: 1mm/100 division
    • Dimensions: 68mm x 68mm x 44mm (no reduction lens)
    • Operating Environment: -10°C to 60°C
    • Power: Direct via USB port
    • Mounting: C-mount or 23.2mm eyepiece tube
    • Gross Weight: 0.79 kg
