SkyWatcher Stargate 18" Collapsible Dobsonian GoTo Telescope


SkyWatcher Stargate 18" Collapsible Dobsonian GoTo Telescope-Telescope-Jacobs Photo and Digital

Our Price



Green truck Special order. Usually ships in 1-6 weeks. An order for this can be placed with our supplier, and usually ships within the specified timeframe.




Shipping Quote

When will I receive it?

About this product

Special order item. Please enquire regarding delivery.

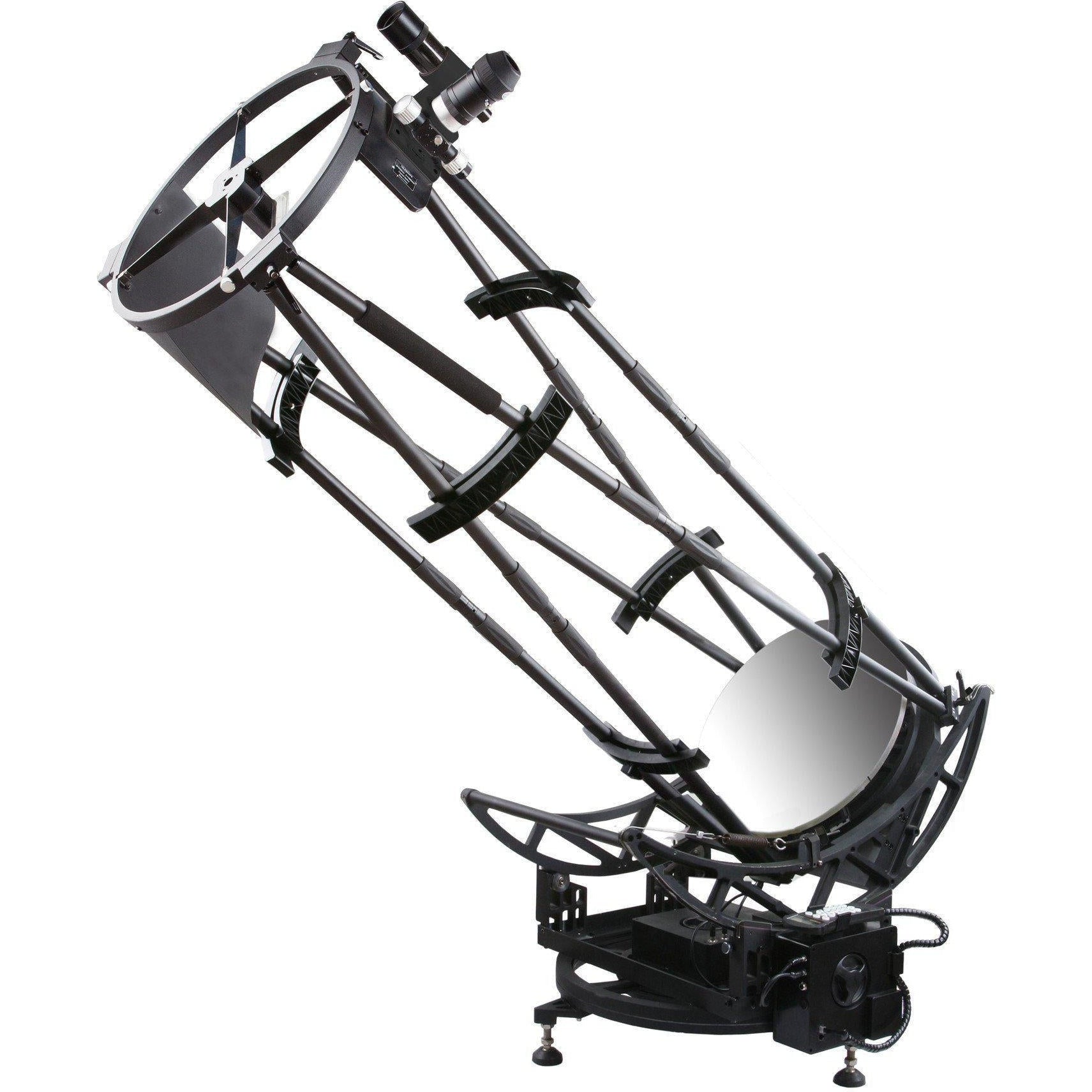

Sky-Watcher STARGATE Dobsonians with their huge light gathering capabilities
provide the ultimate WOW factor experience for aficionados of visual
astronomy, delivering outstanding performance on both Planetary and Deep-Sky
objects.  The elegant and rigid all metal truss tube design is easily
transportable when unassembled, and can be assembled and ready for use in
about 20 minutes. The mount provides motorised operation in both Alt and
Azimuth axes, and can slew the telescope automatically to, and track over
42,900 night sky objects from the Synscan handset's extensive computerised
database. Features Freedom-Find™ Dual-Encoder technology, which also allows
the telescope to be moved manually in either axis without losing it's
alignment or positional information, giving the user enormous convenience and
flexibility during observing sessions. Simply push the telescope close to the
object and let the computer do the rest of the work!

The Mirror

The STARGATE-450P SYNSCAN features high quality parabolic primary mirrors to
eliminate spherical aberrations inherent in 'fast' focal lengh reflectors with
spherical primary mirrors. The mirrors are parabolized to bring all the light
rays to the same focal point to give sharp, constrasty images, which are full
of detail.

The Mirror Coatings

Most reflectors today usually have a coat of aluminium as the mirror surface
and then an overcoat of silicon monoxide or silicon dioxide to protect
it. Silicon dioxide produces a much more durable coat than silicon monoxide
but requires specialized equipment to apply it and is therefore more
expensive. Protection is needed, because in most reflectors, the mirror is
open to the elements and deterioration of the reflective layer reduces the
resolution of the telescope. ALL Sky-Watcher reflectors are Multi-Coated with
Silicon Dioxide as standard for optimum durability and long term performance.

Technical Details

  • Parabolic Primary Mirror (Patented weight saving design)
  • Dual-Speed 2 inch Crayford Focuser with 1.25 inch adaptor
  • Eyepieces Supplied: 10 mm (1.25 inch) & 28 mm (2 inch)
  • Magnifications (with Eyepieces supplied): x68 and x190
  • Collimating Eyepiece (1.25 inch)
  • Direct SLR Camera Connection
  • Fabric Light Shroud
  • Alt-Azimuth Go-To mount (Metal construction)
  • Transmission: Worm + Timing Belt + 64 Micro-step/0.9° Stepper Motor Drive
  • Patented Freedom-Find Dual-Encoder design allows manual movement without losing positional information
  • Pointing Accuracy: Up to 5 arc-minutes (RMS)
  • Gear Ratio: Azimuth 400, Altitude 1523.796
  • Synscan Computerised Handset with 42,900+ Object Database
  • 31% more Light Gathering than 400 mm
  • Max Height: 2100 mm, Base Diameter: 590 mm, Max Horizontal Radius: 1900 mm

Delivery Contents
  • STARGATE-450P SYNSCAN computerized Go-To Dobsonian
  • eyepiece 10 mm (1,25 inch)
  • eyepiece 28 mm (2 inch)

Type of telescope:
Newtonian (with parabolic Mirror)
458 mm
Focal ratio:
Secondary diameter:
120 mm
Focal length:
1900 mm
Max. useful visual power:
2" Crayford
9 x 50
Eyepiece adapter:
to 1 1/4"
Type of mount:
Dobsonian mount
Computer database objects:
42 900 Objects
Power Supply:
DC 11 V/5 A ~ 15 V/3 A
Total Weight:
60 kg

*Special Order item, please contact us for delivery time*

Accessories in the Box:

  • SynScan hand controller with cables
  • 12V power cable with lighter socket plug
  • Finderscope 9X50 straight version
  • Eyepiece 2″ LET 28mm (68x) – apparent field of view 56°
  • Eyepiece 1.25″ Super Plossl 10mm (190x) – apparent field of view 52°
  • Eyepiece adapter from 2″ to 1.25″ with M42 thread
  • 2″ tube extension
  • Collimation Eyepiece
  • User Manual
