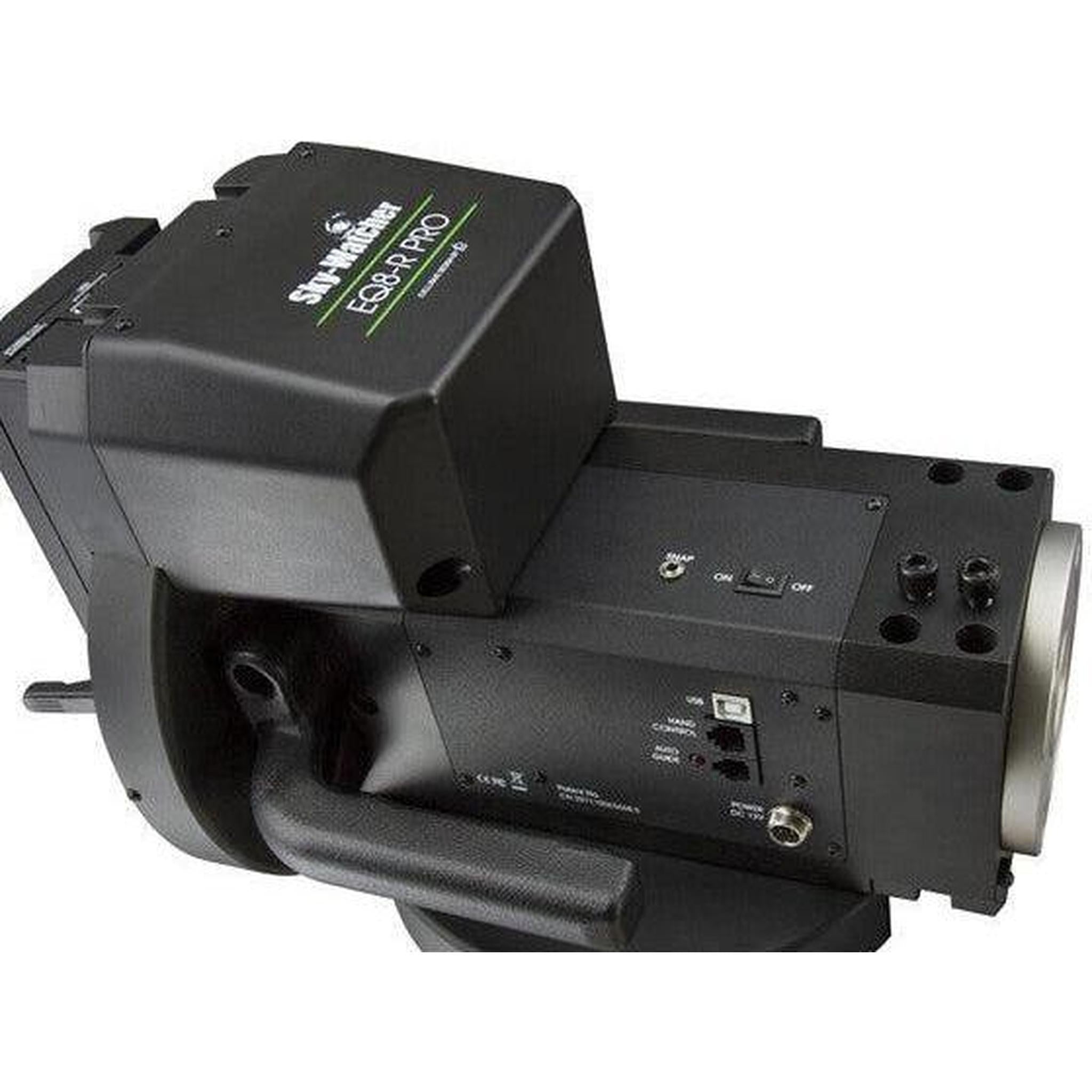

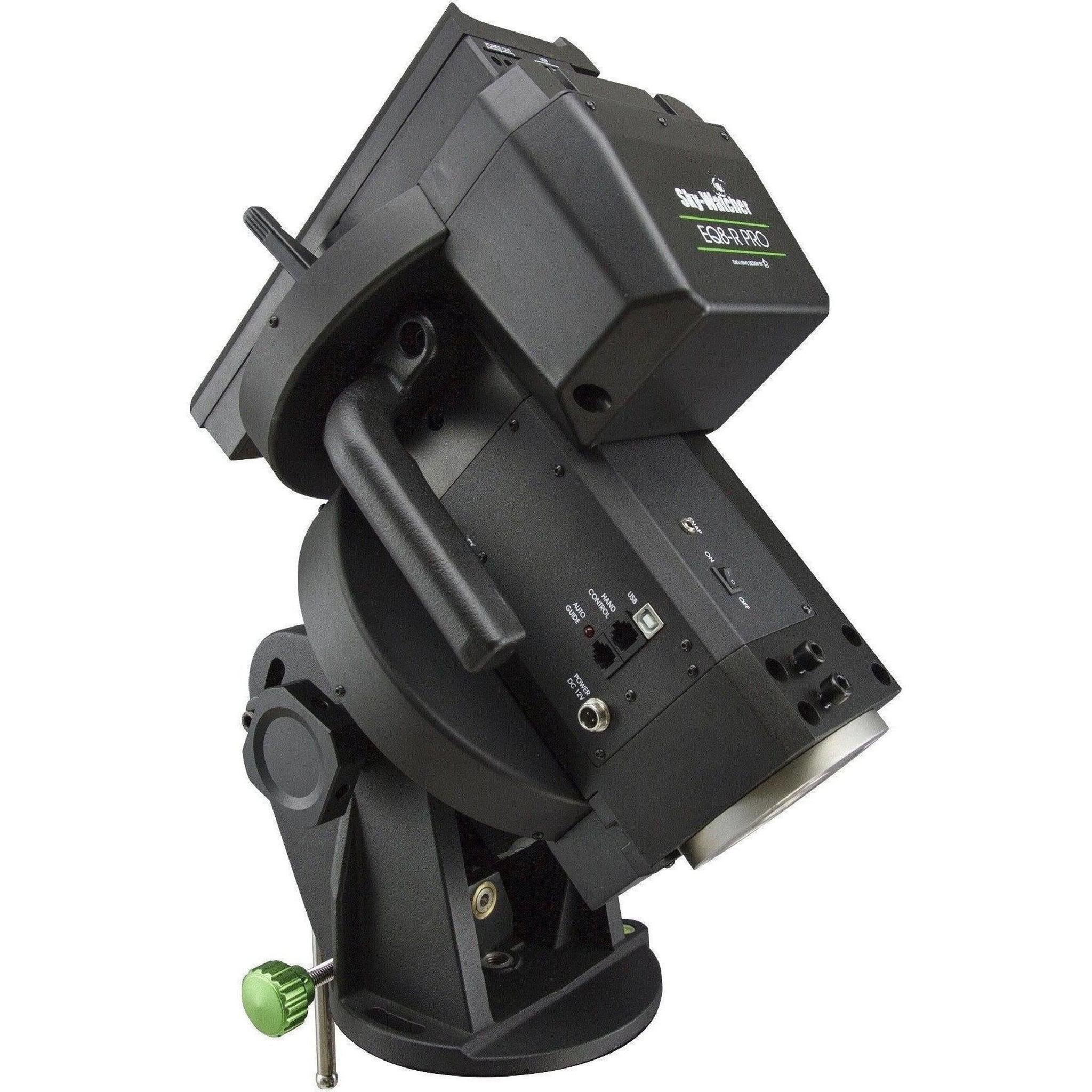

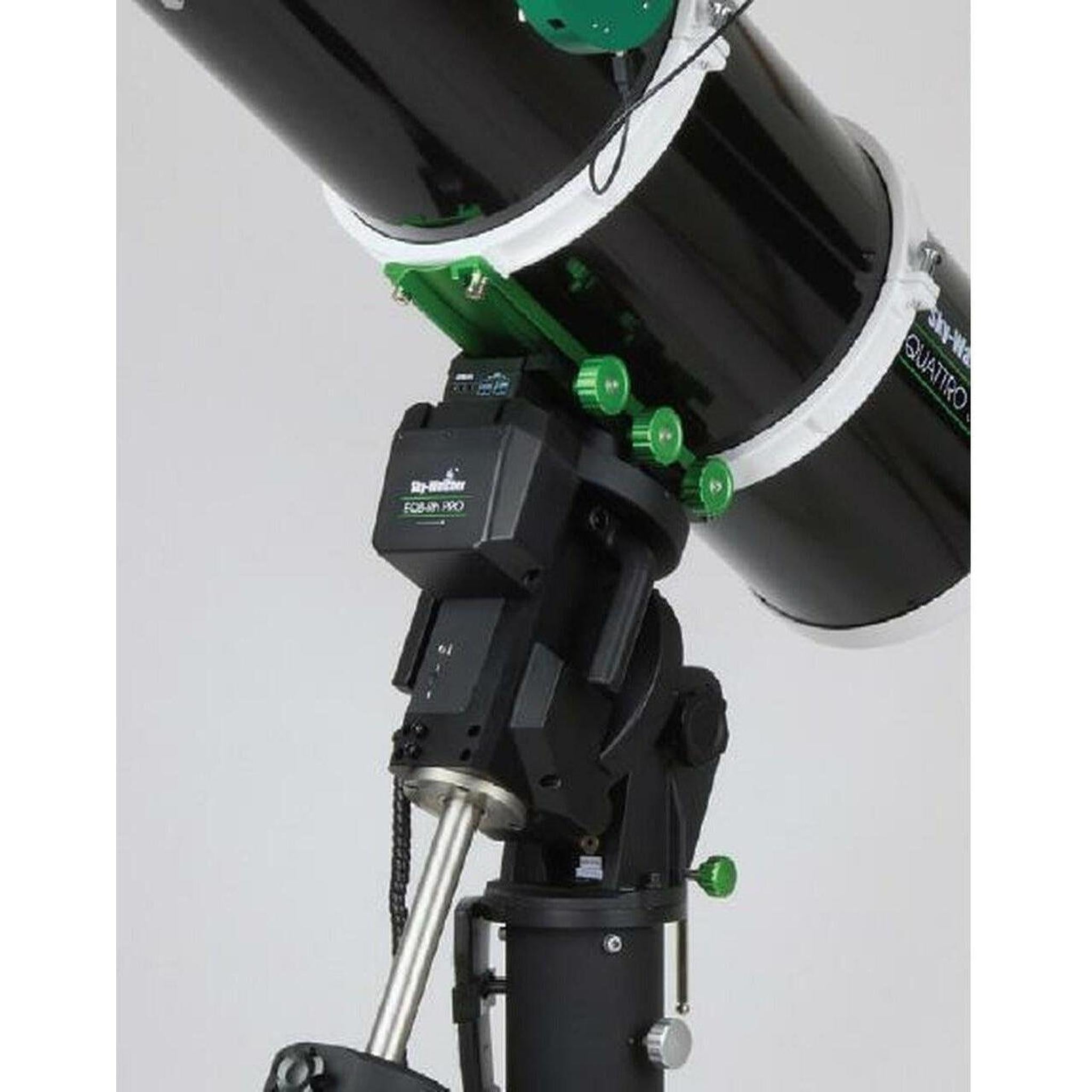

The Sky-Watcher EQ8-R Pro is an evolutionary progression of the popular EQ8 Pro.
An extra heavy-duty, observatory class German Equatorial Mount with a payload capacity of up to 50kg.
Quiet in operation, the EQ8-R is supplied with the Synscan Go-To handset that can automatically find and track over 42,900 celestial objects from its extensive computer database.

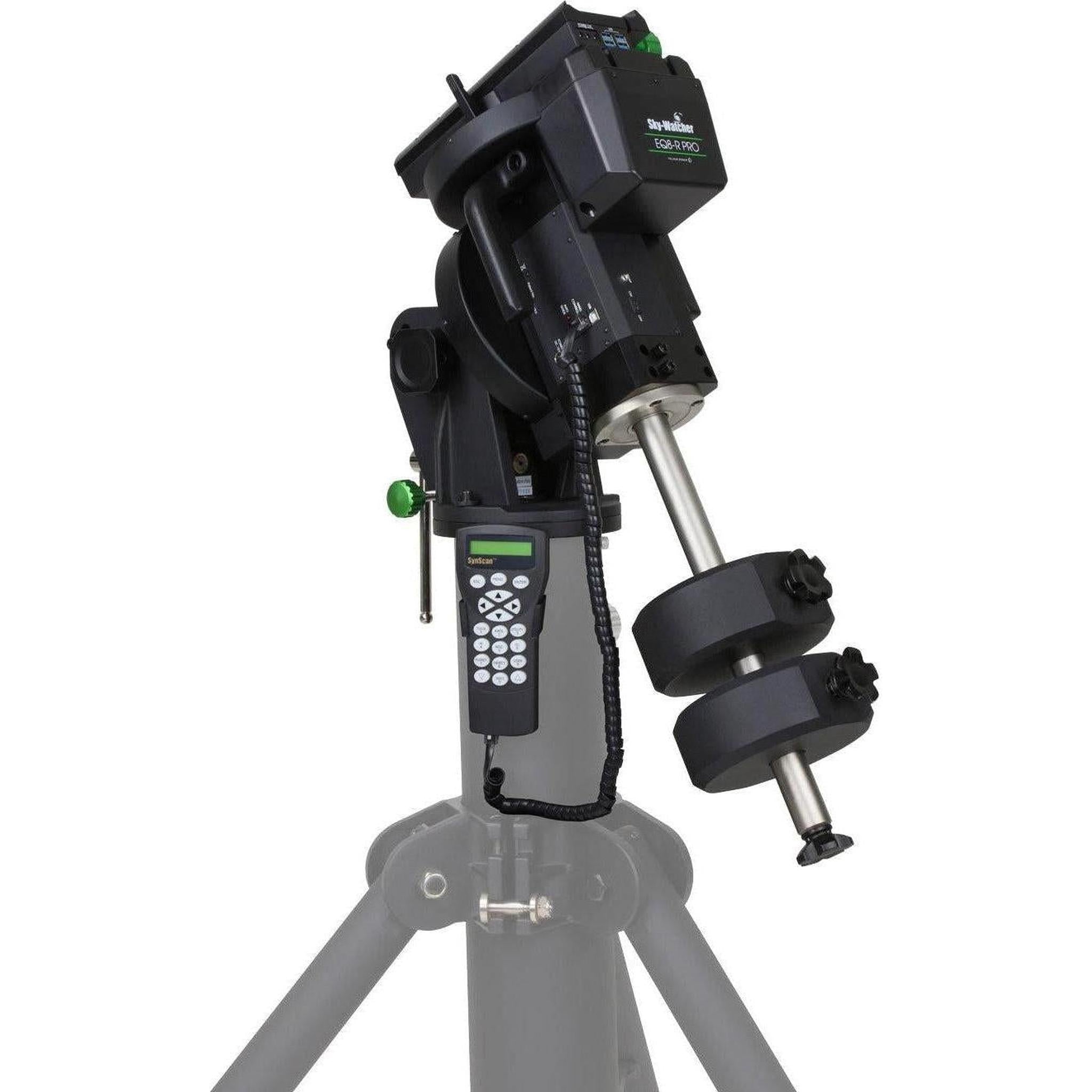

Available either complete with pier tripod or as the mount head only, to install onto a static pier.
Two 10kg counterweights and the Synscan computerised handset are supplied with both options.
The mount is also compatible with the optional Synscan Wi-Fi adaptor and Synscan Pro Apps which can control the mount wirelessly.
Comes with a 5-year warranty.
Improvements over the previous EQ8 model include:
Cable management system for reduced tangling.
Improved Connectivity.
Improved installation position of motors for improved balance.
The improved clutch mechanism provides more holding strength.
Improved dovetail groove knob for added comfort and increased locking power.
Belt drive on the RA and DEC axes for quiet slewing (previously only the RA axes was belt driven).
Permanent Periodic Error Correction
The EQ8 mount is equipped with an index on its R.A. worm thus the motor controller can keep tracking the current position of the worm. After a proper PEC training routine, in which the training data is stored in the motor controller permanently, a user can start the periodic error correction (PEC) at any time to improve the tracking performance for short focal length astrophotography. A training process is not required in the next observing session (assuming that the polar alignment is always accurate), thus this is a Permanent Period Error Correction (PPEC). A user can train the mount with manual guiding or auto-guiding. For detailed instructions,
Batch Exposures Function
The EQ8 mount is equipped with a SNAP port which can control the shutter release of a camera. Working with the SynScan hand control’s “Camera Control” function, a user can take batch exposures when doing astrophotography. Up to 8 groups of “Exposure-time & Frames” combinations can be set on the SynScan hand controller. For detailed information, refer to the SynScan hand control’s instruction manual.
Auto-Home Function
The EQ8 mount is equipped with two home position sensors. Working with the SynScan hand controller, the mount can be placed to the same home position after turning on the power. For detailed information, refer to the SynScan hand control’s instruction manual.
The diagram below will be useful to those wanting to mount an EQ8 head to an existing pier.
Payload Capacity (excl. counterweights)
50kg
Latitude Adjustment Range
10° to 65°
Azimuth Adjustment Range
+/- 10°
Mount Head Weight (excl. tripod)
25.8kg
Pier Tripod (optional)
29.4kg
Counterweights
2 x 10kg
Counterweight Rod
2.6kg
Power Requirement
11 to 16 Volts DC (Higher voltage preferred), 55W
Motors
0.9° Hybrid Stepper Motor
Transmission
435:1 Worm Drive + 256 Micro-Step/0.9° Stepper Motor
Resolution
44,544,000 Counts/Rev, approx 0.03 Arc-Second
Maximum Slewing Speed
3.7° per Second
Tracking Rates
Sidereal, Solar and Lunar Rates
Auto-Guiding Speeds
0.125x, 0.25x, 0.5x, 0.75x & 1x
PPEC
200 Segments Permanent PEC
Polar Alignment
By software control or optional Polarscope
Hand Controller
Synscan with 42,900+ Object Database
Remote Control
Control also possible with Synscan Pro Application for Windows via USB, Synscan Pro App for iOS and Android with optional Wi-Fi Dongle
Additional Ports
4 x USB Ports and 3 x Power Outlets for Peripheral Devices
Connectivity
Paired RJ10, RJ12 and RJ45 modular jacks
DSLR Control
DSLR Snap Port / Batch Exposures Function
Home
Auto Home Function
Synscan Celestial Object Catalogue
Messier, NGC, IC, SAO, Caldwell, Double-Star, Variable Star, Named Star, Planets
