The 10x42 Endeavor ED II Binocular features Extra-low Dispersion (ED) glass and phase-corrected BaK4 prisms that work together to virtually eliminate chromatic aberration, which produces images with true color fidelity across the entire field of view and enhanced contrast. Complementing the glass and prisms are anti-reflection fully multicoated optics that improves light transmission for bright and clear images, with greater low-light performance.
An open-bridge design helps to reduce weight without sacrificing strength, and provides a large surface area to hold. Pebbled rubber armoring helps to give protection from drops and impacts while helping to provide a non-slip grip. Designed for durability, the lightweight magnesium-alloy housing is nitrogen-filled and o-ring sealed for water and fogproof performance, and the 3-stage click-stop twist-up eyecups provide a custom-fit eye relief for use with or without eye-wear.
- Optical Performance
-
- 10x magnification
- 42mm objective lens diameter
- Extra-low dispersion (ED) lenses virtually eliminates chromatic aberration for true color transmission across the entire field of view
- Phase-corrected BaK4 prisms provides improved light reflection, high-contrast, and true color fidelity
- Anti-reflection fully multicoated optics enhances low-light performance
- 65° wide-angle apparent field of view
- 340ft field of view at 1000 yd
- Use and Handling
-
- Knurled center focus wheel
- Open-bridge design reduces weight and provides a more comfortable grip
- 3-stage click-stop twist-up eyecups for use with or without eye-wear

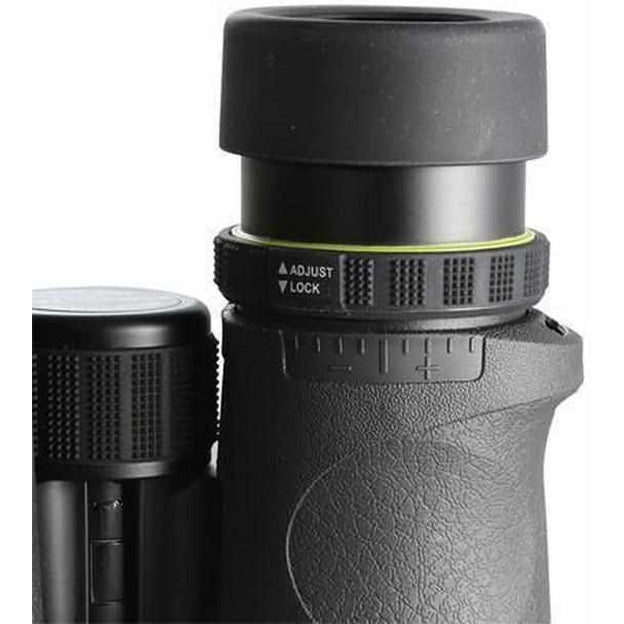

- Right-eye locking diopter adjustment
- Tripod mountable with optional adapter
- Construction Details
-
- Durable magnesium-alloy housing
- Nitrogen-filled and o-ring sealed for water and fogproof performance
- Pebbled rubberized protective housing armor
- Flip-down tethered objective lens covers
| WARRANTY | Applicable by national law |
| DIAMETER OF OBJECTIVES | 42mm |
| DIMENSIONS (L X W) | 154 x 130 |
| EYE CUP | 3 stops Twist-out eyecups |
| FIELD OF VIEW @1000M | 114 |
| FOCUS SYSTEM | Center Focus |
| LENS COATING | Fully multi-coated |
| NEAR FOCUS (M) | 2 |
| OCULAR ADJUSTMENT | ±4 |
| PHASE COATING | Yes |
| POWER | 10 |
| PRISM TYPE | BaK4 |
| RELATIVE BRIGHTNESS | 17.6 |
| TWILIGHT FACTOR | 20.4 |
| VIEW ANGLE | 6.5 |
| WATERPROOF | Yes |
| WEIGHT (OZ) | 27.16 |
