About this product

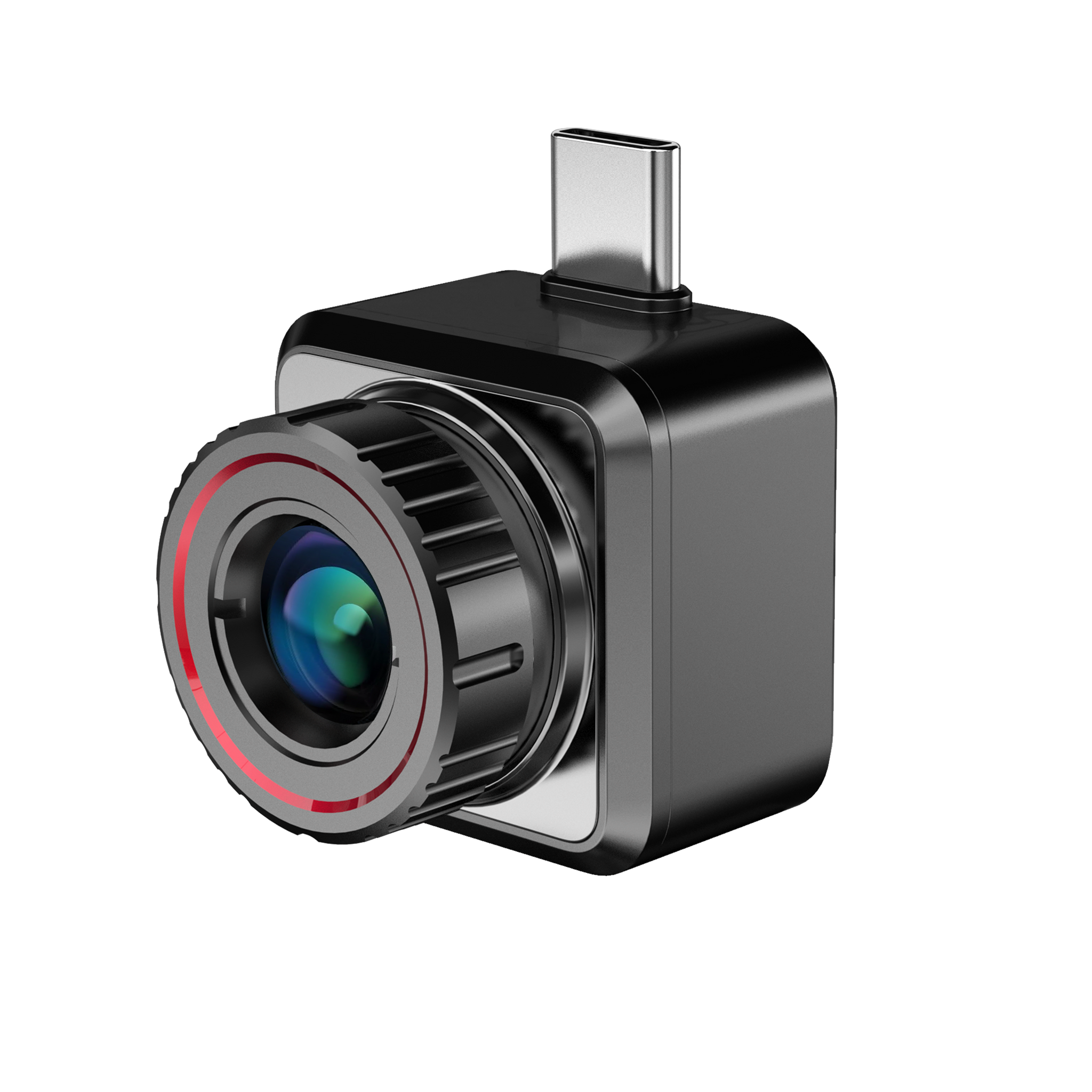

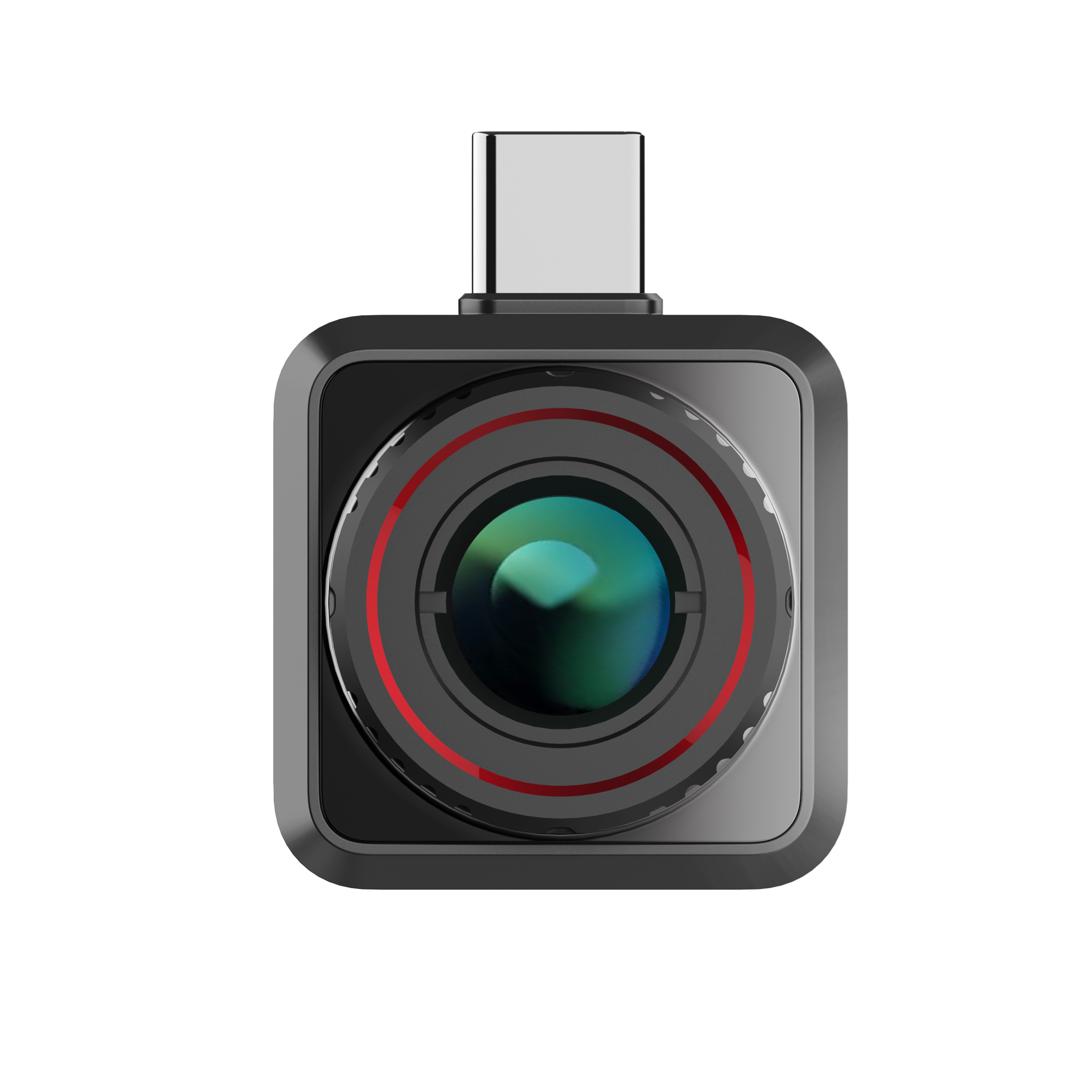

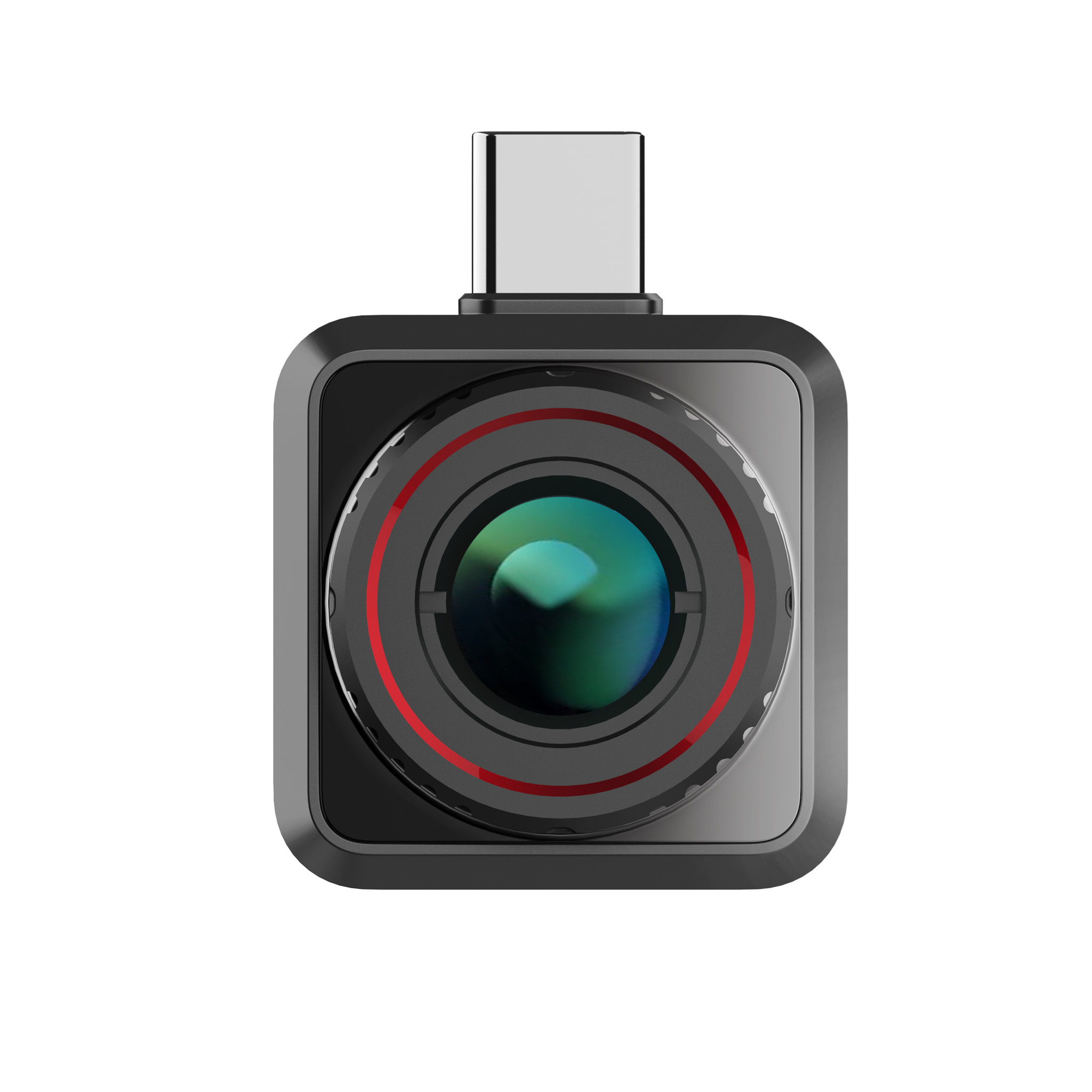

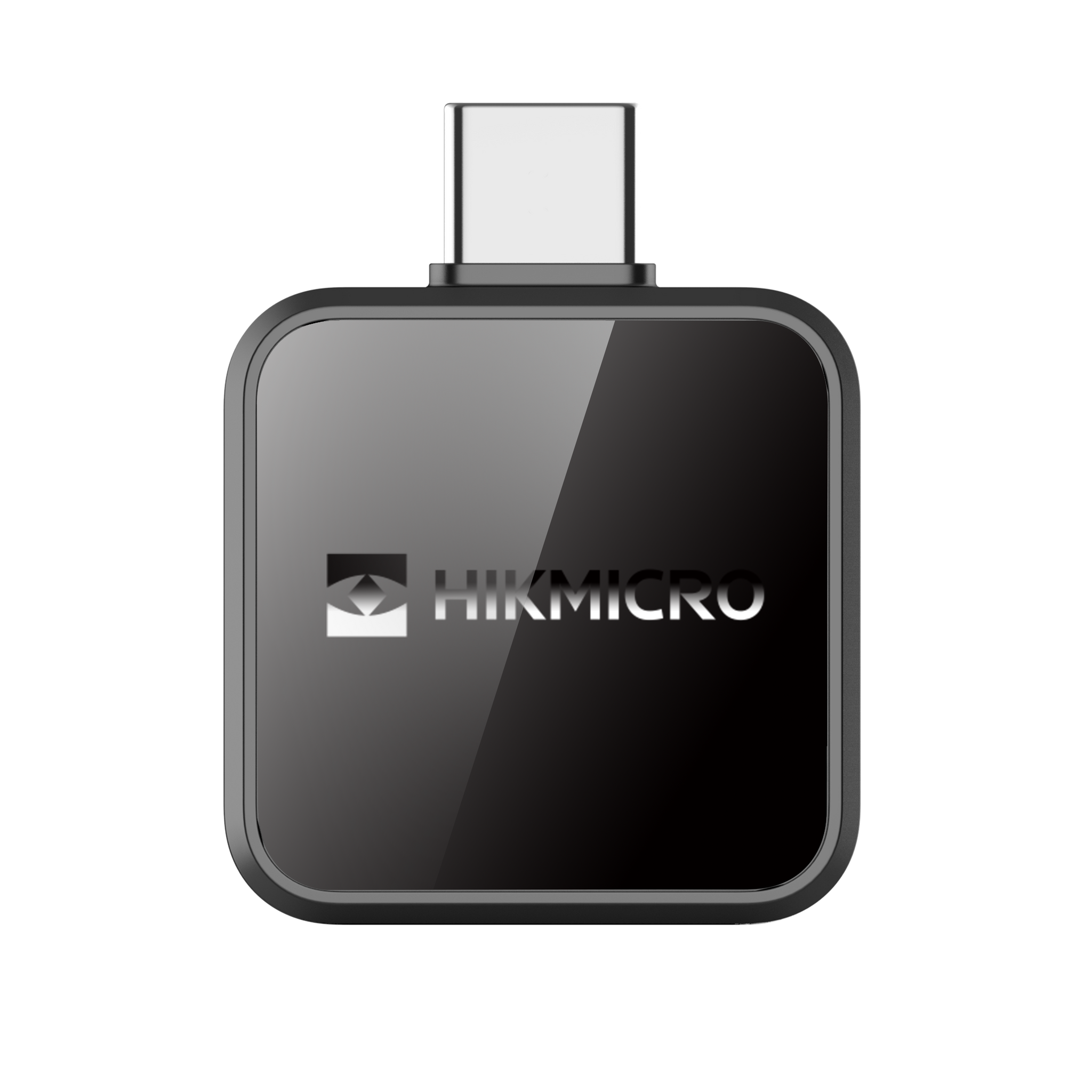

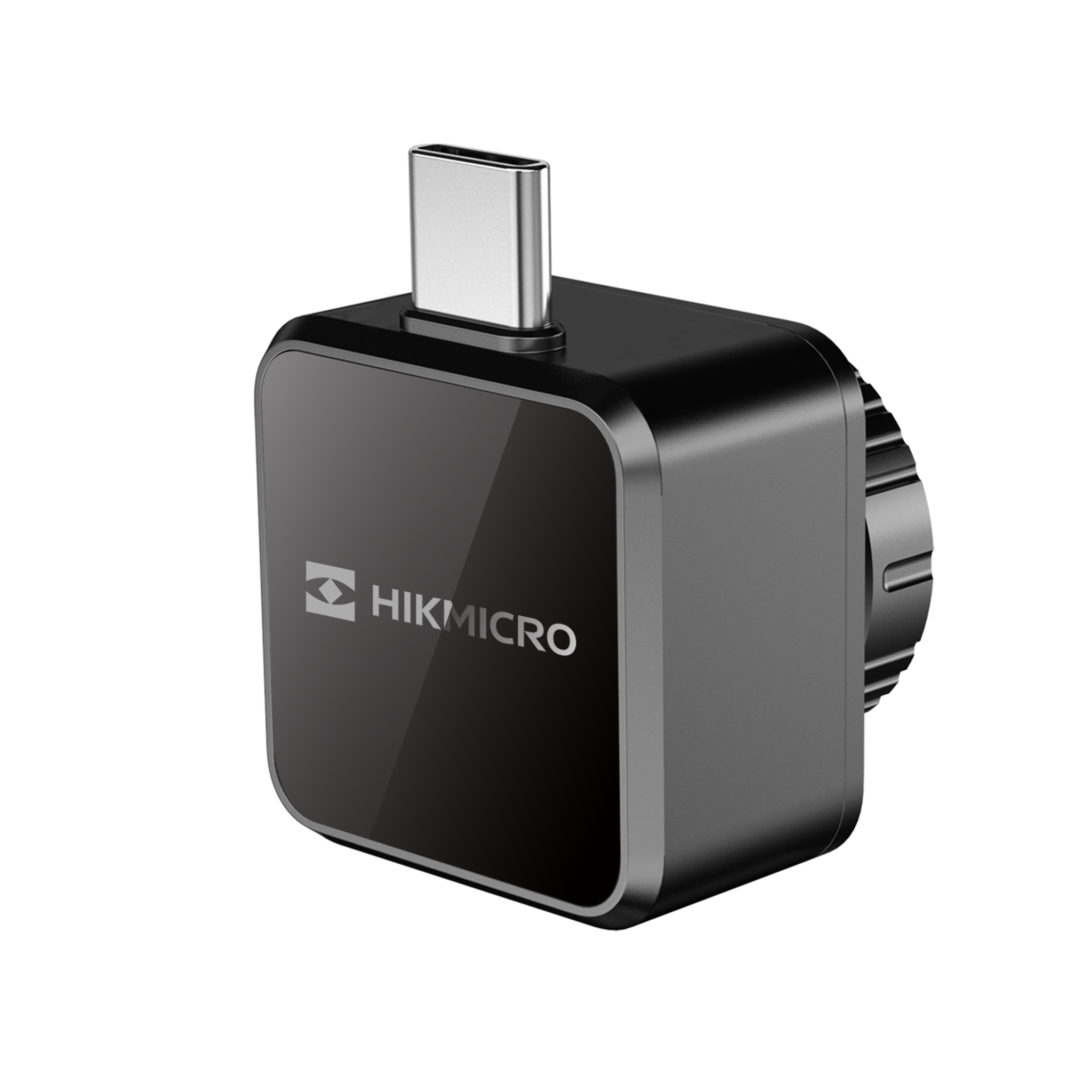

HIKMICRO Explorer E20 Plus for Android thermal camera for smartphones. USB Type-C Android thermal imaging camera with 256 x 192 VOx thermal detector, 12 micron pixel pitch, 50 Hz frame rate, 9.7 mm F1.0 lens, 970 m detection range, 18.1 x 13.6 degree field of view, HIKMICRO Sight app support, birdwatching mode, red hot, white hot, black hot, rainbow, ironbow, video recording, snapshot capture, picture-in-picture, digital magnetic compass, hot track, compact 26 g body and low 360 mW power consumption.
HIKMICROExplorer Series
EXPLORER E20 Plus Thermal Camera for Android
A mini day-and-night thermal world in your hand. The HIKMICRO EXPLORER E20 Plus plugs into a compatible Android smartphone by USB Type-C, giving you portable thermal vision for outdoor observation, bird searching, camping, hiking, nature watching and night-time awareness.
256 x 192 Thermal Detector50 Hz Smooth Imaging970 m Detection RangeAndroid USB-COnly 26 g
256 x 192Thermal Resolution Detailed thermal imaging from a compact VOx detector.
50 HzFrame Rate Smoother viewing when scanning or following movement.
970 mDetection Range Long-range thermal awareness in a pocket-sized body.
26 gUltra-Light Body Smaller than a watch and easy to take anywhere.
Application Scenarios
Perfect for Outdoor Nature Observation
The EXPLORER E20 Plus is made to carry outdoors. With its 256 x 192, 12 μm thermal camera, 9.7 mm lens and wide 18.1° x 13.6° field of view, it helps users find and identify hidden heat signatures in complex surroundings.
Useful for bird searching and observing nature during the day or night.
Great for camping trips, hiking, farm checks and general outdoor scanning.
Wide 31.8 m x 23.8 m field of view at 100 m for easy handheld viewing.
Compact enough to keep in a pocket, vehicle kit, backpack or day bag.
Plug and Go
Easy to Use with HIKMICRO Sight
Simply connect the E20 Plus to a compatible Android smartphone and start exploring through the HIKMICRO Sight app. The app gives access to live thermal viewing, palettes, brightness, contrast, recording, snapshots and more.
USB Type-C interface for supported Android phones.
HIKMICRO Sight app operation for live view and controls.
Quick setup for portable thermal observation.
Phone bracket is not included and may be purchased separately if required.
Mini in Pocket
Smaller Than a Watch
At less than 26 g, the E20 Plus is built for grab-and-go thermal viewing. It is small enough to carry without thinking about it, but capable enough to make a phone far more useful in the outdoors.
Ultra-compact 26.6 mm x 26.6 mm x 27.2 mm body.
Only 26 g, making it easy to keep with your phone accessories.
Battery-free design means there is no separate thermal camera battery to charge.
Powerful and Clear
Image Matches Your Visual Experience
The 256 x 192 @ 12 μm thermal detector, 9.7 mm lens and wide field of view are designed to create a thermal image that feels natural for outdoor scanning. This makes it easier to understand the scene through your phone screen.
256 x 192 VOx uncooled focal plane array detector.
9.7 mm F1.0 lens for bright thermal viewing.
18.1° x 13.6° field of view for comfortable handheld scanning.
Fluid and Fun
Smoother HDR Thermal Image
Filming at 50 Hz, the E20 Plus delivers smoother thermal viewing. Every image is enhanced for a higher dynamic range, helping the thermal image remain usable across different outdoor scenes.
50 Hz frame rate for fluid viewing.
Enhanced image presentation for outdoor thermal observation.
Ideal when panning, scanning or following movement.
Multiple Modes
Extra Birdwatching Mode Available
Six palettes are provided to meet different observation needs. Choose a simple hot-and-cold view for scanning, or switch to colour palettes when you want clearer visual separation between different heat levels.
BirdwatchingDedicated outdoor mode for spotting birds and small heat signatures.
White HotHotter targets appear lighter for general thermal scanning.
Black HotHotter targets appear darker for strong silhouettes.
Red HotHighlights hotter areas in red for fast visual recognition.
RainbowColour palette for separating different temperature areas.
IronbowHigh-contrast palette for thermal detail and scene awareness.
Battery-Free Design
Low Power Consumption for Long Outdoor Use
With a battery-free design and ultra-low power consumption, the E20 Plus is made for all-day carry. It draws power through the Android phone’s USB-C interface, so there is no separate battery pack to charge before heading out.
USB Type-C power supply from the connected Android phone.
Low 360 mW power consumption.
No separate camera battery to maintain.
Long Detection Range
Observe Heat Signatures up to 970 m
Despite its compact size, the EXPLORER E20 Plus offers a long detection range of up to 970 m. This gives users an easy way to scan larger outdoor areas from a phone screen.
970 m detection range in a compact smartphone accessory.
Wide field of view helps make scanning more natural.
Great for outdoor awareness, nature observation and locating heat signatures.
Product images and thermal example views are for reference only. Actual image effect will vary depending on device, environment, distance, temperature contrast, phone display and app settings.
How It Works
The E20 Plus is designed to be quick: install the app, connect the camera, allow access and start viewing.
1
Install HIKMICRO SightInstall the HIKMICRO Sight Android app before use.
2
Connect by USB-CPlug the E20 Plus into a compatible Android smartphone.
3
Allow USB AccessWhen prompted, allow the app to access the USB device.
4
Start ExploringUse live view, palettes, snapshots, video and hot tracking.
Complete Specifications
All key specifications are grouped below for easy comparison.
General
Product Model
E20Plus
Product Type
Thermal camera for Android smartphones
Series
HIKMICRO EXPLORER Series
Phone Platform
Android smartphones
Connection
USB Type-C interface
Recommended App
HIKMICRO Sight
Primary Use
Outdoor observation, bird searching, camping, hiking, nature watching, night-time scanning and general thermal spotting
Thermal Module
Image Sensor
VOx uncooled focal plane arrays
Maximum Resolution
256 x 192
Frame Rate
50 Hz
Pixel Interval
12 μm
Response Waveband
8 μm to 14 μm
NETD
Less than 50 mK at 25°C, F# = 1.0
Lens Focal Length
9.7 mm
Aperture
F1.0
Detection Range
970 m
Magnification
1x to 2x, digital zoom 2x
Field of View
18.1° x 13.6°
Field of View at 100 m
31.8 m x 23.8 m
Image Display
Image Modes
Birdwatching, Red Hot, White Hot, Black Hot, Rainbow, Ironbow
Contrast Adjustment
Adjustable from 0 to 100 by slider control
Brightness Adjustment
Adjustable from 0 to 100 by slider control
Full-Screen Live View
Supported through HIKMICRO Sight app
Mirror Function
Supported through HIKMICRO Sight app
Reticle Function
Supported through HIKMICRO Sight app
System Functions
Record Video
Yes
Capture Snapshot
Yes
Picture-in-Picture
Yes
Digital Magnetic Compass
Yes
Hot Track
Yes
Snapshot Format
JPG
Snapshot Resolution
720 x 960
Video Format
MP4
Video Recording Duration
2 seconds to 2 hours, depending on phone storage and app limits
Power, Build & Environment
Power Supply
USB Type-C interface
Power Consumption
360 mW
Working Temperature
-10°C to 50°C
Dimensions
26.6 mm x 26.6 mm x 27.2 mm
Weight
26 g
Protection Level
IP40
Main External Parts
Focus ring, Type-C interface, thermal lens
Android Phone Requirements
Operating System
Android 7.0 and above recommended
Processor
1 GHz dual-core processor or better
RAM
1 GB or higher
Screen Resolution
800 x 480 and above
Required App Permissions
File and Media; Camera
USB Capability
OTG USB capability may be required on some mobile phones
Compatibility Note
Compatibility can vary by phone model, Android version, USB-C implementation, OTG support and app version. Check your phone before purchase where possible.
Mini Day & Night World on Hand
The HIKMICRO EXPLORER E20 Plus is a compact way to add thermal vision to a compatible Android phone, combining a 256 x 192 detector, smooth 50 Hz viewing, multiple palettes, snapshot capture, video recording and long-range thermal detection in a pocket-sized 26 g accessory.
