HIKMICRO LYNX LQ35L 3.0 640x512 Thermal Monocular + LRF

SKU: LQ35L 3.0

HIKMICRO LYNX LQ35L 3.0 640x512 Thermal Monocular + LRF - Jacobs Digital
HIKMICRO LYNX LQ35L 3.0 640x512 Thermal Monocular + LRF - Jacobs Digital
HIKMICRO LYNX LQ35L 3.0 640x512 Thermal Monocular + LRF - Jacobs Digital
HIKMICRO LYNX LQ35L 3.0 640x512 Thermal Monocular + LRF - Jacobs Digital
HIKMICRO LYNX LQ35L 3.0 640x512 Thermal Monocular + LRF - Jacobs Digital
HIKMICRO LYNX LQ35L 3.0 640x512 Thermal Monocular + LRF - Jacobs Digital
HIKMICRO LYNX LQ35L 3.0 640x512 Thermal Monocular + LRF - Jacobs Digital
HIKMICRO LYNX LQ35L 3.0 640x512 Thermal Monocular + LRF - Jacobs Digital

Our Price

$3,676.00

$3,676.00

Green truck Accepting Preorders | ETA June An order for this can be placed with our supplier, and usually ships within the specified timeframe.



Loading
Delivery truck More on the way

Estimated time of arrival:


2000

367600

Shipping calculated at checkout

When will I receive it?

About this product

The HIKMICRO LQ35L 3.0 pairs ultra-sensitive sub-15mK NETD performance with a high-resolution 640 × 512 thermal detector, a 35mm F1.0 lens, and an integrated laser rangefinder, giving it excellent long-range capability, reliable image detail, and accurate distance measurement in demanding North and South Island conditions. Whether scanning paddocks at night, working the edges of dense bush, or glassing across open country on a cold, misty morning, the LQ35L 3.0 helps faint heat signatures stand out clearly. Its combination of sensitivity, detail, reach, and built-in ranging helps you pick up animals with confidence at greater distances.


The HIKMICRO LQ35L 3.0 pairs ultra-sensitive sub-15mK NETD performance with a high-resolution 640 × 512 thermal detector, a 35mm F1.0 lens, and an integrated laser rangefinder, giving it excellent long-range capability, reliable image detail, and accurate distance measurement in demanding North and South Island conditions. Whether scanning paddocks at night, working the edges of dense bush, or glassing across open country on a cold, misty morning, the LQ35L 3.0 helps faint heat signatures stand out clearly. Its combination of sensitivity, detail, reach, and built-in ranging helps you pick up animals with confidence at greater distances.

Hikmicro LQ35 3.0 Thermal Monocular Lifestyle Image


With its 1.9× base magnification, 640 × 512 detector, and 35mm F1.0 lens, the LQ35L 3.0 delivers outstanding performance for hunters who want increased image detail without sacrificing field coverage. Its 12.5° field of view and detection range of up to 1800 m make it an excellent choice for scanning large areas while still picking up distant heat signatures with clarity. The addition of a built-in laser rangefinder (up to 1200 m) provides accurate distance measurement, giving you greater confidence when identifying and assessing targets. Combined with HIKMICRO’s proven shutterless imaging system, the LQ35L 3.0 offers smooth, uninterrupted viewing for serious users who demand premium thermal performance in the field.

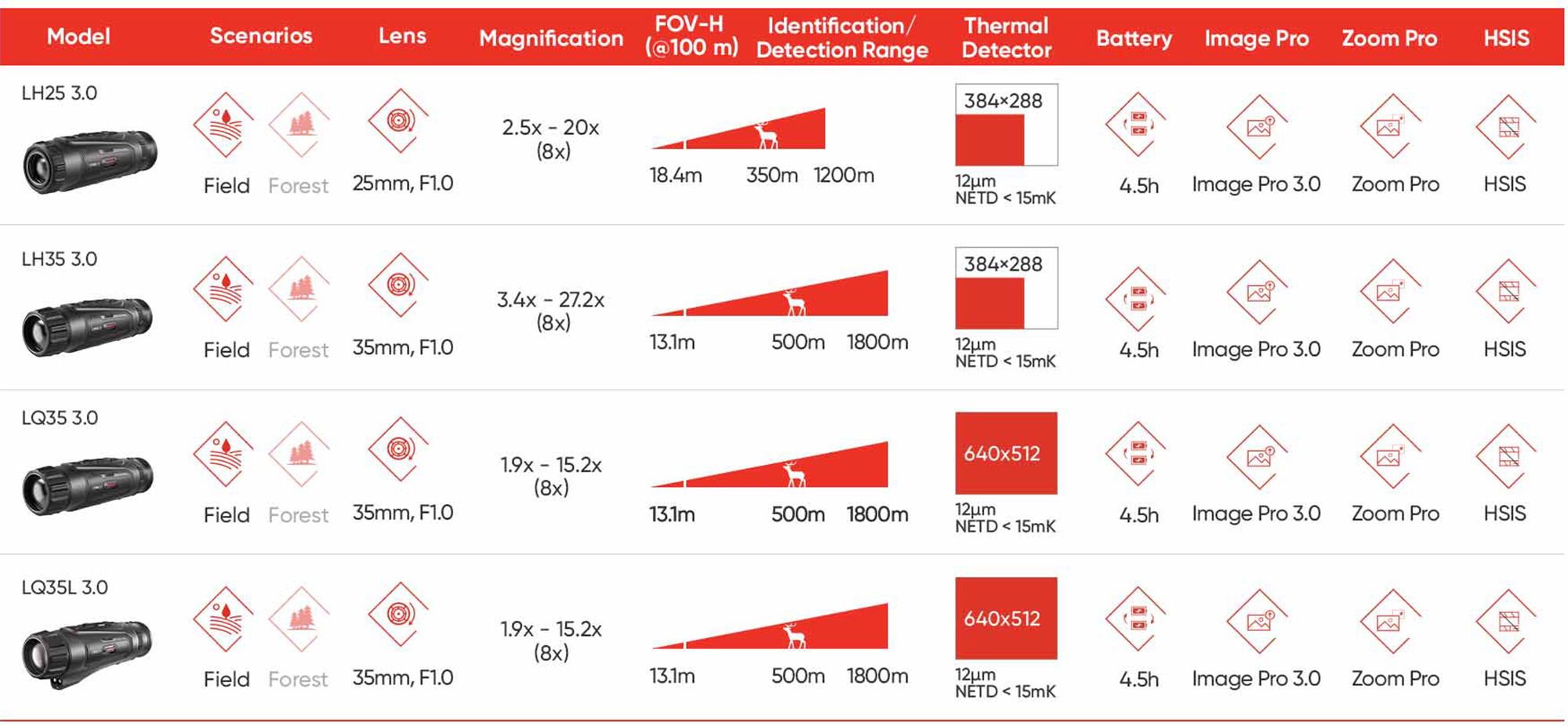

Lynx 3.0 Series Overview


15mK Ultra-High Thermal Sensitivity: Crystal-Clear Target Differentiation

The LYNX 3.0 boasts an impressive 15 mK thermal sensitivity—one of the best in its class—allowing it to detect even the faintest heat signatures in difficult hunting conditions. Whether you're out on a misty morning, navigating dense forest, or scanning open fields after dark, the LYNX 3.0 delivers clear target identification. From spotting a rabbit concealed in tall grass to tracking a fox along the tree line, it reveals every heat source with exceptional precision.


AI-Powered Image Pro 3.0 & Zoom Pro Algorithms: Detailed Views, Even at Full Magnification

LYNX 3.0 features HIKMICRO’s proprietary AI algorithms, Image Pro 3.0 and Zoom Pro, designed to deliver sharp and detailed images both at base magnification and when zoomed in. These features ensure you can accurately identify animals’ outlines and distinguish between species, even at longer distances. When a wild boar emerges from the woods 150 meters away. With the HIKMICRO thermal monocular LYNX 3.0, you zoom in to confirm its size and movement, clearly seeing its outline and distinguishing it from nearby shrubs.

Image Pro 3.0


169mm Length, Slip It Into Any Pocket


At just 169mm in length, the HIKMICRO LQ35L 3.0 is compact enough to slip easily into your pocket or hunting jacket, without compromising on performance. Its streamlined design makes it effortless to carry during long sessions in the field, whether you’re moving between spots or scanning your property at night. Lightweight and well-balanced, the LQ35 3.0 stays out of the way until you need it — ready to deploy instantly when you pick up movement, from foxes along the fence line to animals crossing open ground.

169mm in Length


355g Lightweight, Built for All-Day Carry
Weighing only 355g, LYNX 3.0 is designed for those who are always on the move. Hunters covering long distances or spending hours in the field will appreciate its featherlight build, reducing fatigue while keeping you ready for action at all times.

355 grams in weight


0.49" AMOLED Display: Premium Visuals for More Comfortable Observation
LYNX 3.0's vibrant 0.49" AMOLED screels from their surroundings, even in low-light conditions. Designed to minimize eye strain, this large display is perfect for extended hunts, giving new and veteran hunters alike the confidence to make precise decisions.

0.49

More Features

More Advantages

Detail, Not Just Numbers

The HIKMICRO LQ35L 3.0 combines a 640 × 512 thermal detector, sub-15mK sensitivity, a 35mm F1.0 lens, and advanced image processing to reveal clearer target shape, stronger contrast, and finer heat detail in real field conditions.

No Freezing

The LQ35L 3.0 uses HIKMICRO’s shutterless image system to keep the view smooth and uninterrupted, helping you scan, track movement, and stay focused without distracting calibration freezes.

Shutterless: Seamless

HIKMICRO’s proven shutterless technology, now included in the LYNX 3.0, ensures smooth, uninterrupted viewing during your hunts. Unlike traditional devices that freeze for calibration, the LYNX 3.0 delivers seamless thermal imaging, enabling you to stay focused on your target without distractions. While tracking a fox crossing a field at night, you stay locked onto its movement without any interruptions, thanks to the shutterless design. This allows you to act quickly and decisively.

2-Second Quick Start

The LYNX 3.0 powers up in just 2 seconds, ensuring you're ready to observe your target the moment you spot it. Whether in standby mode, auto screen off mode, or fully powered off, the device’s quick response time ensures no opportunity is lost. As you notice a wild boar suddenly emerges 100 meters away, from pocket to target, LYNX 3.0 helps you to get in 2 seconds, allowing you to lock onto the target without delay.

2.4GHz / 5GHz Wifi Connectivity

The LYNX 3.0 connects seamlessly to the HIKMICRO Sight App, letting you view, save, and share thermal images directly from your smartphone. Whether you're reviewing a clear image of a fox in the field or a wild boar in the dense forest, the app adds a social edge to your hunting adventures.

4.5h Battery Life

Despite its powerful features, the HIKMICRO LYNX 3.0 offers impressive battery life, enabling 4.5 hours of uninterrupted use in the field on a single charge. The replaceable battery design ensures you'll never be caught off guard during longer hunts. For longer outings, a quick battery swap keeps you going.

HIKMICRO LQ35L 3.0 Thermal Monocular

The HIKMICRO LQ35L 3.0 is a premium thermal monocular designed for professional hunting, wildlife observation, search and rescue, and mid-to-long-range use. It combines a 640 × 512 thermal detector, high thermal sensitivity, a 35 mm F1.0 lens, shutterless imaging, advanced image algorithms, a full-HD OLED display, built-in recording, Wi-Fi connectivity, replaceable rechargeable battery power, and an integrated laser rangefinder.

Key Features
Thermal Resolution 640 × 512
Detector Type VOx uncooled focal plane arrays
Thermal Sensitivity NETD < 15 mK at 25°C, F# = 1.0
Lens 35 mm, F1.0
Detection Range Up to 1800 m
Base Magnification 1.9×
Digital Magnification Range 1.9× to 15.2×, 8× zoom range
Display 0.49-inch AMOLED/OLED display, 1920 × 1080 resolution
Image Processing Image Pro 3.0, Zoom Pro, HIKMICRO Shutterless Image System / HSIS
Laser Rangefinder Built-in Class 1 laser rangefinder, 905 nm wavelength, up to 1200 m maximum measuring range
Battery System Replaceable and rechargeable 18650 Li-ion battery
Battery Runtime Up to 5 hours at 25°C with hotspot on; up to 4.5 hours at -20°C with hotspot on
Protection Rating IP67
Built-in Storage 64 GB built-in EMMC memory
What's in the Box
Item Quantity Notes
HIKMICRO LQ35L 3.0 Thermal Monocular 1 Main device
Rechargeable 18650 Battery 2 Replaceable Li-ion battery system; datasheet accessory reference HM-3632DC
Battery Charger 1 For charging the removable batteries
USB Type-C Cable 1 For charging or data connection
Lint-Free Cloth 1 For cleaning optical surfaces
Quick Start Guide 1 LYNX 3.0 Series quick setup and operation guide
Thermal Module Specifications
Specification Detail
Image Sensor VOx uncooled focal plane arrays
Maximum Resolution 640 × 512
Frame Rate 50 Hz
Pixel Interval 12 μm
Response Waveband 8 μm to 14 μm
NETD / Thermal Sensitivity Less than 15 mK at 25°C, F# = 1.0
Lens / Focal Length 35 mm, F1.0
Focus Mode Manual focus ring
Minimum Focusing Distance 3.5 m
Detection Range 1800 m
Magnification 1.9× to 15.2×
Digital Zoom Range
Field of View, Horizontal × Vertical 12.5° × 7.5°
Field of View at 100 m 21.9 m × 13.2 m at 100 m
Image & Display Specifications
Specification Detail
Display Type 0.49-inch AMOLED / OLED display
Display Resolution 1920 × 1080
Palettes Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Exit Pupil 6 mm
Eye Relief 20 mm
Diopter Range -5D to +3D
Brightness Adjustment Yes
Tone Adjustment Cold, Warm
Contrast Adjustment Yes
Zoom Pro Yes
Image Pro 3.0 Yes
HSIS Yes, HIKMICRO Shutterless Image System
System, Recording & Connectivity
Specification Detail
Video Recording Yes
Snapshot Capture Yes
Audio Recording Yes, built-in microphone
Standby Mode Yes
Built-in Memory 64 GB built-in EMMC
Picture-in-Picture Yes, PIP supported
Hotspot 2.4 GHz / 5 GHz Wi-Fi waveband
Hot Track Yes
Distance Measurement Yes, via integrated laser rangefinder
Local Album Yes
App Connection Supports app connection when Remote Access is enabled from the device menu
App Functions Firmware upgrade, browse and save moments, preview and remote control, how-to videos, repair records and warranty inquiry
Hotspot Name Format HIKMICRO_Serial No.
Hotspot Band Guidance Use 2.4 GHz if the smartphone does not support 5 GHz. 5 GHz is recommended for short-range use within approximately 5 m, such as mounting the device on a vehicle.
Laser Rangefinder Specifications
Specification Detail
Laser Rangefinder Built in
Laser Safety Class Class 1
Wavelength 905 nm
Maximum Measuring Range 1200 m
Minimum Measuring Range 5 m
Measurement Accuracy ±1 m
Power & Battery Specifications
Specification Detail
Battery Type Replaceable and rechargeable Li-ion 18650 battery
Battery Size 19 mm × 70 mm
Battery Rated Voltage / Capacity 3.635 V / 3300 mAh
Operating Time at 25°C 5-hour continuous running with hotspot on
Operating Time at -20°C 4.5-hour continuous running with hotspot on
USB Type-C Power Supply 5 V DC, 2 A
External Power Supply Supported
Direct Charging Supported
First Use Charging Guidance Charge the battery with the battery charger for more than 4 hours before first use
Charging Temperature Range 0°C to 55°C
Long-Term Storage Guidance Remove the battery if the device is not used for a long time
Physical & Environmental Specifications
Specification Detail
Protection Level IP67
Dimensions 173.3 × 66.8 × 49.3 mm
Weight 410.7 g with battery
Working Temperature -30°C to 45°C
Working Temperature, Fahrenheit -22°F to 113°F
Operating Humidity 90% or less
Tripod Mount Yes, tripod mount point included
Wrist Strap Hole Yes
Lens Cover Yes, protects the lens from dust or scratches
Device Controls & Operation
Control / Part Action Function
Focus Ring Rotate Adjusts focus to obtain clear targets
Power Key Press Standby mode / wake up device
Power Key Hold Power on / power off
Power Indicator Solid red Device is on
Up Key Press, non-menu mode Turns on laser ranging
Up Key Double-press, non-menu mode Turns off laser ranging
Up Key Hold, non-menu mode Starts / stops video recording
Up Key Menu mode Moves up
Mode Key Press, non-menu mode Switches palettes
Mode Key Hold, non-menu mode Enters the menu
Mode Key Press, menu mode Confirms / sets parameters
Mode Key Hold, menu mode Saves and exits menu
Down Key Press, non-menu mode Switches digital zoom
Down Key Hold, non-menu mode Corrects non-uniformity of display / FFC
Down Key Menu mode Moves down
Up Key + Mode Key Press together Captures snapshots
Diopter Adjustment Ring Rotate Adjusts the dioptric setting
Battery Compartment Open / close Holds the removable battery
Eyepiece View through Viewing point placed closest to the eye
Charging Status Indicator Flashing red and green Error occurred
Charging Status Indicator Solid red Charging
Charging Status Indicator Solid green Fully charged
Type-C Interface Connect cable Connects to power supply or transmits data
Battery Installation & Charging Notes
Step / Note Detail
Battery Installation Step 1 Slide to unlock and open the battery compartment cover
Battery Installation Step 2 Insert the battery into the compartment according to the positive and negative marks
Battery Installation Step 3 Close the battery compartment cover and slide to lock it
Device Charging Step 1 Lift the Type-C interface cover
Device Charging Step 2 Connect the device and power adapter with a Type-C cable to charge the device
Charging Temperature Make sure the battery temperature is between 0°C and 55°C when charging
Direct Charging Requirement Charge the device after the battery is installed in the battery compartment
Alternative Charging Method The battery can also be charged using the included battery charger
Model & Accessory Information
Item Detail
Available Model HM-TSF6-35Y1G/W1L-LQ35L 3.0
Included Battery Accessory Reference HM-3632DC Battery
Optional Accessory HM-OUTDOOR-POUCH Monocular Pouch
Optional Accessory HM-RMB-LF
