Hypershell X Max S
Authorised Dealer
Exoskeletons
SKU:
P903.GL000001.01
Our Price
AUD $3,260
/
Frequently bought with
The Hypershell X Max S is a 1000 W powered outdoor exoskeleton with dual 22 N·m motors, up to 30 km stated walking range per charge, ten adaptive movement modes, a removable 72 Wh battery, carbon-fibre and aluminium construction, IP54 protection and app-connected HyperIntuition™ control. Explore X Max S features, fit, runtime, specifications, included equipment and the Hypershell S-series comparison at Jacobs Digital New Zealand.
Jacobs Digital · Hypershell X Max S
Maximum mobility.
Minimal compromise.
The X Max S combines up to 1000 W of dual-motor assistance, a removable 72 Wh battery, ten adaptive modes and an outdoor-ready folding frame for mixed-terrain movement.
Exact model · five verified views

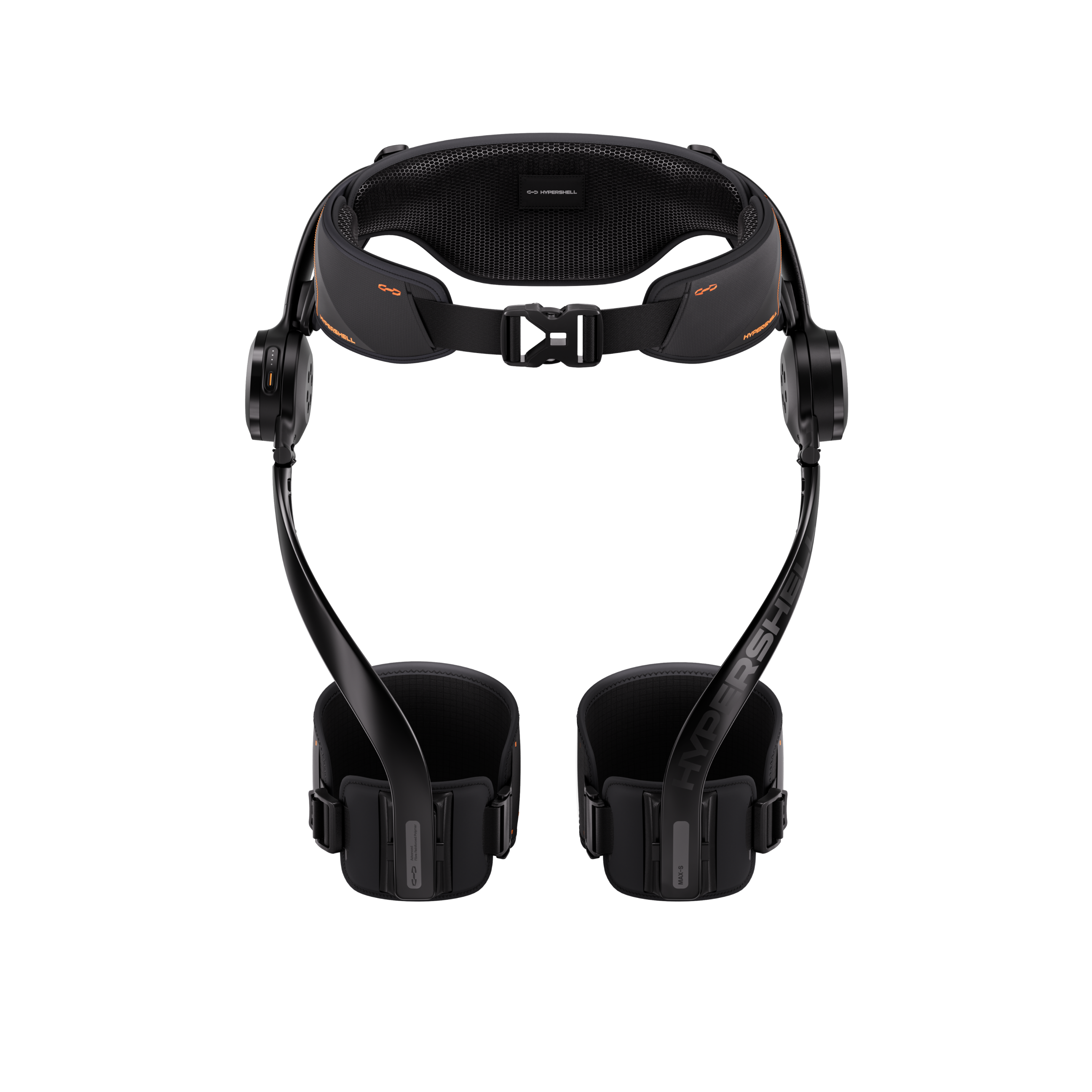

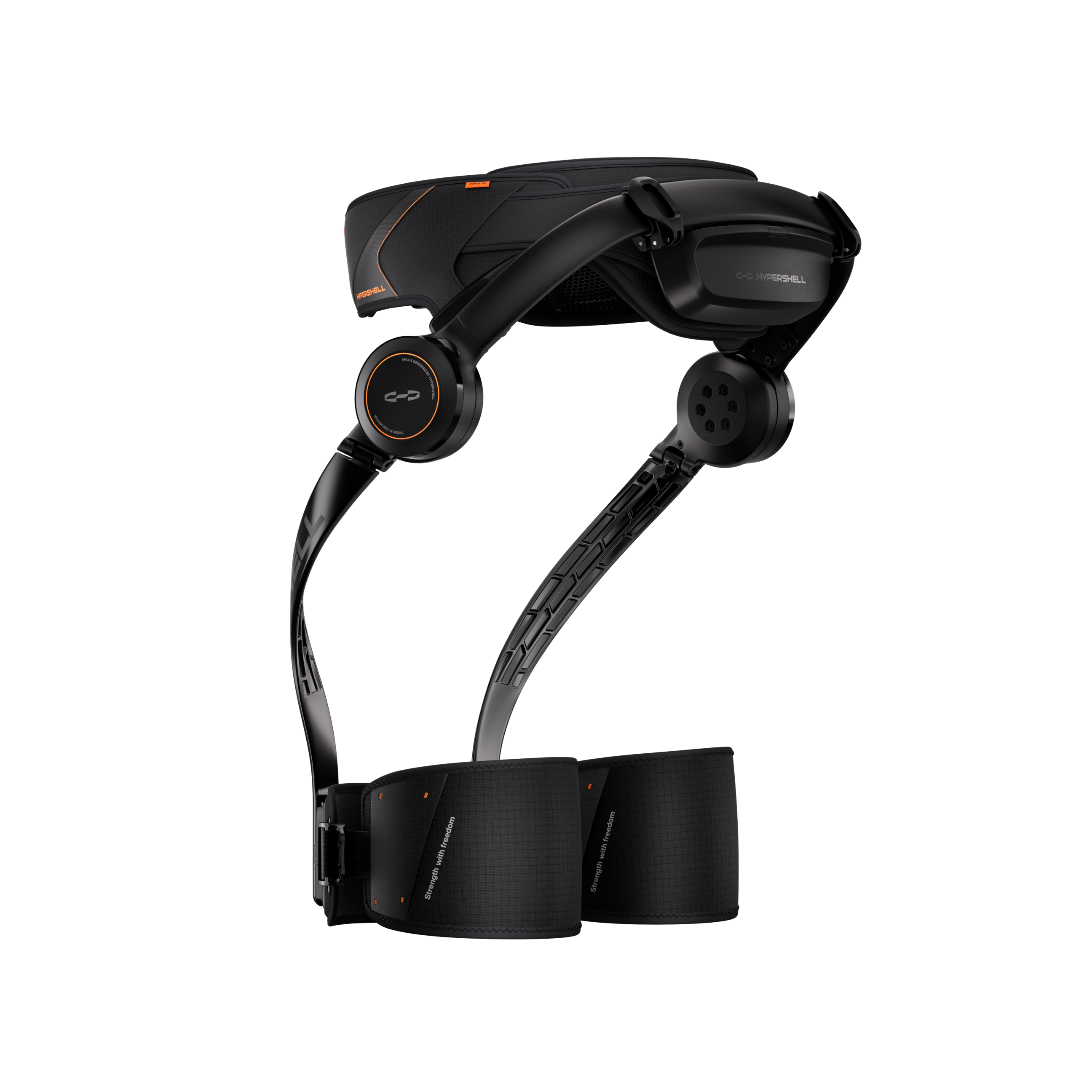

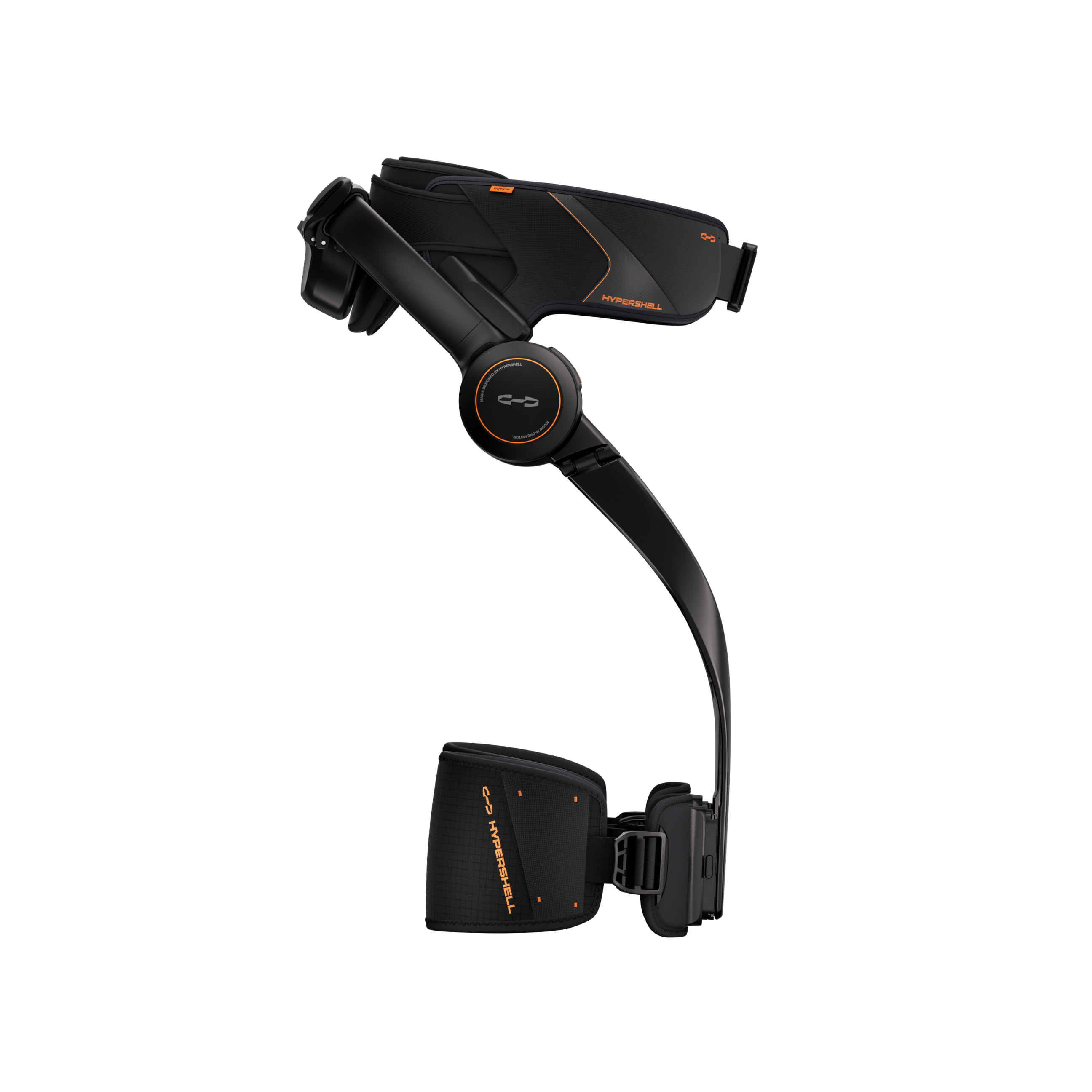

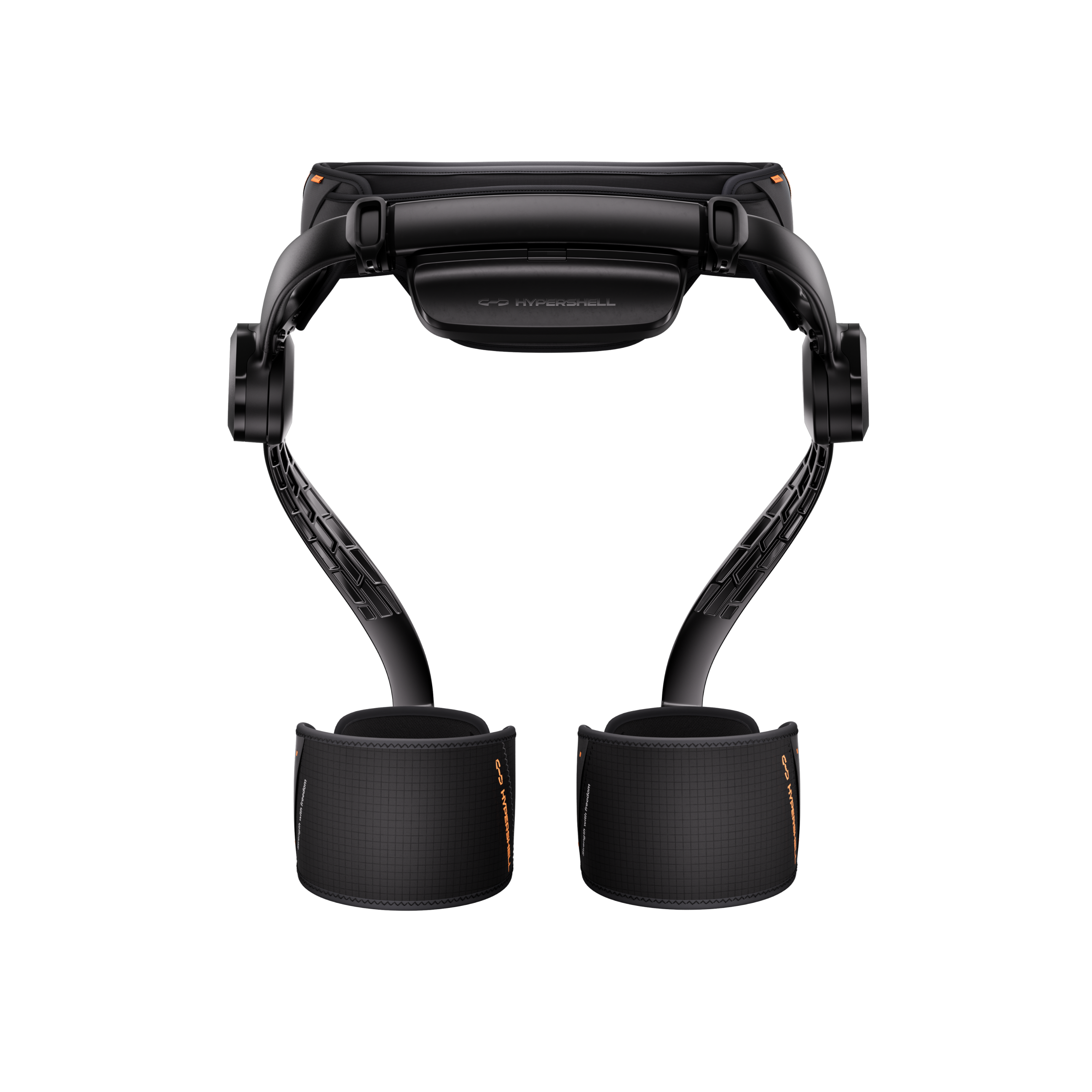

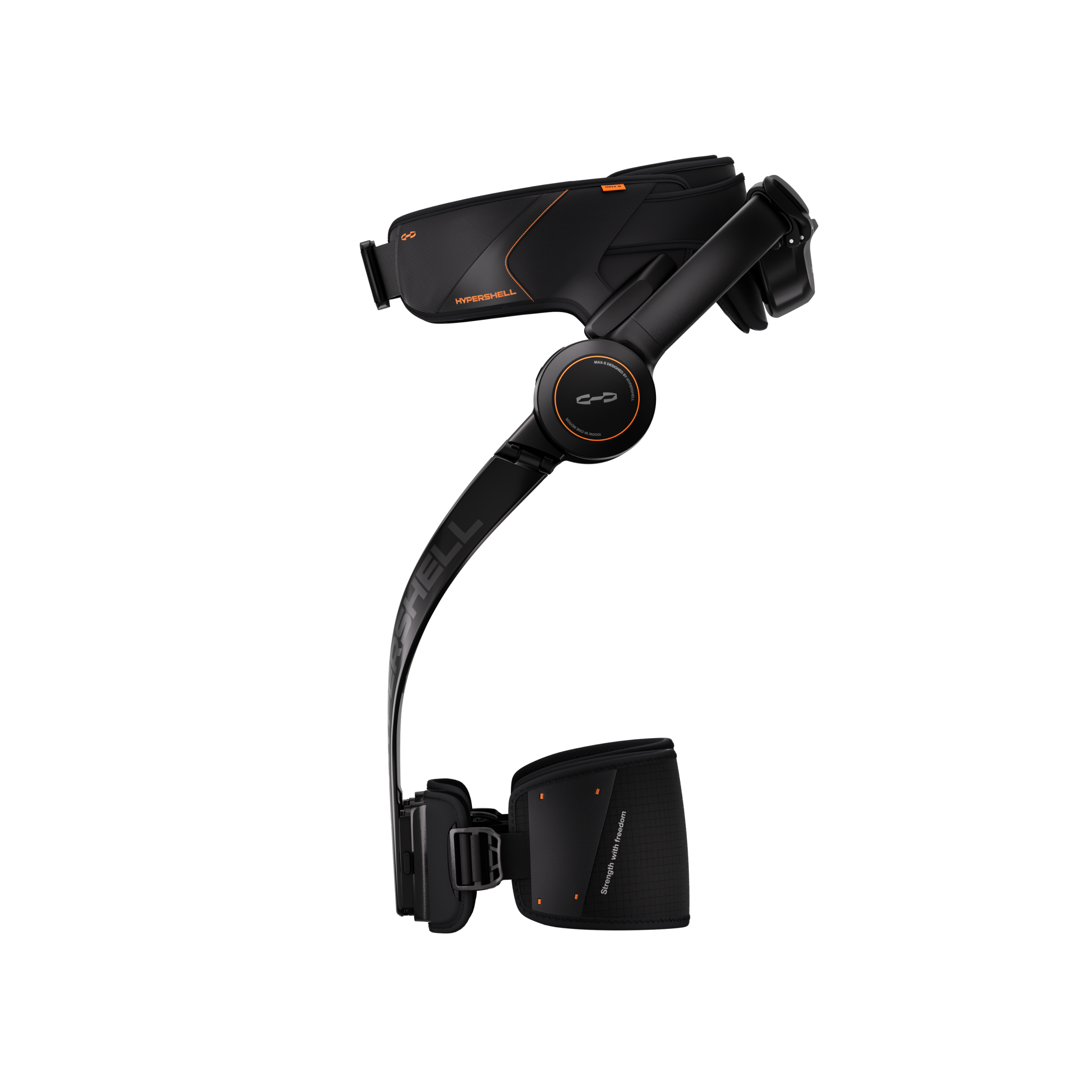

This is the Hypershell X Max S.
The X Max S difference
High-output assistance, explained without shared-model media.
Every visual product render on this listing is the X Max S. Features that do not have model-specific media remain text-led.
HyperIntuition™ control
Sensor data and end-to-end control are designed to recognise movement changes and time assistance in as little as 0.31 seconds.
Dual 1000 W-class system
The two motors reach a manufacturer-stated combined peak output of up to 1000 W and peak torque of up to 22 N·m × 2.
Removable 72 Wh battery
One intelligent battery is included, with up to 30 km stated walking range in Eco 30 under the official test conditions.
Ten movement modes
Assistance profiles cover stairs, slopes, walking, speed walking, cycling, running, mountains, gravel and resistance training.
Carbon fibre + aluminium
Carbon-fibre reinforced leg levers, aluminium-alloy hip tubes and stainless-steel hip levers balance strength and portability.
IP54 protection
The frame is rated for dust and splash resistance. It is not waterproof and must not be immersed or exposed to high-pressure water.
Instinct in sync
Sense. Decide. Assist.
HyperIntuition™ combines gait and terrain sensing with AI processing and dedicated motor control, then delivers assistance through the bilateral drive system.
Continuous decision loop
Two processors, one movement response.
- Input
- Precision sensor data
- Interpretation
- HyperIntuition™ end-to-end algorithm
- Control
- Dedicated motor-control processor
- Output
- Precisely timed bilateral assistance
Assistance profile
Support changes with the movement.
- Starts
- Assistance rises as movement begins
- Stops
- Output reduces as movement ends
- Terrain
- Profiles adapt to slopes and loose surfaces
- Cadence
- Support follows changes in step timing
Ten adaptive profiles
Choose support for the movement ahead.
Mode availability and behaviour can change with firmware and app updates. Always use a mode appropriate to the environment and your ability.
Up Stairs
Assistance tuned for repeated upward steps.
Down Stairs
Controlled support for descending steps.
Up Slope
Higher assistance for positive gradient.
Downhill
Damping support while descending.
Walking
Balanced support for everyday cadence.
Speed Walking
Quicker response for a faster pace.
Cycling
Assistance aligned with pedalling motion.
Running
Support for faster, higher-impact movement.
Mountain
Adaptive output for uneven elevation.
Gravel
Response tuned for loose surfaces.
Frame + fit
Built to move, fold and travel.
- Net weight
- Approximately 1.7 kg for the mechanism
- Wearing weight
- 2571 g with soft-wearing system and one battery
- Folded size
- 450 × 260 × 125 mm
- Packed volume
- Approximately 6.5 L
- Movement
- Up to 300° through the multidirectional hinge
Specifications
The X Max S, in detail.
Manufacturer-stated performance, battery, physical and product information for the P903.GL000001.01 configuration.
Performance + control
| Peak output | Up to 1000 W |
| Peak motor torque | Up to 22 N·m × 2 |
| Maximum assisted pace | Up to 25 km/h while running |
| Response time | As low as 0.31 seconds |
| Human–machine synchronisation | Up to 97.5% |
| Physical-exertion reduction | Up to 39% in stated testing |
| Heart-rate reduction | Up to 42% in stated testing |
| Muscle-fatigue reduction | Up to 63% in stated testing |
| Motion architecture | HyperIntuition™ end-to-end control |
| Adaptive modes | 10 |
Battery + runtime
| Included battery | Intelligent 72 Wh removable battery × 1 |
| Walking range | Up to 30 km in Eco 30 |
| Walking runtime | Up to 7.5 hours in stated testing |
| Mountain use | Up to 160 minutes / 13.8 km |
| Cycling use | Up to 102 minutes / 35 km |
| Supplied charger | 65 W |
| Charging connection | USB-C cable supplied |
| Optional charging accessory | Hypershell four-port charging hub |
| Range variability | Depends on user, assistance, terrain, gradient, load, pace, temperature and battery condition |
Frame + environment
| Net mechanism weight | Approximately 1.7 kg |
| Wearing weight | 2571 g, including soft-wearing system and one battery |
| Folded dimensions | 450 × 260 × 125 mm |
| Unfolded dimensions | 450 × 600 × 125 mm |
| Packed volume | Approximately 6.5 L |
| Movement range | Up to 300° through the multidirectional hinge |
| Hip levers / tubes | Stainless steel / aluminium alloy |
| Leg levers | Carbon-fibre reinforced polymer |
| Protection rating | IP54 dust and splash resistance |
| Operating temperature | −10 to 60°C |
Product + suitability
| Brand / model | Hypershell X Max S |
| Product code | P903.GL000001.01 |
| Supplier code | P9.03.GL000001.01 |
| APN / EAN | 6977518000317 |
| Mobile application | Hypershell app for setup, tuning, updates and activity insights |
| Compatible accessories | AeroFlex Hip Belt, AeroFlex Shoulder Strap and four-port charging hub |
| Required user capability | Must be able to walk independently, lift the legs and maintain balance without assistance |
| Medical-device status | Not a certified medical device |
| Protection limitation | Not waterproof or suitable for immersion or high-pressure water |
Included equipment
Included with the X Max S.
The standard package supplies one X Max S exoskeleton, one intelligent 72 Wh battery, 65 W charging equipment and printed safety and user documents.
Exoskeleton × 1

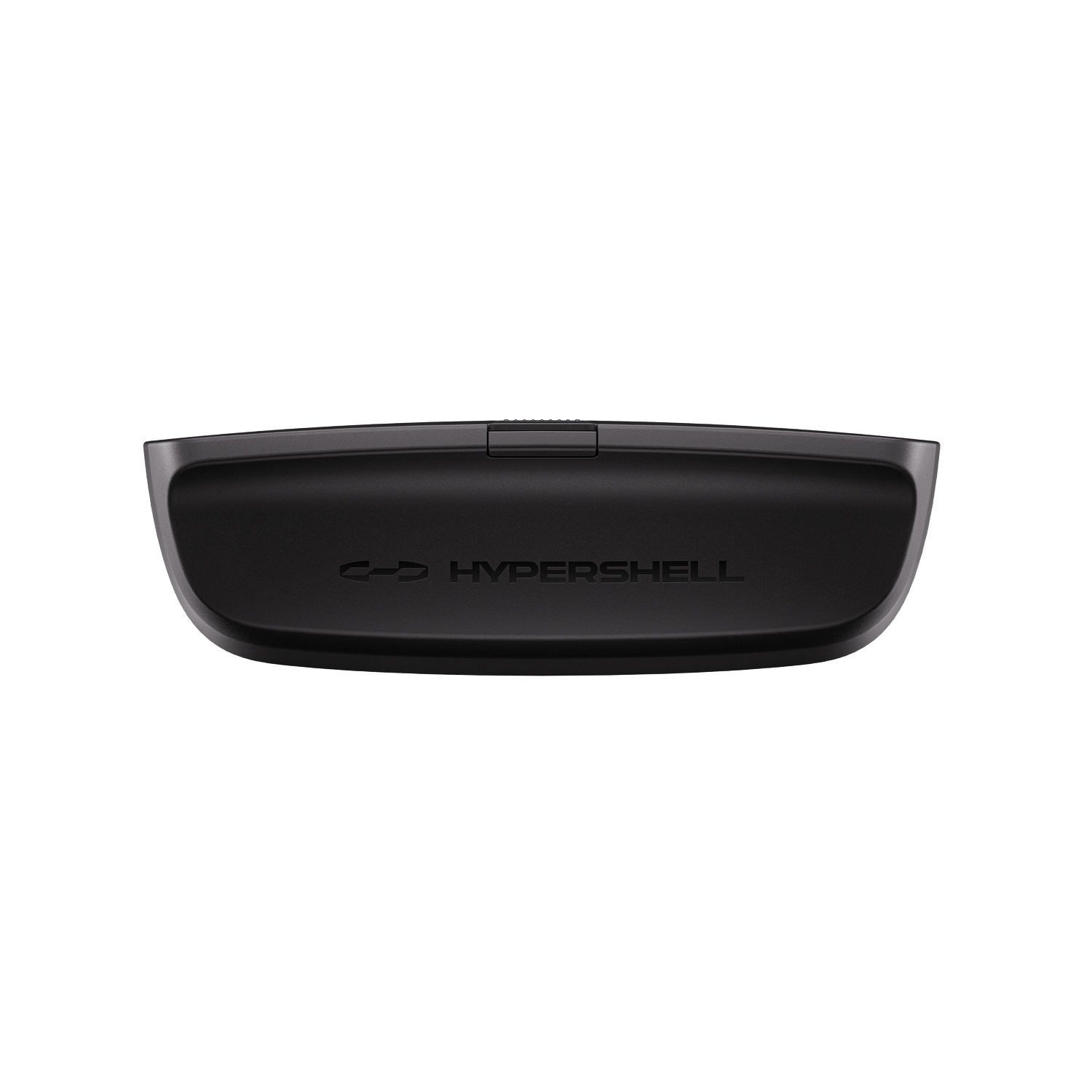

Intelligent Battery × 1

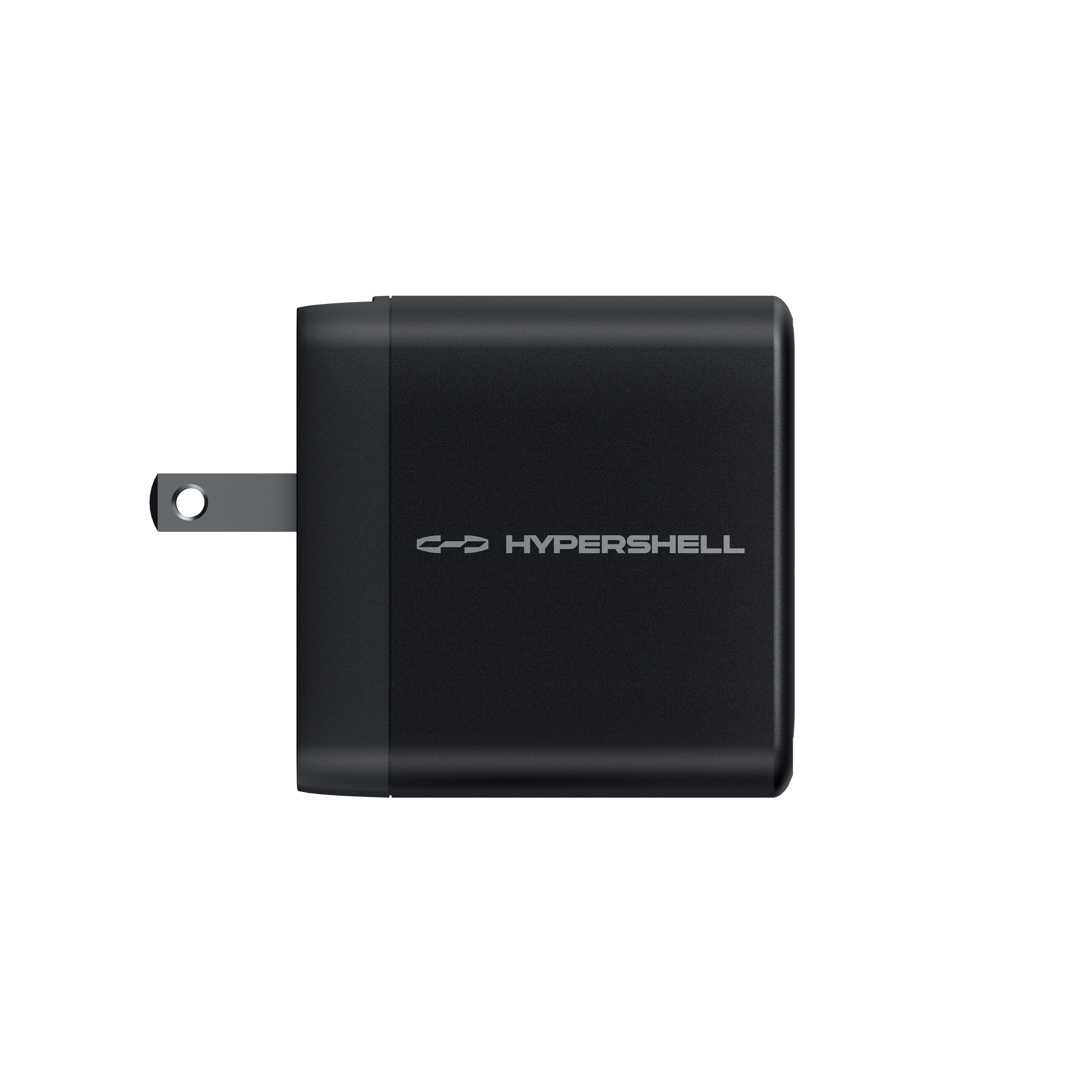

65W Charger × 1

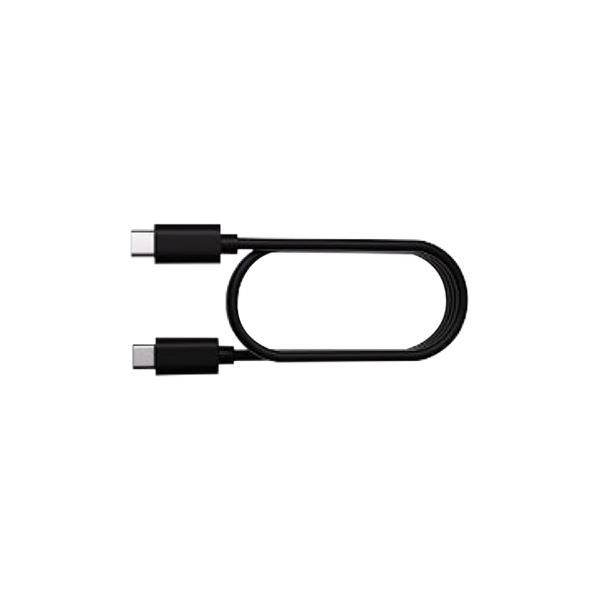

USB-C Cable × 1

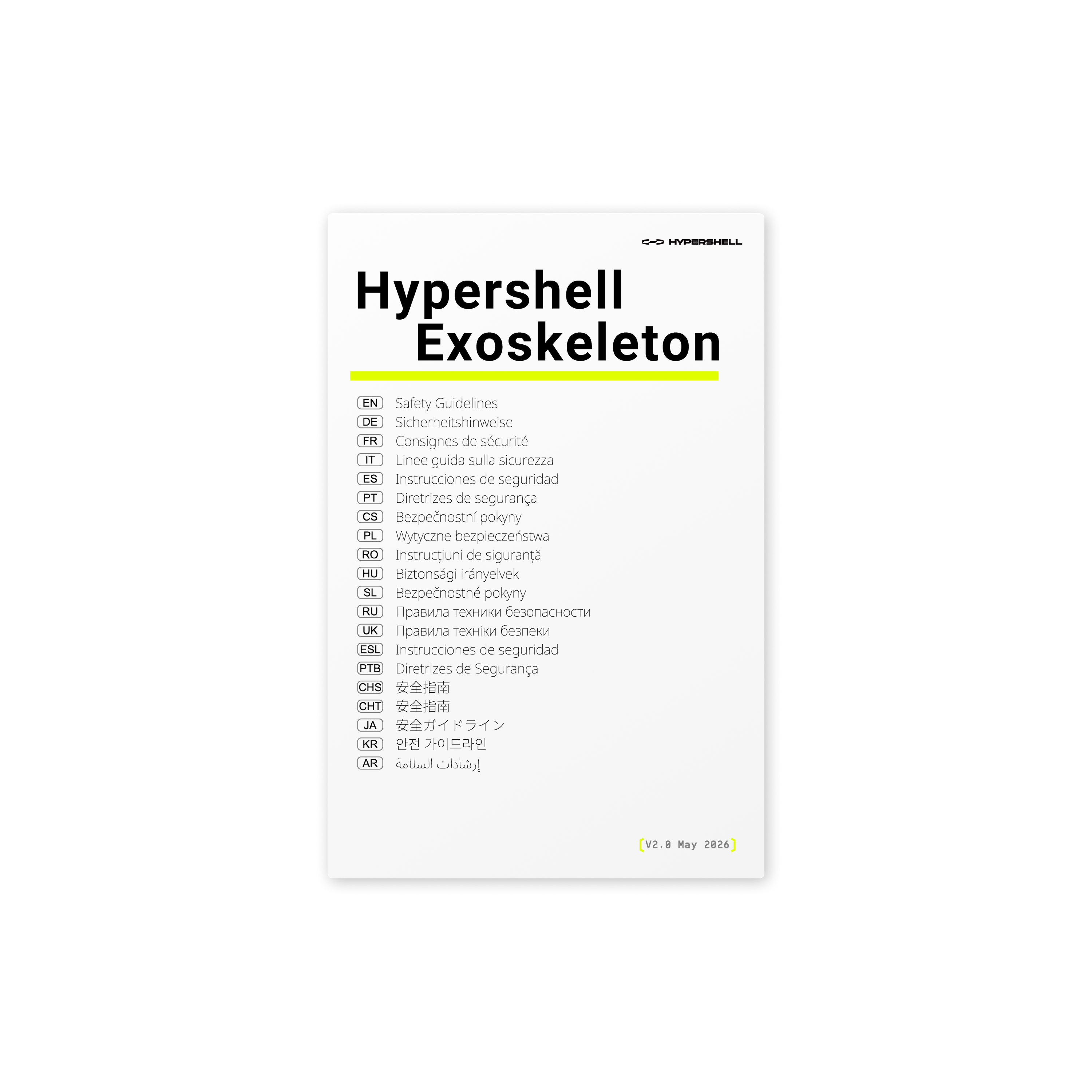

Safe Guidelines × 1

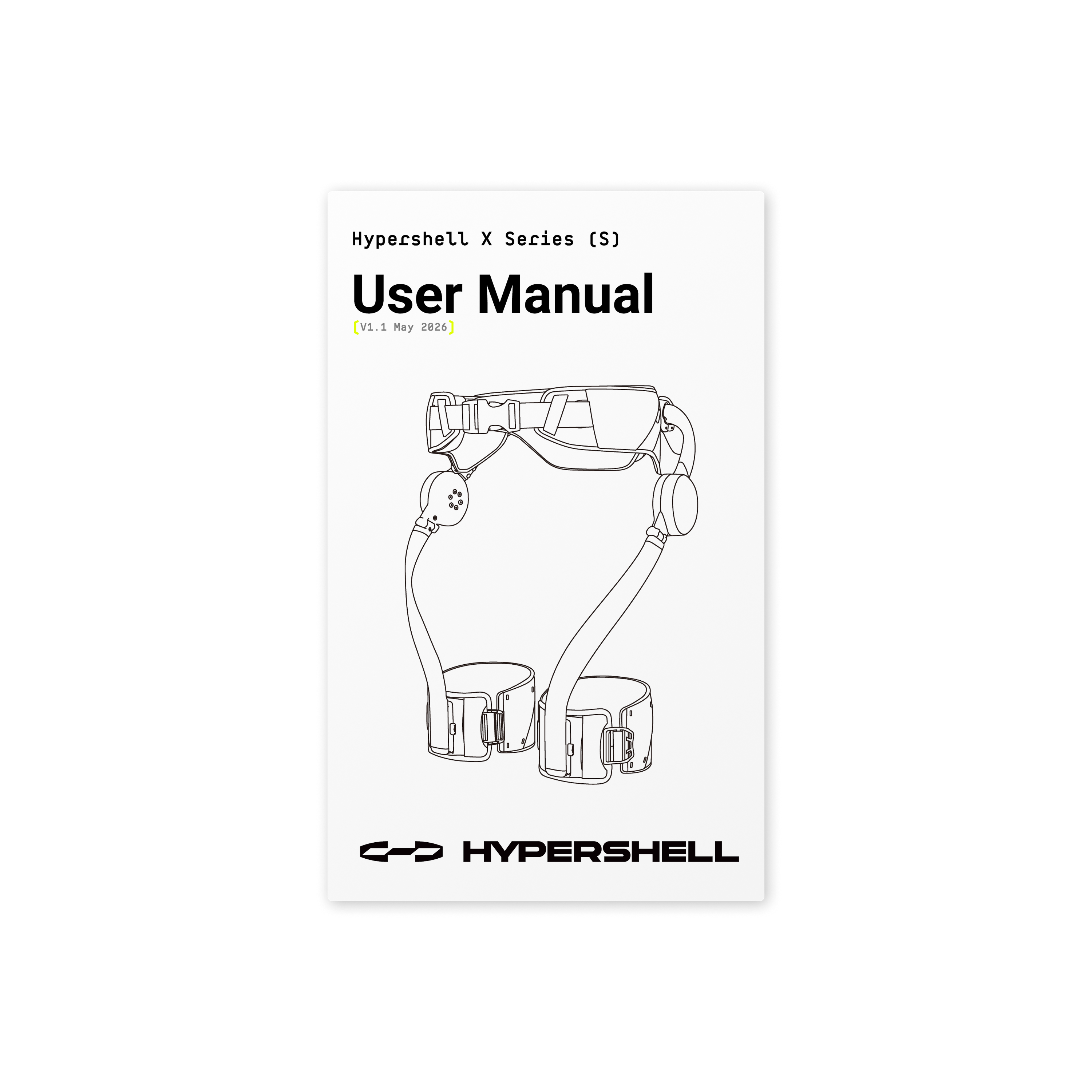

User Manual × 1S-series comparison · text only
How the X Max S compares.
Other models remain in the specification table for useful context. Their product imagery has been removed so the page never presents another model as the X Max S.
| Specification | Hypershell X Ultra S | Hypershell X Max S | Hypershell X Pro S |
|---|---|---|---|
| Peak output | 1000 W | 1000 W | 800 W |
| Peak motor torque | 22 N·m × 2 | 22 N·m × 2 | 18 N·m × 2 |
| Walking range per battery, up to | 30 km | 30 km | 17.5 km |
| Intelligent modes | 12 | 10 | 10 |
| Net device weight | 1.7 kg | 1.7 kg | 1.8 kg |
| Included battery capacity | 72 Wh × 2 | 72 Wh × 1 | 72 Wh × 1 |
| Specified operating temperature | −20 to 60°C | −10 to 60°C | −10 to 60°C |
Figures are manufacturer-stated maxima measured under the official test conditions described in the claim notes below.
Official test context and claim notes
Motion response and synchronisation. TÜV Rheinland-commissioned indoor testing covered walking and transition scenarios. Published test notes report up to 64.9% faster response, CMC above 0.90 and as high as 0.99, plus average assistance-phase synchronisation of 97.5%. Fit, gait, terrain, settings and environment can change results.
Cycling exertion. SGS testing at 60 ± 5 rpm and 100 W resistance recorded an average heart-rate reduction of 42.68% across the tested participants. Results depend on intensity, terrain, fit, physical condition and use.
Walking runtime. The 30 km / 7.5-hour figure was measured at 4 km/h on a Grade 2 incline, with Eco Mode at 30% power, through continuous movement to battery depletion. Real routes, loads and users will vary.
Cycling runtime. The 1.7-hour Hyper Mode result came from continuous indoor cycling at 20 km/h and 100% power. Environmental conditions, bicycle, load, terrain and riding style affect practical performance.
Materials and protection. X Max S construction includes aluminium-alloy hip tubes, stainless-steel hip levers and carbon-fibre reinforced leg levers. IP54 performance was measured under controlled conditions and may reduce with wear.
General limitation. Manufacturer performance figures were collected in laboratory conditions. Experience can differ with firmware, environment, fitting and use.
