Omax 1080p Auto-focus C-Mount Camera w/ HDMI Output
Authorised Dealer
Product description
- Internal Auto-focus
- 2MP / 1080p 60fps HDMI digital microscope camera with C-mount
- Standalone operation with built-in recording using an SD card
- WiFi connectivity for PC control and capture of up at 25fps
- Excellent low-light performance. Useful for fluorescence and dark-field.
- User-friendly Windows XP/Vista/7/8/10 software offers editing/processing and advanced features, including Stitching and Focus-stacking.

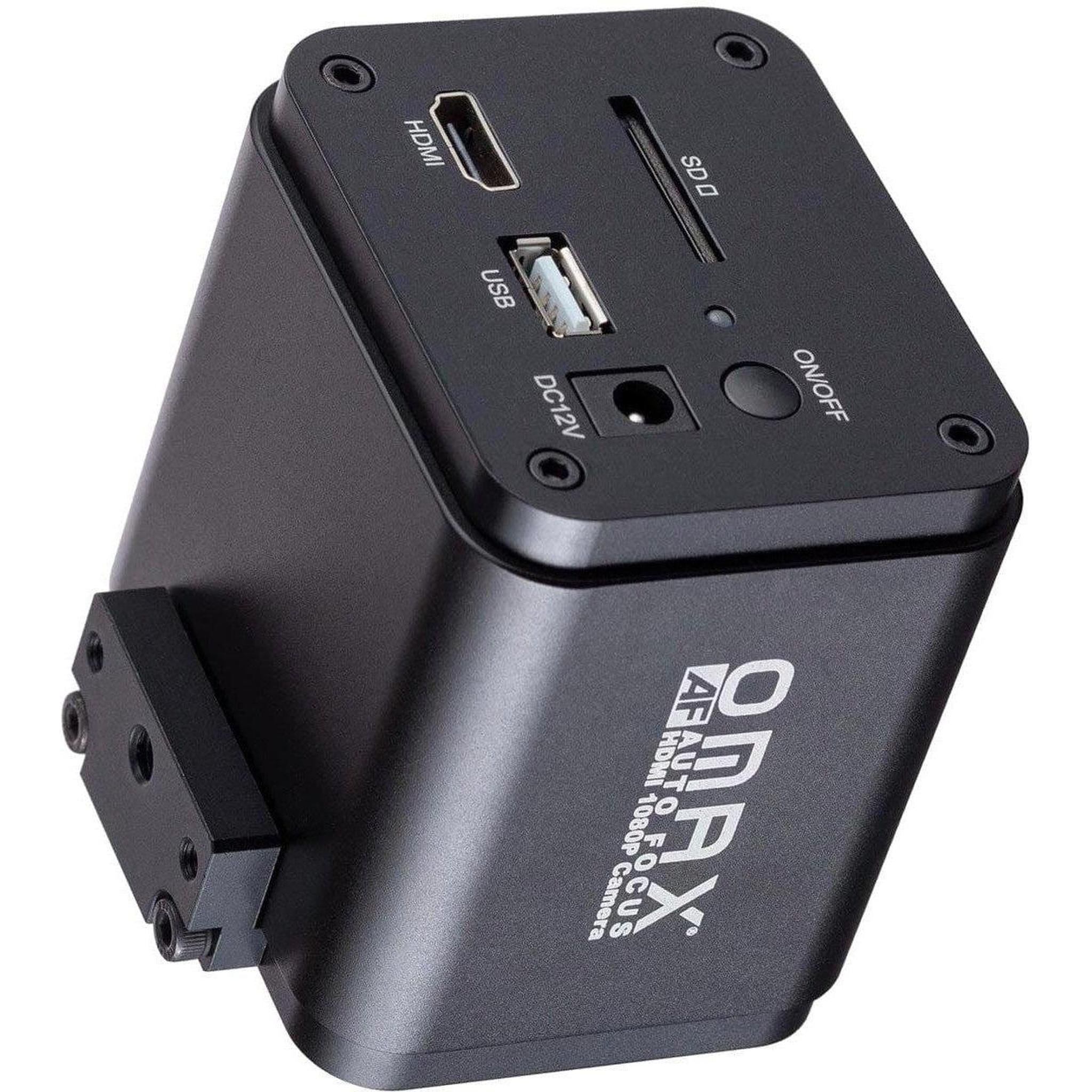

The A3520HDAF adds an all-new level of functionality and ease to your workflow. Acting as a standalone imaging system, the camera provides a real-time 1080p video stream over HDMI at 60fps. Built-in recording functions let you snap photos or record videos while you work. The auto-focus motor will reduce the adjustments needed, which is beneficial for soldering and dissection.
Connected to an HDMI monitor or TV, 1080p live video can be viewed at a super-smooth 60fps. The included USB mouse controls the camera through its easy-to-use interface. As an alternative solution, connect to the camera over WiFi for remote software control, with 25fps streaming. The included Windows software offers image development and measurement tools and advanced compositing features such as image stitching and extended depth of focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. For Mac and Linux, there is a lite version of the software that can capture video and still images and includes limited processing features.

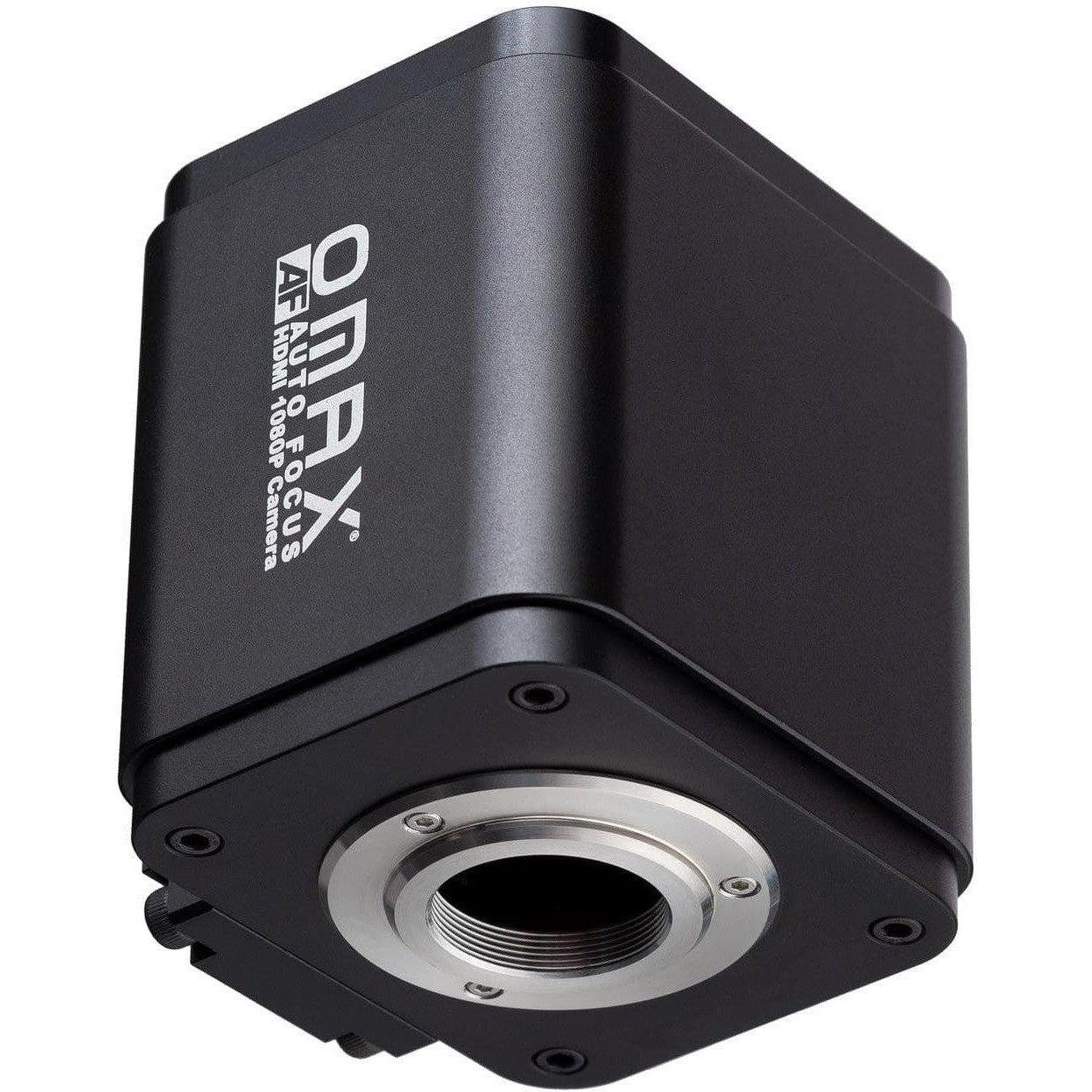

The camera uses a C-mount interface, making it compatible with a range of reduction lenses and photo ports. Notice: because of the auto-focus mechanism, C-mount lens threads should not exceed 5mm.
Sensor
| Sensor | Sensor Type | Sensor Size | Pixels |
|---|---|---|---|
| Sony IMX185 (color) | CMOS | 1/1.9" format (7.20 x 4.05mm) | 2M |
| Pixel Size | Shutter | Sensitivity
?
|
Saturation Signal |
| 3.75µm x 3.75µm | Rolling Shutter | 1120mV @ 1/30s (f5.6) | 1440mV |
Camera
| Max Frame Rate(s) | Connectivity | Lens-mount |
|---|---|---|
| 60fps @ 1920x1080 (HDMI) 30fps @ 1920x1080 (record) 25fps @ 1920x1080 (WiFi) |
USB 2.0 Wi-fi (802.11n) |
C-mount |
| Compensating Lens | Exposure Time | Compatibility |
| 0.5X (not included) | 0.06ms - 918ms | Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux |
PC Software
| OS Requirements | Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+ | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hardware Requirements | Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maximum speed | ||||||||||||||||||
| Features |
|
