About this product

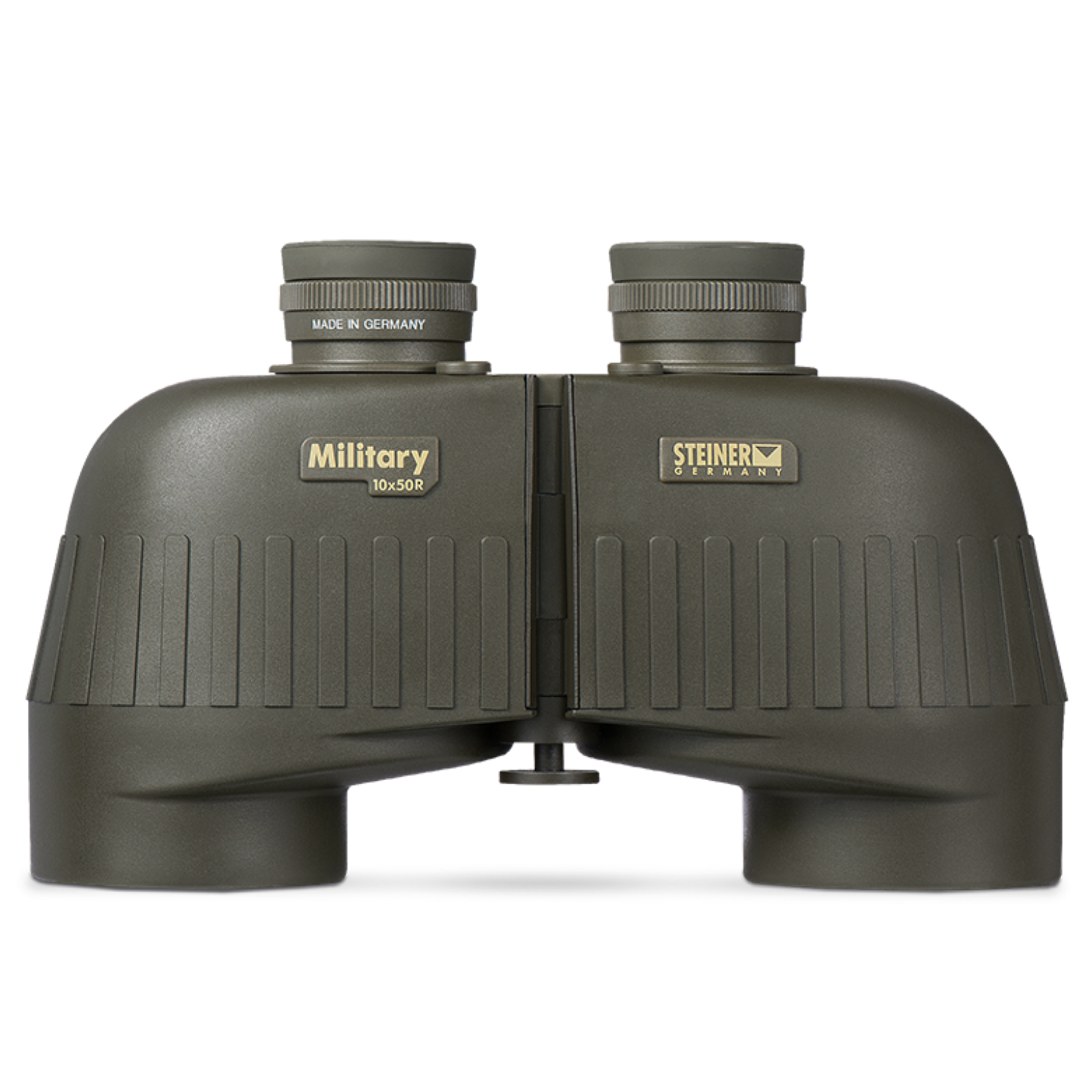

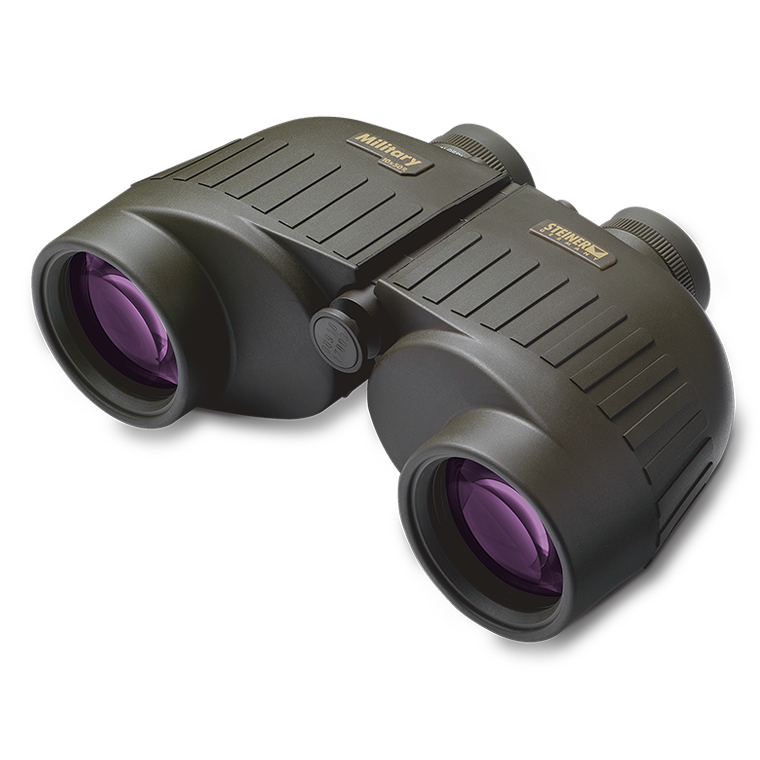

When tactical operations take place in challenging conditions – and they always do – these are the optics to count on. Proven on missions from extreme darkness to high-altitude sun, arctic cold to desert heat, they give you exactly the optical capabilities you need: mid-90% light transmission, image clarity from edge to edge, belly crawling toughness, even integrated compass, range-finding or custom reticles, and laser protection if desired. When your mission demands optical superiority, now you have it with the Steiner 10x50 binocular.
Binocular Features
• Floating Prism System uses flexible silicon lens mount to absorb severe shock, impact and abuse without damage
• Multicoated Optics are state-of-art for brighter picture, higher contrast and sharply contoured images with natural color definition.
• Sports-Auto Focus™ System lets you focus each eyepiece to your vision once, then keeps images razor sharp from 20 meters to infinity. No more chasing focus on moving objects.
• N2 Injection™ system seals 14-psi pressurized dry nitrogen into the optic, for fogproof clarity in any condition - from artic cold to desert heat.
• Cylindrical Eyecups shield the eyes from sun, grit and wind, and can be folded down for viewing with sunglasses or gas masks.
• NBR Rubber Armoring is durable, slip-proof and noiseless to ensure secure, chassis protecting grip in all conditions.
• Makrolon® housing is durable polycarbonate with NBR Long Life rubber armoring, creating a lightweight, rugged chassis that withstands 11 Gs of impact. Impervious to harsh conditions for generations of trusted use.
• Ranging Reticle a versatile ranging reticle found on all "r" models that can be used to judge both the height and distance to a target.
• Waterproof up to 5 meters. Pressurized nitrogen-filled tubes resist water intrusion even when submerged.
Spec |
Value |
Series / Model |
Military R / M1050r |
Magnification |
10× |
Objective lens diameter |
50 mm |
Field of view |
300 ft @ 1,000 yds (≈100 m @ 1,000 m) |
Field of view (angular) |
≈5.7° |
Focus system |
Individual eyepiece (Sports-Auto Focus™) |
Optics / coatings |
Fully Multi-Coated |
Close focus |
66 ft (≈20 m) |
Exit pupil |
5.0 mm |
Eye relief |
15.8 mm |
Interpupillary distance (IPD) |
56–74 mm |
Diopter adjustment |
±5 dpt |
Prism type / material |
Porro prism / BaK-4 |
Eyecups |
Cylindrical, fold-down |
Armor / housing |
NBR Long-Life rubber; Makrolon® housing |
Nitrogen filled |
Yes (N2 injection) |
Waterproof rating |
Submersible to 5 m |
Special features |
SUMR milliradian ranging reticle; laser protection filter |
Weight |
35.3 oz (≈1,000 g) |
Dimensions (L×W×H) |
5.0 × 8.1 × 3.0 in (≈127 × 206 × 76 mm) |
Included accessories |
Carry case, neck strap, objective covers |
Warranty |
Steiner Heritage™ Warranty |
