Set eyecups and spacing
Extend the eyecups when viewing without glasses or collapse them for most eyewear. Pivot the barrels until the two views merge into one clean circular image without dark edge shadows.

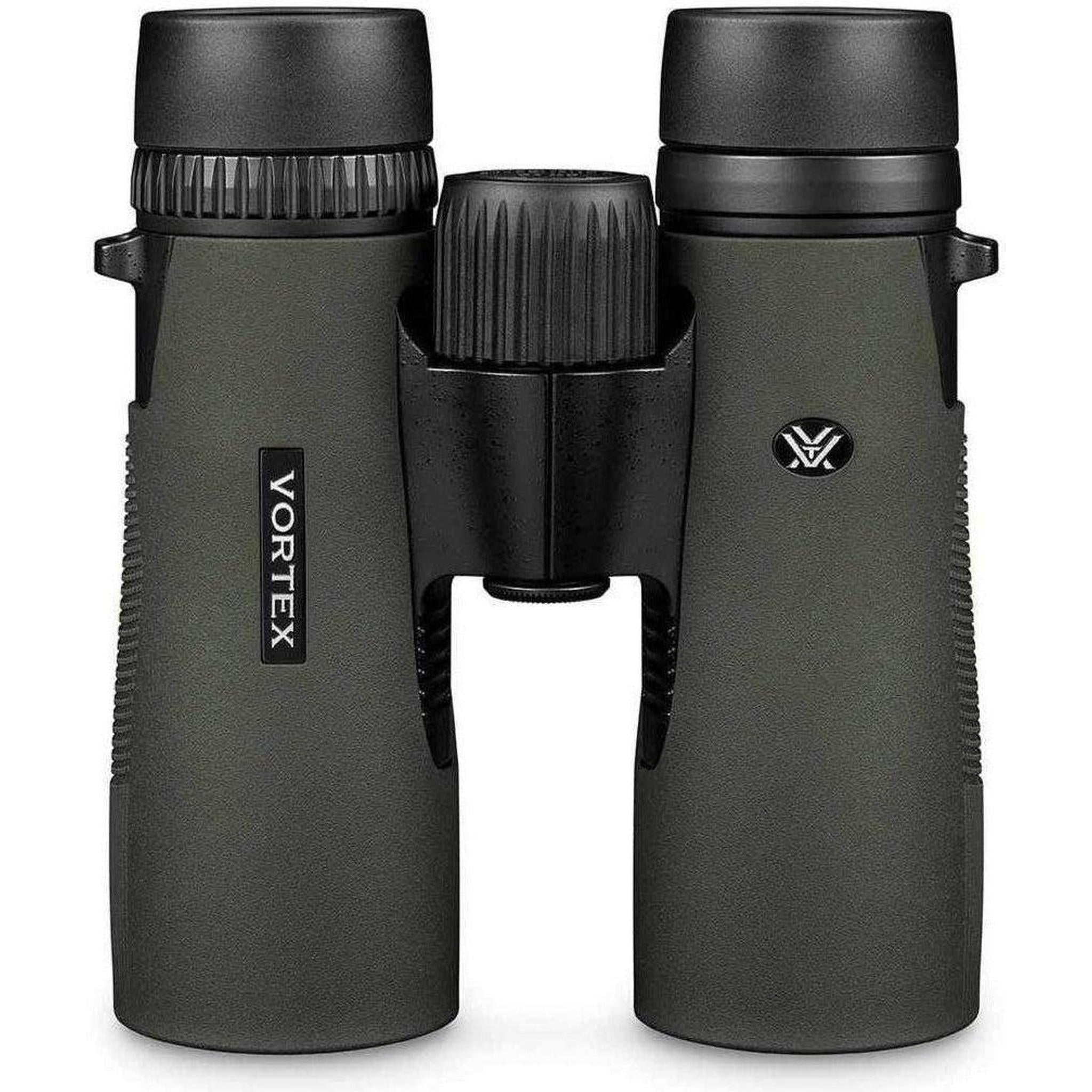

Made for birdwatching, wildlife, nature walks and everyday outdoor viewing, the Diamondback HD 8×42 pairs steady 8× magnification with a wide field of view and versatile 42 mm objectives. Its light open-hinge body, secure rubber armour and included GlassPak™ harness keep it ready for everything from a local reserve to a full day in the field.
8×42 · 21.8 oz / 618 g See how the Diamondback HD family combines clear optical performance, comfortable open-hinge handling and rugged construction for wildlife observation, birdwatching, everyday outdoor use and hunting.

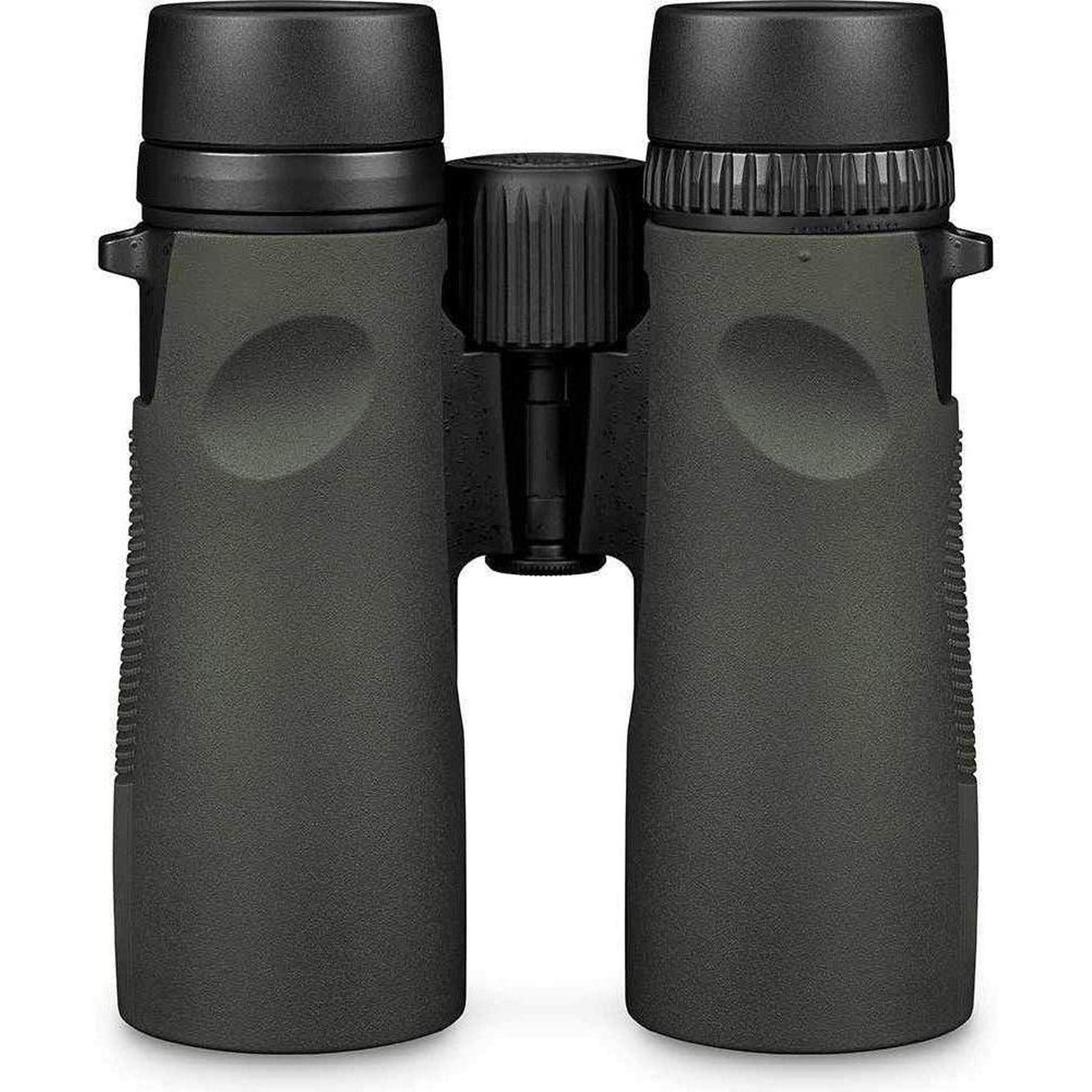

The true open hinge gives the fingers a natural place to settle, while textured rubber armour adds grip and protection without making the 8×42 feel oversized in the hand—useful for birding walks, travel, wildlife watching and everyday carry.
Choose a thumbnail to display a different product or field-use image of the Vortex Diamondback HD 8×42 binoculars.
Select glass elements are optimised for resolution and reduced chromatic aberration, helping fine edges appear cleaner while colours remain natural across the view.
The wide 7.5° angular field makes it easier to scan tree lines, coastlines and open country, pick up a bird quickly and keep moving wildlife in view. The steadier 8× image is also comfortable for relaxed, extended observation.
A central focus wheel, right-eye dioptre and adjustable eyecups make everyday setup intuitive, while the concealed front socket accepts a compatible binocular tripod adapter.
Move keyboard focus to a numbered marker, hover it with a pointer, or tap it on a touch screen to reveal the corresponding part name.
Raise for viewing without glasses or collapse for most spectacle wearers.
Moves both optical channels together for fast near-to-far focusing.
Balances the right channel to the viewer’s eyesight across a ±4 range.
Adjusts the 55–73 mm interpupillary distance and gives the fingers a secure hold.
Accept the comfort neck strap or GlassPak tether straps supplied in the box.
Gather light for a practical 5.25 mm exit pupil in a portable full-size body.
Remove the front cap to fit a compatible Vortex binocular tripod adapter.
The same wide, steady 8× view that works so well for birds and wildlife also suits close-to-mid-range hunting, where fast subject acquisition and comfortable handheld glassing matter. At 21.8 oz / approximately 618 g, the Diamondback HD 8×42 remains manageable on long days while retaining full-size controls and versatile 42 mm objectives.
O-ring sealing, argon purging, shock-resistant construction and ArmorTek® exterior-lens protection help the Diamondback HD stay ready through changing weather, temperature swings and regular field use.
O-ring sealing is designed to resist harsh weather and prevent moisture from entering the optical system.
Argon-gas purging helps prevent internal fogging through wide temperature changes.
Rugged construction is designed to withstand the impacts and knocks that come with outdoor use.
The ultra-hard exterior-lens coating helps protect against scratches, fingerprints, oil and dirt.
Set the eyecups, barrel spacing and right-eye dioptre once for a comfortable view, then use the centre focus wheel for normal near-to-far focusing.
Extend the eyecups when viewing without glasses or collapse them for most eyewear. Pivot the barrels until the two views merge into one clean circular image without dark edge shadows.
Choose a detailed object about 20 yards / 18 metres away. Cover the right objective or close the right eye, then use the centre wheel until the left-eye image is sharply focused.
Cover the left objective or close the left eye. Turn only the right dioptre until the image is sharp, then note its position. Normal focusing can now be handled with the centre wheel alone.

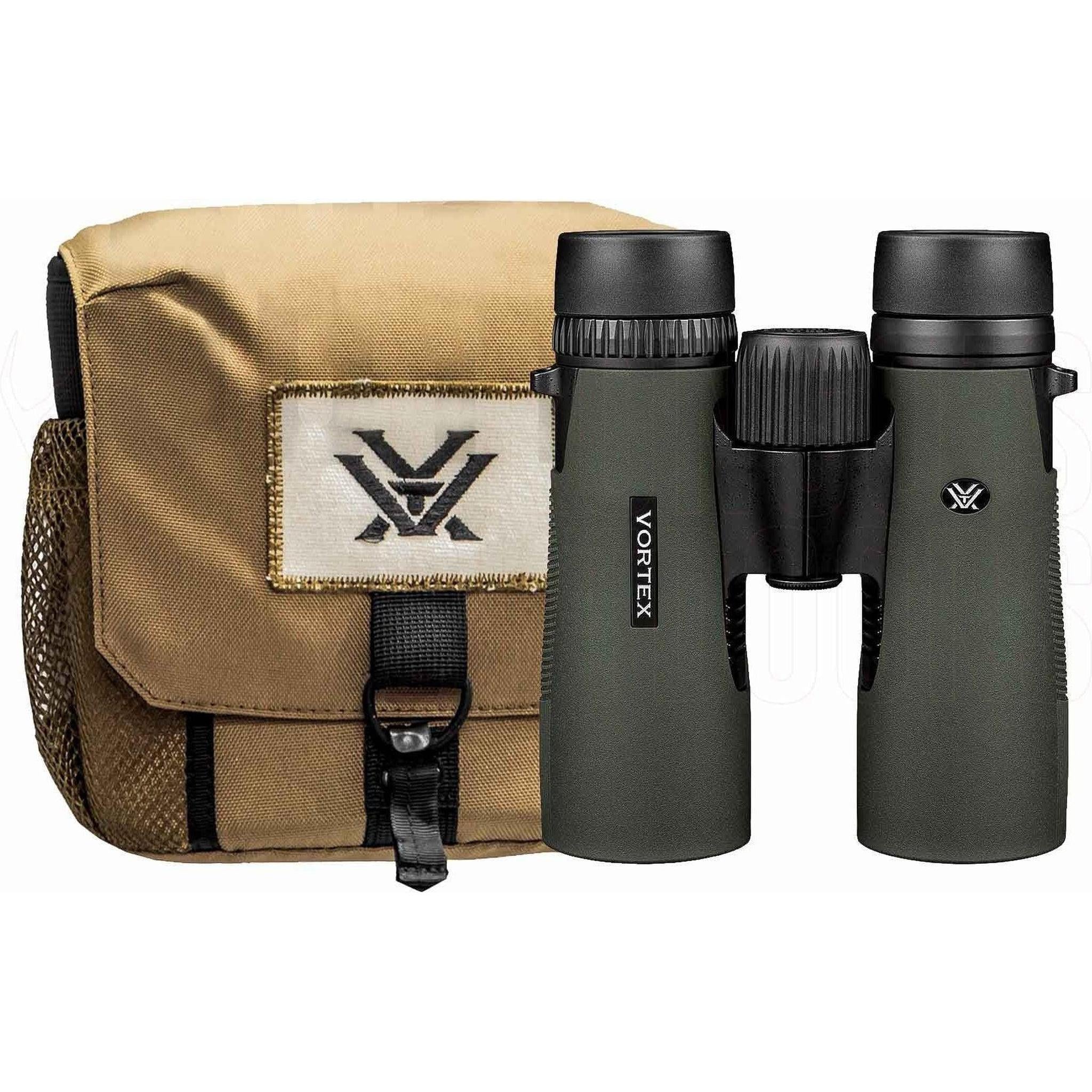

The supplied GlassPak binocular harness carries the optic against the chest for quick access and improved comfort over extended use. Adjustable shoulder straps distribute the load, while binocular tethers add security against accidental drops.
Add tripod support for longer viewing sessions or upgrade the included carry system with additional storage and quick access.
A low-profile stud and quick-release base provide a fast transition between handheld and tripod-supported viewing.
View product
Mount the binocular to a tripod or compatible support to reduce vibration and arm fatigue during longer observation.
View product
An optional carry upgrade with a quiet fold-open lid, microfibre interior and additional pockets; sized for objectives up to 42 mm.
View productFit the objective covers and Rainguard whenever the binocular is not in use. Avoid leaving it in direct sunlight or a very hot location for extended periods.
Internal components are permanently lubricated and need no additional lubricant. Do not disassemble the binocular beyond removing the supplied covers or tripod-socket cap.
A complete reference for optical performance, dimensions, controls, protection, included accessories and warranty coverage.
| Identification and use | |
|---|---|
| Product | Vortex Diamondback® HD 8×42 Binocular |
| Vortex model | DB-214 |
| Jacobs Digital SKU | VODB214 |
| Recommended uses | Birdwatching, wildlife and nature observation, general outdoor use, travel and hunting |
| Optical system | |
| Magnification | 8× |
| Objective lens diameter | 42 mm |
| Optical design | HD optical system with select glass elements |
| Prism configuration | Roof prism |
| Prism coatings | Dielectric multi-layer coating and phase-correction coating |
| Lens coatings | Fully multi-coated anti-reflective surfaces; ArmorTek® protective coating on exterior lenses |
| Exit pupil | 5.25 mm |
| Viewing performance | |
| Linear field of view | 393 ft at 1,000 yd / approximately 120 m at 1,000 m |
| Angular field of view | 7.5° |
| Close focus | 5.0 ft / approximately 1.5 m |
| Eye relief | 17.0 mm |
| Interpupillary distance | 55–73 mm |
| Dioptre range | ±4 dpt |
| Controls and ergonomics | |
| Focus system | Central focus wheel operating both barrels |
| Dioptre adjustment | Right eyepiece |
| Eyecups | Adjustable twist-up design for use with or without glasses |
| Hinge | True open-hinge configuration |
| Exterior | Textured protective rubber armour |
| Tripod use | Tripod adaptable with a separately sold compatible binocular adapter |
| Size and weight | |
| Height | 5.7 in / approximately 145 mm |
| Width | 5.1 in / approximately 130 mm |
| Weight | 21.8 oz / approximately 618 g |
| Environmental protection | |
| Waterproofing | O-ring sealed; designed for harsh weather conditions |
| Internal gas | Argon gas purged |
| Fogproofing | Designed to resist internal fogging across a wide range of temperatures |
| Impact protection | Shockproof construction |
| Included accessories | |
| Carry systems | GlassPak™ binocular case and harness straps; binocular tether straps; comfort neck strap |
| Lens protection | Tethered objective lens covers and Rainguard eyepiece cover |
| Cleaning | Lens cloth |
| Documentation | Diamondback HD product manual |
| Warranty | |
| Manufacturer warranty | Vortex VIP® Unlimited, Unconditional, Lifetime Warranty, subject to the stated exclusions below |
If the product becomes damaged or defective, Vortex promises to repair or replace it.
The Vortex VIP Warranty does not cover loss, theft, deliberate damage or cosmetic damage that does not hinder product performance. Warranty terms may be updated by Vortex; refer to the current manufacturer policy for full details.
Open the official product manual, DB-214 parts diagram and current VIP® Warranty information directly from Vortex.
Eye safety: Never look at the sun or another intense light source through binoculars. Doing so can cause permanent injury to the retina and cornea, including blindness.
