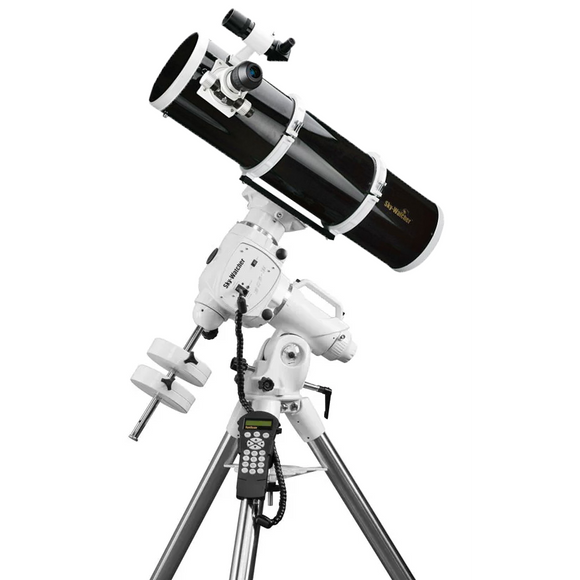

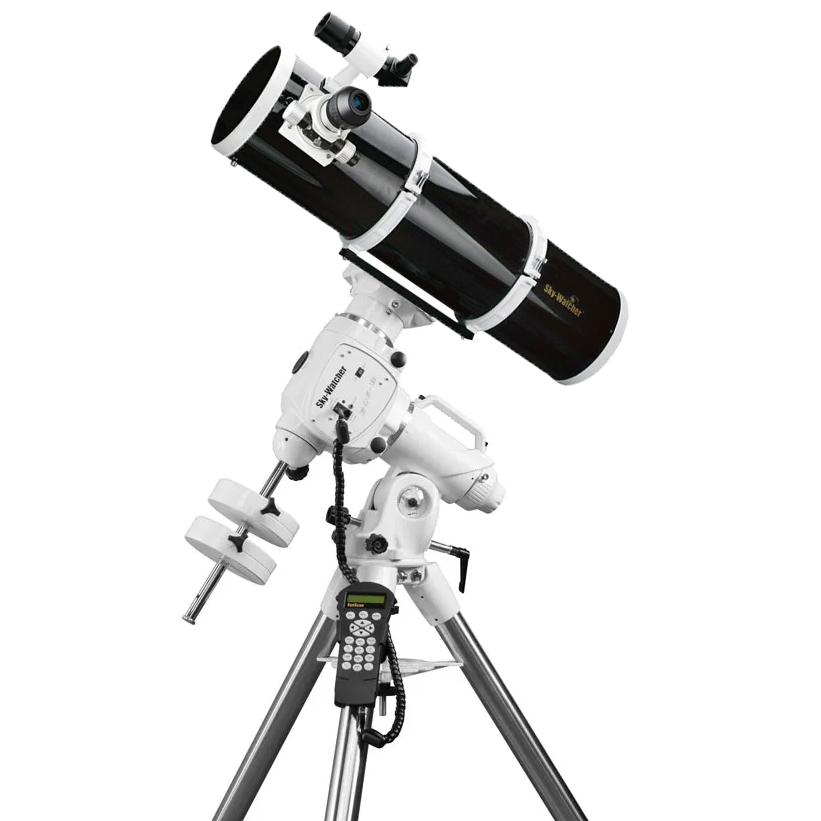

Skywatcher Black Diamond Photo 200 on EQ6-R Reflector Telescope with Tripod Kit

SKU: SWEQ6R-2001AP

Skywatcher Black Diamond Photo 200 on EQ6-R Reflector Telescope with Tripod Kit - Jacobs Digital

Our Price

$3,951.00

$3,951.00

Green truck Special order. Usually ships in 1-6 weeks An order for this can be placed with our supplier, and usually ships within the specified timeframe.



Loading

50000

395100

Shipping calculated at checkout

When will I receive it?

About this product

The Sky-Watcher Black Diamond 200/1000 Photo Reflector OTA is a 200mm aperture Newtonian reflector with diffraction limited optics, all the light gathering power you need for visual use or astrophotography! Newtonian reflector telescopes are among the most cost effective design on the market, reaching much larger apertures than an equivalently priced refractor. The large aperture will help resolve faint, extended objects like nebulae and galaxies, whilst the 1000mm focal length focal length will reveal fine details of lunar craters.

The 200/1000 Photo Reflector is equipped with an excellent Crayford dual speed focuser allowing fast, coarse regulation followed by a precise 10:1 reduction adjustment knob to reach the optimal focus. A 3 element 28mm LET eyepiece is provided, allowing 35x magnification and a 56° apparent field of view with 20mm of eye relief. The aluminised primary mirror is aspheric (parabolic profile) offering an optical system free from spherical aberration. The secondary mirror is thin to allow fast cooling and it is held by extra thin spider supports for minimal diffraction spike effects on bright stars and increased contrast.

In The Box:

  • SkyWatcher Black Diamond 200/1000 Photo Reflector OTA
  • 28mm LET Eyepiece
  • 8×50 Finder Scope
  • 200mm Tube Rings
  • Dovetail Bar

Specifications:



  • Optical Design Newtonian (Parabolic)
  • Diameter/Aperture 200mm
  • Focal Length 1000mm
  • f/Ratio f/5
  • Finder Scope 9 x 50mm
  • Highest Practical Power 400x
  • Faintest Stellar Magnitude 14.2
  • Eyepiece 10mm and 26mm
  • Focuser Diameter 2″ with 1.25″ adapter
  • Tube Weight 8.75kg
  • Tube Dimensions 24 x 92cm
  • Recommended Usage Astrophotography
  • User Level Hobbyist

The new SkyWatcher EQ6-R PRO Synscan Computerised Go-To mounting is an exciting evolutionary progression of the continuing legend that is the EQ6 PRO. The modern optimised design of the EQ6-R PRO incorporates features that serious imagers will immediately appreciate, such as;

  • Increased Payload capacity of 20kg for Astro-Photography
  • Synchronous Belt Driven, resulting in minimal backlash – Even quieter, smoother operation and better results when guiding. Higher Torque.
  • Superior Latitude adjustment controls with greater range of latitudes possible
  • Built-in SNAP camera control port
  • PPEC worm gear and worm periodic error correction function (avoids having to constantly re-train)
  • Built-in carrying handle for convenient transportation

The supplied computerised Synscan™ hand control allows you to control the mount to point your telescope at a specific object or even tour the skies at the touch of a button. The user-friendly menu system allows automatic slewing to 42,000+ night sky objects from it’s extensive database.

Supplied with;

  • EQ6-R Pro mount
  • Tripod with 2″ stainless steel legs
  • Dual-Fit 45mm/75mm dovetail saddle
  • SynScan hand controller / cable
  • Counterweight Rod: 18mm diameter, length 240mm + 180mm
  • 2 x5 kg counterweights
  • Polar alignment scope
  • Autoguiding connection
  • Printed Instruction Manual

SPECIFICATIONS

  • Product Name:  EQ6-R PRO Synscan
  • Mount Type:  German Equatorial
  • Maximum Payload (Counterweights excluded):  20kg (for Astro-Photography)
  • Latitude Adjustment Range:  5º to 65º
  • Azimuth Adjustment Range:  About ±9 º
  • Mount Weight (Tripod excluded): 17.3 kg
  • Counterweights Supplied:  2 x 5kg
  • Tripod Supplied:    2-inch stainless steel, 7.5kg Weight
  • Counterweight Rod:  18mm Diameter, Length 240mm + 180mm
  • Power Requirement:  DC11~16V 4A
  • Motors: 1.8 º Hybrid Stepper Motors
  • Transmission:  180:1 Worm Drive + 48:12 Timing Belt Drive + 64 Micro-step/1.8º Stepper Motor Drive
  • Gear Ratio:  720
  • Resolution:  9216000 Counts/Rev., approx. 0.14 arc-second
  • Maximum Slewing Speed:  4.2 degrees/second
  • Tracking Rate:  Sidereal rate, solar rate, lunar rate
  • Tracking Mode:  Equatorial mode
  • Auto-guiding Speed:  0.125X, 0.25X, 0.5X, 0.75X, 1X
  • PEC: 100 Segments Permanent PEC (PPEC)
  • Hand Controller: SynScan™
  • Database:  42000+ Objects
  • Celestial Object Catalogue:  Messier, NGC, IC, SAO, Caldwell, Double Star, Vari-able Star, Named Star, Planets
  • Pointing Accuracy:  Up to 5 arc-minutes (RMS)
  • An integral SNAP camera control port
  • Dual-Fit 45mm/75mm Dovetail Saddle
  • Polar Alignment Scope
