OrcaTorch TD01 Mazu 1200 Lumen Dive Headlamp

SKU: JLX15206

OrcaTorch TD01 Mazu 1200 Lumen Dive Headlamp
OrcaTorch TD01 Mazu 1200 Lumen Dive Headlamp
OrcaTorch TD01 Mazu 1200 Lumen Dive Headlamp
OrcaTorch TD01 Mazu 1200 Lumen Dive Headlamp
OrcaTorch TD01 Mazu 1200 Lumen Dive Headlamp
OrcaTorch TD01 Mazu 1200 Lumen Dive Headlamp
OrcaTorch TD01 Mazu 1200 Lumen Dive Headlamp
OrcaTorch TD01 Mazu 1200 Lumen Dive Headlamp
OrcaTorch TD01 Mazu 1200 Lumen Dive Headlamp
OrcaTorch TD01 Mazu 1200 Lumen Dive Headlamp

Our Price

$255.00

$255.00

Green truck Usually Ships in 2-4 Weeks An order for this can be placed with our supplier, and usually ships within the specified timeframe.



Loading

1000

25500

Shipping calculated at checkout

When will I receive it?

About this product

Dual-Colour Dive Headlamp

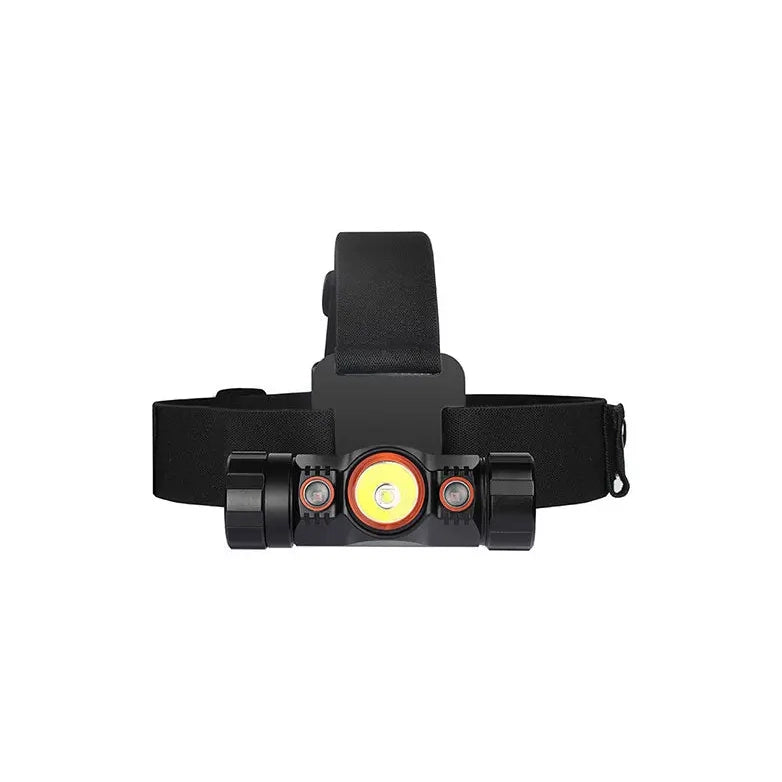

OrcaTorch TD01 Mazu 1200 Lumen Dive Headlamp

A hands-free dive lighting system built for divers who need white illumination, red-light control and flexible mounting in one compact underwater headlamp.

The TD01 Mazu delivers a powerful 1200 lumen white beam, dual auxiliary red LEDs, a 150 metre depth rating, a 180° adjustable bracket and GoPro-style mounting compatibility for head, helmet, wrist and camera-bracket setups.

OrcaTorch TD01 Mazu Dual-Color Dive Headlamp
Model: TD01 Mazu
1200 lm Maximum white-light output for primary hands-free dive illumination.
Red + White Dual-colour system with white beam and auxiliary red LEDs.
150 m Waterproof depth rating for serious underwater use.
183 m Maximum beam distance with 8400 cd peak beam intensity.
17° White-light beam angle for a focused dive lighting profile.
180° Adjustable bracket for aiming the light where you are looking.
18650 Powered by one 3400mAh rechargeable 18650 Li-ion battery.
136.2 g Compact body weight excluding battery.

Hands-Free Underwater Lighting With White & Red Output

The TD01 Mazu is designed for divers who want both hands available while still keeping their light aimed naturally in the direction they are looking. It is suitable for recreational diving, technical diving, cave-diving support, night diving, underwater photography support, spearfishing support, boat work and pre-dive or post-dive tasks in low light.

1

1200 Lumen Main White Light

The central LUMINUS LED produces up to 1200 lumens with a focused 17° beam angle and a maximum beam distance of 183 metres, making it useful for underwater navigation, close repair work and general dive visibility.

2

Auxiliary Red LEDs

Two red auxiliary LEDs provide low-disturbance lighting for night diving, close-up tasks, marine-life viewing and photography situations where a softer red light is preferred.

3

Rotary Magnetic Switch

The side rotary switch lets you move between white and red outputs quickly. Clockwise rotation selects the white-light modes, while counter-clockwise rotation selects the red-light modes.

4

180° Adjustable Bracket

The bracket allows the lamp angle to be adjusted up to 180°, so divers can aim the beam close to the face, straight ahead, downward for work, or upward for signalling and awareness.

5

GoPro-Style Mounting Compatibility

The TD01 uses a familiar sports-camera style mounting interface, allowing it to be mounted on the included head strap, helmets, wrist systems, Goodman-style handles or compatible action camera brackets.

6

Land & Underwater Use

High heat-dissipation construction and intelligent overheat protection allow the TD01 to be used underwater and above water, making it practical around boats, gear stations and dark shore-entry locations.

OrcaTorch TD01 white and red light system

Built Around Real Dive Use

The TD01 is not just a torch strapped to a headband. Its sideways tube layout, centre lamp position, GoPro-style bracket and rotary control make it especially useful where hands-free lighting and fast beam control matter.

Night Diving Hands-free white output for navigation, kit checks and underwater awareness.
Cave & Technical Diving Helmet-mountable design with quick rotary operation and red/white output options.
Underwater Photography Red-light option for sensitive subjects and white output for scene illumination.
Boat & Gear Work Useful before and after dives when preparing, rinsing, packing or moving gear in the dark.
Search & Repair Tasks Focused 17° beam helps light up close repair work, hull checks and underwater details.
Hands-Free Backup Lighting Can be used as a secondary or task-specific light depending on your dive setup.
Action Camera Mounting Compatible with many sports-camera bracket systems for flexible positioning.
Surface Utility Useful above water thanks to heat protection and durable aluminium construction.

Output Modes

White light is controlled by rotating the switch clockwise. Red light is controlled by rotating it counter-clockwise. This gives fast access to the correct beam colour without cycling through every mode.

1200 lm White High
Approx. 1 hr 45 min runtime
450 lm White Low
Approx. 3 hr 15 min runtime
50 lm Red High
Approx. 2 hr 30 min runtime
15 lm Red Low
Approx. 8 hr 45 min runtime
25 lm Red Signal
Approx. 8 hr 50 min runtime
Runtime note: Published runtimes are measured under laboratory conditions using an OrcaTorch 18650 3400mAh Li-ion rechargeable battery. Actual results can vary with water temperature, battery condition, mode selection and usage environment.

Mounting & Adjustment

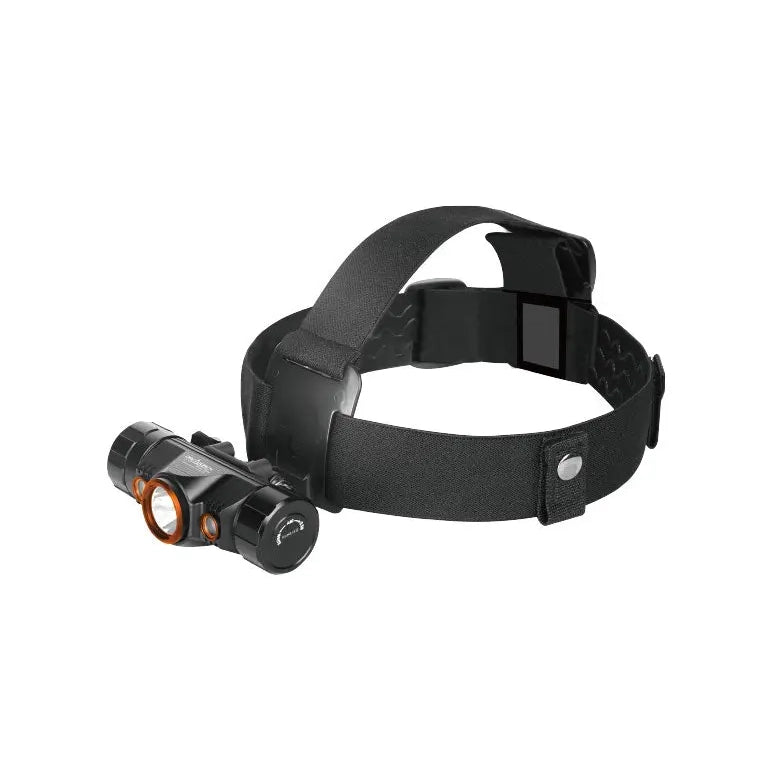

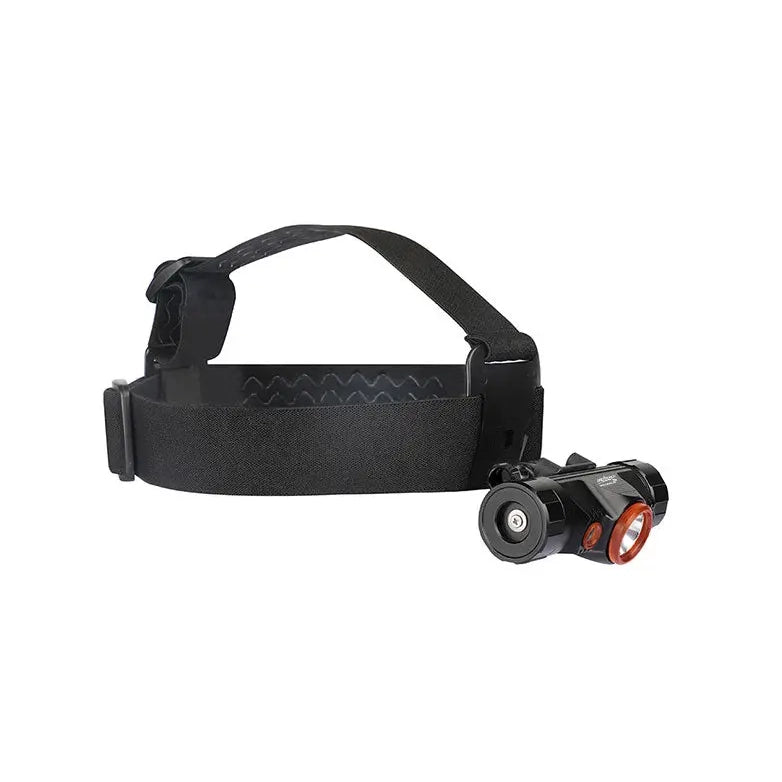

Head Strap Mounting

The included head strap allows the TD01 to be worn above the dive mask, giving a natural hands-free beam direction for night dives, gear checks and underwater work.

Helmet, Wrist & Bracket Mounting

The sports-camera style mount gives the TD01 excellent flexibility. It can be paired with compatible helmet mounts, wrist mounts, action-camera brackets and Goodman-style handle setups.

180° Beam Angle Adjustment

The bracket rotates up to 180°, allowing the beam to be positioned for forward navigation, close inspection, task lighting or surface use.

Sideways Tube Layout

The horizontal body layout keeps the lamp compact and balanced when worn on the head, while leaving enough space for the main white LED and red auxiliary emitters.

OrcaTorch TD01 180 degree adjustable bracket

Durable Dive-Ready Construction

Built from high-strength A6061-T6 aluminium with a Mil-Spec Type III hard anodised finish, the TD01 is made for saltwater environments, regular handling and repeated dive use.

A

A6061-T6 Aluminium Body

The aluminium body gives the light strength, heat dissipation and impact resistance without making the lamp overly bulky on a head strap or mount.

B

Type III Hard Anodised Finish

The hard anodised surface helps protect the body against wear, corrosion and handling marks in demanding underwater environments.

C

Coated Toughened Glass

Two-sided coated toughened glass is used to handle high underwater pressure while helping maintain optical clarity and light transmission.

D

Reverse Polarity Protection

Built-in protection helps reduce the risk of damage from incorrect battery installation.

E

Overheat Protection

Intelligent heat protection reduces output automatically if the light becomes too hot during extended above-water operation.

F

Double O-Ring Sealing

The battery-side opening uses sealing O-rings to help maintain watertight protection. Spare O-rings are included for maintenance.

What’s in the Box

Supplied accessories support head mounting, charging, bracket mounting and routine seal maintenance.

1
TD01 Headlamp Main dive headlamp unit
2
Head Strap Hands-free head mounting
3
18650 Battery 3400mAh rechargeable Li-ion battery
4
Charging Cable Supplied battery charging cable
5
Bracket / Mount GoPro-style mounting bracket
6
Fixed Screws 2 fixed screws for mounting
7
Spare O-Rings 3 replacement O-rings
8
Carry Case Protective storage case
OrcaTorch TD01 package and accessories

Comprehensive Specifications

Technical specification for the OrcaTorch TD01 Mazu dual-colour dive headlamp.

Product Identity
Product Name OrcaTorch TD01 Mazu Dual-Color Dive Headlamp
Product Type Hands-free dual-colour dive headlamp
Lighting Colours White main light and red auxiliary lights
Primary Applications Recreational diving, technical diving, night diving, cave diving support, underwater photography support, spearfishing support, boat work and low-light gear preparation
Light Source & Beam
Main LED LUMINUS LED
Maximum Output 1200 lumens
White Beam Angle 17°
Maximum Beam Distance 183 m
Peak Beam Intensity 8400 cd
Auxiliary Lights 2 red auxiliary LEDs
Output Modes & Runtime
White High 1200 lumens / approx. 1 hr 45 min
White Low 450 lumens / approx. 3 hr 15 min
Red High 50 lumens / approx. 2 hr 30 min
Red Low 15 lumens / approx. 8 hr 45 min
Red Signal 25 lumens / approx. 8 hr 50 min
Testing Standard Output data measured according to ANSI/NEMA FL1 under laboratory conditions
Control & Operation
Switch Type Rotary side switch
White Light Operation Rotate clockwise to select main white-light modes
Red Light Operation Rotate counter-clockwise to select auxiliary red-light modes
Mode Selection White light from low to high; red light from high to low to signal
Overheat Protection Automatically reduces output if the lamp becomes too hot during extended above-water use
Reverse Polarity Protection Yes, helps protect against improper battery installation
Mounting & Adjustment
Bracket Adjustment 180° adjustable bracket
Mounting Interface Sports-camera / GoPro-style compatible mounting system
Mounting Options Head strap, helmet mount, wrist mount, Goodman-style handle or compatible sports-camera brackets
Battery & Electrical
Battery Type 1 × 18650 Li-ion rechargeable battery
Included Battery Capacity 3400mAh
Charging Rechargeable battery with supplied charging cable
Working Voltage 4 V
Waterproofing, Body & Durability
Waterproof Depth Rating 150 m
Impact Resistance 1 m
Body Material High-strength A6061-T6 aluminium
Finish Mil-Spec Type III hard anodised finish
Lens / Window Two-sided coated toughened glass with high water-pressure resistance
Sealing O-ring sealed battery cap; spare O-rings included
Size & Weight
Tube Diameter 32 mm / 1.26 in
Total Length 97.8 mm / 3.85 in
Net Weight 136.2 g excluding battery
Included Accessories
Head Strap 1 × head strap
Battery 1 × 18650 3400mAh rechargeable Li-ion battery
Charging Cable 1 × supplied charging cable
Mounting Bracket 1 × GoPro-style bracket / mount
Fixed Screws 2 × fixed screws
Spare O-Rings 3 × spare O-rings
Carry Case Protective carry / storage case
OrcaTorch TD01 technical specifications

Why Choose the OrcaTorch TD01 Mazu?

The TD01 Mazu is ideal when you want a serious dive light that does not occupy your hands. Its 1200 lumen main beam, auxiliary red lights, 180° adjustable bracket, GoPro-style mounting compatibility and rugged 150 metre waterproof construction make it a versatile headlamp for divers, photographers, boat users and hands-free underwater work.

Care & Maintenance Notes

After Saltwater Use

Rinse the light with fresh water after diving and wipe it dry to help reduce seawater corrosion and salt build-up around the switch, seals and mounting hardware.

O-Ring Care

Keep the O-rings clean, lightly lubricated and free from sand, hair or grit. Replace damaged O-rings before diving and check the battery cap is tightened correctly.

Battery Safety

Use high-quality 18650 Li-ion batteries, observe the correct polarity and remove the battery if the headlamp will not be used for a long period.

Above-Water Use

The TD01 includes heat protection, but powerful lights can become hot when used out of water. Avoid leaving the light running unattended on high output in air.

Specifications, included accessories and battery/charging cable style can vary by production batch or regional supply. Always check the supplied product packaging and user manual before diving.
