Vortex Diamondback HD 8x32 Binoculars

SKU: VODB212

Vortex Diamondback HD 8x32 Binoculars-Jacobs Digital
Vortex Diamondback HD 8x32 Binoculars-Jacobs Digital
Vortex Diamondback HD 8x32 Binoculars-Jacobs Digital

Our Price

$483.00

$483.00

Green truck Usually ships in 1-2 Days An order for this can be placed with our supplier, and usually ships within the specified timeframe.



Loading

1000

48300

Shipping calculated at checkout

About this product

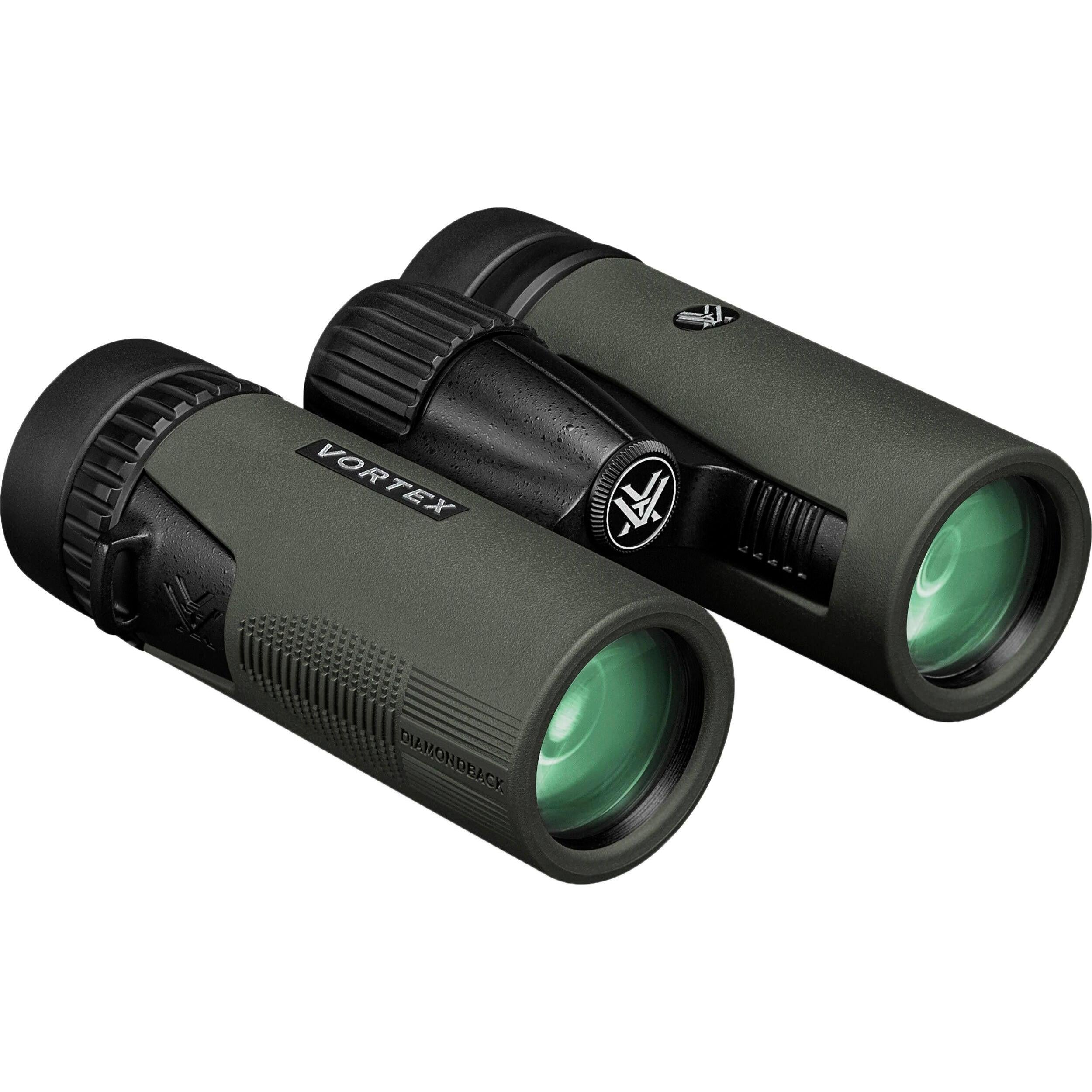

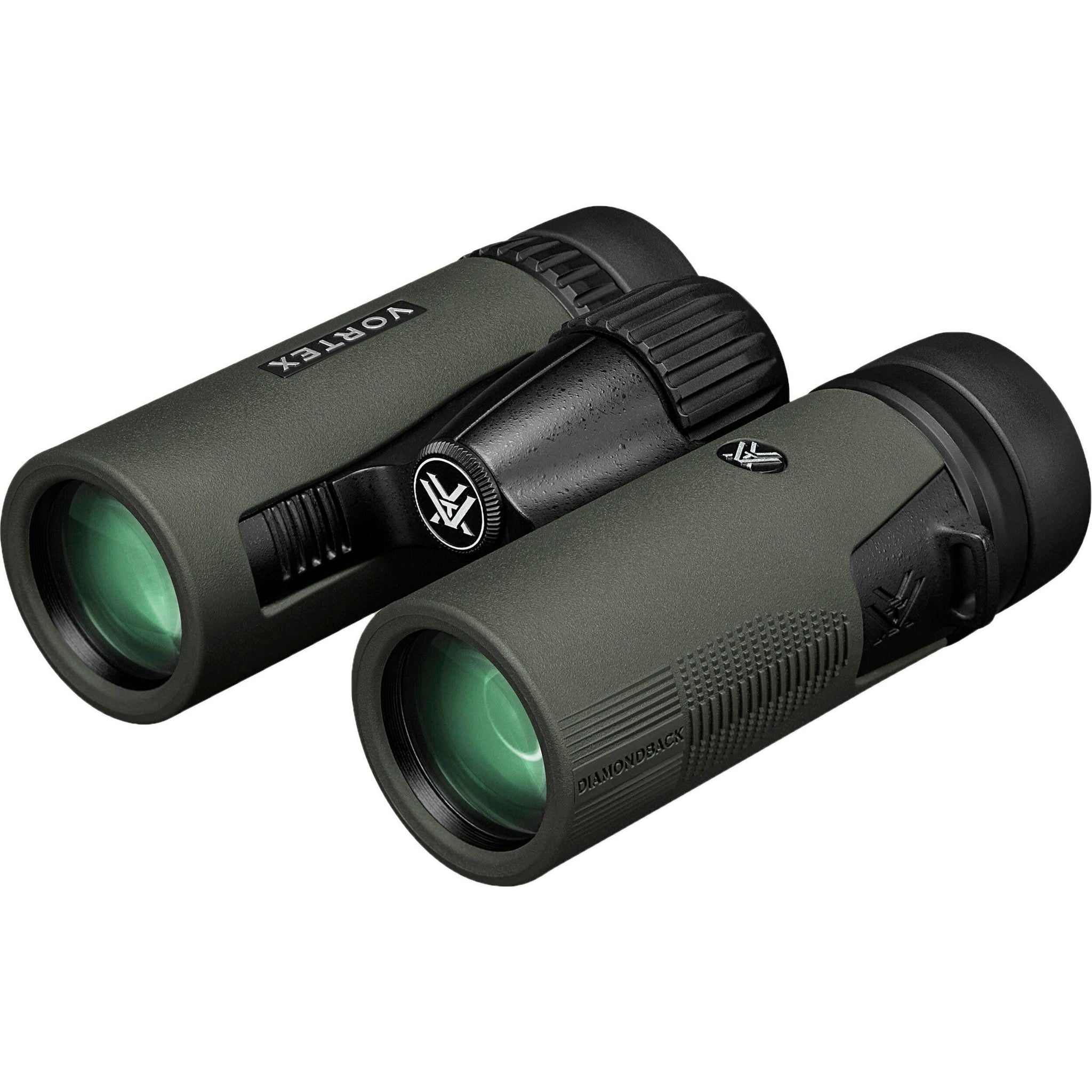

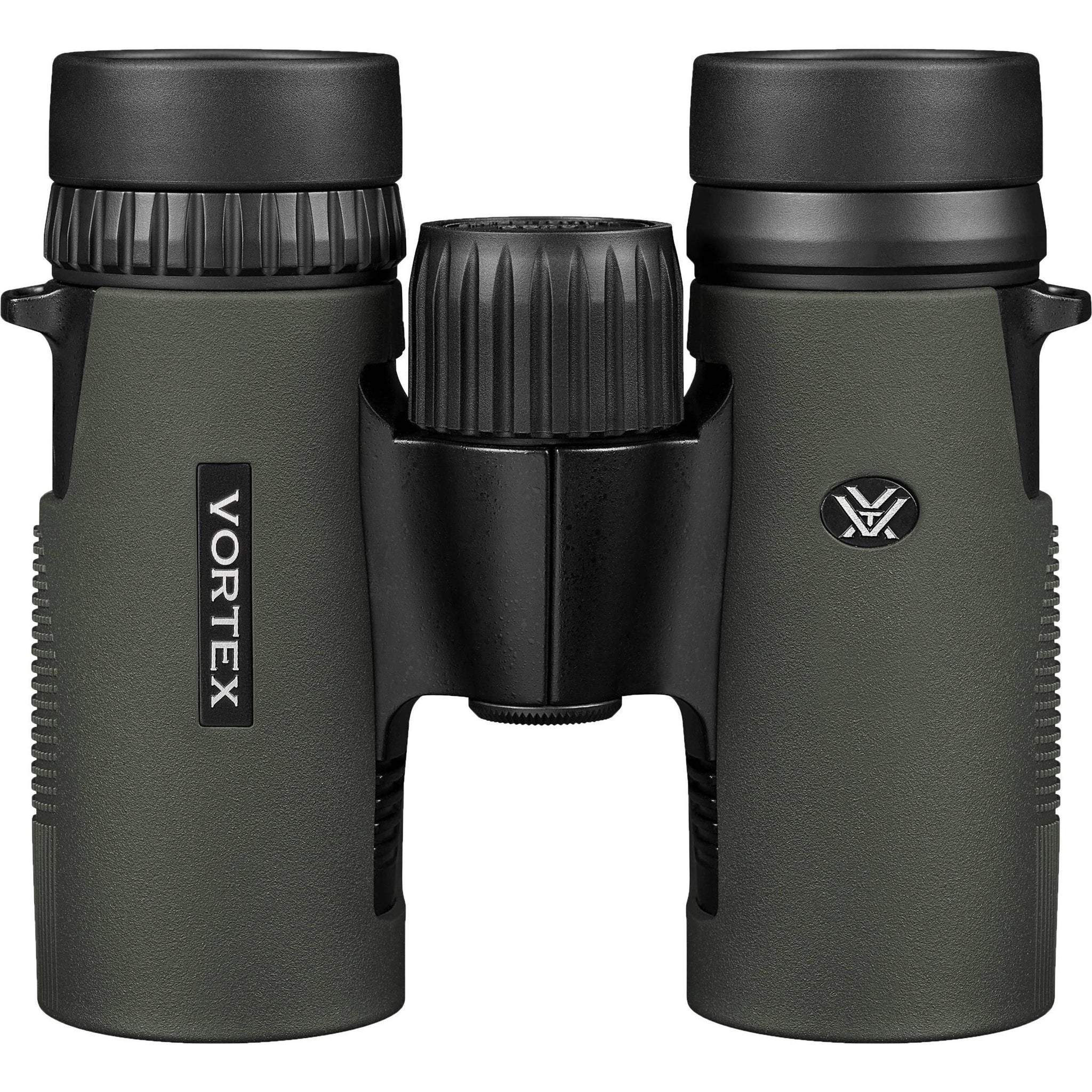

Featuring a wide field of view, moderate magnification, and a close focus distance of just 5', the 8x32 Diamondback HD Binoculars from Vortex are a versatile optic suited to a wide range of uses. At 4.6 x 4.4" and under 16 ounces, they are comfortable for all-day use.

The Diamondback HD renders views with minimal chromatic aberration, exceptional color fidelity, edge-to-edge sharpness, and optimal light transmission through the use of ultra high definition glass, an index-matched lens configuration, XR Plus lens coatings, and dielectric-coated, phase-correcting roof prisms. The lenses are protected from scratches, oil, and dust by ArmorTek exterior lens coating.

The housing is argon filled and sealed with O-rings to ensure reliable and durable protection against dust, debris, fog, and water. They are rubber armored for non-slip and durable protection, and is equipped with a large focusing knob that is easy to use even while wearing gloves. Twist-down eyecups accommodate users who wear glasses. For hands-free use or the steadiest view, the Diamondback HD can be mounted on a tripod using the separately sold tripod adapter. Naturally contoured to perfectly fit your hands, promoting comfort and eliminating user fatigue,the Diamondback HD includes a winning combination of features.

Optical Performance
  • Roof prism design
  • 8x magnification
  • 32mm objective lenses
  • Fully multi-coated lenses increase transmission, clarity, and brightness
  • Dielectric-coated, phase-correcting roof prisms improve true color, contrast, and transmission
  • 8.1° angle of view
  • 426' linear field of view at 1000 yards
  • Birding-friendly 5' close focus distance
  • Exit pupil: 4mm
  • Eye Relief: 16mm
Performance
Magnification
8x
Objective Lens Diameter
32 mm
Angle of View
8.1° (Actual)
Field of View
426' @ 1000 yd / 141.43 m @ 1000 m
Minimum Focus Distance
5' / 1.52 m
Exit Pupil Diameter
4 mm
Eye Relief
16 mm
Interpupillary Adjustment
56 to 73 mm / 2.2 to 2.9"
Diopter Adjustment
Yes
Focus Type
Center
Features
Fogproof
Yes, Argon Filled
Environmental Resistance
Water-Resistant (Unrated)
General
Dimensions
4.6 x 4.4" / 11.68 x 11.18 cm
Weight
15.9 oz / 451 g
Packaging Info
Package Weight
1.75 lb
Box Dimensions (LxWxH)
7.5 x 6 x 6"
Use and Handling
  • Short-hinge bridge cuts weight and exposes more surface for handling
  • Adjustable interpupillary distance: 56-73mm
  • Oversized knurled center focusing wheel
  • Textured diopter ring on right eyepiece
  • Twist-up soft tapered rubber eyecups
Construction Details
  • Protective rubber armor provides a slip-resistant grip
  • O-ring sealed and argon-filled to be waterproof and resistant to internal fogging when moving through extreme temperature and environmental conditions
  • Scratch-resistant ArmorTek exterior lens coatings repel oils and corrosive materials from lenses
