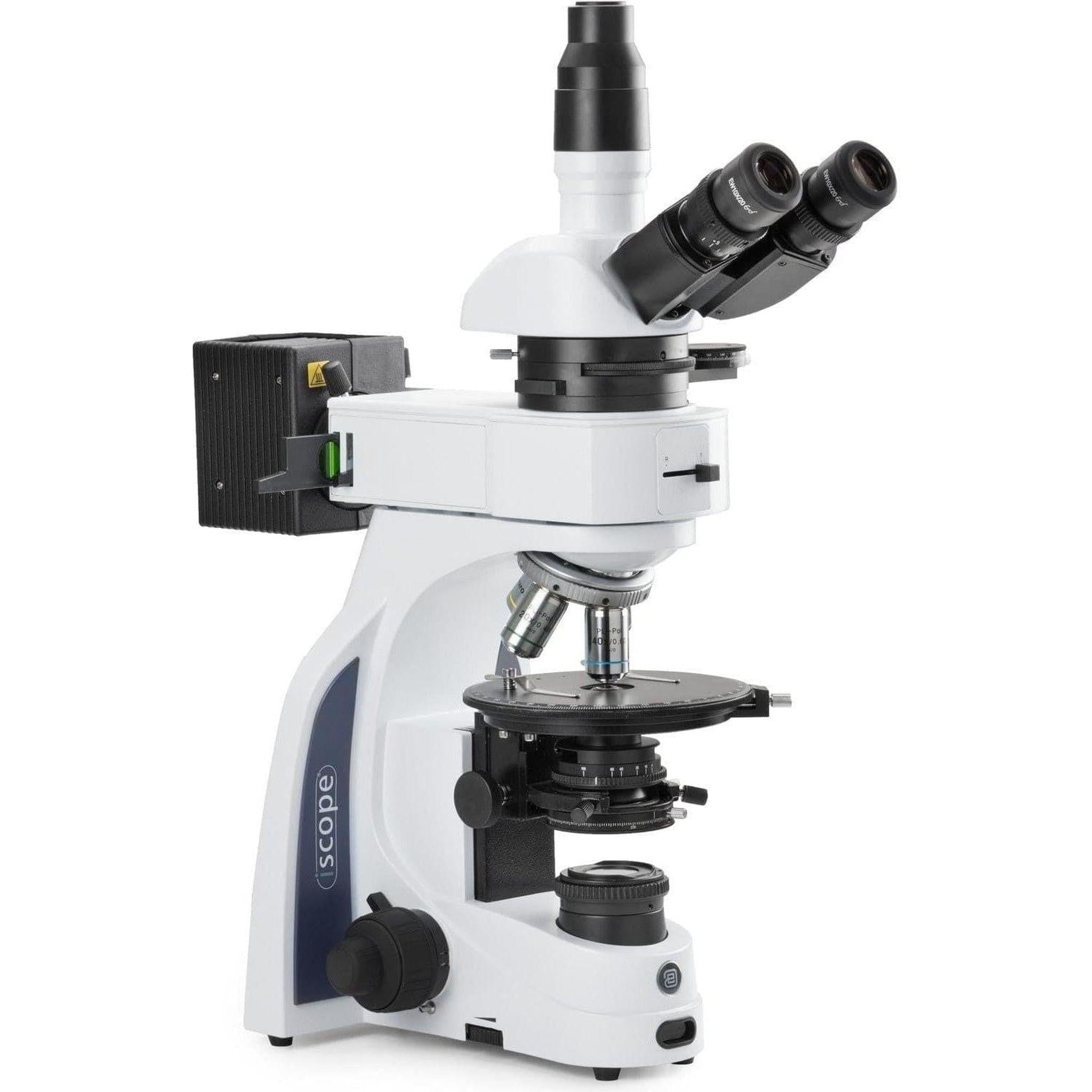

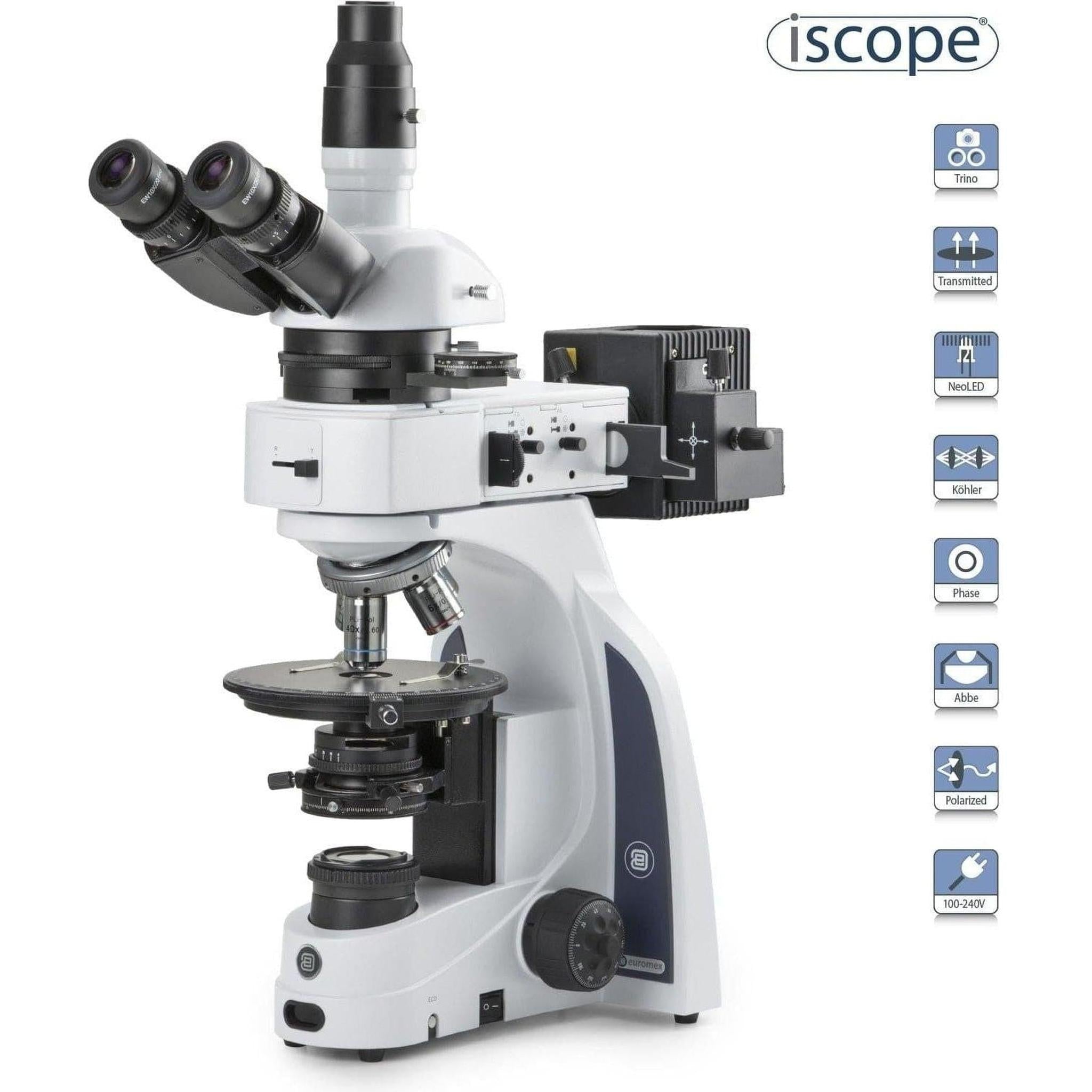

Euromex iScope Series Polarization 50X-400X Trinocular Compound Microscope

About this product

iScope - A masterpiece in microscopy

The iScope IS1053-PLPORi is suitable for Life and Biomedical Sciences, high schools, universities but also for routine medical applications. Besides the brightfield contrast method, configurations for phase contrast, cardioid mirror darkfield, basic polarization and several epi- illumination sources for fluorescence applications can be used.

Features:

• EWF 10x/20mm eyepieces with crosshair and micrometer reticle
• Trinocular model
• Plan strain free infinity corrected objectives
• Quintuple reversed nosepiece
• Epi-illumination 50 W
• 160mm rotatable round stage
• Diascopic 3 W NeoLED Kohler illumination
• iCare sensor for energy saving
• CSS - Cable Storage System

Specifications:

EYEPIECES

• Supplied with a pair of EWF 10x/20mm eyepieces, one eyepiece with crosshairs and one eyepiece with crosshairs and micrometer reticle

HEAD

• Trinocular Siedentopf type heads with 30 degree inclined tubes. Interpupillary distance from 48 to 76mm
• Two ± 5 diopter adjustments
• A unique rotating system allows the ergonomical positioning of both tubes in a high (431 mm) and in a low position (397mm)
• The trinocular head has a 23.2mm photo tube

NOSEPIECE

• Revolving quintuple reversed nosepiece on ball bearings

OBJECTIVES

• Plan PLPOLRi strain free infinity corrected objectives for polarization applications
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

STAGE

• 360 degree Rotating graduated stage with two object clamps

CONDENSER

• Height adjustable Abbe N.A. 1.25 condenser with iris diaphragm and 360 degree - swing out - rotatable polarizer

FOCUSING

• Coaxial coarse and fine adjustments, 200 graduations, 1 μm per graduation, 200 μm per rotation, total travel range is approximately 24mm. Supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustments are equipped with friction control.

DIASCOPIC ILLUMINATION

• Intensity adjustable 3 W Kohler NeoLED illumination with internal 100-240 V power supply
• The larger aperture of NeoLED allows the optical systems of the iScope microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics. Other benefits for choosing the NeoLED are the low energy consumption, no heating and a long operating lifetime.
• The Kohler diaphragm provides homogeneous illumination and high contrast

REFLECTED ILLUMINATION

• Equipped with a 50 W 12 V halogen epi-illumination and external 100-240 V power supply
• Supplied with 360 degree rotatable polarization filter, analyzer, Bertrand lens (build-in), 1 first red plate, 1/4 retardation plate, a quartz wedge, sliders with green/blue and white/neutral densitiy filter
• 45 mm green and blue filters for lamp house

ICARE SENSOR

• The unique iCare Sensor is developed to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off shortly after microscopists step away from their position.

CSS - CABLE STORAGE SYSTEM

• Allows users to easily insert the power cable into the back of the instrument, which enables easy storage. The integrated carrying grip at the back of the microscope ensures safe transportation of the microscope

PACKAGE CONTENT

• Supplied with power cord, dust cover, user manual. All packed in polystyrene boxes.
