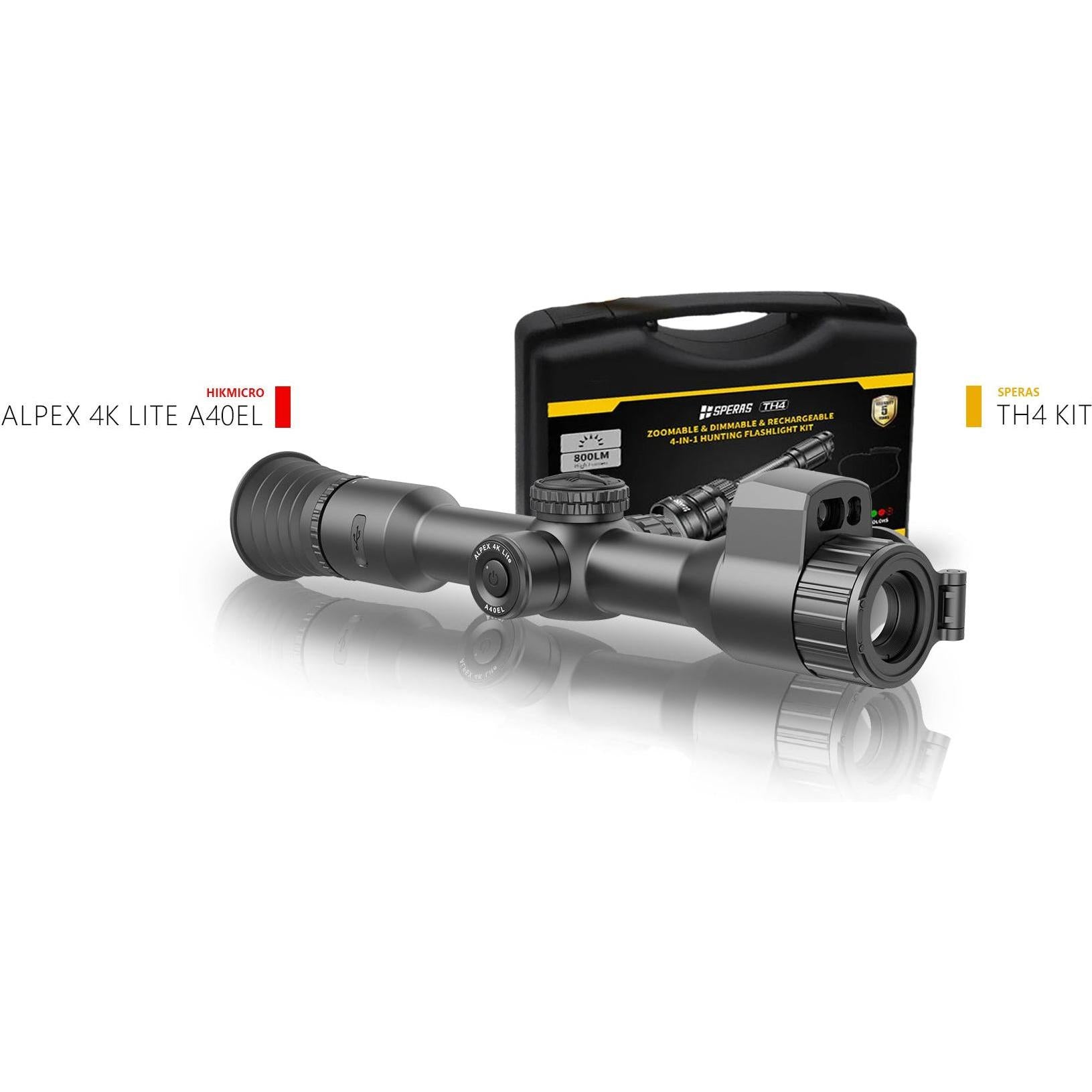

ALPEX 4K Lite
Engineered For Airgun, Inspired by You.
09 480 5903
www.jacobsdigital.co.nz
9 Mokoia Road
Birkenhead, Auckland 0626
OPEN: 9am to 5pm
Monday to Saturday
SKU: A40EL+TH4K
Usually Ships in 1-2 Days
An order for this can be placed with our supplier, and usually ships within the specified timeframe.
Pay it in four interest-free payments
No new cards, you can use your existing bank card
No long forms, online approval
Pay every 2 weeks, enjoy your purchase right away
All you need to apply is to have a debit or credit card, to be over 18 years of age, and to be a resident of New Zealand or Australia
Late fees and additional eligibility criteria apply. The first payment may be due at the time of purchase. For complete terms visit https://www.afterpay.com/terms
Contact me when stock is available
ERROR
Estimated time of arrival:
1700
185900
Shipping calculated at checkout
When will I receive it?
We don't have this item in our store right now, please allow for it to be transferred to our retail store.
If you come to pick up your order please bring photo ID, if someone else is picking it up on your behalf please contact us prior to pickup.
Once your order has been picked up by the courier please allow 2 working days for North Island addresses, for the South Island allow 3 working days. Rural deliveries and extra-large items may take several additional days.
Shipping costs are automatically calculated during checkout. The price of shipping varies based on the delivery location. Select items may be be eligible for free shipping.
Oversize items such as very large telescopes may only be available via pickup from a depot or delivered to a business address. For more infomation click here. Due to less frequent collection of oversize items delivery may take 2 to 4 additional days.
To ensure the safe delivery of your order we require a signature with all parcels. Some exceptions may be made if you give the courier company authority to leave parcels at your preferred address.

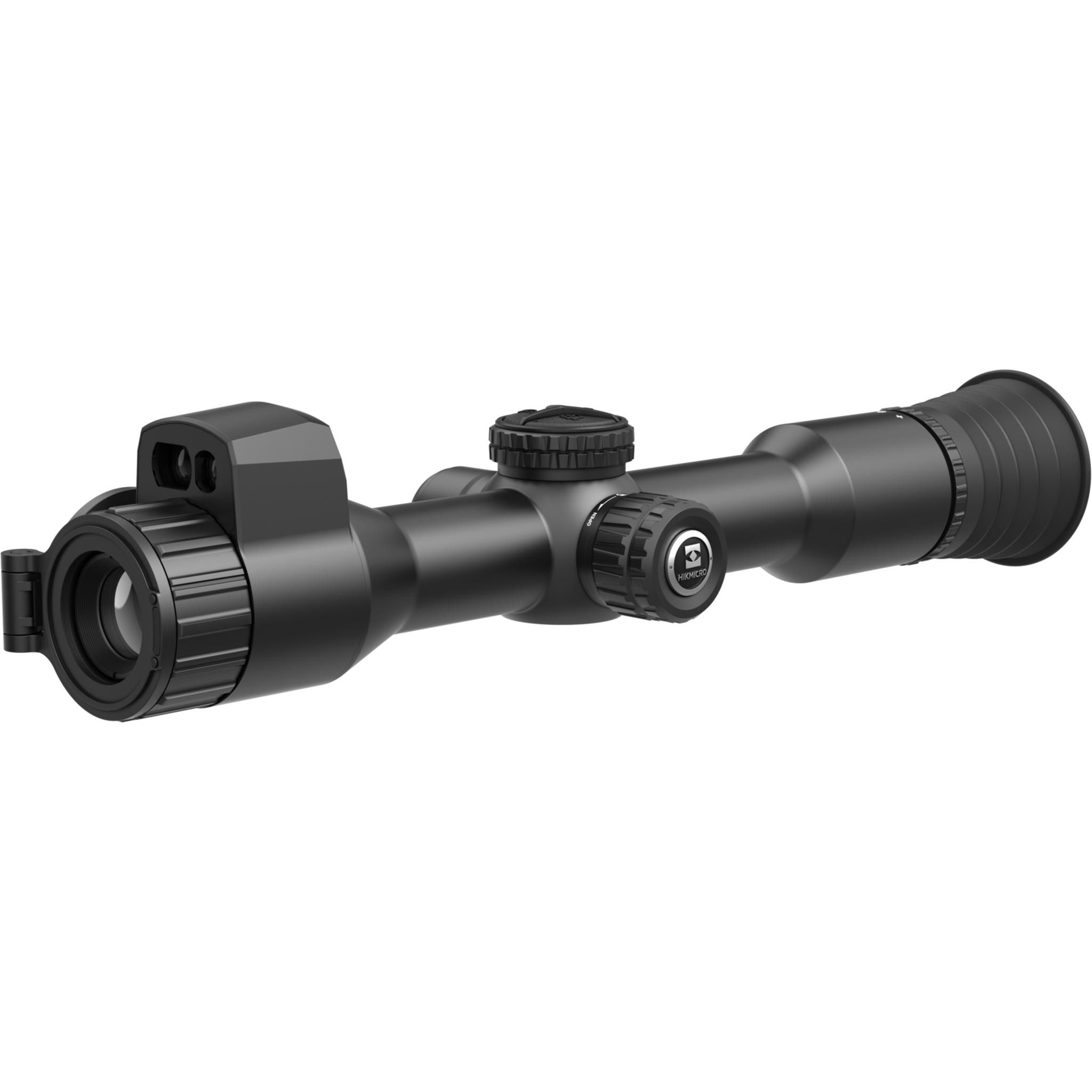

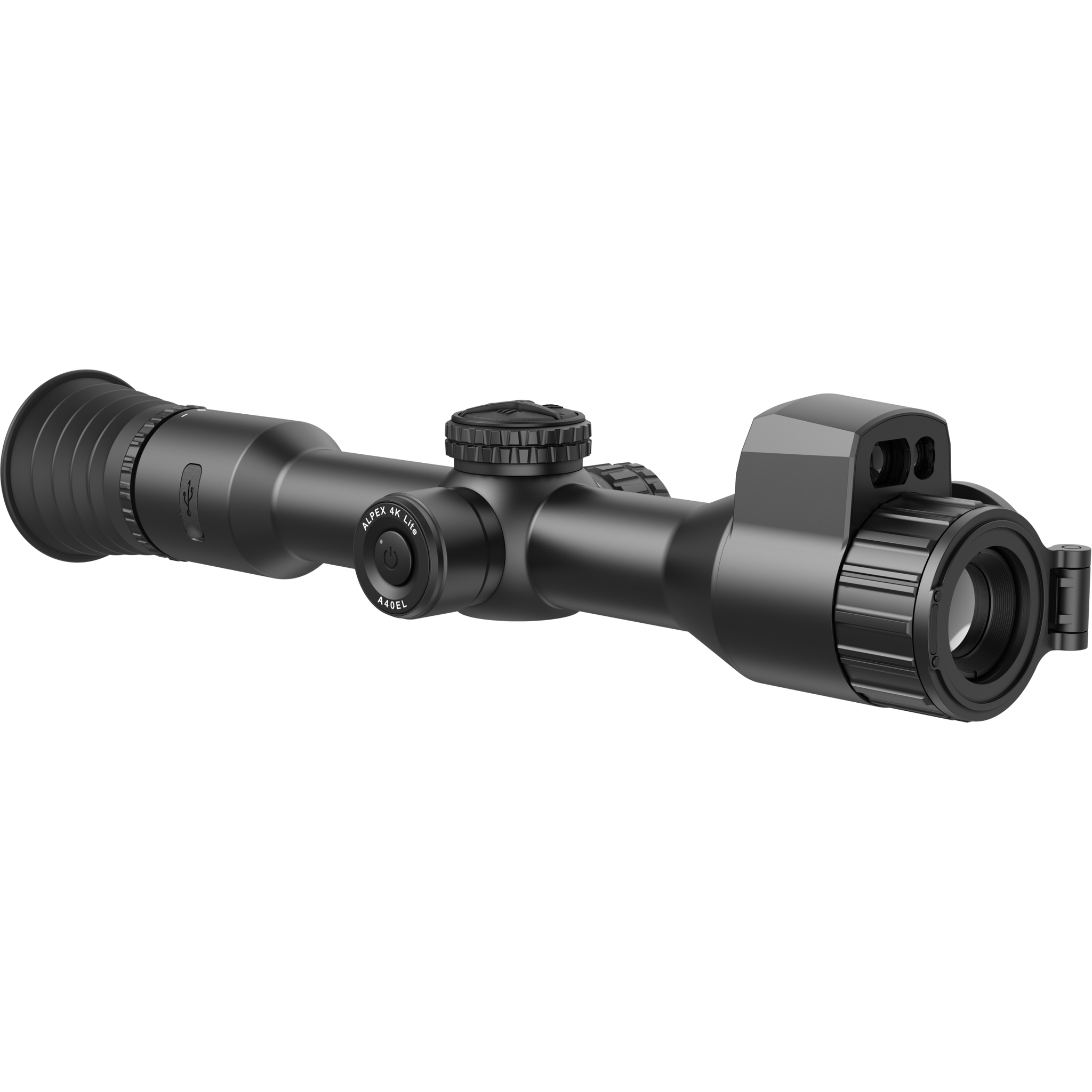

The A40EL features a 40mm/F2.0 lens, a 4K UHD detector, and an integrated 1000m laser rangefinder, providing hunters exceptional precision and a suitable field of view for pest control or small game hunting. An optional IR torch enhances nighttime performance.
| Main | |
| Max. Resolution | 3840 × 2160 |
| Frame Rate | 50 Hz (4K), 100 Hz (1080P) |
| Lens (Focal Length) | 40 mm, F2.0 |
| Detection Range Day | 800m |
| Min. Focusing Distance | 2m |
| Magnification | 3.5× to 20.5× (5.8×) Support continuous zooming and 0.5×, 1×, 2×, 3×, 4× optional step value |
| Field of View | 10.7° × 6.1° / 18.7 m × 10.1 m @ 100 m |
| Image Display | |
| Display | 1920 × 1080, 0.49 inch, OLED |
| Image Mode | Day, Night, Auto, Green, Yellow |
| Exit Pupil | 6 mm |
| Eye Relief | 45 mm |
| Diopter (Range) | -5 D to 5 D |
| System | |
| Record Video | On-board Video Recording |
| Record Video Resolution | 1920 × 1080 |
| Capture Snapshot | Yes |
| Audio Recording | Yes |
| Recoil-activation Recording | Yes |
| Standby Mode | Yes |
| Storage | Built-in EMMC (32 GB) |
| PIP | Yes |
| Freeze Zeroing | Yes |
| Zeroing Profiles | 5 |
| Max. Recoil | 1000 g/0.4 ms |
| Hotspot | Yes |
| Ballistic Calculation | Yes |
| Click Value | 1 click = 1cm @ 100 m |
| Power Supply | |
| Battery Type | One Rechargeable Lithium Battery (Internal), One Replaceable and Rechargeable18650 Battery (External) |
| Battery Operating Time 7 | 7.5 hours of Continuous Running (@25°C, Hotspot off) |
| Power Supply | 5 VDC/2 A, USB Type-C Interface Only internal battery support direct charge |
| General | |
| Mounting | Standard 30 mm |
| Protection Level | IP67 |
| Working Temperature | -30°C to 55°C (-22°F to 131°F) |
| Dimension | 280.7 mm × 86.1 mm × 66.3 mm (without eyepiece) |
| Weight | 474g without External Battery |
| Safety Class for Laser | Class1 |
| Wavelength | 905 nm |
| Min. Measuring Range | 3 m |
| Max. Measuring Range | 1000 m |
| Measurement Accuracy | ±1 m |
