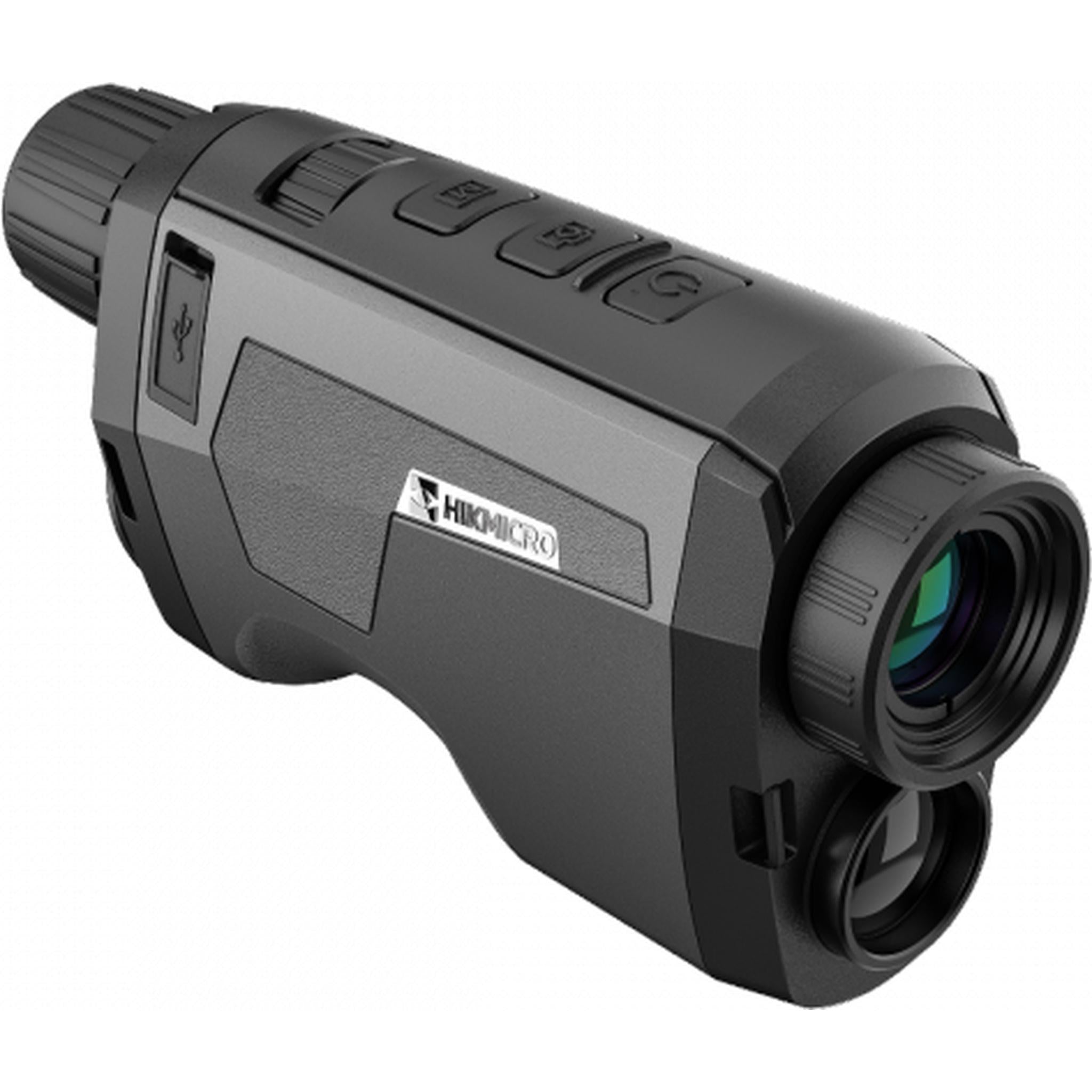

HIKMICRO Gryphon GH25 384×288 Thermal Imager
Authorised Dealer
Our Price
$3,599
/
Frequently bought with
Outstanding Image Algorithm
Self-developed image algorithm optimizes image quality, bringing users a high-definition and cleaner picture, highlighting the edge of the object.
1.New Way to Control
The wheel is used for menu selection and zooming, making the operation more natural. Each rotation delivers an excellent sense of control to users.
2.Advanced VOx 12µm Imaging Sensor
The powerful VOx 12µm imaging sensor with NETD<35mK ensure the perfect distinction of the target and present clear and detailed pictures even in complete darkness.
3.Replaceable Battery
Two batteries and a HIKMICRO external battery charger are included in the package box, which gives the freedom to observe as long as needed even a full day.
| MAIN | |
| Sensor | 384×288px @ 12µm |
| Objective Lens (Focal Length) | 25mm |
| Detection Range (Human 1.8 x 0.5m) | 1250m |
| SENSOR | |
| Type | VOx Uncooled Focal Plane Arrays |
| Resolution, pixels | 384×288px |
| Pixel pitch, µm | 12µm |
| Frame rate, Hz | 50 Hz |
| NETD | <35mK |
| THERMAL OPTICS | |
| Objective lens | F1.0 |
| Magnification (Optical) | 2.4x |
| Magnification (Digital) | 1x, 2x, 4x, 8x |
| Field of view | 10.53°× 7.9° |
| FUSION CAMERA | |
| Sensor resolution | 1960x1200px |
| Wavelength sensitivity | 400-1000 nm |
| Focal length | 22mm |
| LASER RANGEFINDER | |
| LRF Fitted | No |
| Maximum range | |
| Measurement accuracy | |
| DISPLAY | |
| Type | 9.9mm, OLED |
| Resolution, Pixels | 1024 ×768 |
| Colour Palettes | White Hot, Black Hot, Red Hot, Fusion, Visible, Thermal & Visible Fusion |
| Video Recorder | |
| Build in memory, Gb | 16 gb |
| Additional features | |
| Hot Tracking | |
| WiFI hot spot | YES |
| T-Vision App support | YES |
| Environmental | |
| Degree of protection, IP code | IP67 |
| Dust protection | Protected against dust ingress |
| Water protection | Protected against temporary submersion in water |
| Operating temperature range | -20 °C to 55 °C |
| WEIGHT & SIZE | |
| Dimensions, mm | 87mm x 73mm x 167mm |
| Weight, kg | 0.5 kg |
| POWER SUPPLY | |
| Operating time on battery (WiFi & Hot tracking disabled) | 8 hours continuous running |
| Charging interface | Removable 18650 battery |
