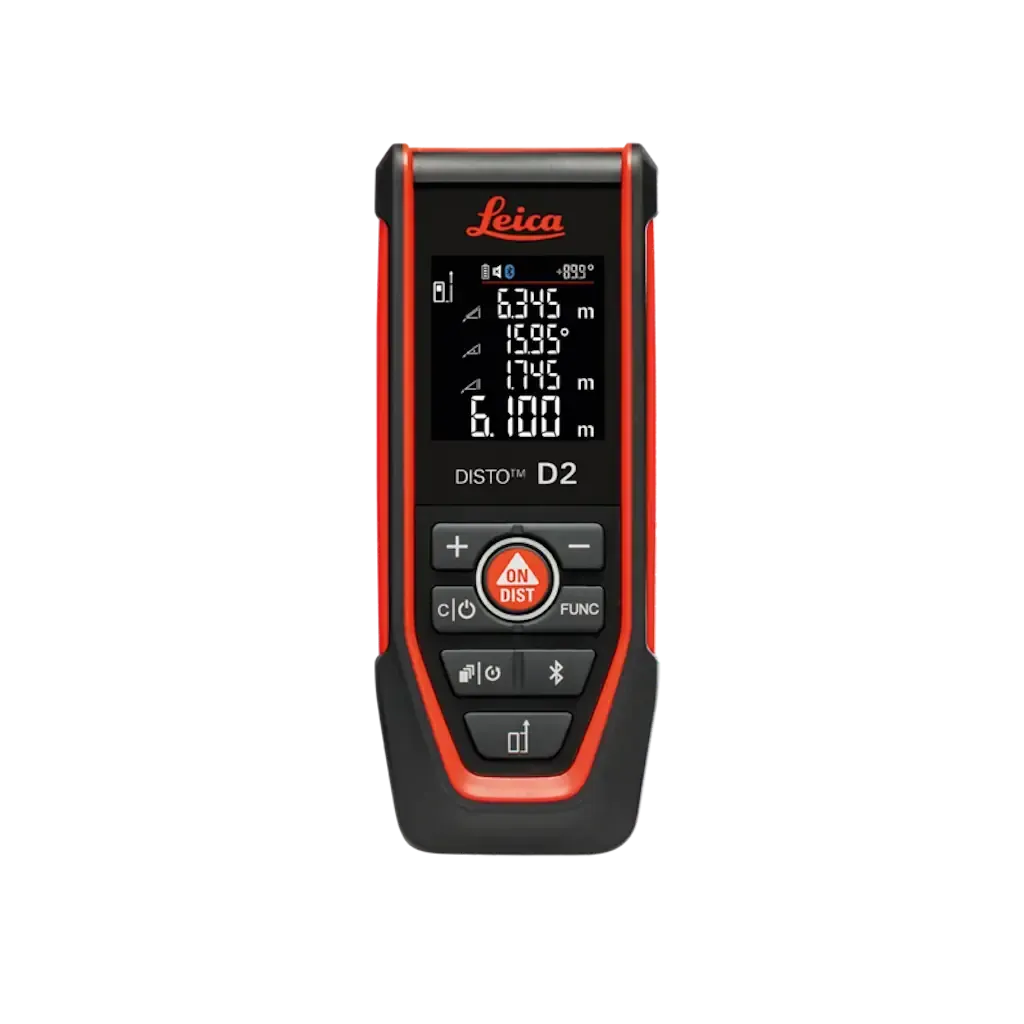

Leica Disto D2 (2026) Laser Distance Meter
Authorised Dealer
Product description
Experience seamless surveying and layout planning with the updated Leica DISTO D2 (2026). Featuring an extended 150-metre range, integrated tilt sensor, and instant NFC connectivity, this compact distance meter transforms complex indoor measuring into a fast, single-person task. Simply tap your device against a smartphone to send data directly to the DISTO Plan app for instant floor plan generation.
Automated CAD Floor Plans
Using an internal Inertial Measurement Unit (IMU), the Smart Room function captures both distance readings and device orientation as you measure around a room clockwise or counter-clockwise. When paired with the DISTO Plan app on your smartphone or tablet, your recorded values immediately assemble into scaled, ready-to-use room layouts.

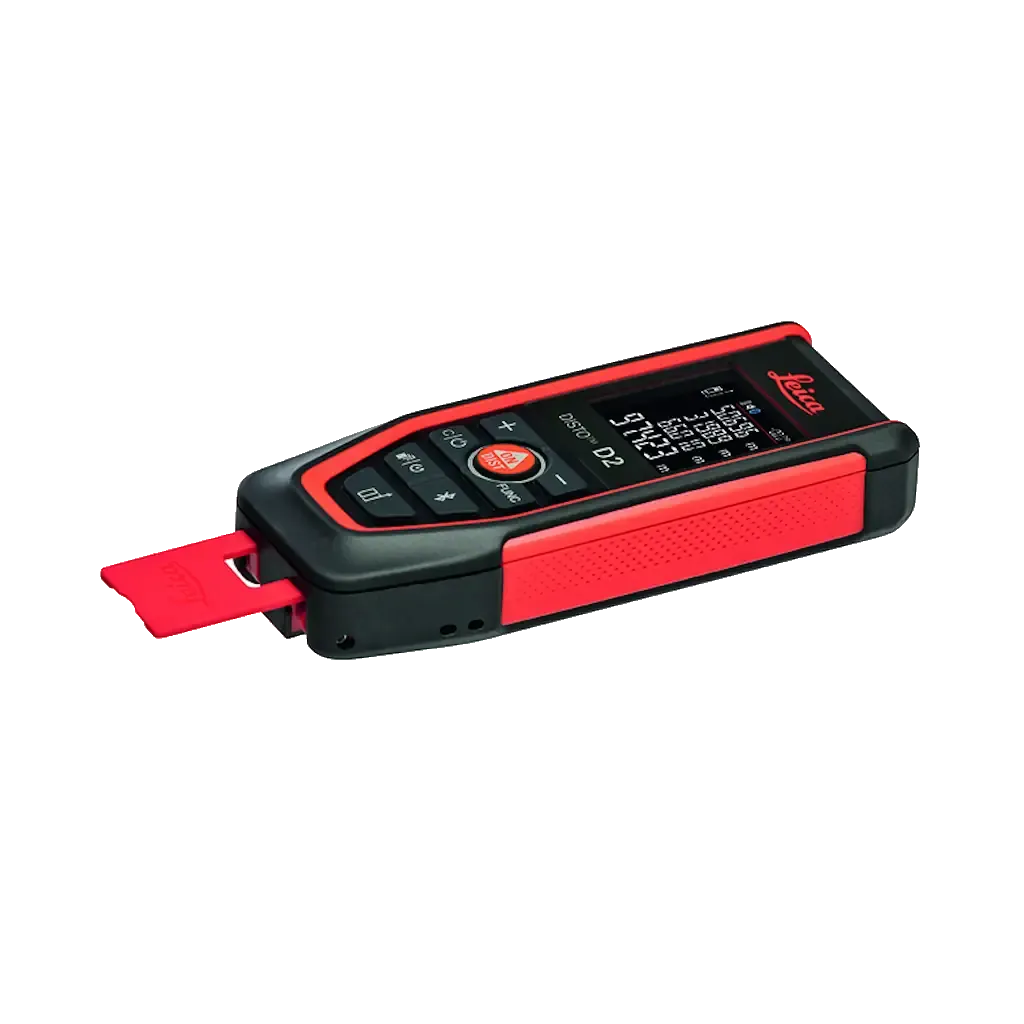

Multifunctional Smart End-Piece
Measuring from tight corners, diagonal channels, or outer edges is straightforward thanks to the fold-out end-piece. The instrument automatically detects its position and adjusts the measuring reference point accordingly, eliminating manual offset additions and preventing calculation errors.
Obstacle-Free Horizontal Distance
By combining precise laser distance metering with an integrated inclination sensor, Smart Horizontal Mode calculates exact level distances even over furniture, clutter, or structural barriers. You obtain true horizontal measurements over long spans without needing an unobstructed path along the ground.
Skip manual device pairing completely. By simply holding your smartphone near the DISTO D2, measurements transfer straight to your active mobile workspace via Near Field Communication.
Key Features
- 150 Metre Operational Range – Measure long indoor distances reliably with ISO 16331-1 certified precision.
- NFC and Bluetooth 6.0 Transfer – Send measurements instantly to iOS, Android, and Windows applications without pairing friction.
- Smart Horizontal Mode – Calculate exact horizontal lines using the built-in tilt sensor, ignoring physical obstacles in the field of view.
- Automatic Reference Detection – Integrated end-piece switches zero-point references automatically when flipped out for corners or edges.
- Comprehensive On-Board Calculations – Features area, volume, painter function, triangle area, stake-out, and 3-point Pythagoras calculations.
- IP54 Dust and Splash Protection – Designed to withstand demanding jobsite environments.
- 30-Measurement Internal Memory – Store recent measurement data directly on the device for rapid review.
Specifications
| Article Number (Metric) | 1017801 |
| Measuring Accuracy (ISO 16331-1) | ± 1.5 mm |
| Range (ISO 16331-1) | 0.05 m to 150 m |
| Measuring Units | m, ft, in |
| Laser Type | 635 nm, Class 2 |
| Laser Dot Size | 6 mm @ 10 m / 30 mm @ 50 m / 60 mm @ 100 m |
| Tilt Sensor / Units | Yes / 0.0° |
| Wireless Connectivity | Bluetooth® 6.0, NFC |
| Memory Capacity | Last 30 measurements |
| Protection Class | IP54 |
| Battery Type & Life | 2 × AAA 1.5 V (Up to 7,000 measurements / 14 h) |
| Dimensions | 127 × 50.5 × 24.5 mm |
| Weight (with Batteries) | 116 g |
What's in the Box
- Leica DISTO D2 laser distance meter
- Hand loop
- Protective pouch
- 2 × AAA 1.5 V batteries
- Safety instructions
- Calibration Certificate Silver
- Quick start guide with QR code link to manual
- 3-year warranty card
