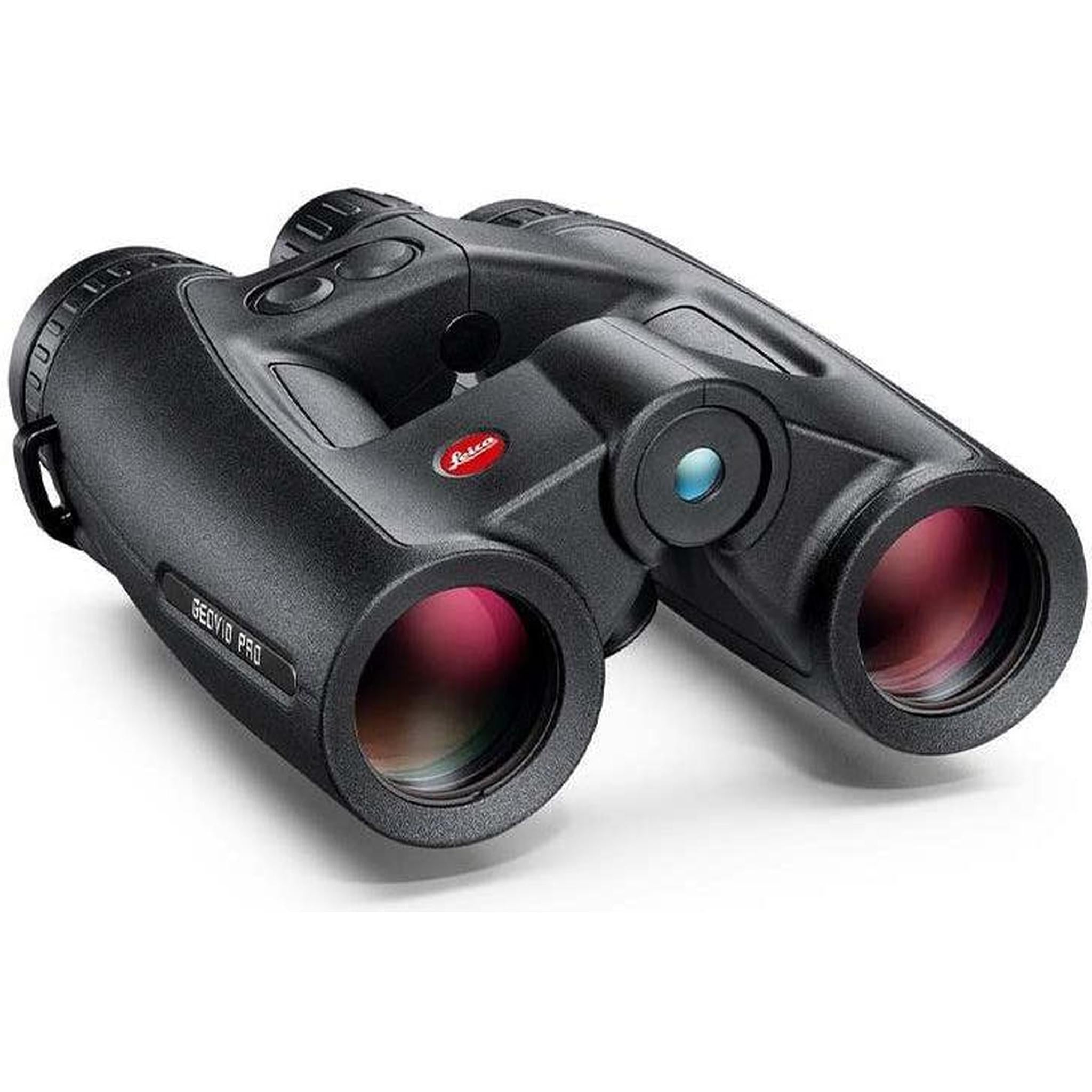

Leica Geovid Pro 10x32 LRF Binocular

SKU: LS40810

Leica Geovid Pro 10x32 LRF Binocular
×

Leica Geovid Pro 10x32 LRF Binocular

SKU: LS40810


Have a question about this product?


Print this page

Our Price

or 12 months interest free

Gem

or 6 easy payments of $831.66

Laybuy

or 4 easy payments of $1,247.50

Afterpay

Loading

Green truck Usually ships in Please enquire for availability

About this product

Optically, the Geovid utilizes Leica's Perger-Porro prism optical design, which combines the compact form factor of a roof prism with the rich depth of field and limited internal reflective surfaces of a traditional Porro prism. The HDC fully multicoated optical system maximizes light transmission while improving color fidelity and contrast. The 3.2mm exit pupil and 16mm eye relief make for an optic that's comfortable and easy to use when you're out on the range or in the field all day.

Optical Performance

  • 10x magnification for long-range identification
  • Perger-Porro prism optical design combines the rich depth of field and limited internal reflective surfaces of a Porro prism light path with the more compact straight-line optical tube of a roof prism to minimize light loss and internal diffraction
  • HDC (High Durable Coating) fully multicoated system has abrasion-resistant and anti-reflection properties to protect exterior lens surfaces and maximize light transmission with a natural neutral color fidelity and improved contrast
  • Internal baffle system suppresses stray light for improved contrast
  • Hydrophobic AquaDura coating on external optical surfaces allows dirt, dust, and fingerprints to be removed easily without leaving residue on the lens surfaces
  • 345' field of view at 1000 yards

Laser Rangefinder

  • Class 1 eye-safe infrared laser
  • Range: 10 to 2500 yards
  • Accuracy: 10-219 yards, ±0.5 yard; 219-438 yards, ±1 yard; 438 yards and beyond, ±0.5%
  • Onboard sensors detect temperature, air pressure, angle for improved accuracy
  • Spot mode for range to single subject; Scan mode for continuous measurement to multiple or moving targets
  • Metering time averages 0.3 seconds
  • Four-digit LED overlay with auto-brightness adjustment
  • Displays distance in yards or meters
  • Simple and intuitive two-button interface
  • Runs on one included CR2 battery

ABC (Applied Ballistic Compensation) System

  • Bluetooth connectivity to Leica Ballistic app for user-created ballistic profiles
  • Applied Ballistics software displays all necessary correction information for shots out to 875 yards
  • Can pair with Kestrel device for wind and weather info
  • 12 pre-installed fixed ballistic curves based on the most popular round loads allow for easy ballistic drop compensation

Use and Handling

  • Open-bridge/dual-hinge configuration reduces weight while providing a solid platform for the internal focusing system and rangefinder
  • Slip-resistant center focus wheel is easy to use with high precision, even when wearing gloves
  • ±4 dioptric correction on both eyepieces enables user to compensate for optical prescriptions for sharper views and ensure the in-view display information can be read
  • Detachable 4-position click-stop rubber eyecups for use with or without eyewear

Construction Details

  • Lightweight and strong magnesium alloy housing
  • Slip-resistant and protective rubber armoring
  • Nitrogen filled and O-ring sealed to be waterproof and submersible to 16.5', and resistant to internal fogging when moving through extreme changes in temperature or environmental conditions
  • Measures 6.0 x 5.1 x 2.8", weighs 30.7 ounces

What's In The Box?

  • Leica 10x32 Geovid Pro Rangefinder Binoculars
  • CR2 Battery
  • Lens Cloth
  • Carrying Case
  • Neoprene Carrying Strap
  • 2 x Eyepiece Covers
  • 2 x Objective Covers
  • Warranty Card

Leica Geovid Pro Specs

Laser
Laser Type Class 1 Eye Safe
Metering Range 10 to 2500 yd / 9.1 to 2286 m
Accuracy 10 to 219 yd / 9.1 to 200.3 m: ±0.5 yd / 0.46 m
219 to 438 yd / 200.25 to 400.51 m: ±1 yd / 0.91 m
Beam Divergence 1.2 to 0.5 MRAD
Optics
Prism Type Porro
Magnification 10x
Objective Lens Diameter 32 mm
Angle of View 5.8° (Actual)
Field of View 345' @ 1000 yd / 114.5 m @ 1000 m
Minimum Focus Distance 16.5' / 5 m
Exit Pupil Diameter 3.2 mm
Eye Relief 16 mm
Dioptric Correction ±4
General
Form Factor Binocular
Power Source 1 x CR2 Lithium
Display Type LED
Inclinometer Yes
Wireless Connectivity Bluetooth
Physical
Tripod Mount No
Water Resistance Waterproof
Fogproof Yes, Nitrogen Filled
Dimensions 6 x 5.1 x 2.8" / 15.2 x 13 x 7.1 cm
Weight 30.7 oz / 870.0 g (without Battery)
