Magne-Tech Magnetic 1" Scope Ring Mount
The Magne-Tech Magnetic 1" Scope Ring Mount (Part B – Female) is a precision-engineered magnetic quick-detach riflescope mounting component designed for hunters and precision shooters who value reliable optic retention, repeatable alignment and the convenience of changing scopes without repeatedly removing conventional mounting hardware.
Designed for riflescopes with a 1-inch (25.4mm) main tube diameter, this female scope ring assembly pairs with Magne-Tech's separately available 3-Magnet Magnetic Locking Picatinny Rail Mount Receiver (Part A – Male) to create a versatile quick-detach mounting system. When assembled with the matching receiver, the scope centreline sits 38.5mm above the Picatinny rail.
Featuring Magne-Tech's patented magnetic mounting technology, the system allows compatible daytime, thermal and night-vision riflescopes to be detached and reattached quickly while providing consistent positioning through precision-machined contact surfaces and a three-magnet mounting interface.
The complete mounting system incorporates a dual-redundant mechanical locking mechanism alongside magnetic alignment, providing additional retention during field use. Its modular design allows compatible scopes to remain attached to their respective female ring mounts while sharing a suitable Magne-Tech male receiver.
Precision-machined from 7075-T6 billet aluminium and finished with MIL-A-8625 Type III hard-coat anodising, the ring mount offers an excellent combination of strength, surface durability and corrosion resistance.
For shooters seeking a modular mounting solution that combines robust construction, convenient optic changes and repeatable positioning, the Magne-Tech 1" Magnetic Scope Ring Mount is a practical addition to an existing Magne-Tech quick-detach system.
Key Features
-
1" Scope Tube Compatibility: Specifically designed for riflescopes with a 25.4mm main tube diameter.
-
Magnetic Quick-Detach System: Allows fast attachment and removal of a mounted riflescope when paired with the matching Magne-Tech three-magnet male receiver.
-

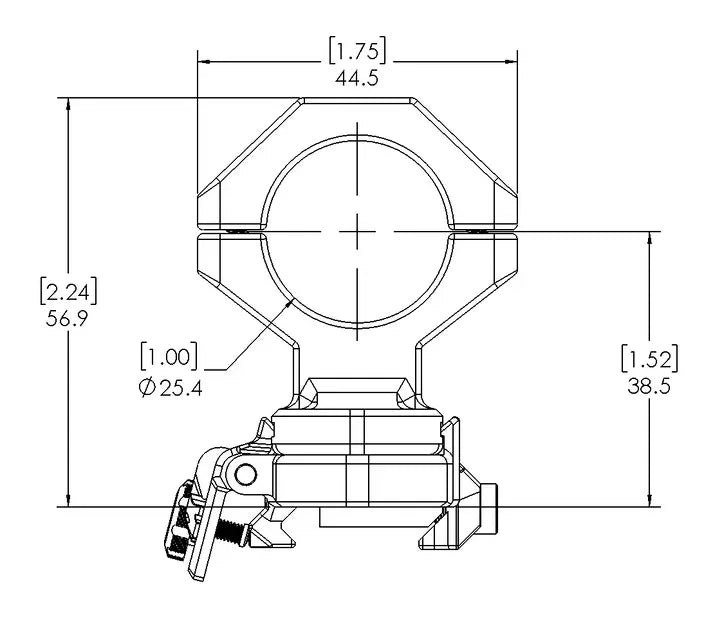

38.5mm Scope Centreline Height: Positions the centre of the scope tube 38.5mm above the Picatinny rail when installed with the compatible receiver.
-
Three-Magnet Interface: Works with Magne-Tech's patented rare-earth magnetic mounting system for precise alignment and repeatable optic positioning.
-
Dual-Redundant Locking System: The complete mounting assembly incorporates mechanical locking features for additional security alongside magnetic retention.
-
Precision Return-to-Zero Design: Engineered to minimise point-of-impact changes after scope removal and reattachment. Manufacturer laboratory alignment testing reports a maximum shift of 0.25 MOA under specified conditions.
-
7075-T6 Billet Aluminium Construction: High-strength aluminium construction delivers excellent durability without excessive weight.
-
Type III Hard-Coat Anodising: MIL-A-8625 Type III finish provides enhanced surface hardness, abrasion resistance and corrosion protection.
-
Extended Scope Positioning: Ring assembly geometry provides mounting flexibility to help achieve suitable eye relief.
-
Modular Scope Interchangeability: Allows different compatible scopes to be equipped with their own female mounts and used with a matching male receiver.
-
Picatinny Rail Compatibility: Designed for use with the Magne-Tech male receiver fitted to a suitable MIL-STD-1913 Picatinny rail.
-
Field-Ready Construction: Suitable for compatible hunting and precision shooting setups where convenient optic removal and reinstallation are required.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Magne-Tech |
| Product Name | Magnetic 1" Scope Ring Mount |
| Manufacturer Part Number | MT-1-65-385-RINGMOUNT |
| Mount Configuration | Part B – Female Only |
| Product Type | Magnetic quick-detach scope ring assembly |
| Scope Tube Diameter | 1" / 25.4mm |
| Scope Centreline Height | 38.5mm above Picatinny rail with compatible receiver |
| Magnetic Mounting System | Magne-Tech three-magnet interface |
| Magnet Type | Rare-earth magnets in matching male receiver |
| Locking System | Dual-redundant mechanical locking when assembled with compatible receiver |
| Rail Interface | MIL-STD-1913 Picatinny via separate male receiver |
| Body Material | 7075-T6 billet aluminium |
| Surface Finish | MIL-A-8625 Type III hard-coat anodised |
| Ring Screw Torque | 15 in-lb |
| Ring Fastener Specification | M3 × 0.5 × 12mm, Grade 12.9 |
| Ring Fastener Quantity | 8 |
| Return-to-Zero Design | Repeatable mounting; manufacturer laboratory tests report up to 0.25 MOA shift |
| Manufacturer-Tested Optics Recoil Reference | Up to .308 Winchester equivalent, approximately 18.27 ft-lb free recoil energy, for specified configurations |
| Compatible Male Receiver | Magne-Tech 3-Magnet Magnetic Locking Picatinny Rail Mount Receiver |
| Supplied Configuration | Female scope ring mount only |
| Colour | Black |
| Patent Status | US patent and international PCT patents referenced by manufacturer |
Magnetic Quick-Detach Technology
The Magne-Tech mounting system combines high-strength rare-earth magnets with precisely machined mating surfaces to provide a secure and repeatable connection between a riflescope and its mounting base.
The female ring assembly remains attached to the riflescope, while the separately available male receiver remains secured to the rifle's Picatinny rail.
When the two components are joined, the magnetic interface assists with positioning and alignment, while the locking mechanism provides additional mechanical retention.
This design allows compatible optics to be removed and reattached without repeatedly loosening conventional rail mounting hardware.
Return-to-Zero Performance
Magne-Tech's magnetic scope mounting technology is engineered to deliver repeatable positioning through multiple attachment and detachment cycles.
In manufacturer laboratory testing using co-witnessed lasers, the mounting system demonstrated a maximum measured alignment shift of 0.25 MOA after hundreds of attachment cycles.
Actual point-of-impact consistency depends on the complete mounting configuration, rifle, optic, installation and operating conditions.
Magne-Tech has published recoil testing for specified optics mounting configurations up to .308 Winchester equivalent free recoil energy.
Compatibility
The Magne-Tech Magnetic 1" Scope Ring Mount is designed for:
-
1" (25.4mm) Riflescopes: Compatible traditional hunting, sporting and precision riflescopes with a suitable straight main tube.
-
Magne-Tech 3-Magnet Picatinny Receiver (Part A – Male): Required to connect the female ring assembly to a compatible firearm.
-
Picatinny-Equipped Rifles: Compatible rifles using the matching male receiver installed on a MIL-STD-1913 Picatinny rail.
-
Modular Magne-Tech Mounting Systems: Suitable for users equipping multiple compatible scopes with individual female ring assemblies.
The ring mount is specifically sized for 25.4mm scope tubes and is not interchangeable with the 30mm or 34mm ring diameter variants.
The matching three-magnet receiver can be used with compatible female ring mounts in different tube sizes.
Installation Specifications
Ring Mount Screw Torque: 15 in-lb.
The ring assembly is secured to the compatible riflescope tube using the manufacturer's specified fasteners.
Use the recommended fasteners and tightening procedure to ensure appropriate ring clamping pressure and to minimise the risk of damage to the riflescope.
The receiver's 30 in-lb installation torque applies to the separately purchased male Picatinny mounting base, not to the scope ring screws.
Package Contents
-
1 × Magne-Tech Magnetic 1" Scope Ring Mount (Part B – Female)
-
Ring mounting hardware
-
Installation tool
Required but Not Included:
Magne-Tech 3-Magnet Magnetic Locking Picatinny Rail Mount Receiver (Part A – Male).
Important: This product is the female scope ring assembly only. It does not include the male Picatinny receiver, riflescope or complete quick-detach mounting set.
