About this product
Ultimate Depth. Ultimate Control.

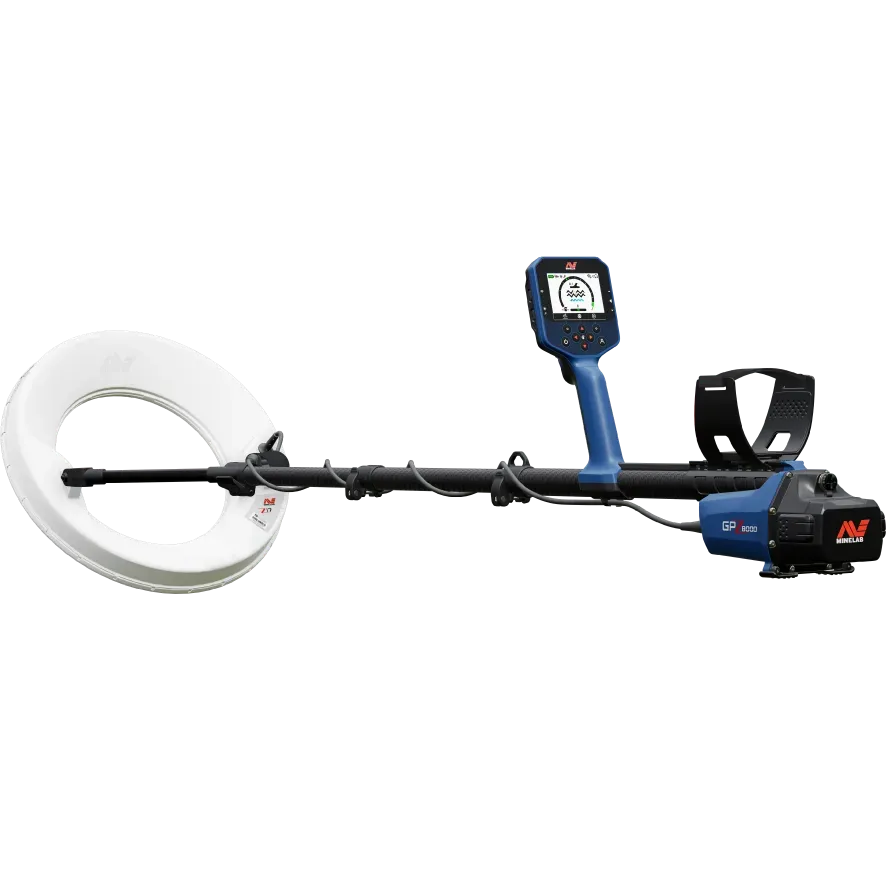

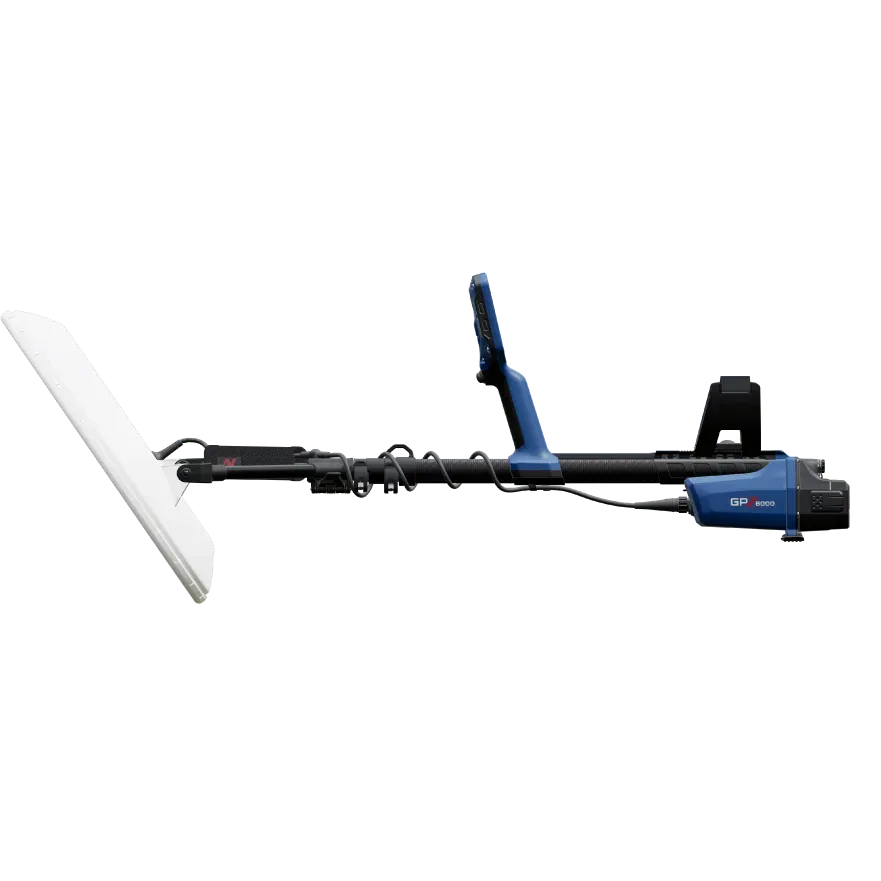

The GPZ 8000™ is Minelab’s newest flagship gold detector, engineered for advanced performance in challenging ground. Z-Set concentric toroidal coils offer three coil options to match detection style, target size, and ground conditions. Ground optimized detection delivers maximum depth on small to large gold, with Echo Sonic Pro™ audio providing rich layered sound and enhanced stereo separation for clear target definition. A new level of depth, control, and adaptability for serious prospectors.

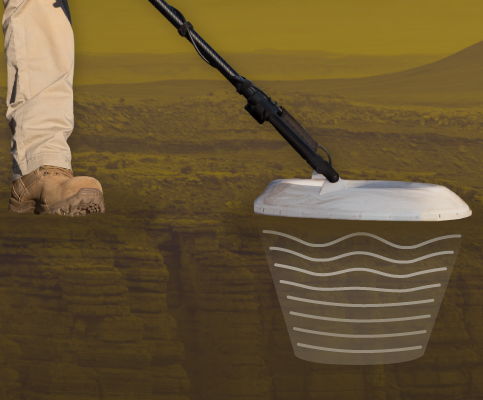

Maximum Depth Penetration
Optimal gold depth through ground-optimized detection, enabling maximum depth on small to large gold by matching the right mode to the right ground.
PRO-SWING 125 Harness
Distribute detector weight during long hunts while keeping movement unrestricted. Weight is transferred through the hips to reduce fatigue, supported by the GA10 guide arm to improve swing control and reduce strain.
Wireless Audio Freedom
Experience real-time wireless audio with the WM 14 wireless audio module, maintaining low-latency sound and clear signal detail without cables. Move freely with extended range and maintain consistent target audio throughout the field.

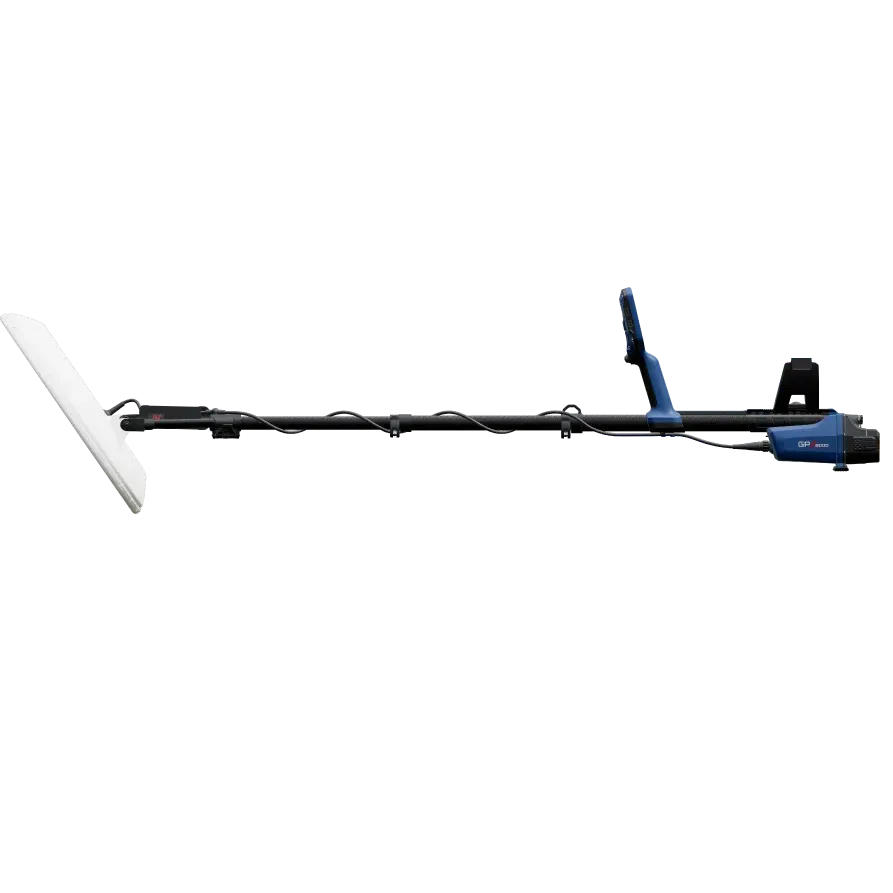

Lighter Swing
Weighs only 2.78 kg (6.1 lbs) for comfortable control and a lighter swing during long sessions.
GeoZVT™ Technology
Proven ZVT™ depth with advanced signal control for high performance in mineralized, conductive, and EMI-heavy ground. Uncover gold in difficult ground conditions, turning challenging terrain into productive ground.

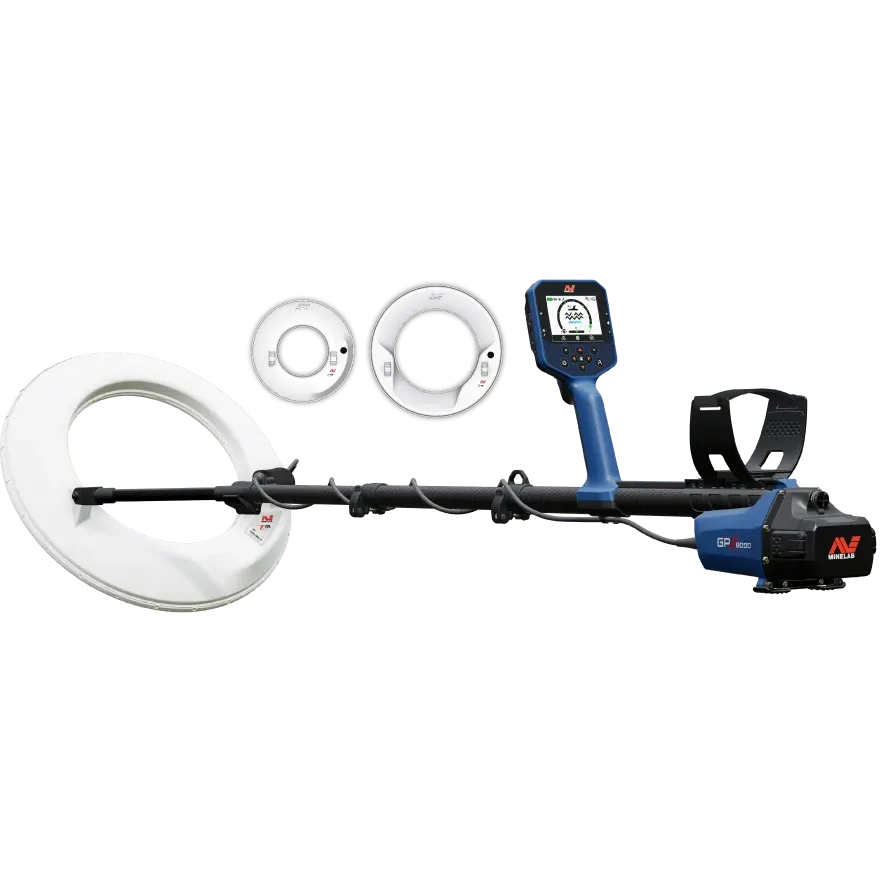

Z-Set Concentric Toroidal Coils
The Z-Set Concentric toroidal coil range includes the Z18 18", Z17 17", and Z13 13" coils, each engineered for specific ground conditions and reduced ground noise in mineralized soils.
Echo Sonic Pro™ Audio
Echo Sonic Pro™ Audio delivers clear, highly responsive target tones that help distinguish subtle signals with greater precision. Advanced audio processing enhances faint targets while maintaining stable sound characteristics, allowing you to detect more confidently in challenging ground conditions.
Full-Color LCD Display
Combines vivid visuals with a clean and modern menu system, making it easy to access settings, view the display, and stay oriented in the field. The interface stays clear and readable when conditions demand it.
Ground Type Selection
Optimized performance engineered for every ground condition, with precise analysis and adaptation to changing terrain. Four ground types use Echo Sonic Pro™ audio to identify ground conditions through nuanced stereo feedback, while performance is tailored to locate shallow crumbs to deep nuggets in mineralized and conductive soils.
1 – Low Latency Wireless Audio
2 – LCD Backlight & Flashlight
3 – Ground Type Selection
4 – Adjust Sensitivity
5 – Echo Sonic Pro™
6 – Manual Sensitivity
7 – Auto / Auto+ Sensitivity
8 – Volume Control
9 – Mineralization Level
10 – Auto / Manual Noise Cancel
11 – User Shortcut
1 – Side Buttons
2 – Handgrip
3 – Upper Shaft
4 – Cable Hooks
5 – Control Box Latch
6 – Coil Connector
7 – Control Box
8 – Stand
9 – Display and Keypad
10 – Armstrap
11 – Armrest
12 – Armrest Lock
13 – Armrest Rail
14 – Headphone Socket
15 – Battery Latches
16 – Battery Pack
More Features
All-Day Battery Life
Includes two Li-ion rechargeable batteries, delivering reliable power for all-day detecting sessions.
Built-In Flashlight
Detect after dark using an integrated flashlight. Maintain clear ground visibility during low-light sessions without interrupting your search
Audiophile Wired Headphones
High-fidelity headphones produce an immersive and high resolution audio experience. Premium materials ensure lasting comfort during long detecting sessions.
Hybrid Shaft System
The Hybrid Shaft System combines carbon fiber and fiberglass to create a strong and lightweight setup that reduces vibration and reverberation during knocks and bumps. A tear-drop shaft profile maintains consistent alignment and prevents unwanted rotation, and the fiberglass lower shaft minimizes detection noise for clearer audio on subtle signals.
What’s in the Box
Included Item
Details / Notes
GPZ 8000 detector
Main detector assembly with control pod, control box, shafts, armrest, stand, and coil mounting system.
Z18 18-inch coil
Standard supplied coil.
Z17 17-inch coil
Included only in the three-coil pack-out.
Z13 13-inch coil
Included only in the three-coil pack-out.
Spare detector battery
Rechargeable lithium-ion battery pack.
Universal AC charger
2 × USB-C and 2 × USB-A ports, with interchangeable regional plug adapters.
USB-C DC car charger
2 × USB-C ports for vehicle charging.
Crocodile clip adapter
Accessory socket-to-crocodile clip adapter for direct 12 V vehicle battery connection.
USB-C to USB-C charging cables
2 cables supplied.
Sennheiser HD 505 wired headphones
3.5 mm headphones supplied with hard case and drawstring bag.
Minelab auxiliary audio cable
3.5 mm to 2.5 mm, curly cable with special overmold for detector socket sealing.
Standard auxiliary audio cable
3.5 mm to 2.5 mm cable.
WM 14 Wireless Audio Module
Low-latency wireless audio receiver/module with built-in speaker.
Headphone jack adapter
3.5 mm to 6.35 mm adapter.
GA 10 guide arm
Guide arm assembly for fatigue reduction and improved swing control.
Bungee loops
2 supplied.
PRO-SWING 125 harness
Harness system with adjustable back panel, D-rings, hydration compartment, WM 14 attachment points, MOLLE/PALS-compatible webbing, and included hip-strut accessories.
Hip-struts, hip-sockets, and bungee cord
Hip-struts in 425 mm, 475 mm, and 525 mm lengths; 2 hip-sockets; bungee cord with hook.
Screen protector kit
Protector and microfiber cloth supplied.
Specimen container
Included specimen jar/container.
GPZ 8000 Detector – Core Specifications
Specification
Details
Ground Types
Difficult Deep | Difficult High Yield | Normal Deep | Normal Extra Deep
Ground Balance
Auto | Manual (Quick-Trak)
Noise Cancel
Auto (4096 channels) | Manual (128 channels)
Sensitivity
Manual (levels 1–10) | Auto (level 11) | Auto + (level 12)
Display Backlight
Off | Low | Medium | High
Flashlight
Dual-LED, Off | Low | Medium | High
Volume
1 to 17
Threshold Volume
0 (Off) to 15
Threshold Pitch
1 to 10
Volume Limit
1 to 10
Audio Modes
Echo Sonic Pro high-fidelity detecting audio | Mono detecting audio
Operating Frequency
2 to 50 kHz
Key Technologies
GeoZVT | Echo Sonic Pro (ESP) | Z-Set concentric toroidal coils | Low-latency wireless audio
Detector Hardware, Physical Build and Compatibility
No built-in speaker; audio requires supplied wired headphones or WM 14 wireless audio module.
Headphone Output
3.5 mm (1/8-inch) wired headphone connection
Wireless Audio Support
Minelab proprietary low-latency wireless audio
Wireless Audio Module Compatibility
WM 14 (IP67)
Major hardware assemblies
Control pod assembly, armrest assembly, control box assembly, upper/middle/lower shafts, and coil assembly with skid plate, coil cable, cable retainer, yoke, coil camlock, and coil bolts.
Audio, Headphones and Wireless Details
Specification
Details
Supplied Headphones
Sennheiser HD 505 wired 3.5 mm headphones
Headphone Waterproofing
The supplied Sennheiser HD 505 headphones are not waterproof.
Curly auxiliary cable
Minelab-supplied curly cable forms a waterproof IP67-rated seal at the detector headphone socket when correctly fitted.
Headphone socket submersion
With the supplied curly cable or waterproof dust cap correctly fitted, the detector headphone socket can withstand rain or submersion to less than 1 m for up to 30 minutes.
Third-party headphone compatibility
Any standard 3.5 mm headphones can be used, but the connector overmold must be less than 9 mm in diameter to fit the socket properly.
ESP compatibility note
Echo Sonic Pro audio works only when using stereo headphones.
WM 14 purpose
Wireless audio receiver for clear sound with no perceivable delay; can use built-in speaker or wired headphones.
Power, Battery, Charging and Environmental Specifications
Specification
Details
Supplied Battery
Rechargeable lithium-ion battery, 5833 mAh
Battery Runtime
Approximately 10 hours
Battery Charge Time
Approximately 4 hours
Detector Battery Charging Requirement
Requires USB-C Power Delivery and a charging source capable of at least 30 W for maximum charging speed; detector batteries will not charge on USB-C ports that do not support PD.
Minimum charger capacities
GPZ 8000 battery: 2 A at 15 V | WM 14 battery: 2 A at 5 V
Charging methods
Universal USB-C AC charger | USB-C DC car charger | USB-C DC car charger via crocodile clip adapter for direct 12 V battery charging
Waterproof rating
Detector and coil: IP67 rated, submersible up to 1 m for up to 30 minutes
Coil waterproofing note
All GPZ 8000 Z-Set coils are waterproof to less than 1 m, but the coil connector must not be submerged when not coupled to the detector.
Operating Temperature Range
-10°C to +50°C
Storage Temperature Range
-20°C to 70°C
Charging Temperature Range
0°C to +40°C for detector battery and WM 14 charging
Coil System and Use-Case Guide
Coil
Primary Strength
Best Use
Notes
Z18
Maximum depth and ground coverage
Large deep gold, open ground, starting in new ground, deeper soils
Best depth of the three coils; more affected by EMI than the Z13; less suited to dense vegetation or interference-heavy areas.
