Nitecore Intelligent USB Four Slot Superb Charger

SKU: UMS4

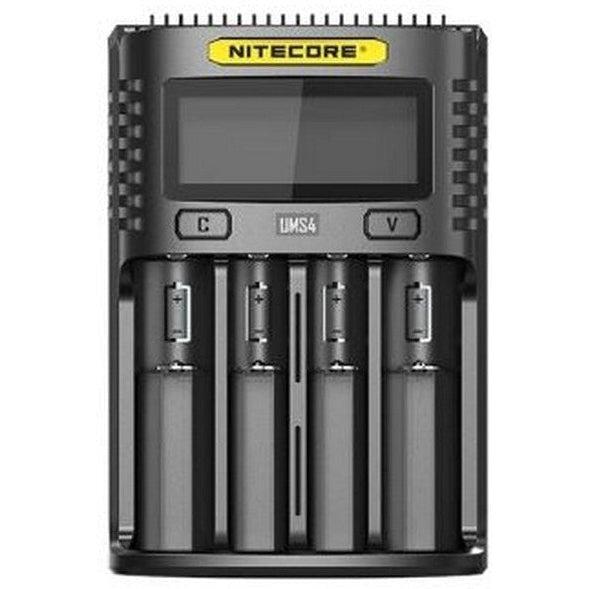

Nitecore Intelligent USB Four Slot Superb Charger

Our Price

$94.94

$94.94

Green truck Usually ships in 1-2 days



Loading

500

9494

Shipping Quote

When will I receive it?

About this product

NITECORE UMS4 is a QC input available, intelligent USB four-slot superb, with a total max output of 4,000 mA and a single slot max output of 3,000 mA and is capable of charging 4 batteries simultaneously and controlling each slot independently. It only takes 55 minutes to charge 80% of a 3,500mAh battery.

The LCD screen can display a real-time information of Battery Health by “Good” or “Poor”, Internal Resistance, Charging Current, Battery Voltage, Charged Volume and Charging time. It can enable an automatic detection of battery power level and automatic selection of the appropriate voltage and charging mode and automatic selection between 3 charging modes (CC, CV and -dV/dt). The charging parameters can be set manually to meet various charging needs.

The specially designed Micro USB port is compatible with various mobile power source, solar panel and USB adaptors to ensure endless power supply. UMS4 incorporates an optimized IMR battery charging program, which is able to monitor the entire charging process, ensuring that the cut-off voltage is always within safe limits to extend the lifespan of the batteries. The UMS4 is compatible with 3.6V/3.7V Li-ion rechargeable batteries, 3.8V Li-ion rechargeable batteries, 1.2V Ni-MH/Ni-Cd rechargeable batteries and 3.2V LiFePO4 batteries.

Multiple safeguards ensure the safe charging process, including automatic battery internal resistance detection, anti-short circuiting and reverse polarity protection, overtime charging protection, over-discharged Li-ion battery activation and over-discharged IMR battery restoration. Apart from being constructed from durable and fire retardant PC materials, the built-in temperature regulation system is designed to prevent the overheat and to ensure the stability of the charging process. If there is no action to the buttons or batteries in 3 minutes, the screen will automatically go dim to save energy.

Key Features:

  • Intelligent USB four-slot superb charger
  • QC 2.0 input
  • Capable of charging 4 batteries simultaneously and controlling each slot independently
  • Total max output of 4000 mA with single slot max output of 3000 mA
  • Compatible with Li-ion and Ni-MH /Ni-Cd batteries with automated detection

Specifications

Input DC 5V/2A 12V/1.5A
18W (MAX)
Output Voltage 4.35V±1% / 4.2V±1% / 3.7V±1% / 1.48V±1%
Output Current QC (quick charge) Mode: 3,000mA1 (MAX) 2,000mA2 (MAX) 1,000mA4 (MAX)
Standard Mode: 2,000mA
1 (MAX) 1,000mA2 (MAX) 500mA4 (MAX)
Compatible with IMR/Li-ion/LiFePO4: 10440, 14500, 14650, 16500, 16340(RCR123), 16650,
17350, 17500, 17650, 17670, 17700, 18350, 18490,
18500, 18650, 18700, 20700, 21700, 22500, 22650,
25500, 26500, 26650, 26700
Ni-MH/Ni-Cd: AA, AAA, AAAA, C, D
