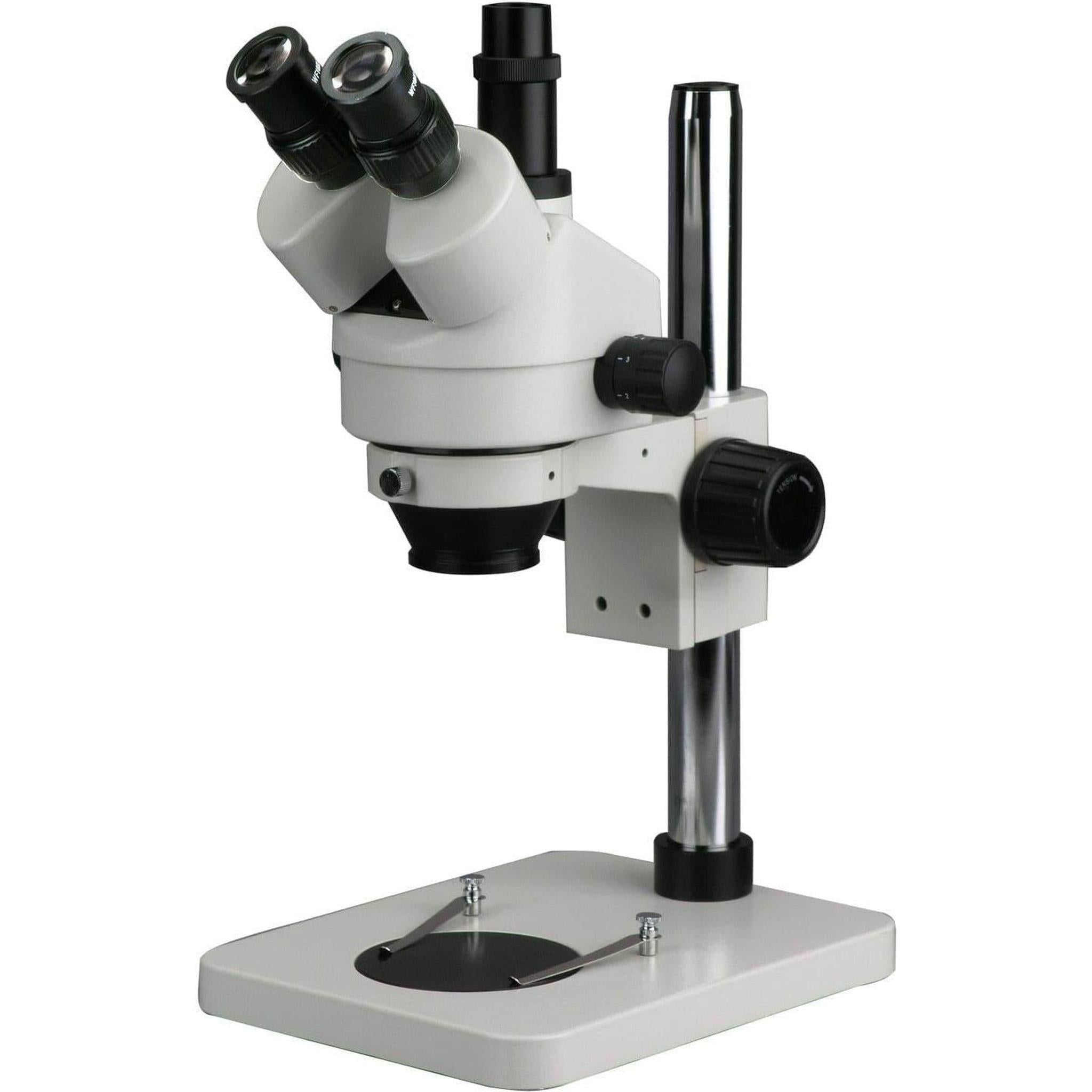

Omax 7x-45x Zoom Trinocular with Ring Light Stereo Microscope

SKU: W43APT-L60

Omax 7x-45x Zoom Trinocular with Ring Light Stereo Microscope
Omax 7x-45x Zoom Trinocular with Ring Light Stereo Microscope
×

Omax 7x-45x Zoom Trinocular with Ring Light Stereo Microscope

SKU: W43APT-L60

Learn more about this type of product


When will I receive it?

Have a question about this product?


Print this page

Our Price

or 12 months interest free

Gem

or 6 easy payments of $164.83

Laybuy

or 4 easy payments of $247.25

Afterpay

Loading

About this product

  • High-quality optical glass elements
  • Trinocular viewing head
  • 10X high eyepoint widefield eyepieces

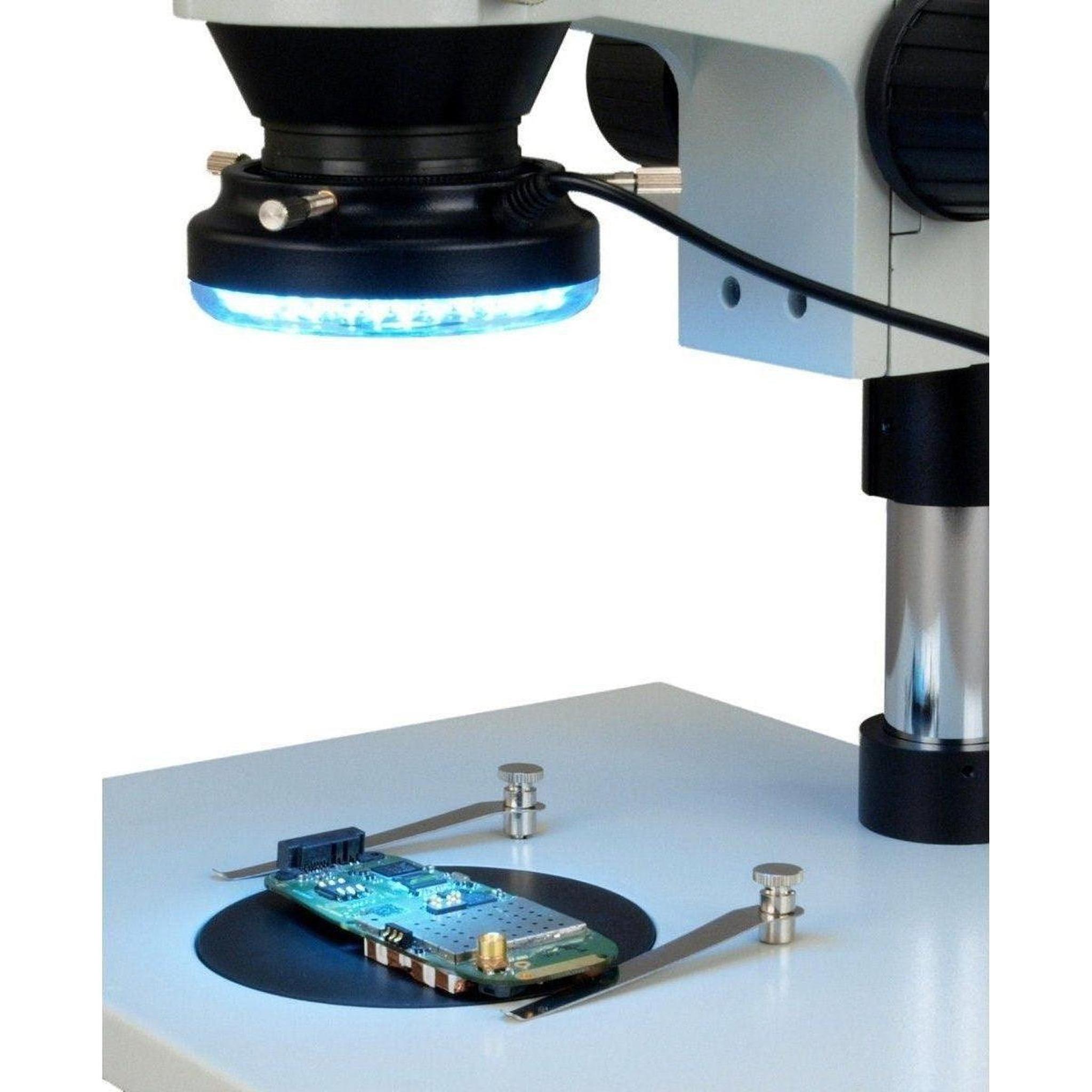

  • 60 LED ring light provides shadowless illumination
  • Sturdy metal table stand with large base and 2 stage clip

  • FEATURES:

    • High-quality optical glass elements
    • Trinocular viewing head
    • 10X high eyepoint widefield eyepieces
    • 60 LED ring light provides shadowless illumination
    • Sturdy metal table stand with large base and 2 stage clips
    SPECIFICATIONS:
    • Model: W43APT-L60
    • Total magnification: Zoom 7X - 45X
    • Microscope body
    • - Trinocular, 360° rotatable viewing head
    • - 45° inclined ocular tubes
    • - Diopter adjustment rings on both ocular tubes
    • - Interpupillary distance adjustable: 47 ~ 73mm ( 1-3/4"~ 2-3/4" )
    • - Inner diameter of ocular tube: 30mm (1-3/16")
    • - Push-pull rod to switch between the ocular and phototubes
    • - Mounting size for auxiliary lens: 48mm female thread
    • Eyepiece
    • - A pair of high eyepoint widefield WF10X/20
    • Objective
    • - Zoom 0.7X ~ 4.5X
    • - Zoom ratio 6.5:1
    • Working distance
    • - 100mm (3-15/16")
    • Field of view
    • - Max. 30mm (1-3/16")
    • Table stand
    • - Focus adjustment: rack and pinion, range 48mm ( 1-7/8" ), tool-free tension adjustment
    • - Body holder: 76mm ( 3" )in diameter, microscope body 360° rotatable
    • - Post: metal, diameter 32mm ( 1-1/4" ), height 290mm ( 11-1/2")
    • - Base: metal, 320mm x 260mm x 20mm (12-5/8" x 10-1/4" x 3/4"), with 2 stage clips and a 100mm ( 4" ) black/white plastic stage plate
    • Illumination

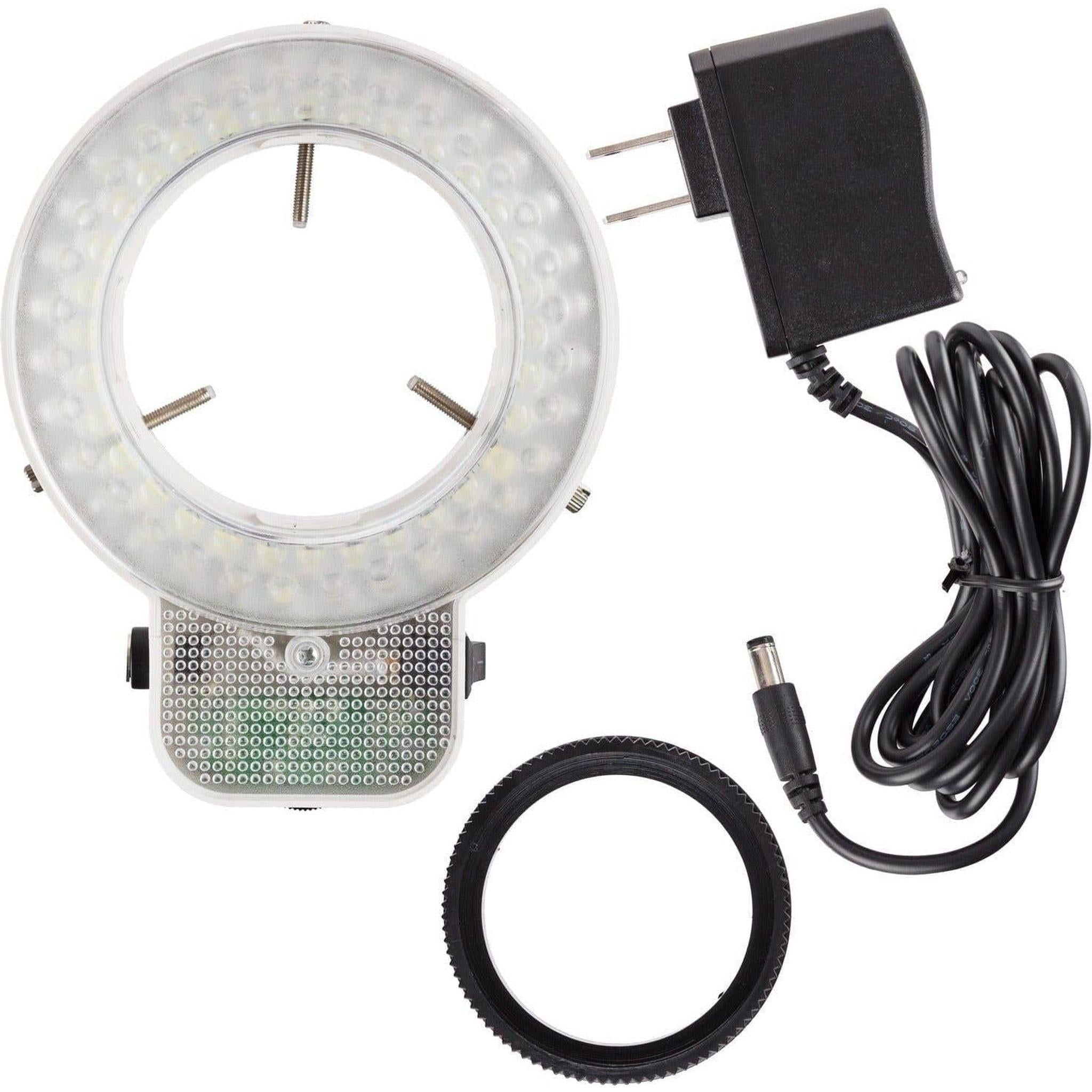

    • - 60 LED ring light
    • - Intensity adjustable
    • - Power adapter: metal shell, AC 90V - 265V, 50/60Hz
    • - 48mm ring light adapter included
    • Net weight
    • - 5.9 kg ( 13 lb 1 oz)

    PACKING LIST:

    • The trinocular stereo microscope body
    • A pair of WF10X/20 eyepieces
    • A pair of rubber eyeshields
    • A full set of table stand
    • 60 LED ring light
    • AC power adapter for ring light
    • 48 mm thread ring light adapter
