About this product
Pre-order this kit and Save!

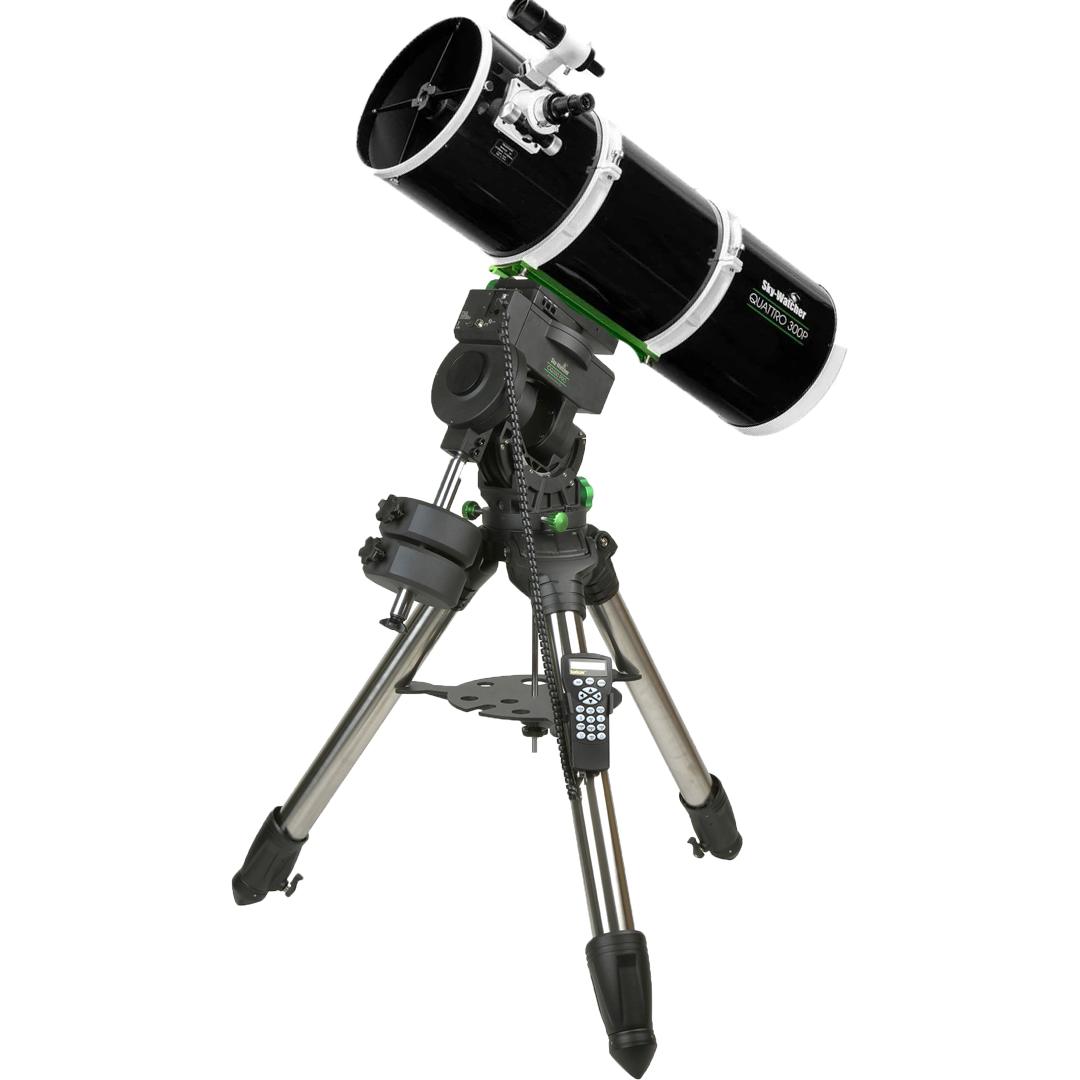

Wanting to advance your astrophotography journey? This 12" 300mm kit on the CQ350 mount will have you imaging our solar system and beyond.
- 305mm aperture, 1200mm focal length
- Fast f/4 focal ratio
- Parabolic mirror designed for imaging with 94% reflectivity
- 10:1, dual-speed, 2-inch Crayford-style focuser
- Oversized secondary mirror produces greater illumination for full-frame DSLR and CCD cameras
- Tube rings, mounting plate, eyepiece adapters, and 9x50 finderscope included

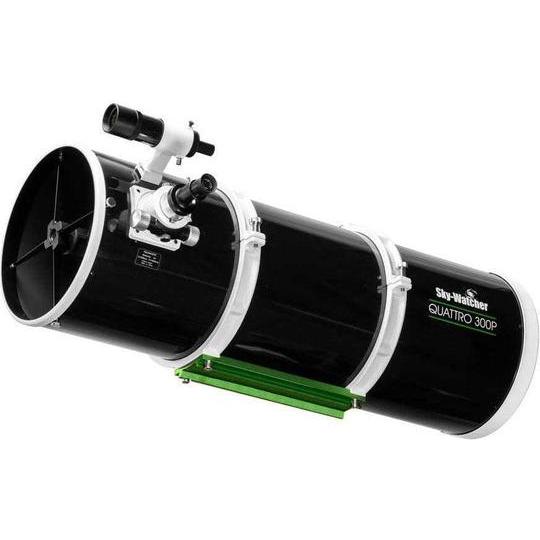

The Quattro imaging Newtonian is an affordable, large-aperture astrograph, ideal for users searching for a fast imaging system that will work for both astrophotography and visual astronomy. Boasting a swift f/4 focal ratio, this astrograph is can produce an exposure 6x faster than the average 8-inch f/10 Schmidt Cassegrain telescope. Although designed as an imaging optical tube, these Newtonians also produce bright and detailed viewing for visual astronomy.
Like all Sky-Watcher reflectors, the Quattro imaging Newtonian features borosilicate mirrors coated with Sky-Watcher’s proprietary Radiant™ Aluminum Quartz (RAQ™), producing 94% reflectivity. The tube is constructed with rolled steel, then coated with Sky-Watcher’s signature glossy metal-flake Black Diamond finish. The OTA uses an oversized secondary mirror providing greater illumination for DSLRs and CCDs using full-frame sensors, and an optional coma corrector is available for those who want to take their imaging to the next level.
Included with the Quattro imaging Newtonian is a 10:1 dual-speed 2-inch Crayford-style focuser, 1.25 and 2-inch eyepiece adapter, a 9x50 finderscope, tube rings, and a D-style dovetail plate.
| Optical Design |
Reflector |
| Diameter/Aperture |
300mm |
| Focal Length |
1200mm |
| F/Ratio |
f/4 |
| Finder Scope |
8 x 50mm |
| Highest Practical Power |
600x |
| Focuser Diameter |
2″ (50.8mm) Dual Speed 10:1 Linear Power Focuser
|
Weight - 15kgs

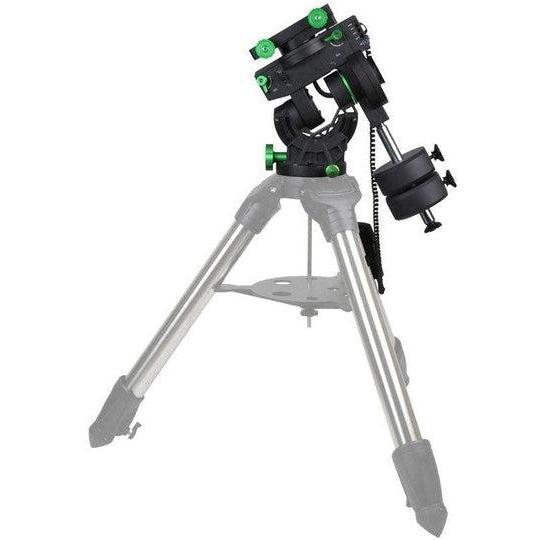

Introducing the newly designed CQ350 mount by Sky-Watcher. A new design with observatory class capabilities.
- Product weight: 14.4kg ( Mount Only, without counterweight and counterweight shaft )
- Payload: 35kg.
- RA worm wheel teeth number: 308. DEC worm wheel teeth number: 288
- Latitude adjustment range: 0-70 degree.
- Motors High precision stepper motor.
- Drive mode between worm gear and motor: synchronous wheel and synchronous belt.
- Spring loaded worm gears
- Function: Automatic identification initial position
- Working voltage: DC12V.
- Electric current: 2A
- Ports: 4 USB ports, 1 shutter release port, 1 power input port, 3 power output ports, 1 hand controller port and 1 AUTO GUIDER port.
- New designed tripod, SWA-TRICQ350 ( Optional )
- Compatible with EQ8 pier tripod – SWA-TRIEQ8 ( Optional )
- External polar scope, SWA-POLAR-EQ8 ( Optional )
DESCRIPTION
Built-in cable management
- USB hub (4 ports)
- 1mm Power port (3 ports)
- Shutter release port
- Auto guiding port
- The CQ350 features built-in cable management. This removes cable drag from hanging cables and reduces the risk of cables getting caught during imaging session. This capability also improves the mounts capabilities for remote use.
The built-in USB hub allows you to simply plug in your camera, guider, filter wheel and other USB accessories into the hub below the saddle plate and connect them using a single USB cable plugged into the rear of the mount. No more tangled mess of cabled hanging or need for multiple cables running around the mount.
Another addition to the cable management system is the three built-in 2.1mm ports situated next to the USB hub. This allows your accessories to also be powered through the mount. This reduces the need for multiple power adapters and other accessories. The ports can be run off of a single power source providing a cleaner set up and less cables.
On the gear of the saddle are three serial ports for various accessories such as ST4 guide cables and other serial based accessories. Like the rest of the cable management this reduces the hanging cables and provide a neat connection to the mount.
Home Positioning
The CQ350 features Automatic identification initial positioning, allowing for observatory customization.
Motors
Advanced Drive mode between worm gear and motor: synchronous wheel and synchronous belt.
PC Direct Connect
CQ350 also feature the new PC direct connect feature. Now you can easily connect your mount to your computer without the need of a hand controller. When paired with the SynScan Pro app. for Windows the mount can be aligned and controlled direct from a PC. This makes imaging refined and easier, especially for those with permanent set ups.
TOUR THE NIGHT SKY AT THE TOUCH OF A BUTTON
All Sky-Watcher Goto telescopes are equipped with either a SynScan hand controller or Wifi Adaptor. Please check product specifications before purchasing.
For amateur astronomers seeking superior equatorial control and the ease of a high-precision computerised Go-To telescope mounting system for imaging or visual applications, the family of SynScan TM Pro Series mountings are the answer. All SynScan TM Pro Series models are premium-grade observing platforms which have been thoughtfully designed for ease of operation. With the user-friendly push-button hand control, locating and viewing the treasures of the night sky becomes a walk in the park. The SynScan TM hand control allows you to point the telescope at a specific object or tour the skies at the touch of a button. The user friendly menu system allows automatic slewing to over 42,900 objects. Even an inexperienced astronomer can master its variety of features in a few observation sessions.
COMMON FEATURES:
WIFI Capability
Give your Sky-Watcher GOTO mount WiFi capability with the plug-in Wi-Fi Adapter. Connect the mount to the SynScan App using the adapter and control your telescope wirelessley with your mobile device.
The MINI AZ-GT Mount has built-in Wi-Fi capability so just connect the mount and control your telescope wirelessley with your mobile device.
Download the app from Google Play or Apple App Store.
SynScan Computerised Handset
Features include ongoing firmware updated from the internet. Pointing accuracy enhancement (PAE), and capacity to store star alignment data. Accepts GPS Mouse for convenient entry of time, date and location.
42,900+ Object Database
Including planets, named stars, double-stars, variable stars & user defined objects.
Object Catalogues
Messier, IC, NGC & Caldwell
