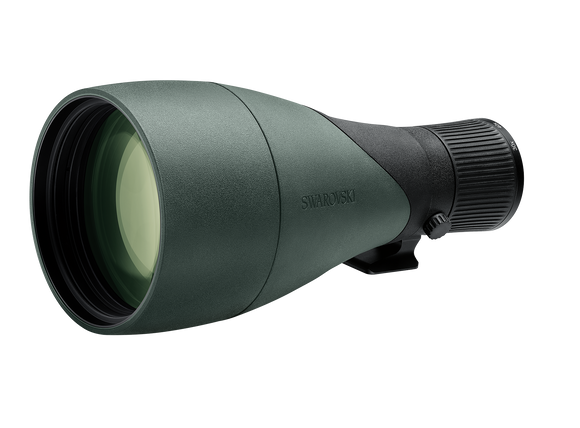

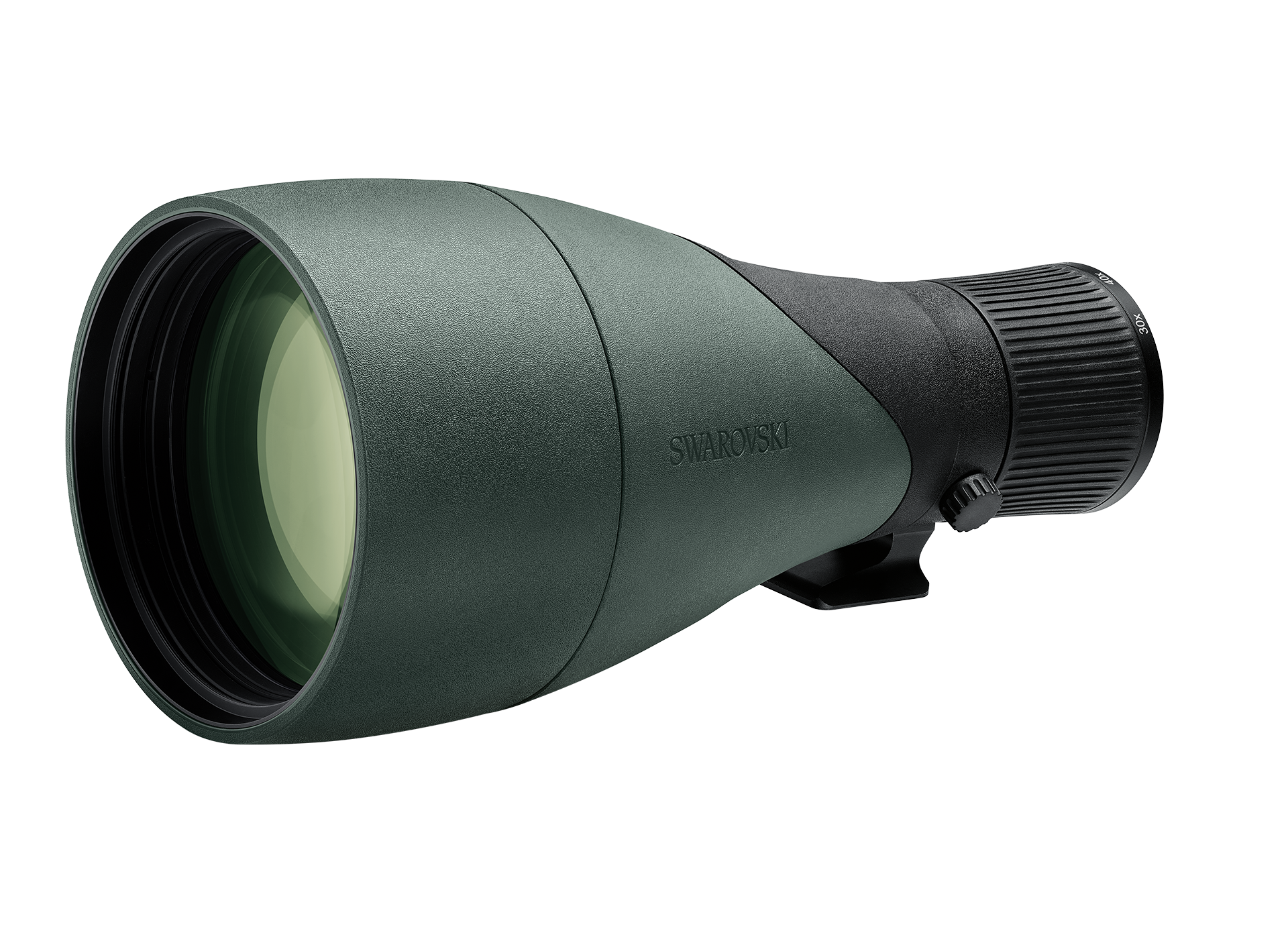

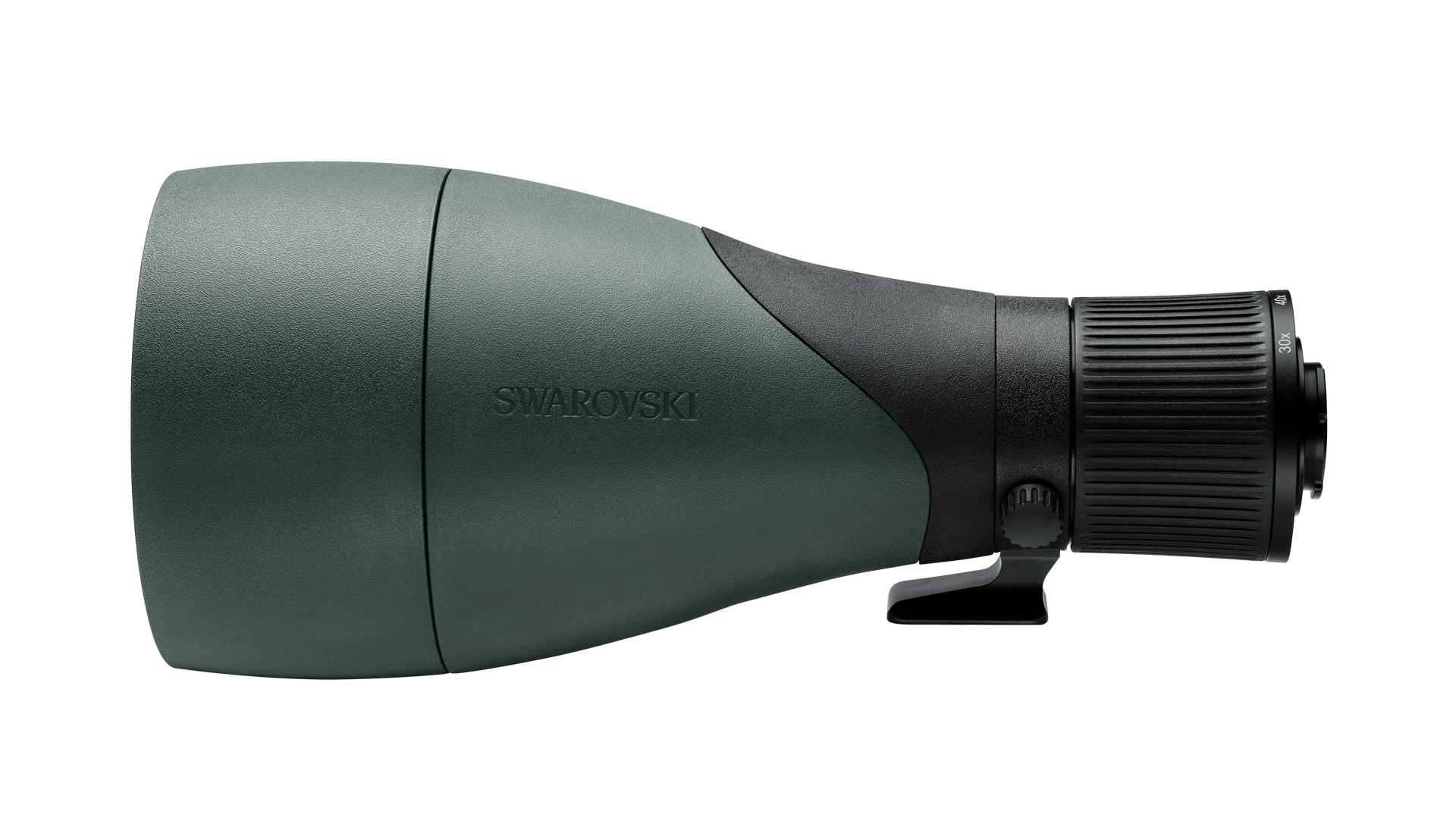

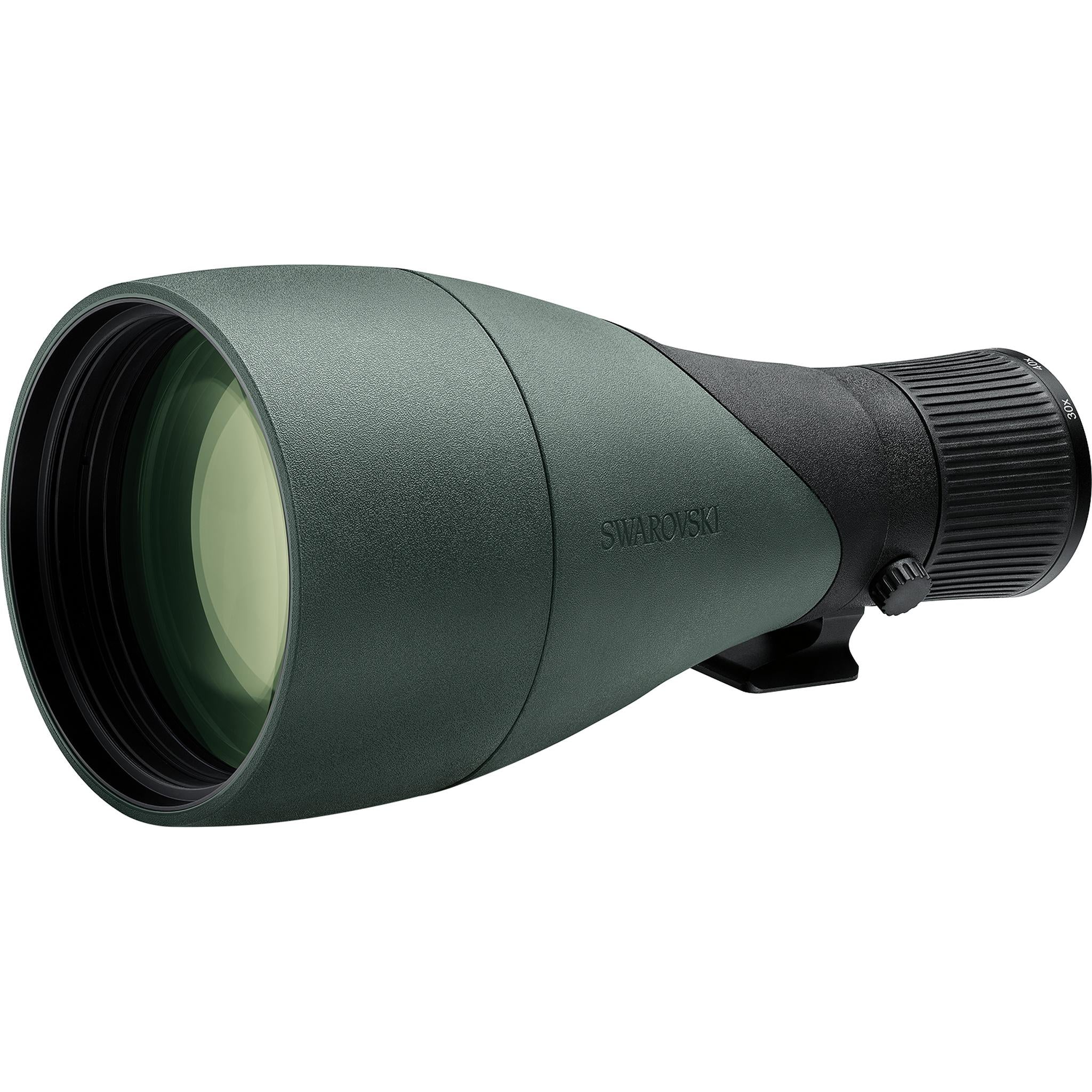

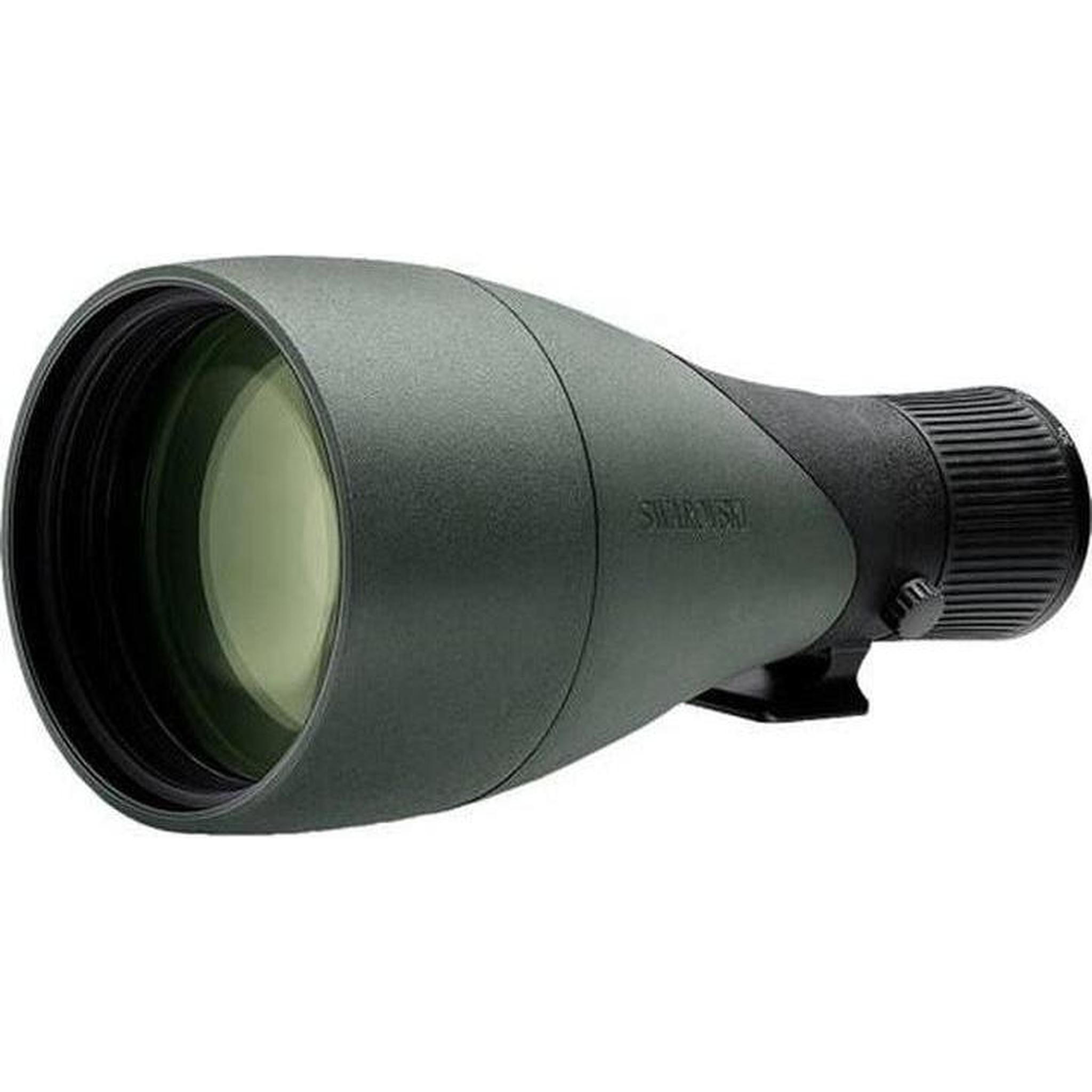

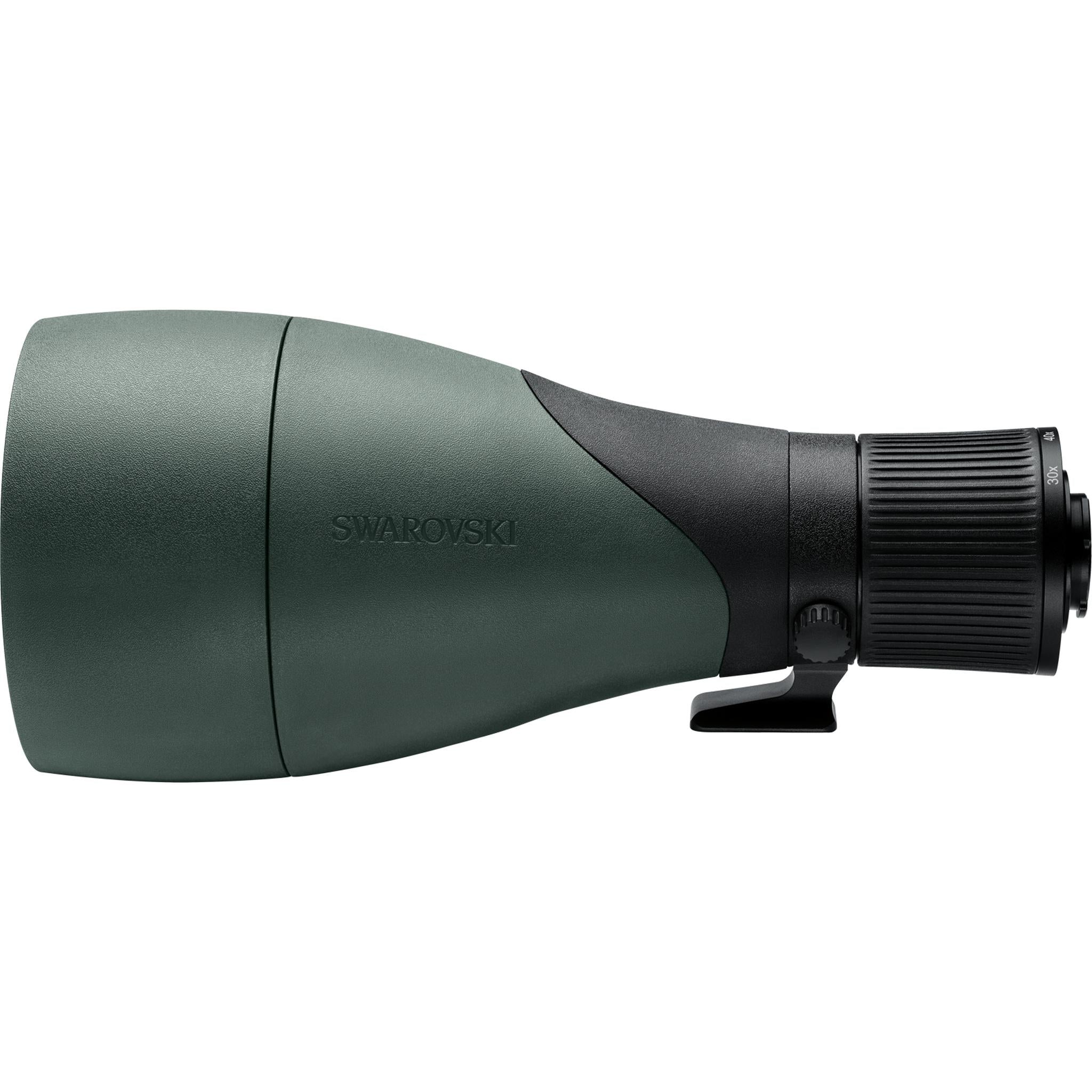

Swarovski ATX/STX/BTX Objective Module - 115mm

SKU: 5603875

Swarovski ATX/STX/BTX Objective Module - 115mm - Jacobs Digital
Swarovski ATX/STX/BTX Objective Module - 115mm
Swarovski ATX/STX/BTX Objective Module - 115mm - Jacobs Digital

Our Price

$4,845.00

$4,845.00

Green truck Usually ships in 2-3 Days An order for this can be placed with our supplier, and usually ships within the specified timeframe.



Loading

4000

484500

Shipping calculated at checkout

When will I receive it?

About this product

Representing the largest objective option in their line of modular spotting scopes, the Swarovski Optik ATX/STX/BTX 115mm Objective Lens Module will accept any of the three available eyepiece modules: straight (STX) or angled-viewing (ATX), or the binocular viewer (BTX).

The bayonet mount for the eyepiece modules is backward compatible with the original ATX/STX modules, to make it easy for users to upgrade their objectives without needing a new eyepiece module.

This extra-large objective, versus the 65mm, 85mm, and 95mm models, draw in more light and produces a larger exit pupil to improve its low-light capabilities and make it an invaluable companion from the pre-dawn hours to all the way past dusk.



Swarovski ATX/STX/BTX Objective Module — 115mm Specifications
Optical Performance
Objective Lens Diameter 115 mm
Diopter Correction None (Handled via eyepiece module, not included)
Optical Coatings SWAROTOP, SWARODUR, SWAROCLEAN
Lens Construction High-definition fluoride-containing glass for minimal chromatic aberration
Compatible Eyepieces ATX, STX, and BTX modular eyepiece systems
Features
Fogproof Yes, nitrogen filled
Water Resistance Waterproof and submersible
Protective Coatings SWAROCLEAN coating repels water, oil, and dirt
Mounting & Build
Tripod Mounting Thread 1/4"-20 Female
Body Material Magnesium alloy chassis with protective rubber armor
Focusing System Dual-speed precision focusing (coarse & fine)
Environmental
Operating Temperature -13 to 131°F / -25 to 55°C
Storage Temperature -22 to 158°F / -30 to 70°C
Physical
Length 18.6 in / 47.2 cm
Weight 7.7 lb / 3.5 kg
