Vanguard Endeavor HD 82A Spotting Scope

SKU: V237992

Vanguard Endeavor HD 82A Spotting Scope
Vanguard Endeavor HD 82A Spotting Scope
Vanguard Endeavor HD 82A Spotting Scope
Vanguard Endeavor HD 82A Spotting Scope
Vanguard Endeavor HD 82A Spotting Scope
Vanguard Endeavor HD 82A Spotting Scope
Vanguard Endeavor HD 82A Spotting Scope
Vanguard Endeavor HD 82A Spotting Scope
Vanguard Endeavor HD 82A Spotting Scope
Vanguard Endeavor HD 82A Spotting Scope

Our Price

$999.95

$999.95
Plus Free Shipping

Green truck Usually Ships in 2-3 Days An order for this can be placed with our supplier, and usually ships within the specified timeframe.



Loading
Delivery truck More on the way

Estimated time of arrival:


1000

99995

Shipping calculated at checkout

When will I receive it?

About this product

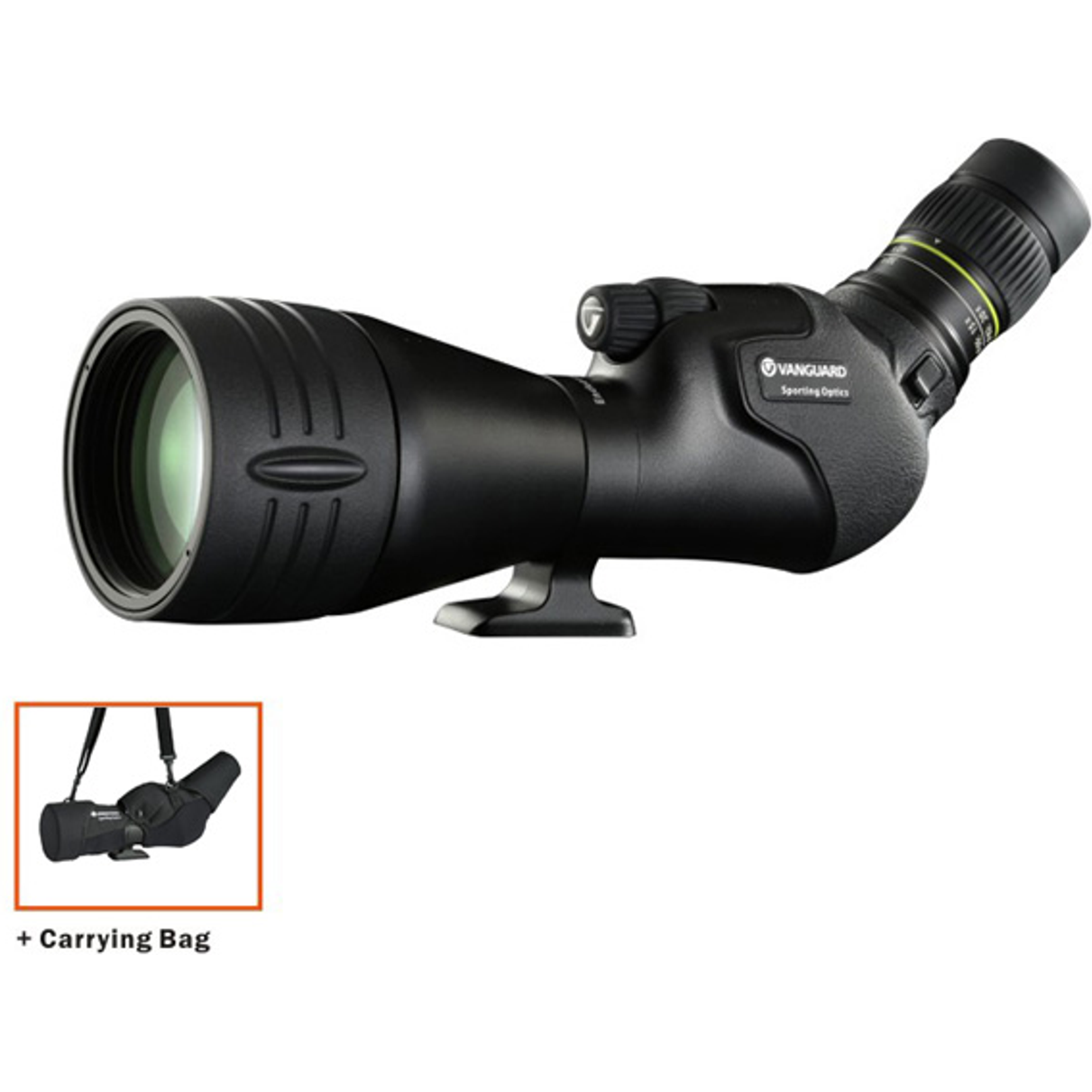

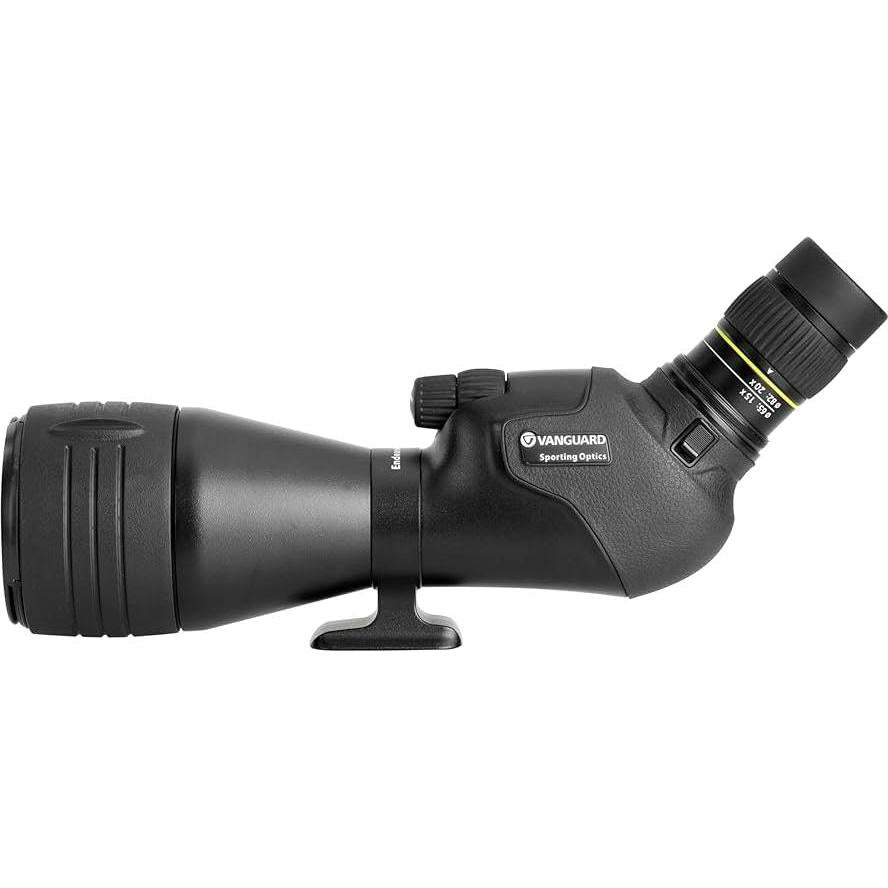

Vanguard Endeavor HD 82A 20-60x82 Angled Spotting Scope with ED glass, fully multi-coated optics, BaK4 prism, waterproof and fogproof construction, dual focus controls and angled eyepiece for birdwatching, target observation and long-range outdoor viewing.
Vanguard Endeavor HD 82A 20-60x82 angled spotting scope with ED glass and waterproof fogproof body

The Vanguard Endeavor HD 82A 20-60x82 Angled Spotting Scope delivers premium long-range viewing with ED glass, fully multi-coated optics and a large 82mm objective lens. Built with a rugged waterproof and fogproof body, it is ideal for birdwatching, hunting, target observation and serious outdoor glassing.

Premium Long-Range Viewing for Serious Outdoor Observation

The Vanguard Endeavor HD 82A is made for users who need more detail at distance. Its 20-60x zoom range gives you the flexibility to scan wider areas at lower magnification, then zoom in when you need to identify fine detail across landscapes, coastlines, ranges or open country.

The large 82mm objective lens helps gather more light, while ED glass, fully multi-coated optics and a phase-coated BaK4 prism system work together to deliver a bright, sharp and colour-accurate image.

ED Glass Clarity

Extra-low dispersion glass helps reduce colour fringing and improves fine detail, contrast and colour fidelity.

20-60x Zoom

Move from wide scanning to detailed long-range inspection with a versatile 3:1 zoom eyepiece.

Dual Focus

Coarse and fine focus controls allow quick target acquisition and precise final adjustment.

Weather Ready

Waterproof, fogproof and rubber armoured for dependable field use in changing outdoor conditions.

Vanguard Endeavor HD premium ED glass optical system

Premium ED Glass

Vanguard’s Extra-low Dispersion ED glass and BaK4 prism help reduce chromatic aberration for clear, sharp viewing with strong contrast.

Vanguard Endeavor HD fine and coarse focus controls

Fine Focusing

Fine and coarse focusing wheels allow quick adjustment and precise fine-tuning when observing detail at distance.

Vanguard MultiGuard lens coatings

MultiGuard Coatings

MultiGuard coatings use anti-reflective layers to improve light transmission and produce a contrasted image and a clearer field of view.

Vanguard Endeavor HD waterproof and fogproof construction

Waterproof & Fogproof

O-ring sealing helps block moisture, dust and debris, while nitrogen purging helps prevent internal fogging.

Fantastic for digiscoping with the optional PA-202 Camera Adapter

What’s in the Box

Main product Vanguard Endeavor HD 82A angled spotting scope body
Eyepiece Detachable 20-60x zoom angled eyepiece with rubber zoom dial
Protective case Scope cover / custom-fit stay-on soft case with carrying strap
Lens protection Objective lens cap and eyepiece cap
Cleaning accessory Lens cleaning cloth
Included media / accessories Spotting scope, soft bag / case, lens covers and cleaning cloth

Comprehensive Specifications

General

Brand Vanguard
Series Endeavor HD
Model name Endeavor HD 82A
Product type Angled spotting scope
Configuration 20-60x82
Viewing type 45-degree angled view
Colour Black / Dark Grey (Production Dependant)
User Individuals/ Family
Power source Manual optical device; no batteries required
Recommended use Birdwatching, target observation, range use, wildlife viewing, coastal viewing and long-distance outdoor observation

Optical System

Magnification 20x to 60x zoom
Zoom ratio 3:1
Objective lens diameter 82mm
Glass type Extra-low dispersion ED glass elements
Prism type BaK4 prism
Prism coating Phase-coated prism system
Lens coating Fully multi-coated optics with Vanguard MultiGuard anti-reflective coatings
Optical purpose Designed to reduce chromatic aberration / colour fringing and improve contrast, colour fidelity and image sharpness

Viewing Performance

Angle of view 2.1° to 1.0°
Field of view at 1000m 37m to 17m
Field of view at 1000 yd 110ft to 52ft
Close focus / near focus Approx. 6.0m to 6.5m / 19.7ft to 21.33ft
Eye relief 19mm to 20mm
Exit pupil Approx. 4.1mm at 20x / 1.37mm at 60x
Relative brightness 16.8 to 1.8
Twilight factor 40.4 to 70.1

Focus, Eyepiece & Handling

Focus type Manual focus
Focus system Centre focus with stacked coarse and fine focus controls
Fine focus wheel Used for precise final focus adjustment
Coarse focus wheel Used for fast movement through the focus range
Eyepiece design Detachable angled eyepiece
Eyepiece zoom control Rubber zoom dial / zoom adjustment ring
Eyecup Twist-out soft rubber eyecup
Eyepiece lock Eyepiece safety lock
Ocular adjustment ±0
Fast aiming aid Integrated fast aim sight / sighting line
Body angle adjustment Centre ring lock allows the scope body angle to be adjusted on the mounting collar

Construction & Weather Protection

Body material Magnesium alloy
Exterior finish Textured rubber armour
Waterproof Yes
Fogproof Yes
Internal protection Nitrogen-filled to help prevent internal fogging
Sealing O-ring sealed to help prevent moisture, dust and debris from entering the optics
Sunshade Built-in retractable sunshield / lens hood
Tripod mounting Tripod mounting foot with standard 1/4 inch / 6.35 Milimeters/ 0.635 Centimeters

Dimensions & Weight

Listed dimensions 380 x 180mm
Approx. imperial equivalent Approx. 15 x 7.1 inches
Alternate listed dimensions 15" D x 4.25" W x 7.25" H / approx. 381 x 108 x 184mm
Listed weight 1810g / 63.8oz
Alternate listed weight 66oz / approx. 1871g

Product Identifiers

Manufacturer part number ENDEAVOR HD 82A
Model number Endeavor HD 82A
UPC 026196343479
GTIN 00026196343479
Item type name Vanguard Endeavor HD 82A Angled Eyepiece Spotting Scope with 20-60x Magnification, ED Glass, Waterproof/Fogproof

Warranty

Warranty note Limited Lifetime
