Vortex Diamondback HD 10x42 Binoculars

SKU: VODB215

Vortex Diamondback HD 10x42 Binoculars
Vortex Diamondback HD 10x42 Binoculars
Vortex Diamondback HD 10x42 Binoculars

Our Price

$489.00

$489.00


Loading
Delivery truck More on the way

Estimated time of arrival:


1250

48900

Shipping calculated at checkout

When will I receive it?

About this product

The Vortex Diamondback HD 10X42 Binocular offers exceptional optical performance, durability, and comfort for outdoor enthusiasts, bird watchers, and hunters. Designed to provide clear, bright images with enhanced resolution, these binoculars are a reliable companion for any adventure.
Diamondback® HD · 10×42 · DB-215

Clear views. Built for the field.Diamondback HD 10×42

The Diamondback HD 10×42 combines clear, colour-accurate viewing with a light open-hinge body, secure rubber armour and an included GlassPak™ harness for dependable everyday field use.

Hunting Wildlife observation Waterproof GlassPak™ included

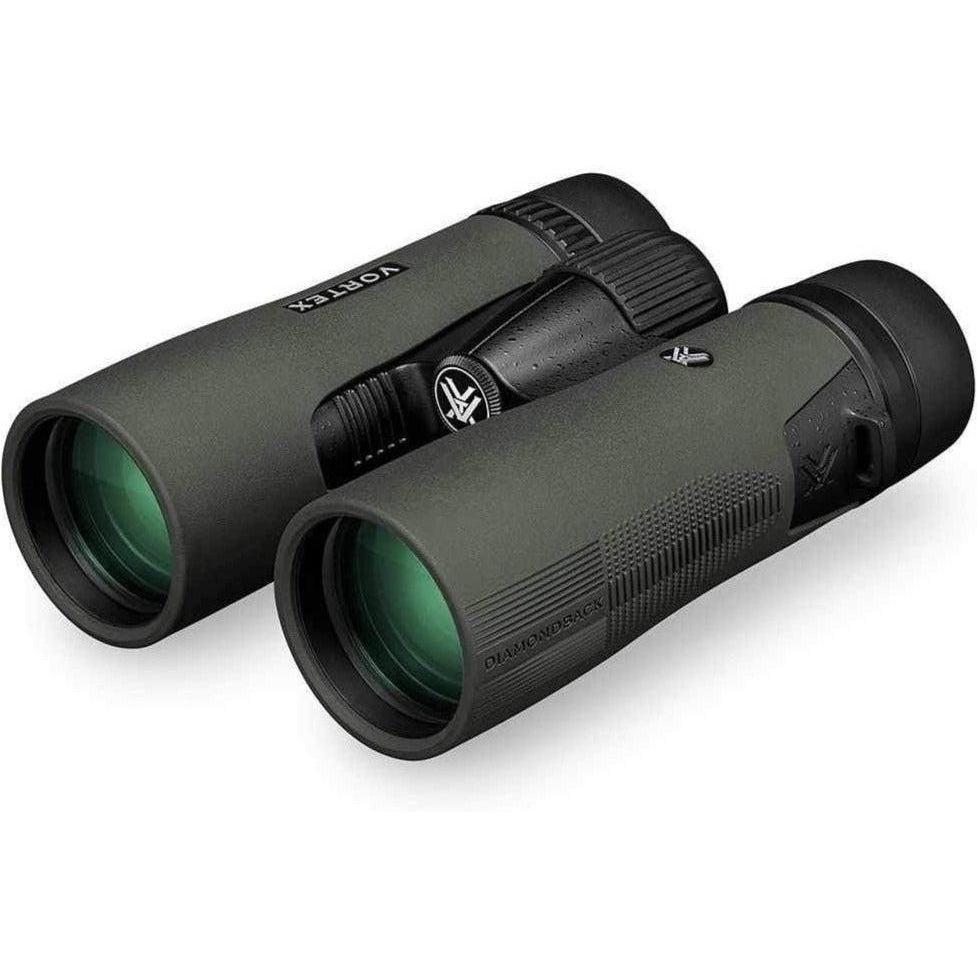

Vortex Diamondback HD 10×42 binoculars, model DB-215, shown from the front-left with 42 mm objective lenses, open-hinge body, textured rubber armour, centre focus wheel and twist-up eyecups visible 10×42 · 21.3 oz / 604 g
10×Detail at distance
42 mmBalanced light gathering
110 mField at 1,000 m
1.5 mClose-focus distance
Official Vortex video

See Diamondback HD in action.

See how the Diamondback HD family combines practical optical performance, open-hinge handling and rugged construction for hunting and wildlife observation.

HD optical system

Clarity where detail matters.

Select glass elements are optimised for resolution and reduced chromatic aberration, helping fine edges appear cleaner while colours remain natural across the view.

Fully multi-coatedAnti-reflective coatings on every air-to-glass surface improve transmission, clarity and lower-light performance.
Dielectric prismsMulti-layer prism coatings support a bright, clear and colour-accurate image.
Phase correctionRoof-prism phase coating enhances resolution and contrast where fine structure matters.
ArmorTek®An ultra-hard exterior-lens coating helps resist scratches, oil and dirt.
Diamondback HD optical path Simplified cutaway diagram showing light entering the 42 mm objective lens, passing through the phase-corrected roof prism and coated ocular lens group before reaching the viewer’s eye. 42 MM OBJECTIVE PHASE-CORRECTED PRISM OCULAR GROUP COATED FROM OBJECTIVE TO EYE
The optical system combines select glass, full multi-coating, dielectric prism coating and phase correction to preserve useful image information through the roof-prism path.
Field of view

110 metres of terrain at 1,000 metres.

A 6.3° angular field balances the reach of 10× magnification with enough surrounding context to search open faces, follow moving wildlife and reacquire a subject after lowering the binocular.

Diamondback HD 10×42 field of view Diagram illustrating a 6.3 degree angular field of view, equal to approximately 110 metres of visible width at a distance of 1,000 metres. 6.3° 110 M FIELD WIDTH 1,000 M OBSERVER DISTANT TERRAIN
Controls and connection points

Fast, familiar control.

A central focus wheel, right-eye dioptre and adjustable eyecups make everyday setup intuitive, while the concealed front socket accepts a compatible binocular tripod adapter.

Move keyboard focus to a numbered marker, hover it with a pointer, or tap it on a touch screen to reveal the corresponding part name.

Front-facing Vortex Diamondback HD 10×42 binocular diagram with seven markers identifying the twist-up eyecups, centre focus wheel, right-eye dioptre, open hinge, strap lugs, 42 mm objective lenses and tripod adapter socket
1Twist-up eyecups

Raise for viewing without glasses or collapse for most spectacle wearers.

2Centre focus

Moves both optical channels together for fast near-to-far focusing.

3Right dioptre

Balances the right channel to the viewer’s eyesight across a ±4 range.

4Open hinge

Adjusts the 55–73 mm interpupillary distance and gives the fingers a secure hold.

5Strap lugs

Accept the comfort neck strap or GlassPak tether straps supplied in the box.

642 mm objectives

Gather light for a practical 4.2 mm exit pupil in a portable full-size body.

7Adapter socket

Remove the front cap to fit a compatible Vortex binocular tripod adapter.

Hunter holding the Vortex Diamondback HD 10×42 binoculars beside the included GlassPak chest harness in an outdoor field setting
Field handling

Balanced for all-day carry.

At 21.3 oz / approximately 604 g, the Diamondback HD 10×42 stays manageable on long days while retaining full-size controls and versatile 42 mm objectives.

True open hingeReduces bulk and creates a natural wraparound grip.
15 mm eye reliefAdjustable eyecups support a comfortable, full viewing position with or without glasses.
Rubber armourTextured external protection supplies a durable, non-slip hold in changing conditions.
Tripod adaptableAdd a compatible adapter for extended glassing, vehicle-window use or a steadier view.
All-condition construction

Built for changing conditions.

O-ring sealing, argon purging, shock-resistant construction and ArmorTek® exterior-lens protection help the Diamondback HD stay ready through changing weather, temperature swings and regular field use.

Waterproof

O-ring sealing is designed to resist harsh weather and prevent moisture from entering the optical system.

Fogproof

Argon-gas purging helps prevent internal fogging through wide temperature changes.

Shockproof

Rugged construction is designed to withstand the impacts and knocks that come with outdoor use.

ArmorTek®

The ultra-hard exterior-lens coating helps protect against scratches, fingerprints, oil and dirt.

Personal setup

Tune the binocular to your eyes.

Set the eyecups, barrel spacing and right-eye dioptre once for a comfortable view, then use the centre focus wheel for normal near-to-far focusing.

Set eyecups and spacing

Extend the eyecups when viewing without glasses or collapse them for most eyewear. Pivot the barrels until the two views merge into one clean circular image without dark edge shadows.

Focus the left channel

Choose a detailed object about 20 yards / 18 metres away. Cover the right objective or close the right eye, then use the centre wheel until the left-eye image is sharply focused.

Calibrate the right dioptre

Cover the left objective or close the left eye. Turn only the right dioptre until the image is sharp, then note its position. Normal focusing can now be handled with the centre wheel alone.

Hunter wearing the included Vortex GlassPak binocular harness with the Diamondback HD 10×42 binoculars secured at chest height for fast access outdoors
GlassPak™ included

GlassPak™ included for secure carry.

The supplied GlassPak binocular harness carries the optic against the chest for quick access and improved comfort over extended use. Adjustable shoulder straps distribute the load, while binocular tethers add security against accidental drops.

What is in the box

  • Diamondback HD 10×42 binocular
  • GlassPak binocular case
  • GlassPak harness straps
  • Binocular tether straps
  • Comfort neck strap
  • Tethered objective lens covers
  • Rainguard eyepiece cover
  • Lens cloth
Compatible accessories

Extend your glassing setup.

Add tripod support for longer viewing sessions or upgrade the included carry system with additional storage and quick access.

Vortex GlassPak Sport Small chest harness and protective binocular case designed for compact and full-size binoculars with objective lenses up to 42 mm

GlassPak Sport Small

An optional carry upgrade with a quiet fold-open lid, microfibre interior and additional pockets; sized for objectives up to 42 mm.

View product
Care in the field and at home

Keep the view clear.

Clean coated lenses carefully

  • Blow away dust and grit before touching a lens surface.
  • Use a clean lens cloth and products intended for coated optical glass.
  • A small amount of water or pure alcohol can help release stubborn dried water spots.

Protect and store

Fit the objective covers and Rainguard whenever the binocular is not in use. Avoid leaving it in direct sunlight or a very hot location for extended periods.

Keep the sealed system intact

Internal components are permanently lubricated and need no additional lubricant. Do not disassemble the binocular beyond removing the supplied covers or tripod-socket cap.

Technical data

Vortex Diamondback HD 10×42 specifications

A complete reference for optical performance, dimensions, controls, protection, included accessories and warranty coverage.

Identification and use
Product Vortex Diamondback® HD 10×42 Binocular
Vortex model DB-215
Jacobs Digital SKU VODB215
Recommended uses Hunting and wildlife observation
Optical system
Magnification 10×
Objective lens diameter 42 mm
Optical design HD optical system with select glass elements
Prism configuration Roof prism
Prism coatings Dielectric multi-layer coating and phase-correction coating
Lens coatings Fully multi-coated anti-reflective surfaces; ArmorTek® protective coating on exterior lenses
Exit pupil 4.2 mm
Viewing performance
Linear field of view 330 ft at 1,000 yd / approximately 110 m at 1,000 m
Angular field of view 6.3°
Close focus 5.0 ft / approximately 1.5 m
Eye relief 15.0 mm
Interpupillary distance 55–73 mm
Dioptre range ±4 dpt
Controls and ergonomics
Focus system Central focus wheel operating both barrels
Dioptre adjustment Right eyepiece
Eyecups Adjustable twist-up design for use with or without glasses
Hinge True open-hinge configuration
Exterior Textured protective rubber armour
Tripod use Tripod adaptable with a separately sold compatible binocular adapter
Size and weight
Height 5.7 in / approximately 145 mm
Width 5.1 in / approximately 130 mm
Weight 21.3 oz / approximately 604 g
Environmental protection
Waterproofing O-ring sealed; designed for harsh weather conditions
Internal gas Argon gas purged
Fogproofing Designed to resist internal fogging across a wide range of temperatures
Impact protection Shockproof construction
Included accessories
Carry systems GlassPak™ binocular case and harness straps; binocular tether straps; comfort neck strap
Lens protection Tethered objective lens covers and Rainguard eyepiece cover
Cleaning Lens cloth
Documentation Diamondback HD product manual
Warranty
Manufacturer warranty Vortex VIP® Unlimited, Unconditional, Lifetime Warranty, subject to the stated exclusions below
Vortex VIP® Warranty

Unlimited. Unconditional. Lifetime.

If the product becomes damaged or defective, Vortex promises to repair or replace it.

The Vortex VIP Warranty does not cover loss, theft, deliberate damage or cosmetic damage that does not hinder product performance. Warranty terms may be updated by Vortex; refer to the current manufacturer policy for full details.

Eye safety: Never look at the sun or another intense light source through binoculars. Doing so can cause permanent injury to the retina and cornea, including blindness.

The Diamondback® HD smashes the scale of price vs performance, delivering a rock-solid optic that optically punches high above its class. The included GlassPakTM binocular harness keeps your glass close at hand, ready to deploy at a moment's notice, all while providing protection and significantly more comfort than traditional neck-straps.

The Vortex Diamondback HD 10X42 Binocular offers exceptional optical performance, durability, and comfort for outdoor enthusiasts, bird watchers, and hunters. Designed to provide clear, bright images with enhanced resolution, these binoculars are a reliable companion for any adventure.

Unmatched Optical Performance

The Diamondback HD 10X42 binoculars feature HD (High Density) extra-low dispersion glass, which ensures exceptional resolution and color fidelity. The fully multi-coated lenses increase light transmission, delivering bright, vivid views even in low-light conditions. The phase-corrected prisms enhance contrast and resolution, providing sharp, detailed images.

Rugged and Durable Design

Constructed with a rubber-armored chassis, the Diamondback HD 10X42 binoculars offer a secure, non-slip grip and increased durability. The O-ring seals and argon purging ensure the binoculars are waterproof and fogproof, making them suitable for use in any weather conditions. The robust design ensures they can withstand the rigors of outdoor use.

Comfortable Viewing Experience

The binoculars are designed with user comfort in mind, featuring adjustable eyecups that can be twisted up or down for optimal viewing with or without eyeglasses. The smooth center focus wheel allows for quick and precise focusing, while the diopter adjustment on the right eyepiece ensures each user can fine-tune the focus to their individual eyesight.

Compact and Lightweight

Weighing just 21.3 ounces and with a compact form factor, the Diamondback HD 10X42 binoculars are easy to carry on any adventure. The binoculars come with a GlassPak binocular harness that keeps them protected and readily accessible. The harness also distributes the weight across your shoulders, reducing fatigue during extended use.

Key Features

  • Magnification: 10x
  • Objective Lens Diameter: 42mm
  • Field of View: 330 feet/1000 yards
  • Close Focus: 5 feet
  • Eye Relief: 15mm
  • Exit Pupil: 4.2mm
  • Interpupillary Distance: 55-73mm
  • Dimensions: 5.9 x 5.1 inches

Included Accessories

  • GlassPak binocular harness
  • Comfort neck strap
  • Tethered objective lens covers
  • Rainguard eyepiece cover
  • Lens cloth
Vortex Diamondback HD 10X42 Binocular Specifications

Vortex Diamondback HD 10X42 Binocular Specifications

Feature Specification
Magnification 10x
Objective Lens Diameter 42 mm
Field of View 330 feet/1000 yards (6.3°)
Close Focus 5 feet
Eye Relief 15 mm
Exit Pupil 4.2 mm
Interpupillary Distance 55-73 mm
Dimensions 5.9 x 5.1 inches (15 x 13 cm)
Weight 21.3 oz (603 g)
Prism Type Roof
Prism Glass BaK-4
Optical Coatings Fully Multi-Coated, Dielectric Coating, ArmorTek
Waterproof Yes
Fogproof Yes (Argon Purged)
Focus Type Center
Eyecups Twist-Up
Diopter Adjustment Right Eye
Lens Coatings XR Plus Fully Multi-Coated
Protective Coatings ArmorTek
Tripod Adaptable Yes
Accessories Included GlassPak binocular harness, Comfort neck strap, Tethered objective lens covers, Rainguard eyepiece cover, Lens cloth
Warranty VIP Unconditional Lifetime Warranty
Environmental Protection O-ring Sealed
Chassis Material Magnesium
