Zeiss Conquest V4 4-16x44 #68 Hunter Turrets ZBi

SKU: 522935-9968-000

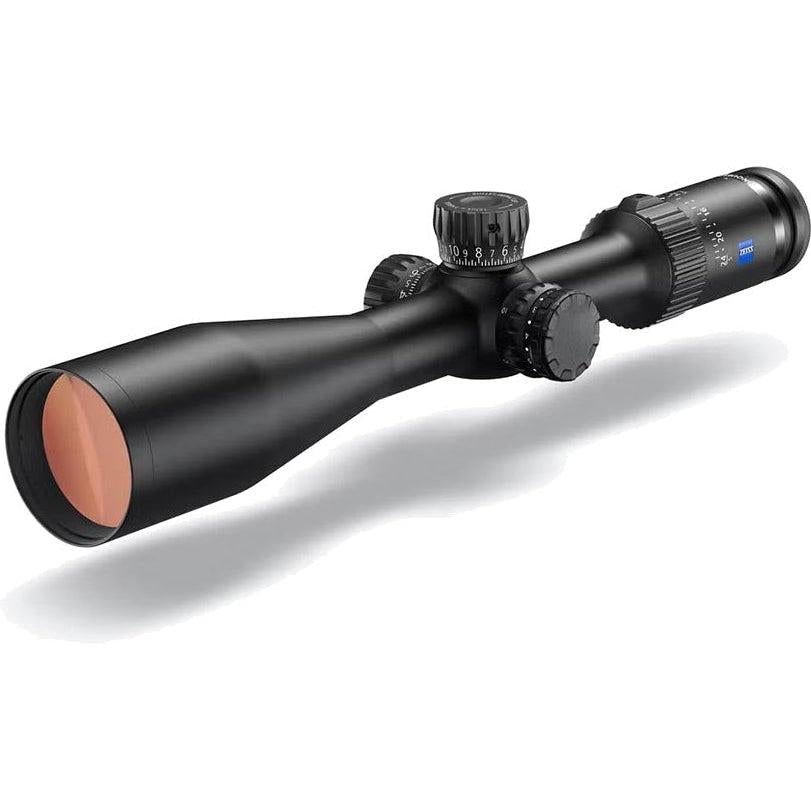

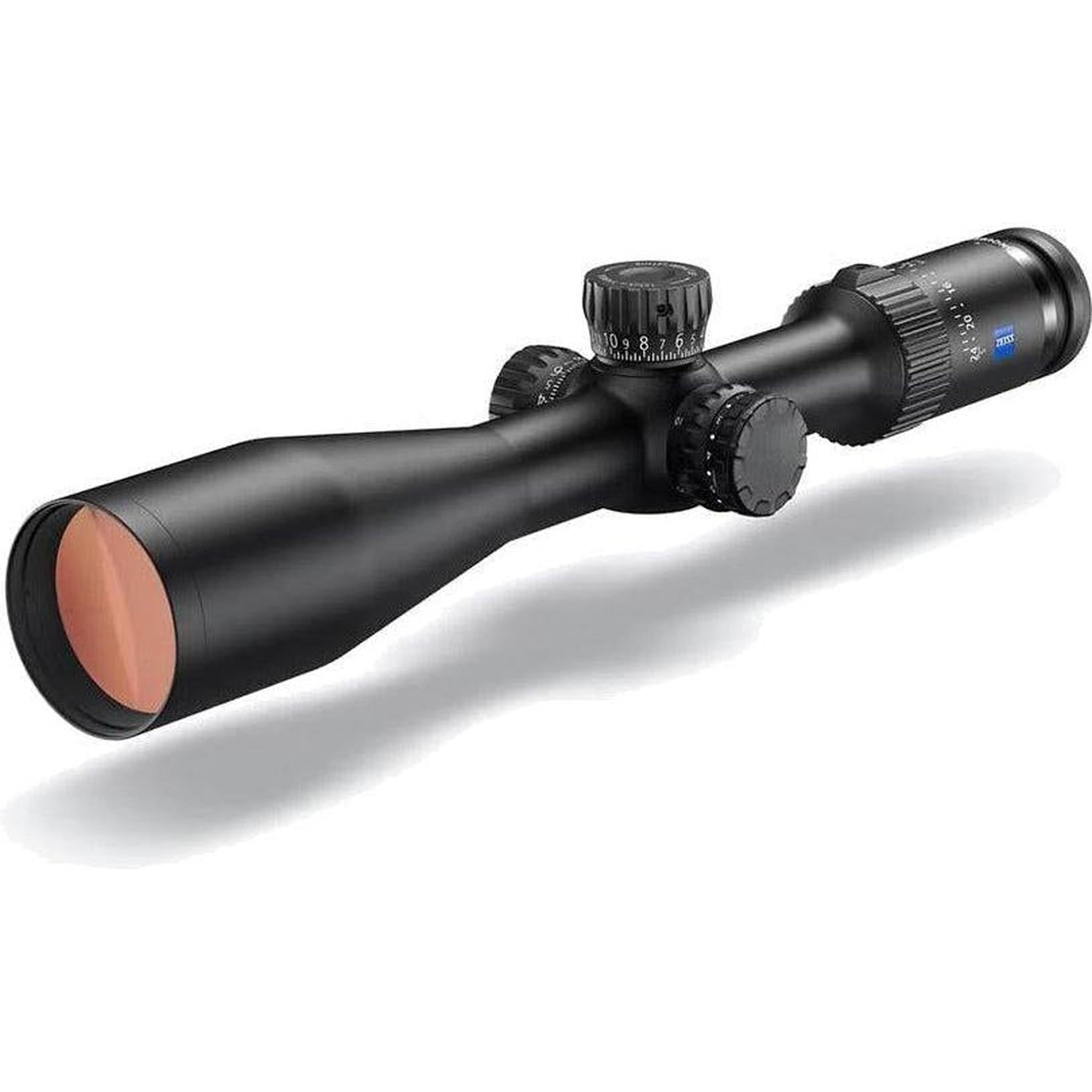

Zeiss Conquest V4 4-16x44 #68 Hunter Turrets ZBi
×

Zeiss Conquest V4 4-16x44 #68 Hunter Turrets ZBi

SKU: 522935-9968-000


When will I receive it?

Have a question about this product?


Print this page

Our Price

or 12 months interest free

Gem

or 6 easy payments of $324.83

Laybuy

or 4 easy payments of $487.25

Afterpay

Loading

incoming: false available: true

About this product

The Conquest V4 line of high-performance riflescopes combines the tried-and-true ZEISS optics concept with a rugged and functional design. Their compact design and perfect balance between a wide field of view and large magnification range is ideal for all types of hunting. The V4 models are equipped with a 4x zoom and functional, high-precision, and fully reliable mechanical components.

Special models have a ballistic turret with a wide reticle adjustment range (elevation and windage). As a result, the hunter has the flexibility needed for a variety of different hunting methods. Optional ballistic reticles are also available that allow the hunter to quickly make elevation and azimuth corrections with no mechanical adjustment necessary.

Thanks to its compact and lightweight design, the Conquest V4 4-16×44 is ideal for active hunting and hunting in the mountains. Its zoom range makes this V4 the perfect choice for medium and long-distance shots.



ZBi | Reticle 68 Illuminated


This reticle was primarily developed for hunting in open terrain and over long distances. The tree-shaped crosshairs are intuitively designed and offer an extremely precise aiming point. The tick marks and dots have a distance of one minute of angle (1 MOA) at the respective reference magnification and always provide a suitable holdover point, even in windy conditions. The ZEISS Hunting app can be used to quickly and precisely determine both bullet drop and wind drift for practically any ammunition, and also displays the distance values in a visual depiction of the reticle. Only the center area of the reticle is illuminated, for precise aiming even in poor lighting conditions. The ZEISS Hunting app can be used to quickly and precisely determine the change in subtension and the resulting bullet drop compensation and wind drift correction values for practically any ammunition.



Specifications:


Magnification 4 – 16 x
Effective lens diameter 33.2 – 44 mm
Light transmission 90%
Exit pupil diameter 8.5 – 2.8 mm
Twilight factor 11.5 – 26.5
Field of view at 100 m (yds) 9.5 – 2.4 m (28 – 7 ft)
Objective viewing angle 5.4° – 1.4°
Diopter adjustment range + 2.0 | − 3.0 dpt
Eye relief 90 mm (3.54 “)
Parallax setting 9.1 m – ∞ (10 yds – ∞)
Adjustment range at 100 m 230 × 175 cm
Adjustment per click at 100 m 1/4 MoA (0.7 cm /100 m)
Centre tube diameter 30 mm
Eyepiece tube diameter 44 mm
Objective tube diameter 50 mm
LotuTec | Nitrogen filled + | +
Water resistance 400 mbar
Operating temperature − 25°C | + 50°C (− 13°F | + 122°F)
Length 356 mm (14.0 “)
Weight (without inner rail) 640 g (22.6 oz)
Weight (with inner rail)
