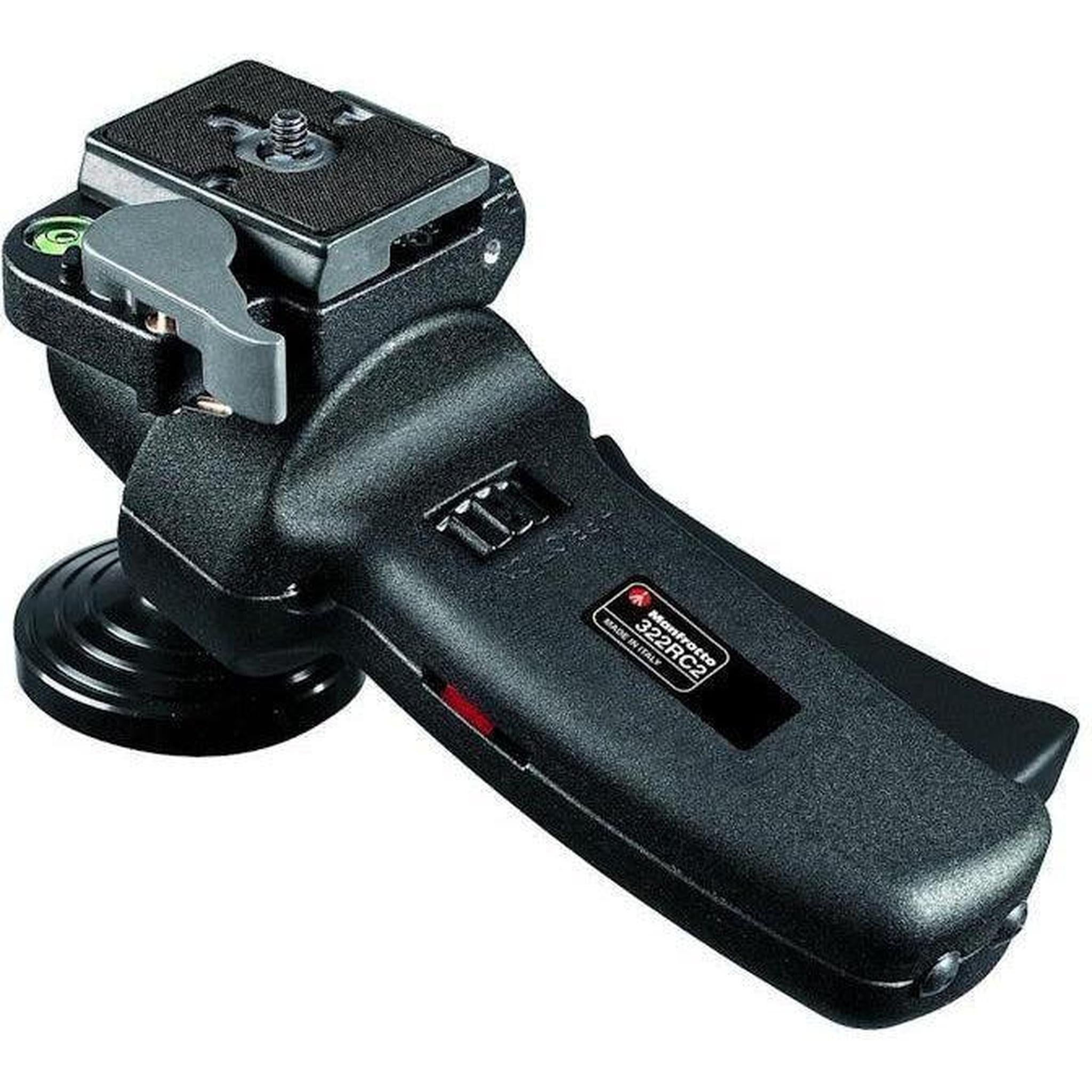

Manfrotto 322Rc2 Horizontal Grip Action Ball Head


Manfrotto 322Rc2 Horizontal Grip Action Ball Head

Manfrotto 322Rc2 Horizontal Grip Action Ball Head


When will I receive it?

Have a question about this product?

Print this page

Our Price

or 12 months interest free


or 6 easy payments of $58.16


or 4 easy payments of $87.24



About this product

Take the versatility of a ball head add true ergonomic control and you get the 322RC2: a photographic head that allows you to unblock move position and lock your camera with one hand in one position thanks to the revolutionary design of its grip handle which incorporates the ball lock lever and can also mount the 322RS shutter release accessory. A friction control wheel lets you regulate the power of the blocking mechanism to match the weight of your camera/lens. The 322RC2 is made from magnesium for lightweight performance and is designed to keep the weight of your kit as close as possible to the tripod's centre of gravity by way of its reduced height. It is this fact matched with the precision construction of the 322RC2 that gives the head its load capacity of 5kg. Complete with built-in bubble spirit level and quick release camera plate (standard 1/4' screw with secondary safety pin). Suitable for use with 35mm or medium format cameras.


attaches by. 1/4" screw attachment type attachment 3/8" female thread attachment type ball friction setting yes bubble spirit level (no.) 1 number Color black color front tilt -90° / +90° tilt range independent pan lock no lateral tilt +90° / -3 tilt range material magnesium panoramic rotation 360 ° patent pat. pending plate type 200PL-14 quick release yes secondary safety system yes safety payload 5 kg weight 0.7 kg working height 10.3


1 bubble levelThe built-in carefully hand-set bubble spirit level helps make sure your horizons really are horizontal. 222-322 ball frictionSeparate control for pre-setting the friction of the ball when unblocked. The position of the red line indicates the approximate amount of friction applied. q-r camera plate 200plThe compact rectangular 200PL quick release plate system fits neatly under small-bodied still cameras up to SLR (even with tele lenses) or small medium format or under small video cameras or spotting scopes. Its rubber pad gives a good grip without damaging the camera and its angled sides ensure that it also fits perfectly and tightly into a wide range of Manfrotto heads reversible columnReversible centre column allows head and camera to be mounted below the tripod - useful for: low-level shooting (because it keeps the tripod and your equipment out of the mud); working with heavy loads (because weight lowers the tripod's centre of gravity making it more stable); and also for use with 'mirror-image' view cameras secondary security lockThis head features a secondary security lock so you can't accidentally release the plate (and camera) without meaning to. The lock stops the quick release lever from opening fully single lockA convenient single locking mechanism blocks or frees movement on all axes for greater speed of use sturdy all-metal constructionSturdy all-metal construction ergonomicErgonomic and easy to use low centre of gravityBy keeping the head and camera mounting plate as low as possible the camera is kept safely closer to the tripod's centre of gravity for more stable support
