Konus Konusnova 114 D114 F500 Reflector Telescope

SKU: KS1756

Konus Konusnova 114 D114 F500 Reflector Telescope
Konus Konusnova 114 D114 F500 Reflector Telescope

Our Price


Plus Free Shipping


When will I receive it?

About this product

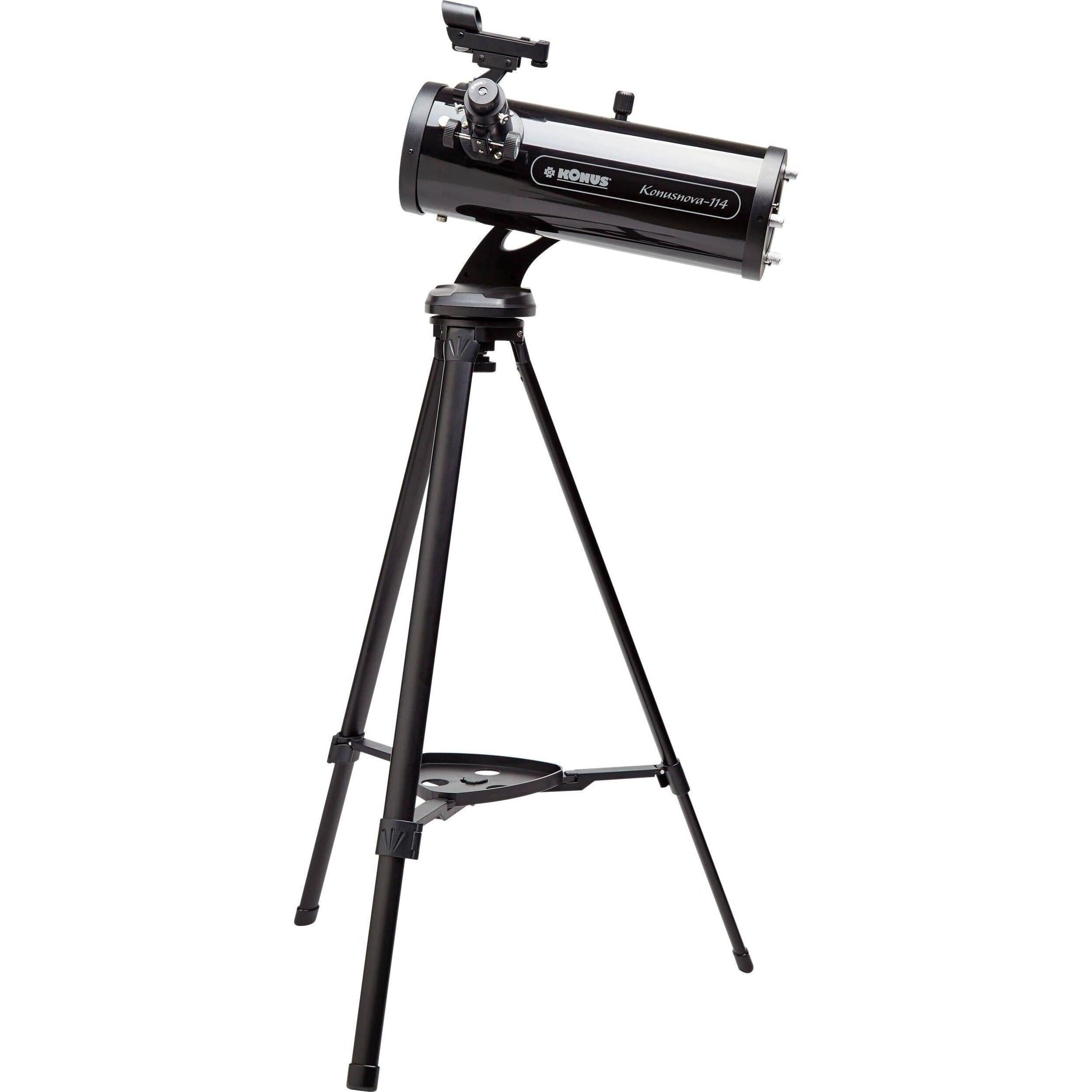

The Konus KonusNova-114 f/3.8 AZ Reflector Telescope makes an ideal entry-level instrument, with a large-aperture primary mirror that is well-suited for making detailed observations of the moon and planets; and bright deep-sky objects like star clusters, binary systems, and nebulae. Supporting the optical tube is a basic manual alt-azimuth mount and an adjustable-height aluminum tripod. This observation kit comes complete with two eyepieces that provide low 25x and moderate 62.5x magnifications with a moon filter, a universal smartphone adapter, 2x Barlow lens, and an unmagnified red-dot finder to make locating objects easier and star-hopping navigation faster.

Optical Tube Assembly

  • Large 114mm f/4.3 aperture to view the moon, planets, stars and clusters, and other bright deep space objects
  • Short 500mm focal length ensures a wide field of view and low magnification potential
  • Newtonian reflector configuration enables large apertures at a lower cost than conventional refractor designs
  • Sturdy and reliable rack-and-pinion focuser
  • 1.25" drawtube accepts the most common eyepieces and accessories

Mount and Tripod

  • Manual alt-azimuth
  • Single arm fork mount is solid yet lightweight
  • Lightweight and durable aluminum
  • Adjustable height from 31 to 48" accommodates a variety of users and observing positions
  • Center tray holds accessories such as eyepieces and filters

Included Accessories

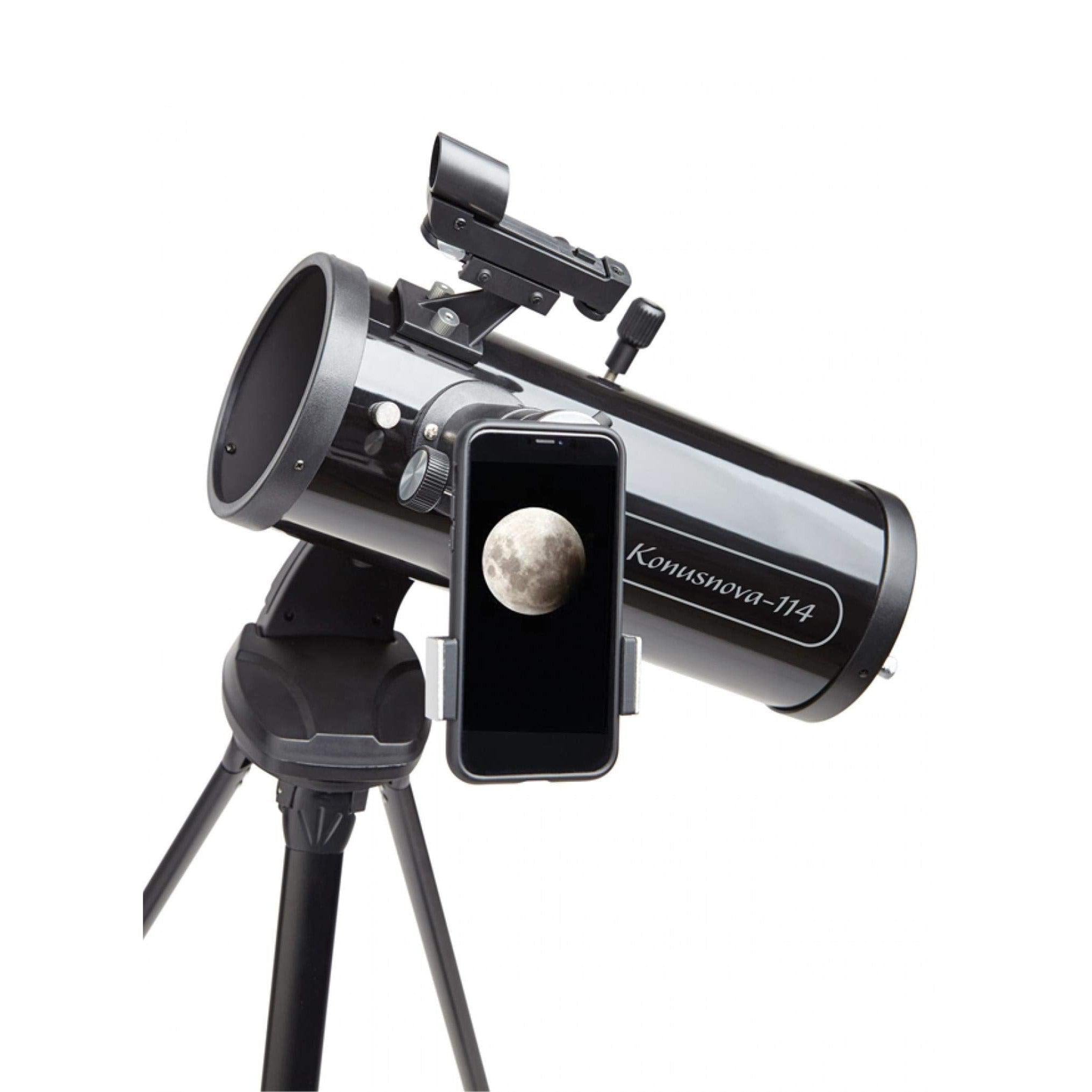

Smartphone Adapter:
  • Quickly capture photos and video of your favorite celestial objects and easily post or share
  • Universal fit accommodates most popular models
  • Adjustable lens placement for proper alignment
  • 1.25" diameter barrel
  • Accepts most 1.25" astronomical filters
  • 8mm eyepiece yields a high 62.5x power for making detailed observations of the moon and planets
  • 20mm eyepiece produces 25x magnification, which is perfect for large deep-sky objects like constellations and nebulae
Moon Filter:
  • Installs into the front of each eyepiece
  • Neutral density filter improves contrast, especially of craters and mountains
  • Reduces the brightness of the moon for safe viewing
  • Useful from first quarter through full into the last quarter phase
Barlow Lens
  • Installs in the focuser and accepts any 1.25" eyepiece
  • Effectively doubles the magnification of any eyepiece used with it
  • Increases magnification without affecting eye relief, making high-power viewing more comfortable than using extremely short focal length eyepieces
  • Unmagnified view ensures faster alignment and easier star-hopping navigation
  • Simple red aiming dot won't obstruct small or dim objects
  • Adjustable brightness won't interfere with night-adjusted vision
  • Includes mounting bracket


Optical Tube Assembly
Optical Design Newtonian Reflector
Aperture 114 mm / 4.5"
Focal Length 500 mm
Focal Ratio f/4.3
Focuser Single-Speed Rack-and-Pinion
Eyepiece Barrel Diameter 1.25"
Diagonal None
Finderscope Yes
Type Manual; Alt-Azimuth
Type Adjustable
Tripod Height Adjustment Range 30.7 to 47.6" / 78.0 to 121.0 cm
Material of Tripod Aluminum
Batteries None
Wi-Fi No
