Green laser visibility
The green laser dot is designed for improved visibility in bright indoor environments, making it easier to target surfaces quickly and confidently.
Leica Disto D2G Green Beam Distance Meter
Authorised Dealer
Green laser distance meter

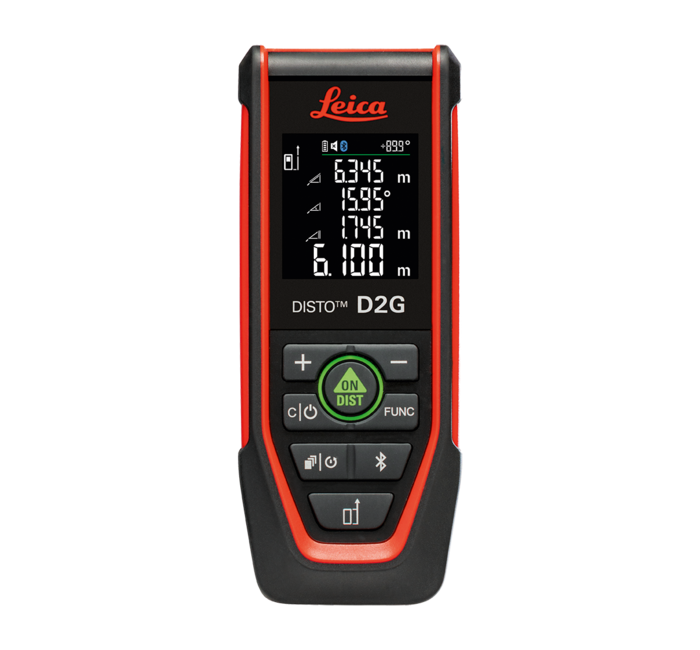

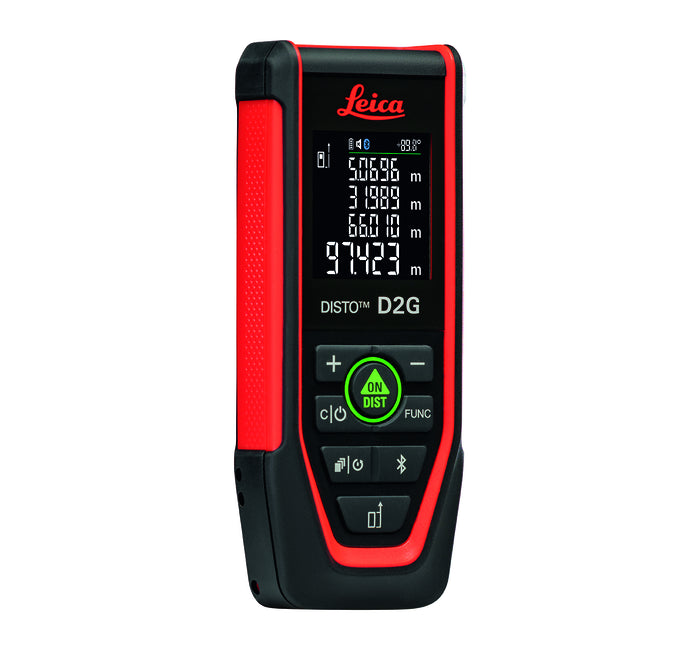

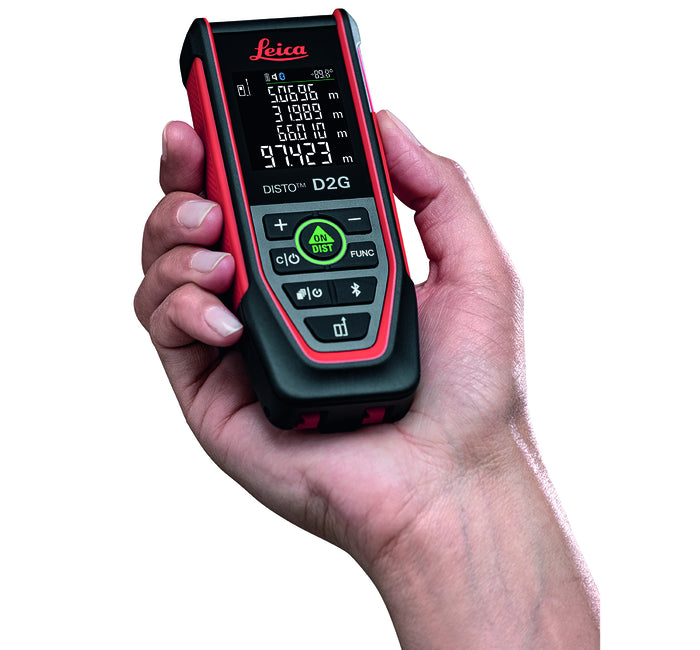

Leica DISTO™ D2G Laser Measure
The Leica DISTO D2G is a compact professional laser distance meter built for precise indoor measuring, bright-room visibility and quick digital workflow. Its green laser dot is designed to be easier to see than a red dot in challenging indoor light, while Bluetooth® and NFC help transfer measurements directly to the DISTO Plan app and compatible software.
Up to 120 m range
±1.5 mm typical accuracy
Bluetooth® 6.0 + NFC
IP54 protected
120 m
Maximum favourable-condition measuring range
0.1 mm
Smallest displayed unit / resolution
30
Memory stack for last measurement results
116 g
Compact weight including batteries
The high-visibility DISTO for precise indoor measurement
Designed for trades, fit-out, renovation, interior design, estimating and site measuring, the DISTO D2G combines Leica Geosystems measuring accuracy with a bright green laser, an illuminated display, smart app connectivity and a fold-out multifunctional end-piece for working from edges, corners and narrow slots.
Distance
Area
Volume
Min/Max
Smart Horizontal
Pythagoras 3-point
Stake out
Painter function
Key Features
NFC + Bluetooth® data transfer
Send measurements to the DISTO Plan app and compatible DISTO software. NFC helps simplify the connection process, while Bluetooth® supports ongoing wireless transfer.

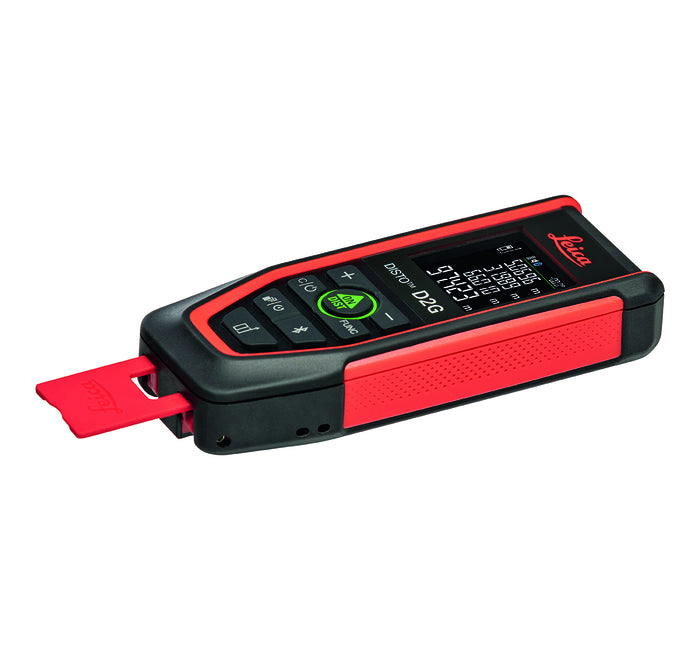

Automatic multifunctional end-piece
The fold-out end-piece is automatically detected, allowing accurate reference positioning when measuring from edges, corners, slots and hard-to-reach points.
Smart Room workflow
Use the DISTO Plan app to help create scaled room plans from captured measurements, ideal for layout, renovation, furnishing and estimation tasks.
Smart Horizontal Mode
Combine distance and inclination measurement to calculate true horizontal distances, even when measuring at an angle or across obstacles.
Compact professional build
Small enough to carry daily, yet packed with advanced functions including area, volume, triangle area, levelling, min/max and 30-result memory.
Product Images
Best For
- Interior measuring in bright rooms and commercial fit-outs
- Renovation, construction, cabinetry and installation work
- Quick area and volume calculations for quoting and planning
- Measuring from corners, edges, slots and tight spaces
- Creating measured plans with the Leica DISTO Plan app
- Transferring measurements digitally to reduce manual entry errors
Why Choose the D2G?
The D2G gives you a strong mix of visibility, accuracy, compact size and advanced measuring functions. It is especially useful indoors where a red laser dot can be harder to see, and where fast transfer to a phone, tablet or laptop can save time during quoting, planning and documentation.
Its automatic multifunctional end-piece is a major practical advantage: the device detects the reference position and adjusts the measurement accordingly, helping prevent mistakes when measuring from edges, corners and slots.
What’s in the Box
| Main unit | Leica DISTO D2G laser distance meter |
|---|---|
| Carry accessories | Hand loop and protective pouch |
| Batteries | 2 × AAA 1.5 V batteries |
| Documentation | Safety instructions and quick start guide with QR code linking to the online manual |
| Calibration | Silver calibration certificate |
| Warranty card | 3 Years warranty card included |
Comprehensive Specifications
General
| Product name | Leica DISTO D2G |
|---|---|
| Product type | Handheld laser distance meter / laser measure |
| Article number - metric | 1017810 |
| Article number - imperial | 1017809 |
| Primary application | Precise indoor distance measurement, area/volume calculation, floor-plan workflow and digital measurement transfer |
| Display | Illuminated display |
| Memory | Last 30 measurement results |
| Beep / audible feedback | Yes |
| Automatic reference detection | Yes, for multifunctional end-piece |
Measuring Performance
| Typical distance measuring accuracy | ±1.5 mm |
|---|---|
| Accuracy - favourable conditions | 1.5 mm / 0.06 in |
| Accuracy - unfavourable conditions | 3 mm / 0.12 in |
| Range - favourable conditions | 0.05 m to 120 m |
| Range - unfavourable conditions | 0.05 m to 70 m |
| Smallest unit displayed | 0.1 mm / 1/32 in |
| Measuring units | m, ft, in |
| X-Range Power Technology | Yes |
| Laser dot diameter | Approx. 6 mm at 10 m, 30 mm at 50 m, 60 mm at 100 m |
Laser & Tilt Sensor
| Laser colour | Green |
|---|---|
| Laser type | 518 nm, < 1 mW |
| Laser class | Class 2 consumer laser product |
| Tilt sensor | Yes |
| Tilt sensor display unit | 0.0° |
| Tilt measuring tolerance to housing | ±0.2° after user calibration |
| Tilt measuring range | 360° |
| Smart Horizontal Mode | Yes - calculates horizontal distance from distance and inclination measurement |
Measurement Functions
| Distance measurement | Yes |
|---|---|
| Permanent measurement | Yes |
| Minimum / maximum measurement | Yes |
| Add / subtract | Yes |
| Area measurement | Yes |
| Volume measurement | Yes |
| Triangle area | Yes |
| Painter function | Yes - area with partial measurement |
| Pythagoras | 3-point Pythagoras function |
| Stake out | Yes |
| Levelling | Yes |
| Timer / automatic release | Yes, 1 to 60 seconds |
Connectivity & Software
| Wireless interface | Bluetooth® 6.0 and NFC |
|---|---|
| Bluetooth range | < 10 m |
| Bluetooth frequency | 2400 to 2483.5 MHz |
| Bluetooth transmit power | 2.5 mW |
| NFC | Yes - used with the DISTO Plan app to simplify connection and measurement transfer workflow |
| DISTO Plan app | Available for iOS and Android |
| Windows software | DISTO Transfer for Windows 10 or higher |
| Measurement transfer | Supports transfer to DISTO Plan and compatible DISTO software/apps |
Power & Runtime
| Battery type | 2 × AAA 1.5 V batteries |
|---|---|
| Measurements per set of batteries | Up to 5,000 measurements |
| Battery service life | Up to 10 hours operation time |
| Automatic laser switch-off | After 90 seconds |
| Automatic power switch-off | After 180 seconds |
| Note | Battery life may be reduced when Bluetooth® is used. |
Build, Protection & Environment
| Protection class | IP54 - dust and splash water protected |
|---|---|
| Dimensions | 127 × 50.5 × 24.5 mm |
| Weight | 116 g with batteries |
| Operating temperature | -10°C to 50°C |
| Storage temperature | -25°C to 70°C |
| Relative humidity | Maximum 85%, non-condensing |
| Maximum altitude | 3000 m / 9840 ft |
| Pollution degree | 2 |
Safety & Compliance Notes
| Laser safety | Class 2 laser. Do not stare into the beam or direct it at people or animals. |
|---|---|
| Intended use | Measuring distances in interior and exterior conditions, tilt measurement, and data transfer with Bluetooth® and/or NFC. |
| Use environment | Suitable for environments appropriate for permanent human habitation. Not suitable for aggressive or explosive environments. |
| Care | Clean with a damp, soft cloth. Never immerse in water and do not use aggressive cleaning agents or solvents. |
Specification notes: stated accuracy and range depend on target reflectivity, background illumination, temperature and measuring conditions. Dark, glossy, transparent or highly reflective surfaces can increase measurement time or reduce reliability.
Compact, connected and built for precise indoor work.
The Leica DISTO D2G is an excellent choice when you need a pocket-sized laser measure with green laser visibility, app connectivity, advanced measuring functions and Leica Geosystems accuracy.
Leica DISTO™ D2G
Green Laser
Green Laser
