Magne-Tech 25.4(1")x38.5mm 3x Magnetic Ring Mount & Receiver Part A+B Complete Set

The Magne-Tech 25.4mm (1") × 38.5mm 3× Magnetic Ring Mount & Receiver Complete Set is a precision-engineered quick-detach riflescope mounting system designed for hunters and precision shooters seeking secure optic retention, repeatable alignment and convenient scope interchangeability.

Combining Magne-Tech's patented rare-earth magnetic technology with a dual-redundant mechanical locking system, this complete mounting assembly allows compatible riflescopes to be quickly attached, removed and reinstalled without repeatedly adjusting conventional mounting hardware.

Designed specifically for riflescopes with a 1-inch (25.4mm) main tube diameter, the mount provides a 38.5mm centreline height above the Picatinny rail, offering a practical mounting position for suitable scope clearance and eye relief.

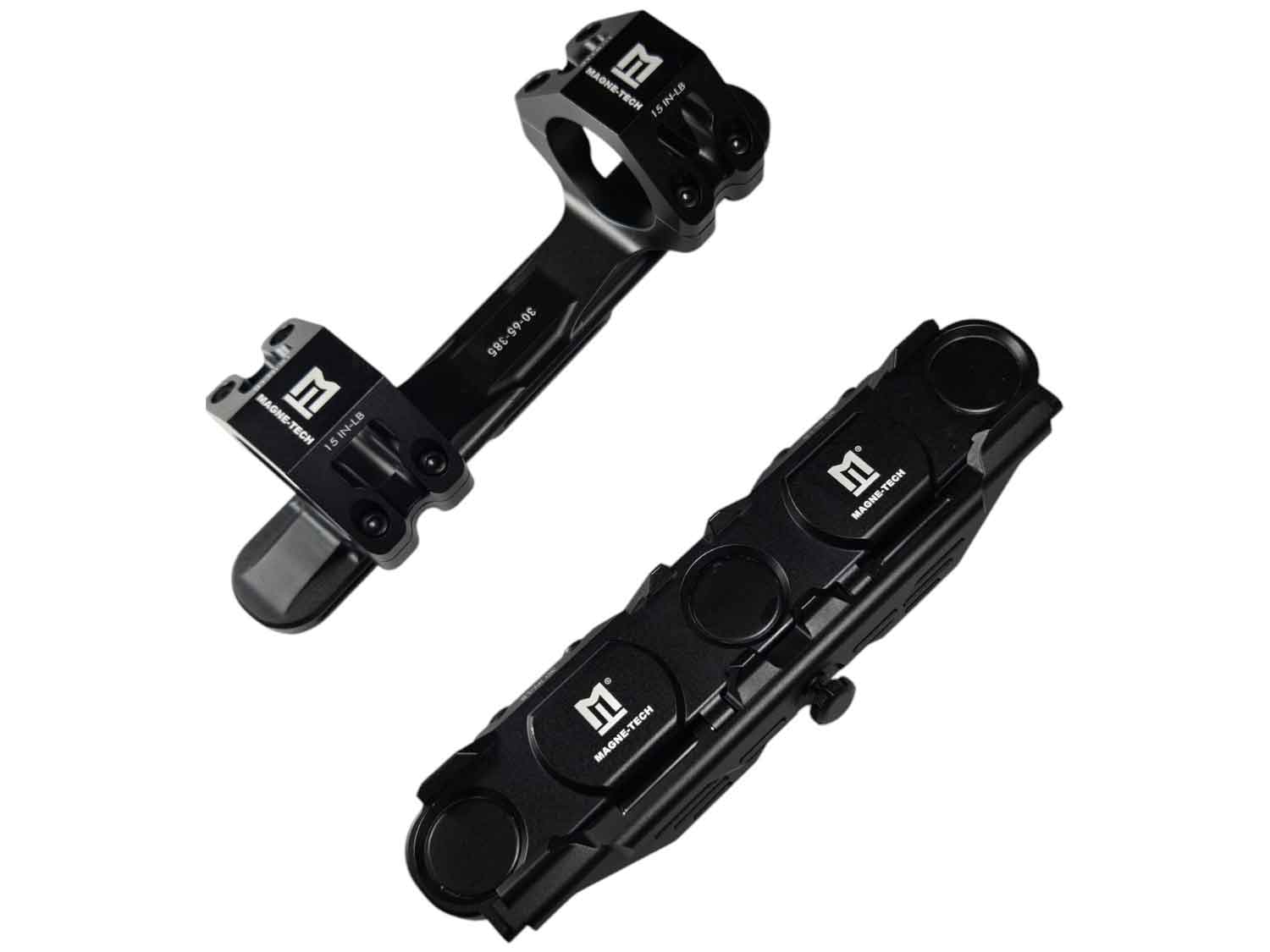

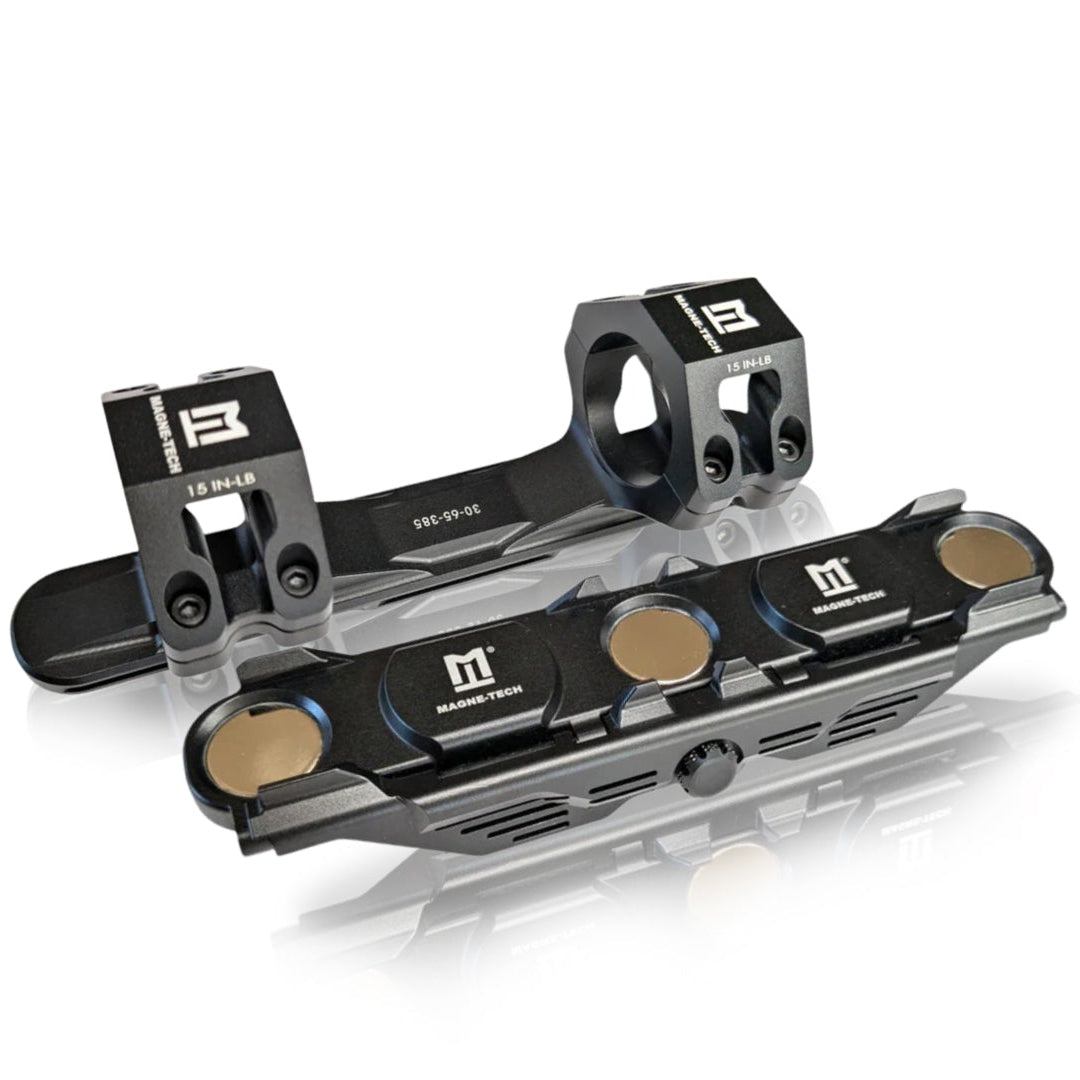

The complete set includes both the 3-Magnet Picatinny Rail Mount Receiver (Part A – Male) and the 25.4mm Magnetic Ring Mount (Part B – Female), providing the essential components of Magne-Tech's magnetic quick-detach scope mounting system.

Precision-machined from 7075-T6 billet aluminium and finished with MIL-A-8625 Type III hard-coat anodising, the mounting assembly combines exceptional structural strength, durability and corrosion resistance with a lightweight design.

Whether using a traditional hunting riflescope or changing between compatible optical configurations, the Magne-Tech magnetic mounting system provides a reliable and versatile solution for convenient scope removal, transport and reinstallation.

Key Features

• Complete Part A+B Mounting System: Includes the male 3-Magnet Picatinny receiver and female 25.4mm ring assembly for a complete magnetic quick-detach scope mounting solution.

• 1" (25.4mm) Riflescope Compatibility: Precision-machined for riflescopes featuring a standard 1-inch main tube diameter.

• 38.5mm Scope Centreline Height: Positions the scope tube centreline 38.5mm above the Picatinny rail when correctly installed.

• Three-Magnet Quick-Detach Interface: Patented rare-earth magnetic mounting technology enables convenient attachment, removal and repeatable optic positioning.

• Dual-Redundant Mechanical Locking: Integrated locking mechanism provides additional retention alongside the magnetic connection.

• Precision Return-to-Zero Design: Engineered for repeatable optical alignment, with manufacturer laboratory testing reporting a maximum measured shift of 0.25 MOA under specified conditions.

• Modular Scope Interchangeability: Compatible female ring assemblies allow multiple suitable riflescopes to be used with the same three-magnet receiver.

• MIL-STD-1913 Picatinny Compatibility: Designed for mounting onto suitable Picatinny-equipped rifles and shooting platforms.

• 7075-T6 Billet Aluminium Construction: Precision-machined high-strength aluminium provides excellent mechanical rigidity and durability.

• MIL-A-8625 Type III Hard-Coat Anodising: Protective surface treatment improves resistance to scratches, abrasion, corrosion and general wear.

• Flexible Scope Positioning: Extended mounting geometry provides additional flexibility for achieving suitable eye relief.

• Lightweight Assembly: Manufacturer-listed combined weight of 11.9 oz (approximately 337g).

• Tool-Free Optic Removal: Once installed, the magnetic interface allows compatible optics to be removed without loosening the receiver's Picatinny rail screws.

Technical Specifications

Three-Magnet Quick-Detach Technology

The Magne-Tech mounting system incorporates a patented magnetic interface designed to simplify riflescope attachment and removal while maintaining repeatable optical positioning.

The Part A male receiver attaches securely to the rifle's Picatinny rail and contains three high-strength rare-earth magnets.

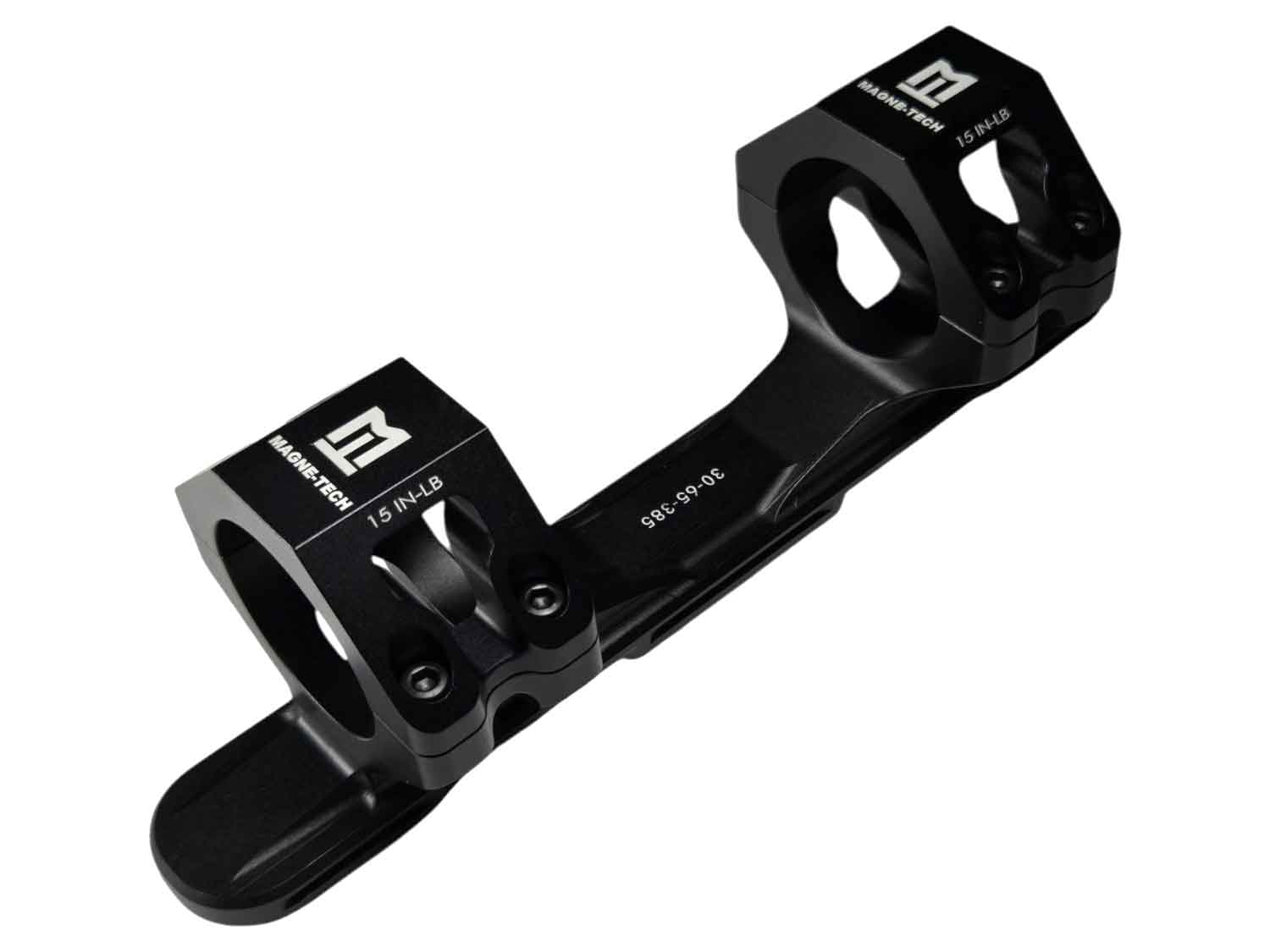

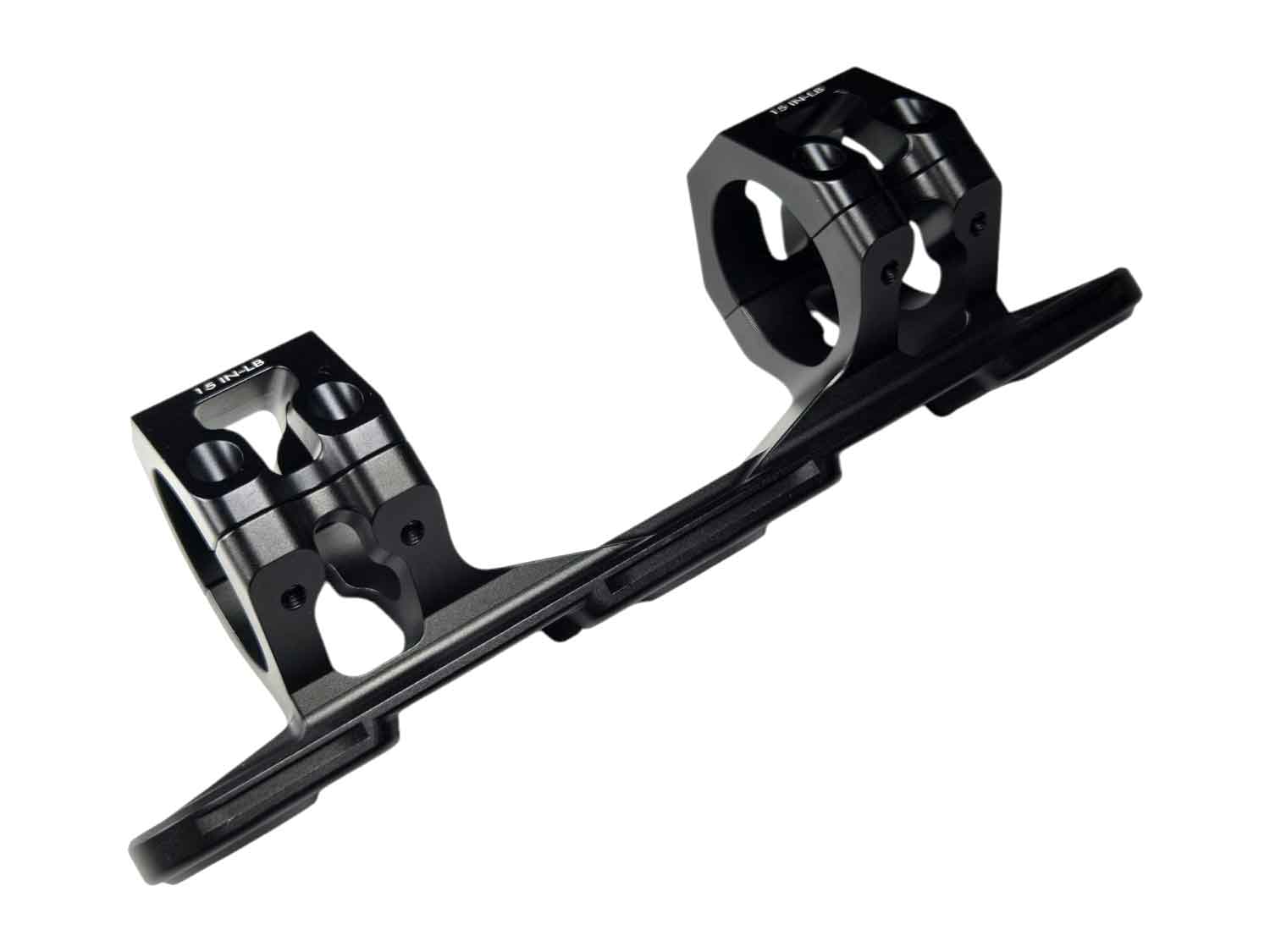

The Part B female ring mount secures around the riflescope's 25.4mm main tube and connects to the matching magnetic receiver.

Precision-machined contact surfaces help guide the mating components into a consistent mounting position, while the magnetic interface assists with alignment and engagement.

Once installed, the male receiver can remain attached to the rifle, allowing compatible mounted optics to be removed and reattached without repeatedly loosening the rail mounting hardware.

Dual-Redundant Locking System

Magne-Tech's patented dual-redundant mechanical locking system provides additional security to the magnetic mounting interface.

The three-magnet system assists with alignment and positioning, while the mechanical locking mechanism helps prevent unintended separation of the mounting components.

This combination of magnetic engagement and mechanical retention delivers a secure mounting interface while maintaining convenient quick-detach functionality.

Return-to-Zero Performance

The Magne-Tech magnetic scope mounting system is engineered to minimise changes in optical alignment after a riflescope has been removed and reattached.

In manufacturer laboratory testing using co-witnessed lasers, the system demonstrated a maximum measured alignment shift of 0.25 MOA after hundreds of attachment cycles.

The precisely machined mating surfaces and magnetic alignment interface help position the optic consistently during repeated mounting operations.

Actual point-of-impact consistency depends on the rifle, optic, complete mounting configuration, installation, recoil characteristics and operating conditions.

For the most consistent performance, both mounting components should be correctly secured and the rifle's zero verified after changes to the mounting configuration.

Compatibility and Versatility

The Magne-Tech 25.4mm Magnetic Ring Mount & Receiver Set is designed for:

• 1" (25.4mm) Main Tube Riflescopes: Compatible hunting, sporting and precision riflescopes featuring a suitable one-inch cylindrical mounting section.

• MIL-STD-1913 Picatinny Rails: Compatible rifles and shooting platforms equipped with an appropriate Picatinny mounting rail.

• Traditional Daytime Optics: Suitable riflescopes requiring secure mounting with convenient removal and reinstallation.

• Compatible Night-Vision and Thermal Riflescopes: Suitable optical systems featuring a 25.4mm mounting tube with sufficient clearance and appropriate dimensions.

• Additional Magne-Tech Magnetic Ring Mounts: Compatible female ring assemblies can be used with the same three-magnet male receiver, allowing greater flexibility when changing optics.

The complete set includes both mounting components required for one compatible riflescope and rifle configuration.

Additional female ring assemblies can be purchased separately for users wishing to prepare other compatible riflescopes for interchangeability.

Precision-Machined Aluminium Construction

Both the male Picatinny receiver and female ring assembly are manufactured from 7075-T6 billet aluminium, providing exceptional mechanical strength, rigidity and resistance to deformation.

This high-strength aluminium alloy offers an excellent balance between durability and weight, making it suitable for precision optical mounting applications.

A MIL-A-8625 Type III hard-coat anodised finish provides improved surface hardness and protection against wear, abrasion and corrosion.

Together, the precision-machined components and durable surface treatment are designed to support reliable performance through repeated attachment and removal cycles.

Installation Specifications

The Magne-Tech mounting system uses separate installation torque specifications for the Picatinny receiver and riflescope ring assembly.

The male receiver is secured to the rifle's Picatinny rail using the specified mounting hardware, while the female ring assembly attaches around the riflescope's 25.4mm main tube.

Correct positioning, sufficient optic clearance and adherence to the recommended tightening specifications are essential for secure mounting and consistent performance.

Use the manufacturer's specified fasteners and installation procedure, and follow any additional mounting requirements provided by the riflescope manufacturer.

Package Contents

• 1 × Magne-Tech 25.4mm (1") Magnetic Ring Mount (Part B – Female)

• 1 × Magne-Tech 3-Magnet Picatinny Rail Mount Receiver (Part A – Male)

• 1 × T20 Torx Key

• 1 × T10 Torx Key

• 4 × M4 × 0.7 × 16mm Grade 12.9 Torx Head Screws

• 4 × M4 Split Washers

• 8 × M3 × 0.5 × 12mm Grade 12.9 Torx Head Screws

Complete Mounting Set: Includes both the female scope ring assembly and male Picatinny receiver, providing the essential components required for a compatible magnetic quick-detach riflescope mounting system.

Note: Riflescope, firearm and additional magnetic mounting accessories are sold separately.
