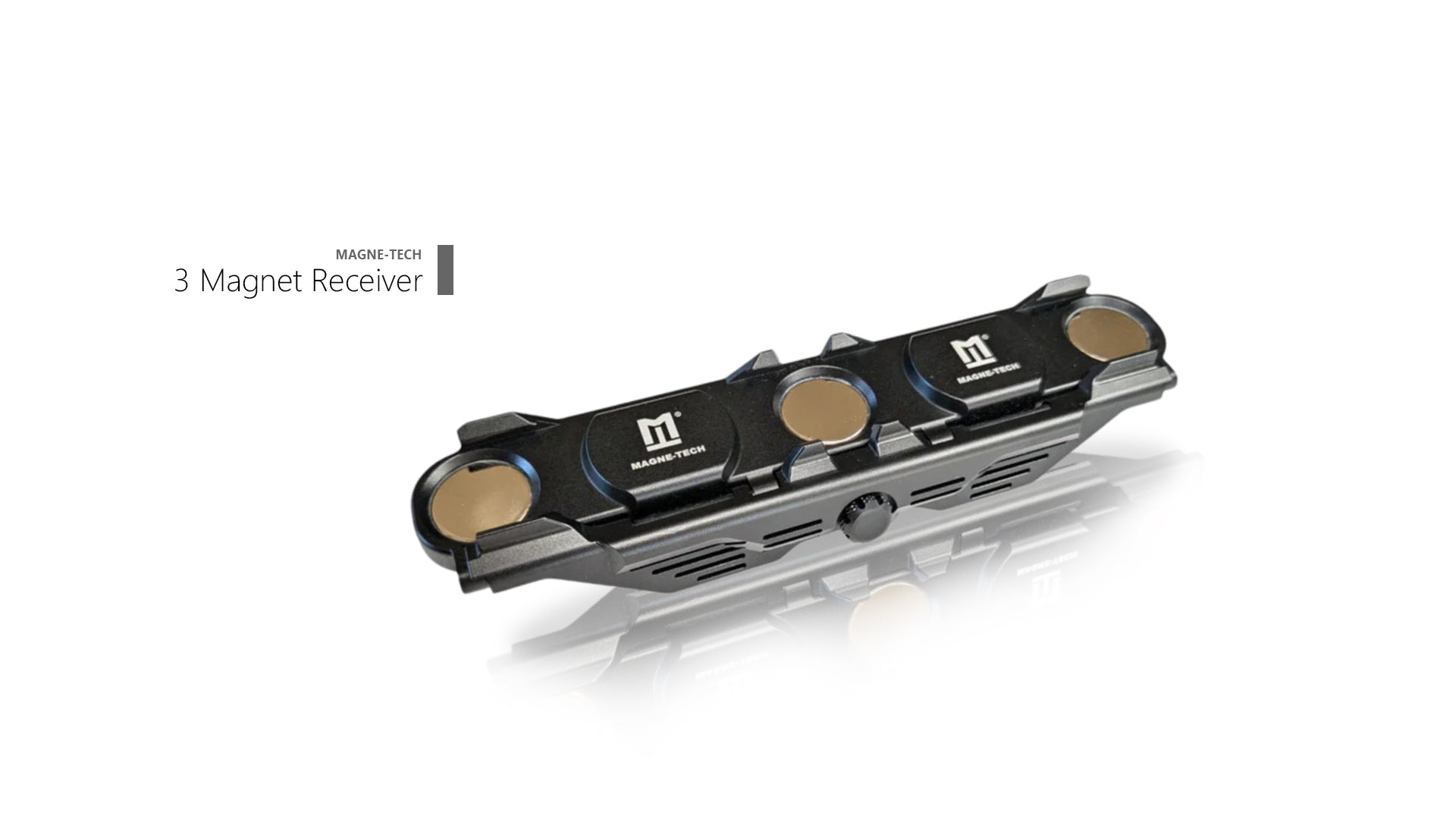

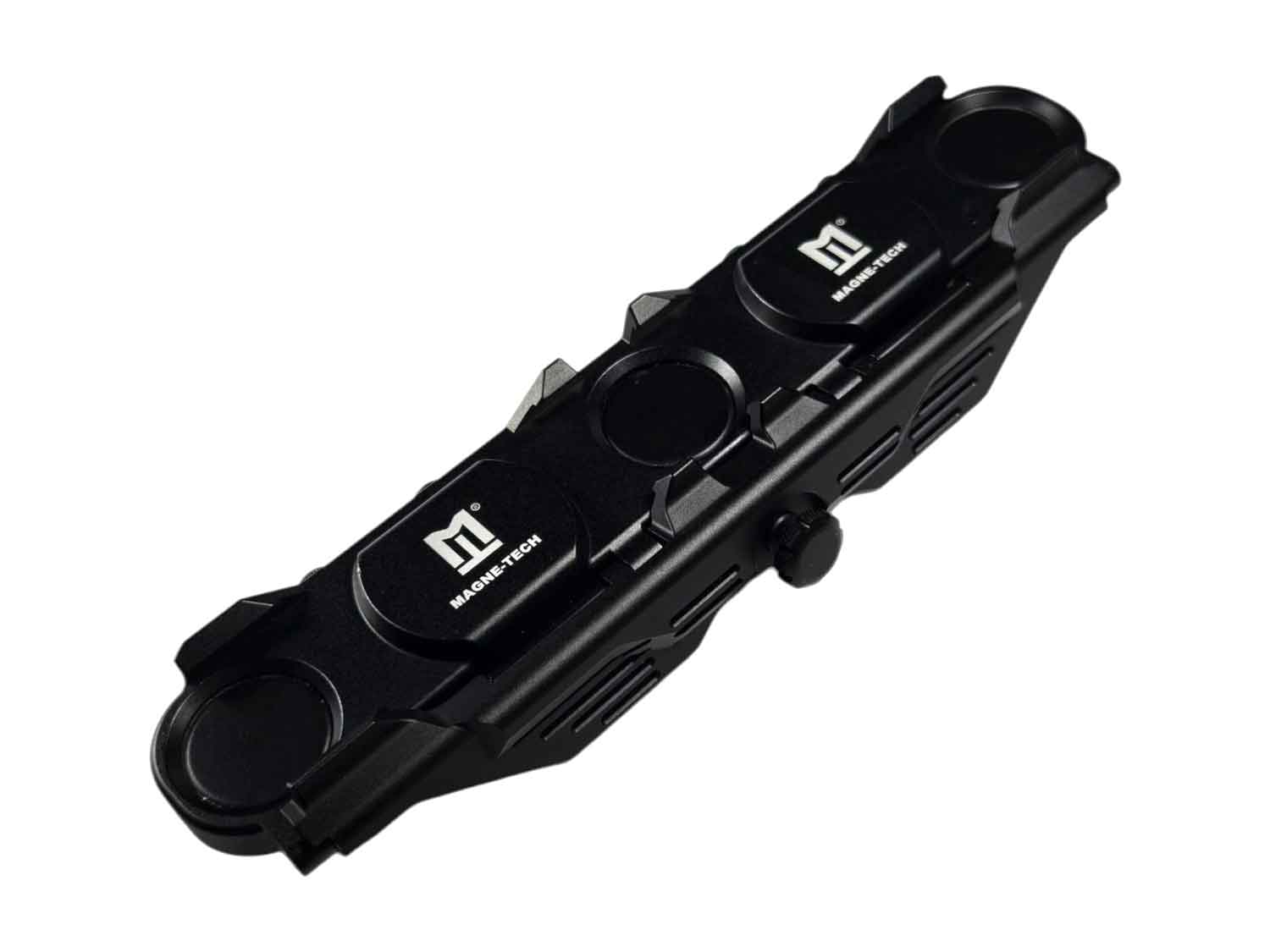

Magne-Tech 3x Magnetic Receiver for Locking Scope Ring Part A Base Only (Male)

The Magne-Tech 3× Magnetic Receiver for Locking Scope Ring (Part A – Male) is a precision-engineered magnetic quick-detach mounting base designed for shooters who demand reliable optic retention, repeatable positioning and convenient equipment changes. Featuring Magne-Tech's patented three-magnet mounting system and dual-redundant locking mechanism, this receiver allows compatible magnetic scope rings and accessories to be securely attached, removed and reinstalled with minimal effort.

Designed for rifles fitted with a MIL-STD-1913 Picatinny rail, the male receiver acts as the foundation of Magne-Tech's modular magnetic scope mounting system. Once installed, it pairs with a compatible Magne-Tech female magnetic ring mount, allowing users to interchange supported daytime, thermal and night-vision optics without repeatedly removing the rail-mounted base.

Three high-strength rare-earth magnets, individually rated at over 15 lb of magnetic holding force, work alongside precisely machined mounting surfaces to provide consistent positioning. The integrated dual-redundant locking system provides additional mechanical retention to help prevent accidental disengagement during use.

Precision-machined from 7075-T6 aluminium alloy and finished with MIL-A-8625 Type III hard-coat anodising, the receiver delivers excellent structural strength, surface durability and wear resistance while weighing just 5.4 oz (approximately 153g).

Whether upgrading an existing Magne-Tech system or equipping an additional rifle with a compatible receiver, this Part A mounting base offers a versatile solution for hunters, competitive shooters and precision shooting enthusiasts.

• Three-Magnet Quick-Detach System: Three high-strength rare-earth magnets provide a secure, repeatable magnetic interface for compatible Magne-Tech female mounts.

• Over 15 lb Magnetic Force Per Magnet: Each magnet is rated at more than 15 lb, providing strong magnetic retention in conjunction with the mechanical locking system.

• Patented Dual-Redundant Locking Mechanism: Provides additional mechanical security to help prevent accidental separation of the mounted optic or accessory.

• Precision Return-to-Zero Design: Engineered for repeatable optical alignment after detachment and reattachment, with manufacturer laboratory testing reporting a maximum shift of 0.25 MOA.

• MIL-STD-1913 Picatinny Compatibility: Designed to attach to a suitable Picatinny rail, providing a dedicated mounting interface for Magne-Tech's compatible magnetic optics system.

• Modular Optic Interchangeability: Allows compatible female-mounted optics and accessories to be exchanged while retaining the fixed receiver base.

• 7075-T6 Aluminium Construction: High-strength precision-machined aluminium alloy provides exceptional durability without unnecessary weight.

• Type III Hard-Coat Anodising: MIL-A-8625 Type III surface treatment improves resistance to abrasion, corrosion and general wear.

• Lightweight Receiver Design: Weighs approximately 153g, providing a compact magnetic mounting platform.

• Precision-Machined Interface: Engineered to guide compatible mounting components into a consistent position during attachment.

• Versatile Rifle Compatibility: Suitable for compatible rifles equipped with an appropriate Picatinny rail.

Three-Magnet Mounting Technology

At the centre of the Magne-Tech receiver is a patented magnetic mounting interface featuring three high-strength rare-earth magnets.

Each magnet is individually rated at over 15 lb, providing strong magnetic engagement between the receiver and a matching female mounting component.

The precision-machined contact surfaces help guide the mating components into a consistent position, supporting repeatable attachment and alignment.

Unlike conventional mounting systems that require repeated loosening and tightening of rail clamps, the Magne-Tech interface allows compatible optics to be removed and reattached while leaving the receiver securely installed.

Dual-Redundant Locking System

Magne-Tech's patented dual-redundant locking mechanism adds mechanical security to the magnetic connection.

This system is designed to help prevent unintended detachment of compatible optics or accessories during handling, movement and normal field use.

Combining magnetic positioning with mechanical retention provides a secure, repeatable connection for compatible mounting components.

Return-to-Zero Performance

The Magne-Tech mounting system is designed to maintain consistent optic alignment through repeated removal and reattachment.

In manufacturer laboratory testing using co-witnessed lasers, the magnetic scope mounting system demonstrated a maximum measured zero shift of 0.25 MOA after hundreds of attachment cycles.

Actual shooting performance depends on the complete mounting configuration, rifle, recoil, installation and operating conditions. Magne-Tech also publishes separate return-to-zero figures for different mounting configurations.

For the most consistent results, ensure the receiver remains correctly installed and verify the rifle's zero after changing optics or transferring equipment between rifles.

Compatibility

The Magne-Tech 3-Magnet Receiver is designed to work with:

• Magne-Tech Magnetic Ring Mounts (Female): Compatible three-magnet scope ring assemblies for supporting suitable riflescopes.

• Magne-Tech Magnetic Scope Mount Systems: Compatible Part A and Part B combinations designed around the matching three-magnet interface.

• Supported Magne-Tech Female Accessories: Additional mounting accessories designed specifically for the three-magnet receiver system.

• Picatinny-Equipped Rifles: Compatible rifle platforms fitted with a suitable MIL-STD-1913 Picatinny rail.

The receiver forms the Part A (Male) component of the mounting system. A matching Part B (Female) scope ring mount or compatible accessory mount is required for a complete assembly.

Installation Specifications

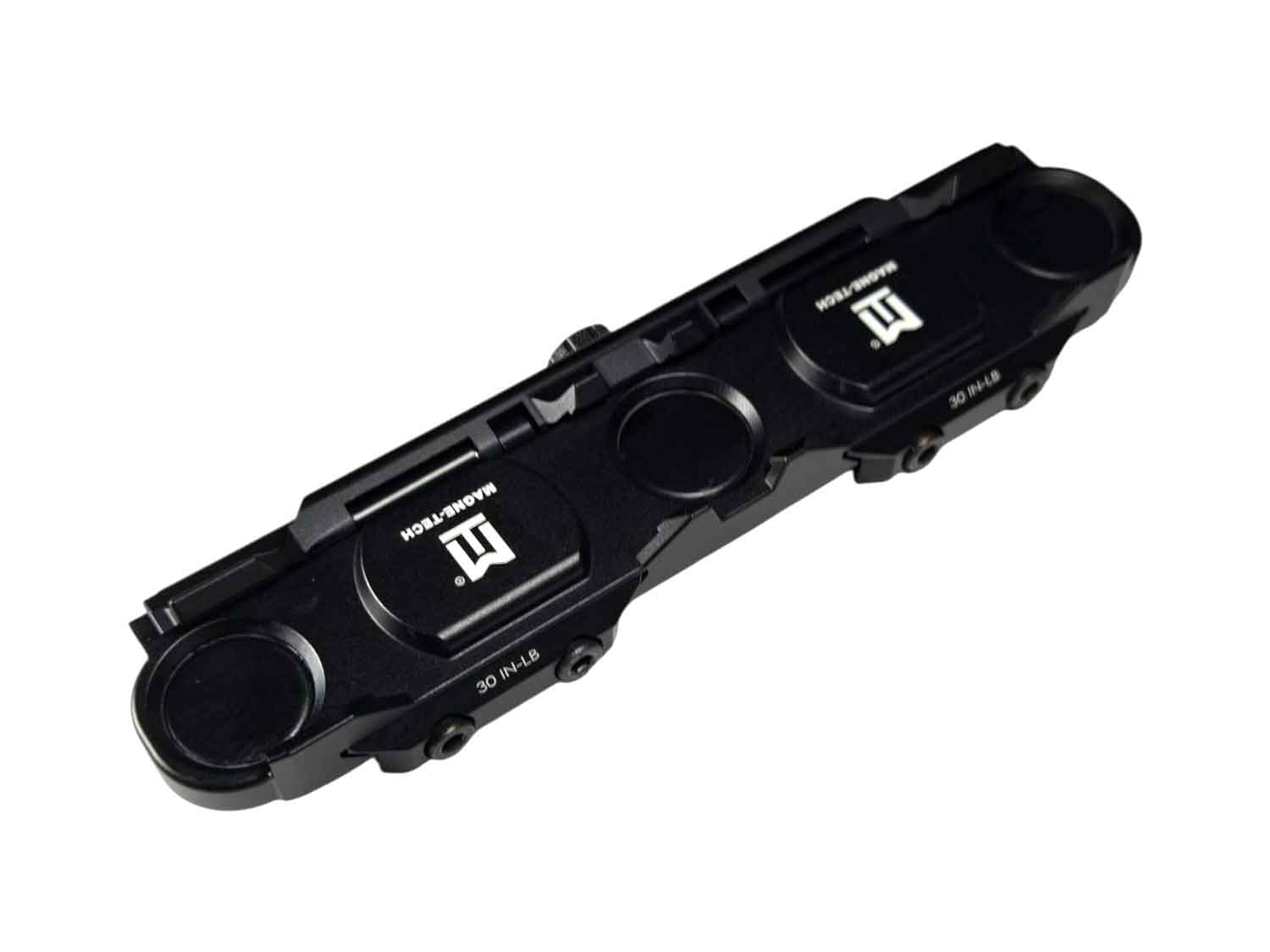

Receiver Screw Torque: 30 in-lb.

The receiver is designed to be securely installed onto a compatible Picatinny mounting surface using the manufacturer's specified fasteners and installation procedure.

Correct installation and consistent receiver positioning are essential for repeatable optic alignment and mounting performance.

Package Contents

• 1 × Magne-Tech 3-Magnet Magnetic Locking Picatinny Rail Mount Receiver (Part A – Male)

• 1 × 3mm Allen Key

Important: This product includes the Part A male receiver only. The magnetic scope ring mount (Part B – Female), riflescope and other accessories are sold separately.

Applications

The Magne-Tech 3-Magnet Receiver provides a modular mounting solution for hunting rifles, precision shooting platforms and compatible Picatinny-equipped firearms.

Its interchangeable design is particularly useful for shooters who want to configure multiple rifles with matching receiver bases or use different compatible optics on the same rifle.

By combining magnetic positioning, precision machining and mechanical locking, the system provides convenient optic changes without repeatedly removing the receiver from the rifle.
