Magne-Tech Rigel II-M 1100lm Magnetic Weapon Torch Kit For M-Lok Rails

The Magne-Tech Rigel II-M 1100lm Magnetic Weapon Torch Kit is a powerful, rechargeable lighting solution designed for firearms equipped with M-LOK mounting interfaces. Combining a high-performance LED flashlight with Magne-Tech's innovative magnetic quick-detach technology, the Rigel II-M provides versatile illumination for hunting, outdoor activities and low-light applications.

Delivering 1,100 lumens of output, 14,026 candela and a beam distance of up to 237 metres, the Rigel II-M provides bright, focused illumination when visibility is limited.

The included 7075-T6 aluminium M-LOK magnetic rail mount allows the flashlight to be quickly attached or removed without tools once the mounting base is installed. This modular design also allows the torch to be used independently as a handheld flashlight or attached to suitable magnetic surfaces for hands-free illumination.

Powered by an included rechargeable 18650 lithium-ion battery, the Rigel II-M provides up to 1.5 hours of operation at maximum brightness and up to 150 hours at its 1% output setting.

Featuring a precision-machined aluminium housing, IP67 protection, programmable lighting modes and intelligent thermal management, the Rigel II-M is designed for reliable operation in demanding outdoor environments.

Key Features

• 1,100-Lumen Maximum Output: Powerful LED illumination for hunting, outdoor activities and low-light environments.

• 237m Beam Distance: Focused beam with a peak intensity of 14,026 candela.

• Magnetic Quick-Detach System: Allows rapid, tool-free removal and reattachment of the flashlight from the installed M-LOK magnetic base.

• M-LOK Rail Compatibility: Includes a dedicated 7075-T6 aluminium magnetic rail mount and mounting hardware.

• Rechargeable 18650 Battery: Included lithium-ion battery features Micro-USB charging.

• 12 Programmable Lighting Mode Groups: Customisable brightness and operating modes, including Strobe, Biking and Battery Check functions.

• Extended Battery Runtime: Up to 1.5 hours at maximum brightness or 150 hours at 1% output.

• Luminus SST-40 LED: High-performance 5000K neutral-white emitter with a Colour Rendering Index of approximately 70.

• Intelligent Thermal Protection: Automatically reduces output when the flashlight's internal temperature exceeds 55°C.

• Low-Battery Warning: Flashes every five seconds when the battery becomes insufficient for the selected output.

• IP67 Water and Dust Protection: Dust-tight construction and protection against temporary water immersion under specified conditions.

• 7075-T6 Aluminium Construction: Precision-machined, high-strength housing and mounting base.

• Versatile Magnetic Attachment: Can be used with the supplied M-LOK mount, other compatible Magne-Tech male mounts or suitable ferromagnetic steel surfaces.

• Five-Year Manufacturer Warranty: Coverage for the Rigel II flashlight, subject to manufacturer warranty conditions.

Technical Specifications

Magnetic Quick-Detach Mounting System

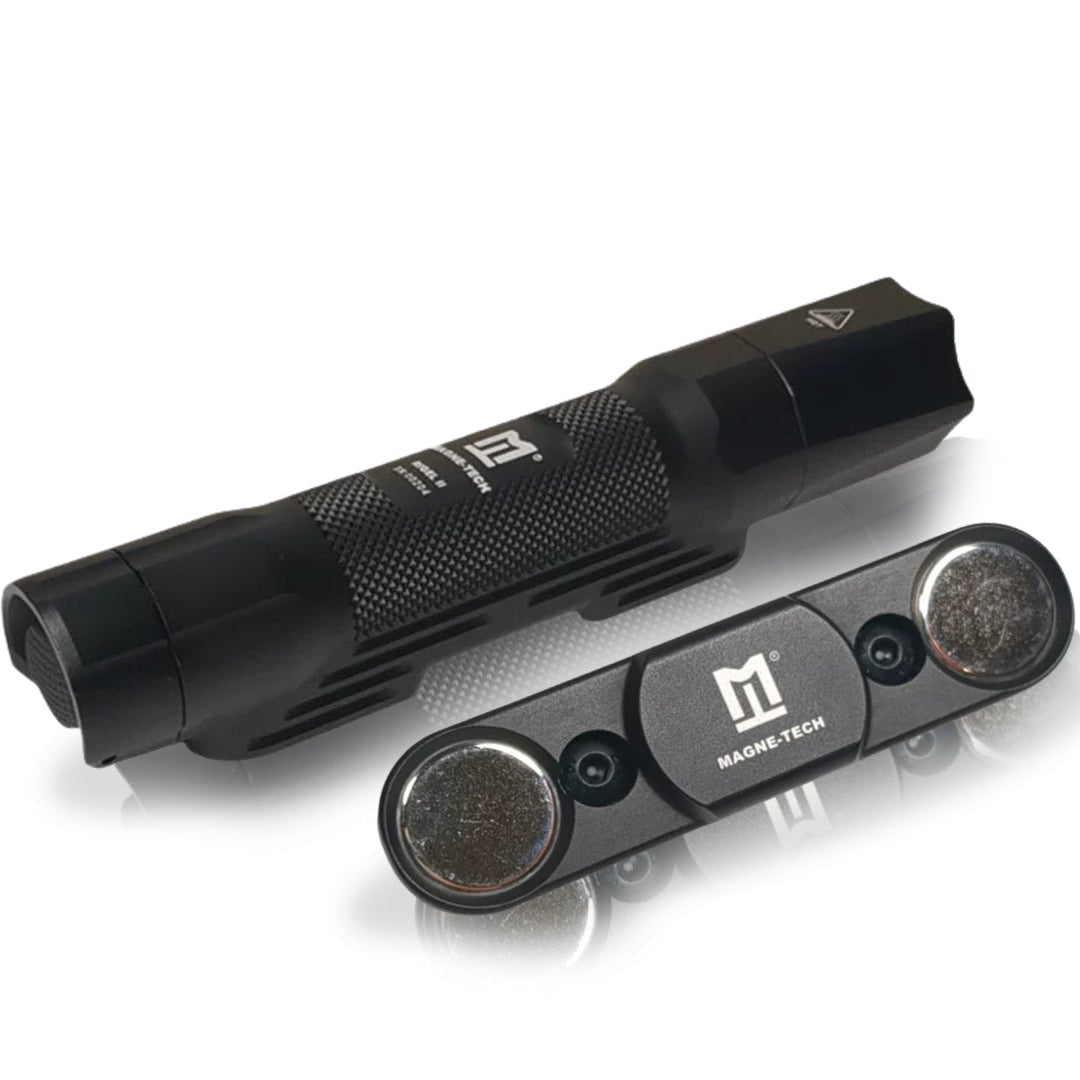

The Rigel II-M features Magne-Tech's modular magnetic mounting technology, allowing the flashlight to be attached to or removed from the included M-LOK mounting base without tools.

The male magnetic rail mount remains securely installed on the firearm's M-LOK interface, while the flashlight's female magnetic connection provides convenient attachment and removal.

This arrangement allows the Rigel II to be removed for handheld use or transferred to other compatible Magne-Tech magnetic mounting accessories.

The flashlight can also attach directly to suitable steel surfaces, providing additional hands-free illumination options for equipment maintenance and outdoor activities.

Programmable Lighting Modes

The Rigel II-M incorporates a programmable Convoy driver with 12 selectable lighting mode groups, allowing users to customise the flashlight's output and operating sequence.

The factory-default configuration includes:

• 0.1%: Ultra-low brightness for extended operation.

• 1%: Low-output illumination for close-range tasks.

• 10%: Reduced brightness for general lighting.

• 35%: Medium-output illumination.

• 100%: Maximum 1,100-lumen output.

• Strobe: Flashing light mode.

• Biking: Cycling visibility mode.

• Battery Check: Battery voltage indication.

The driver supports configurable mode memory, allowing the flashlight to restart in its previously selected setting or begin at the first mode in the selected group.

Rechargeable Power and Battery Management

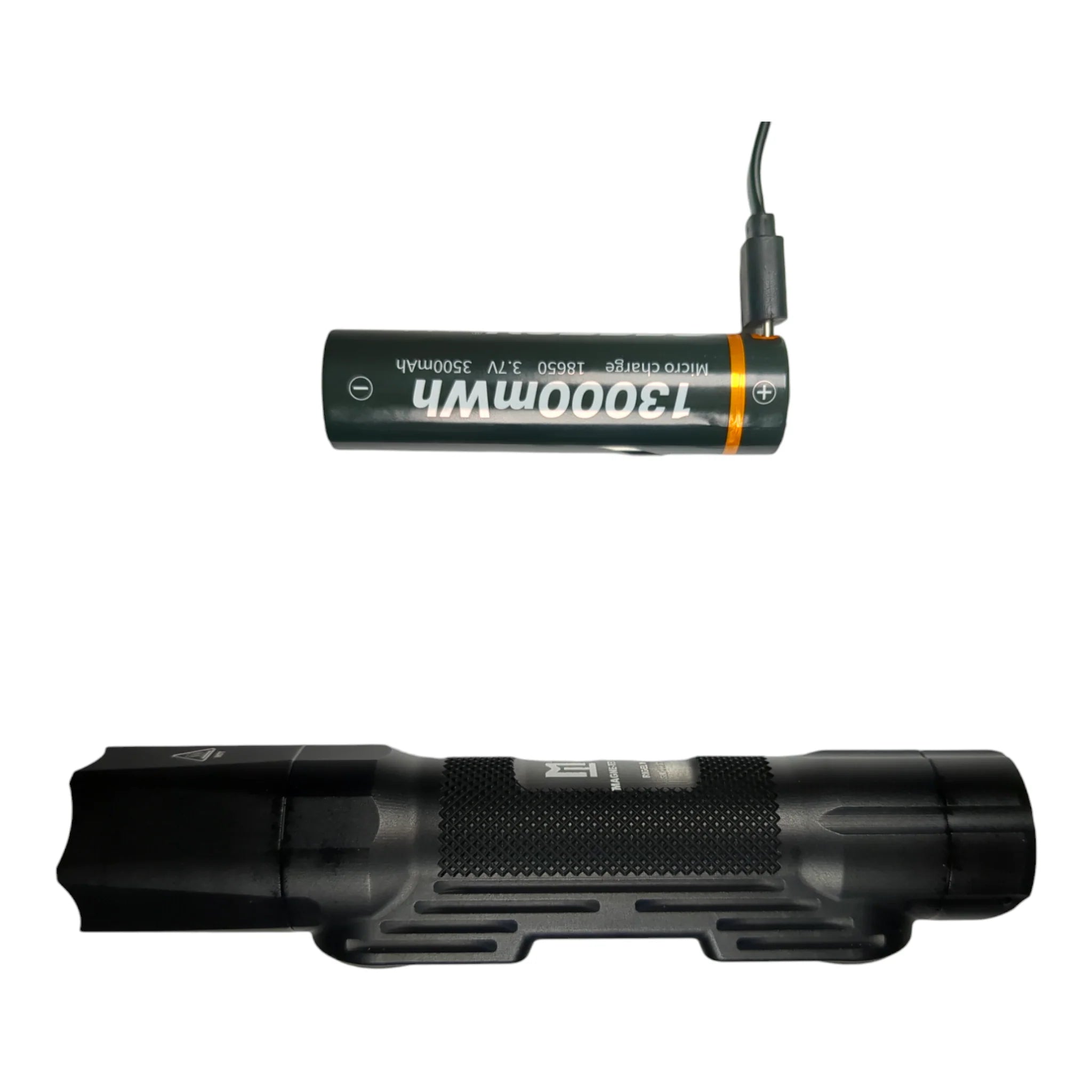

The included rechargeable 18650 lithium-ion battery provides portable power without requiring frequent disposable battery replacements.

A Micro-USB charging interface is integrated into the battery, allowing it to be recharged using the supplied cable.

The Rigel II also incorporates intelligent protection features:

Thermal Protection Control: Automatically reduces output when the flashlight's internal temperature exceeds 55°C, helping control heat buildup during extended use.

Low-Battery Warning: Flashes the light every five seconds when the remaining charge becomes insufficient for the selected brightness setting.

IP67-Rated Aluminium Construction

The Rigel II flashlight features a precision-machined 7075-T6 aluminium alloy housing, offering excellent structural strength and durability.

Its IP67 ingress protection rating provides dust-tight sealing and resistance to temporary immersion in water under specified conditions.

The supplied M-LOK rail mount is also machined from 7075-T6 aluminium, providing a durable connection between compatible M-LOK equipment and the magnetic flashlight mounting interface.

Installation Specifications

The included magnetic M-LOK rail base attaches to a compatible M-LOK mounting surface using the supplied nuts and screws.

Manufacturer-Specified Installation Torque: 20 in-lb.

Once the base is correctly installed, the flashlight can be attached and removed through the magnetic quick-detach interface without repeatedly loosening the mounting screws.

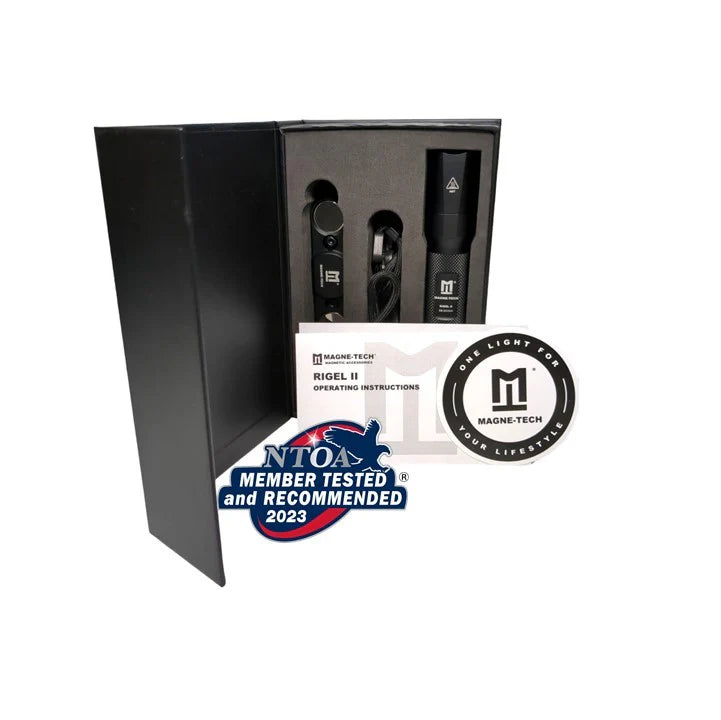

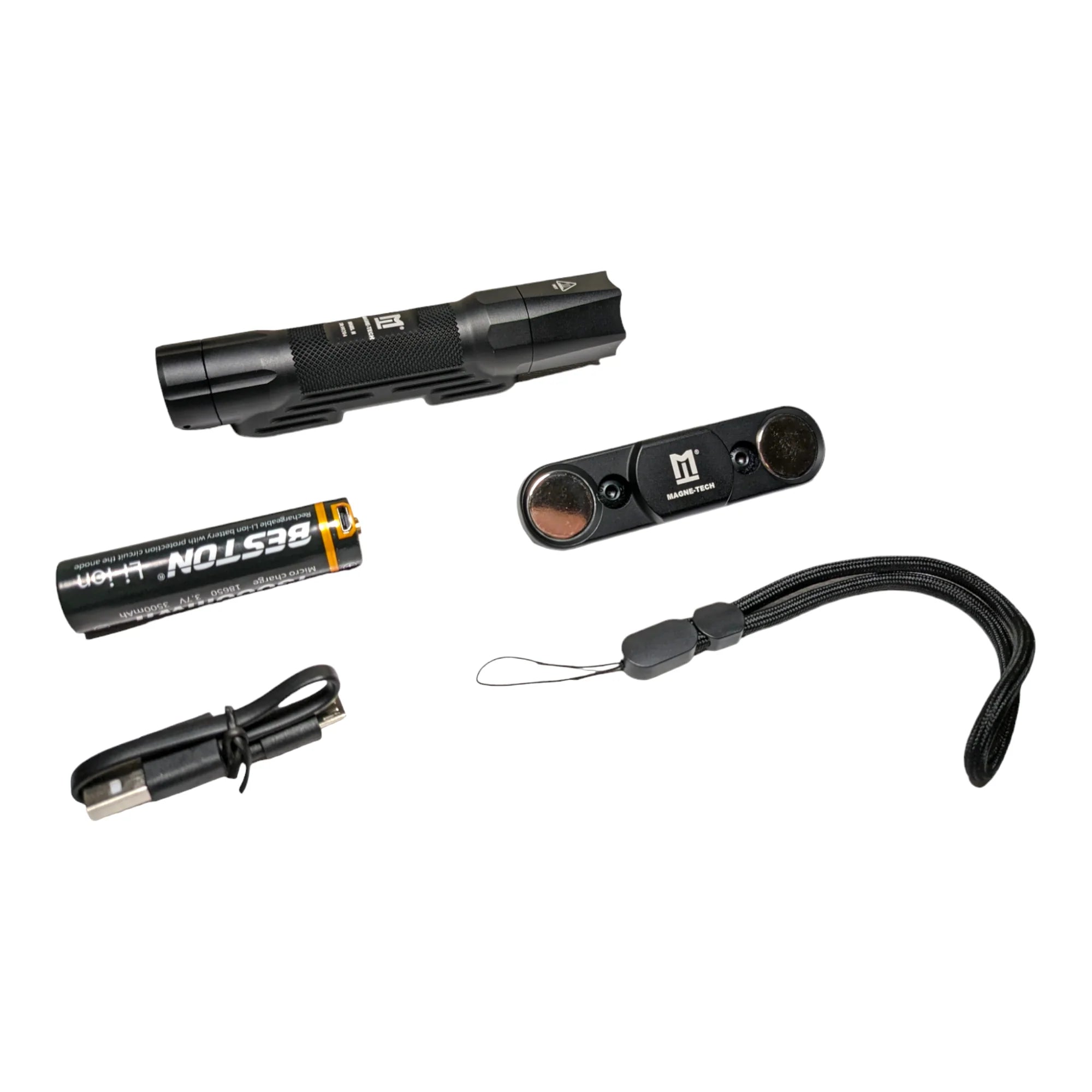

Package Contents

• 1 × Magne-Tech Rigel II 1100lm Magnetic Tactical Flashlight

• 1 × Rechargeable 18650 Li-ion Battery with Micro-USB Charging Port

• 1 × Micro-USB Charging Cable

• 1 × Lanyard

• 1 × 7075-T6 Aluminium Magnetic M-LOK Rail Mount (Male)

• 2 × M-LOK Nuts

• 2 × M-LOK Mounting Screws

Complete M-LOK Torch Kit: Includes the Rigel II flashlight, rechargeable battery and magnetic M-LOK mounting components.

Note: Picatinny, belt, MOLLE and other optional Magne-Tech mounting accessories are sold separately.
