Z13 and Z17 Coil Pack for the GPZ 8000
Minelab GPZ 8000 Z13" & Z17" Coil Pack
Authorised Dealer
Our Price
$2,500
/
Frequently bought with
Two Genuine Minelab Z-Set Coils

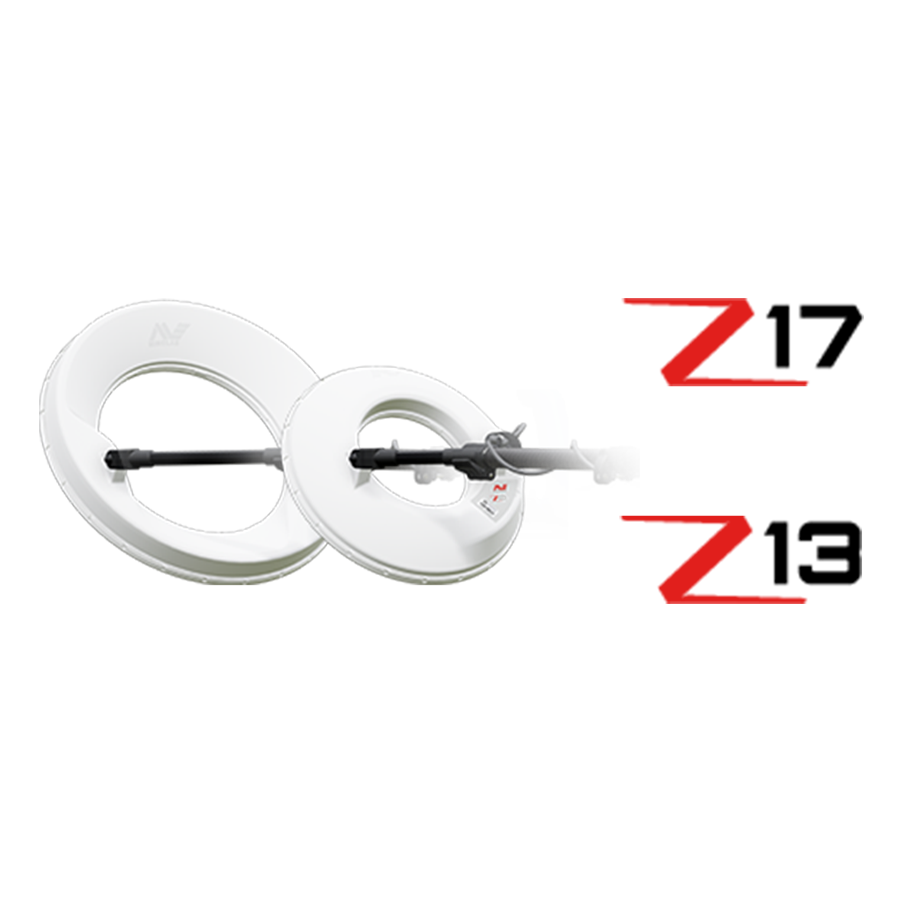

Minelab Z13 + Z17 Coil Pack for GPZ 8000
Expand the GPZ 8000 beyond a single search-coil role. This two-coil pack combines the manoeuvrable 13-inch Z13 with the stable 17-inch Z17, giving serious prospectors dedicated options for vegetation-heavy mineralised ground, conductive soil and high-noise detecting environments.
13" Z13 Coil
17" Z17 Coil
Z-Set Concentric Toroidal
GPZ 8000 Exclusive Compatibility
Two Coils. Two Specialities.
Browse the two dedicated Z-Set accessory coils and see how each one extends the GPZ 8000 into different terrain and ground conditions.
Why Add the Z13 and Z17?
Each coil is engineered for a different group of prospecting conditions, allowing the GPZ 8000 to be matched more closely to the terrain and surrounding electrical or atmospheric noise.

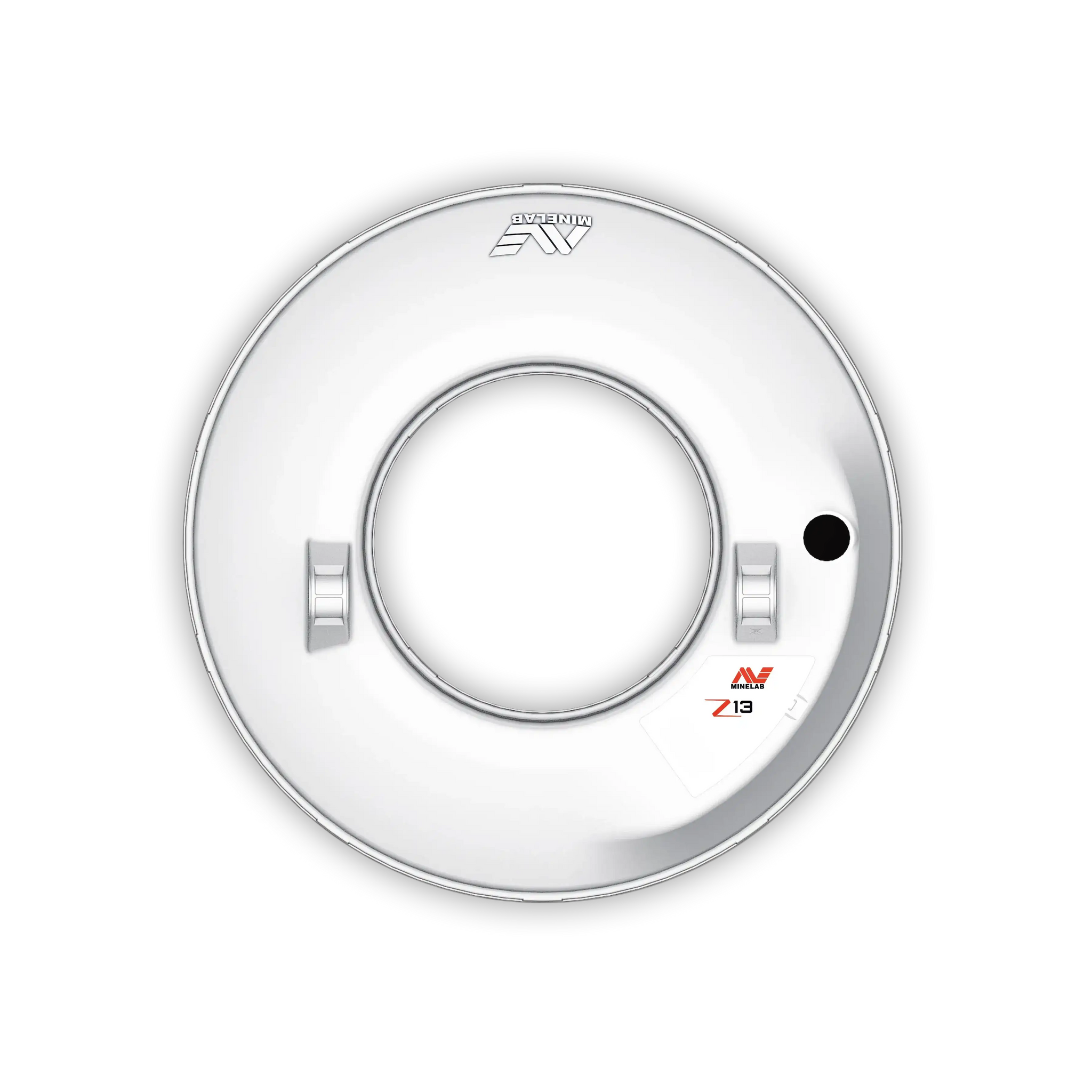

Z13 Coil Spotlight
Built to move through difficult terrain
The Z13 is the compact, manoeuvrable member of the GPZ 8000 Z-Set range. Minelab positions it for mineralised ground, rugged terrain and vegetation-heavy locations where controlled coil placement is especially important.
- Designed for small-to-medium gold in mineralised ground.
- More manoeuvrable around scrub, rocks and uneven terrain.
- Balanced handling supports controlled detecting.
- Genuine GPZ 8000 Z-Set Concentric Toroidal coil.
Nominal Size 13 inches
Minelab SKU 3011-0502
Best Suited To Rugged, vegetated terrain
Target Range Small to medium gold

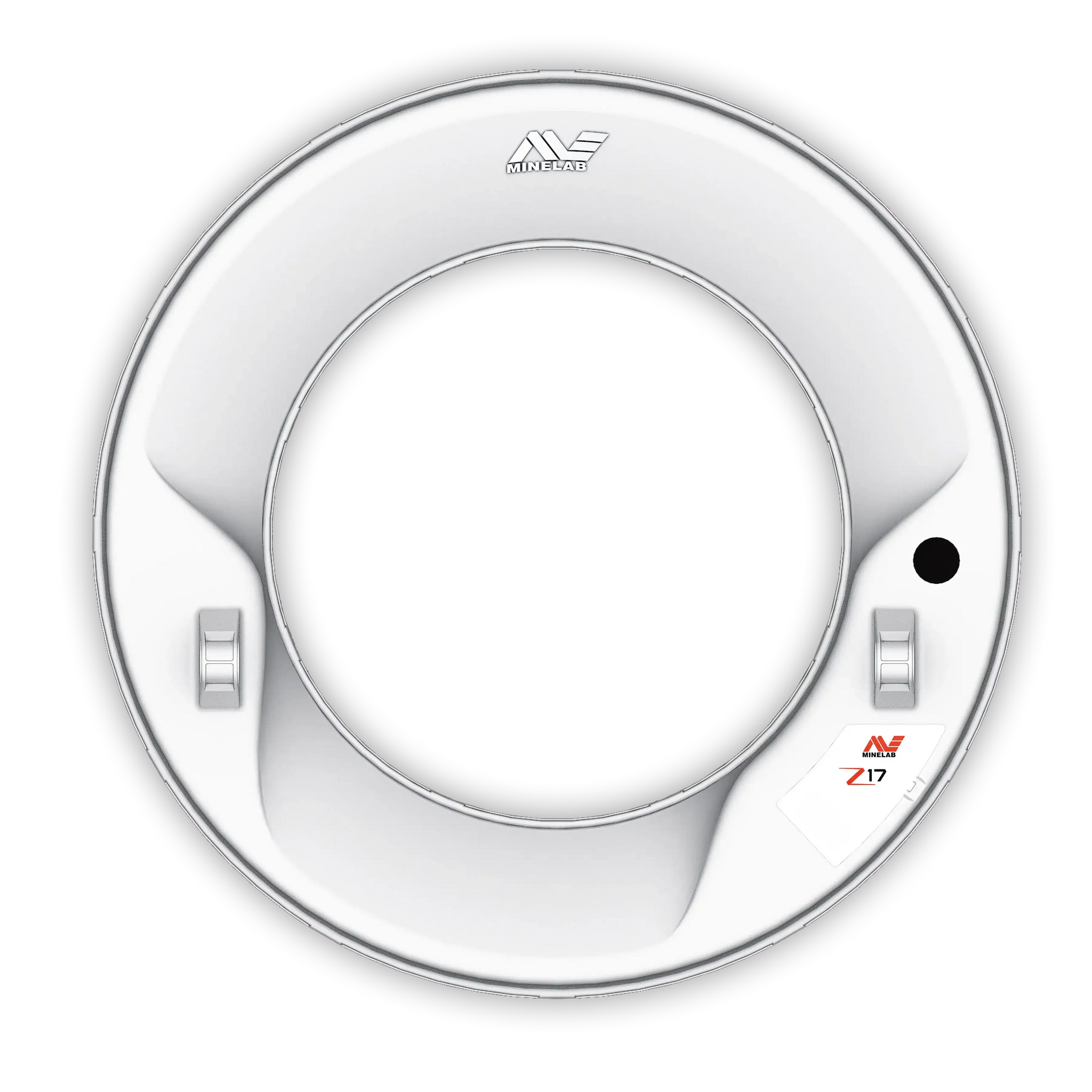

Z17 Coil Spotlight
Stable operation when the ground gets noisy
The Z17 is designed for locations where soil conductivity, atmospheric noise or electromagnetic interference can make detecting more difficult. Its 17-inch footprint provides the larger of the two accessory-coil options in this pack.
- Designed for conductive soil and high-noise detecting conditions.
- Stable operation with a strong target response.
- Targets a diverse range of small-to-medium gold.
- Genuine GPZ 8000 Z-Set Concentric Toroidal coil.
Nominal Size 17 inches
Minelab SKU 3011-0503
Best Suited To Conductive and noisy ground
Target Range Small to medium gold
One Pack, Two Different Jobs
Select the Z13 when physical access and coil control matter most. Move to the Z17 when conductive ground or external noise demands a larger, stable alternative.
Z13 Terrain and manoeuvrability
Best matched to rugged, mineralised and vegetation-heavy locations where a smaller coil is easier to position and control.
Z17 Conductivity and noise
Best matched to conductive ground, atmospheric noise and electromagnetic interference while targeting small-to-medium gold.
Complete the Three-Coil Z-Set System
For owners of the GPZ 8000 Single Coil Pack, the detector is supplied with the 18-inch Z18. Adding this Z13 and Z17 pack creates a three-coil selection covering manoeuvrability, noisy or conductive ground, and large-coil open-ground prospecting.
Add with this pack Z13 — 13"
The manoeuvrable option for vegetation, rugged terrain and small-to-medium gold in mineralised ground.
Terrain Control Add with this pack Z17 — 17"
The stable option for conductive soils, high EMI and atmospheric noise while targeting small-to-medium gold.
Noise Stability Single Coil Pack Coil Z18 — 18"
The large standard option for broad ground coverage and open-area prospecting with the GPZ 8000 Single Coil Pack.
Open Ground Coverage Package note: GPZ 8000 package contents can vary by country and product configuration. The Z18 comparison above refers specifically to the GPZ 8000 Single Coil Pack.
Technical Specifications
| Product | Minelab Z13 and Z17 Coil Pack for GPZ 8000 |
|---|---|
| Included Coil Models | Z13 and Z17 |
| Z13 Minelab SKU | 3011-0502 |
| Z17 Minelab SKU | 3011-0503 |
| Z13 Nominal Size | 13 inches |
| Z17 Nominal Size | 17 inches |
| Coil Technology | Z-Set Concentric Toroidal |
| Compatible Detector | Minelab GPZ 8000 |
| Z13 Application | Mineralised ground, rugged terrain and vegetation-heavy detecting locations |
| Z17 Application | Conductive ground and locations affected by atmospheric or electromagnetic noise |
| Target Range | Small-to-medium gold |
| Waterproof Rating | Coils waterproof to 1 metre / 3.3 feet for less than 30 minutes |
| Coil Warranty | 3 year Manufacturer warranty |
What’s Included
| Z13 Search Coil | One genuine Minelab 13-inch Z-Set Concentric Toroidal coil for the GPZ 8000 |
|---|---|
| Z17 Search Coil | One genuine Minelab 17-inch Z-Set Concentric Toroidal coil for the GPZ 8000 |
Please note: The GPZ 8000 detector, Z18 coil, shaft, control box, batteries, harness and other detector accessories are not included with this two-coil pack unless expressly stated elsewhere in the product offer.
