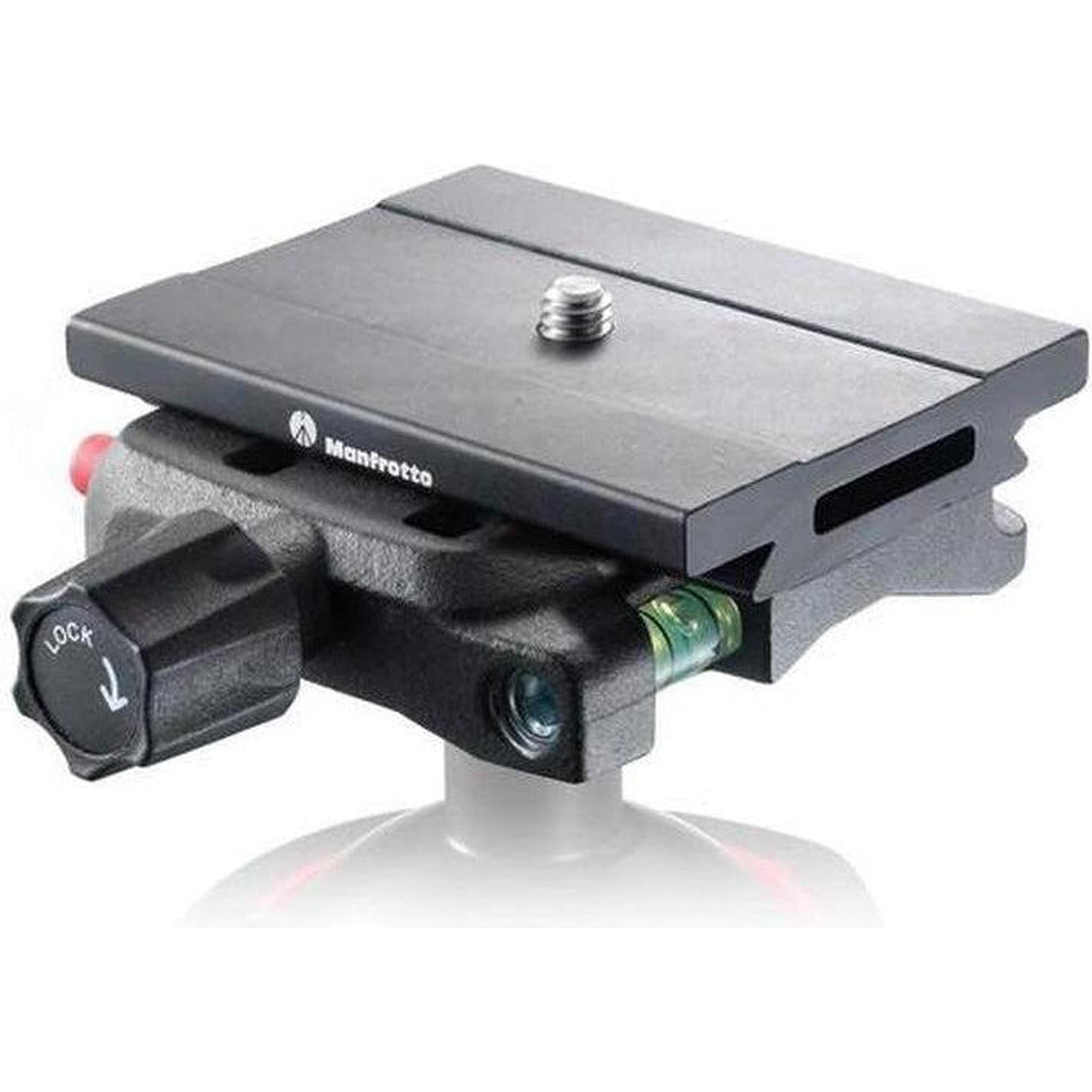

The Manfrotto MSQ6 Quick Release Adapter with Plate is a replacement or upgrade part that allows you to fit any existing 050 or 468 series Manfrotto tripod head with the Q6 Top Lock system. The included Arca Swiss compatible plate clicks into the base from above triggering a pin that keeps the plate from sliding out even before it's tightened down. Three built-in bubble levels ensure accurate framing and composition. The MSQ6 is compatible with the included Manfrotto MSQ6PL camera plate and Arca Swiss brand plates but is not guaranteed to work with "Arca-type" plates from other manufacturers.
SPECIFICATIONS
Construction AluminumCompatibility Manfrotto tripod heads:MH054M0 MH054M0-Q2 MH054M0-Q5 MH055M0 MH055M0-Q2 MH055M0-Q5 MH055M0-RC4 MH057M0 MH057M0-Q5 MH057M0-RC4 468MG 468MGRC0 468MGRC2 468MGRC3 468MGRC4 468MGRC5Head Mount Thread Size Proprietary unthreaded female tapCamera Mounting Screw 1/4"-20 on QR plateBubble Level Yes x3Dimensions 3.7 x 2.6" (9.4 x 6.6 cm) Including locking knob and release buttonDepth: 0.62" (1.57 cm) without plate 1.0" (2.54 cm) with plateWeight 0.37 lb (0.17 kg)
Special order
This item is an ident item. We will order in for you when an order is recieved. Once ordered item can not be cancelled.
