Manfrotto MVH502A PRO VIDEO ALUM SYSTEM

SKU: MVH502A+546BK-1

Manfrotto MVH502A PRO VIDEO ALUM SYSTEM

SKU: MVH502A+546BK-1

Our Price


×

Pickups and Delivery

In-store pickup

We don't have this item in our store right now. Please enquire for availability.

If you come to pick up your order please bring photo ID, if someone else is picking it up on your behalf please contact us prior to pickup.

Delivery estimates

Once your order has been picked up by the courier please allow 2 working days for North Island addresses, for the South Island allow 3 working days. Rural deliveries and extra-large items may take several additional days.

Shipping costs

Shipping costs are automatically calculated during checkout. The price of shipping varies based on the delivery location. Select items may be be eligible for free shipping.

Delivery of oversize items

Oversize items such as very large telescopes may only be available via pickup from a depot or a business address. For a list of available depots, click here

Security

To ensure the safe delivery of your order we require a signature with all parcels. Some exceptions may be made if you give the courier company authority to leave parcels at your preferred address.

About this product

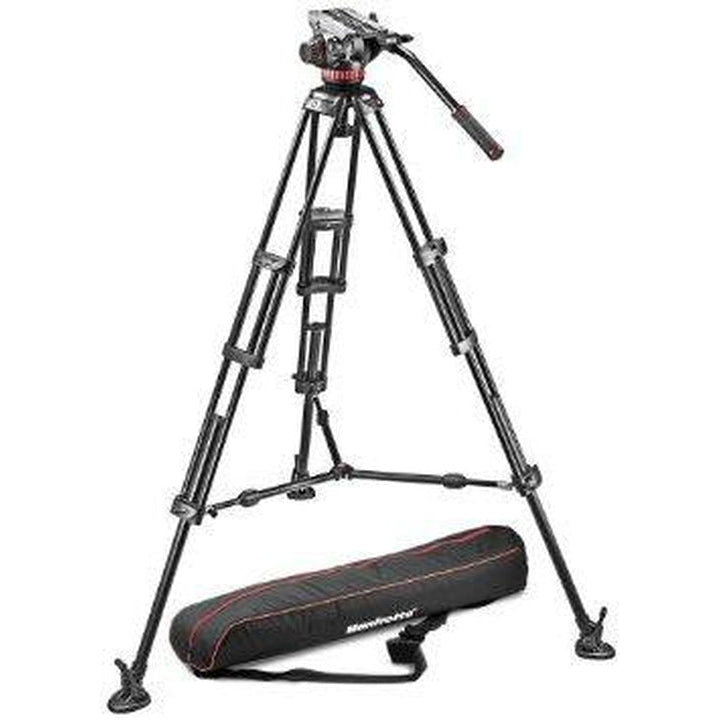

The MVH502A Fluid Head and 546B Tripod System with Carrying Bag is a professional tripod system designed for HDSLR and interchangeable lens cameras. The system combines the MVH502A 75mm half ball fluid head with the 546B tripod with mid spreader. The MVH502 head has a pre-set counterbalance of 8.8 pounds but can support loads up to 15.4 pounds. It features two Easy Link connectors to allow an external monitor or other accessory equipment to be fitted directly on the head.The 546B is a two-stage tripod with a built-in 75mm bowl. The tripod inch s telescopic mid-level spreader helps set leg angles accurately. Spiked feet with rubber overshoes are provided for solid grounding on both smooth floors and uneven terrain. A padded carrying bag comes included.

FEATURES

- Fluid video head supports 15.4 lb- 8.8 lb counterbalance- 75mm ball/bowl- 2-stage aluminum telescopic twin tube legs- Mid-level spreader

SPECIFICATIONS

HEADLoad Capacity 15.4 lb (7.0 kg)Counter Balance System Supports 8.8 lb (4.0 kg)Center of Gravity 2.16 inch (5.49 cm)Quick Release/Wedge Plate 504PLONGTilt Drag Continuously adjustable from 0 to max levelTilt Range -80° / +90°Leg Stages/Sections YesSpring Loaded Counter Balance YesPan Range 360°Pan Lock YesLEGSMaterial AluminumHead Attachment Fitting 75mm bowlLeg Stages Two/threeCenter Brace YesSYSTEMLoad Capacity 15.4 lbs (7.0 kg)Maximum Height 66.14 inch (168.00 cm)Minimum Height 17.32 inch (43.99 cm)Closed Length 32.68 inch (83.01 cm)Leveling Bubble/Illuminated Yes/NoWeight 12.13 lb (5.50 kg)
