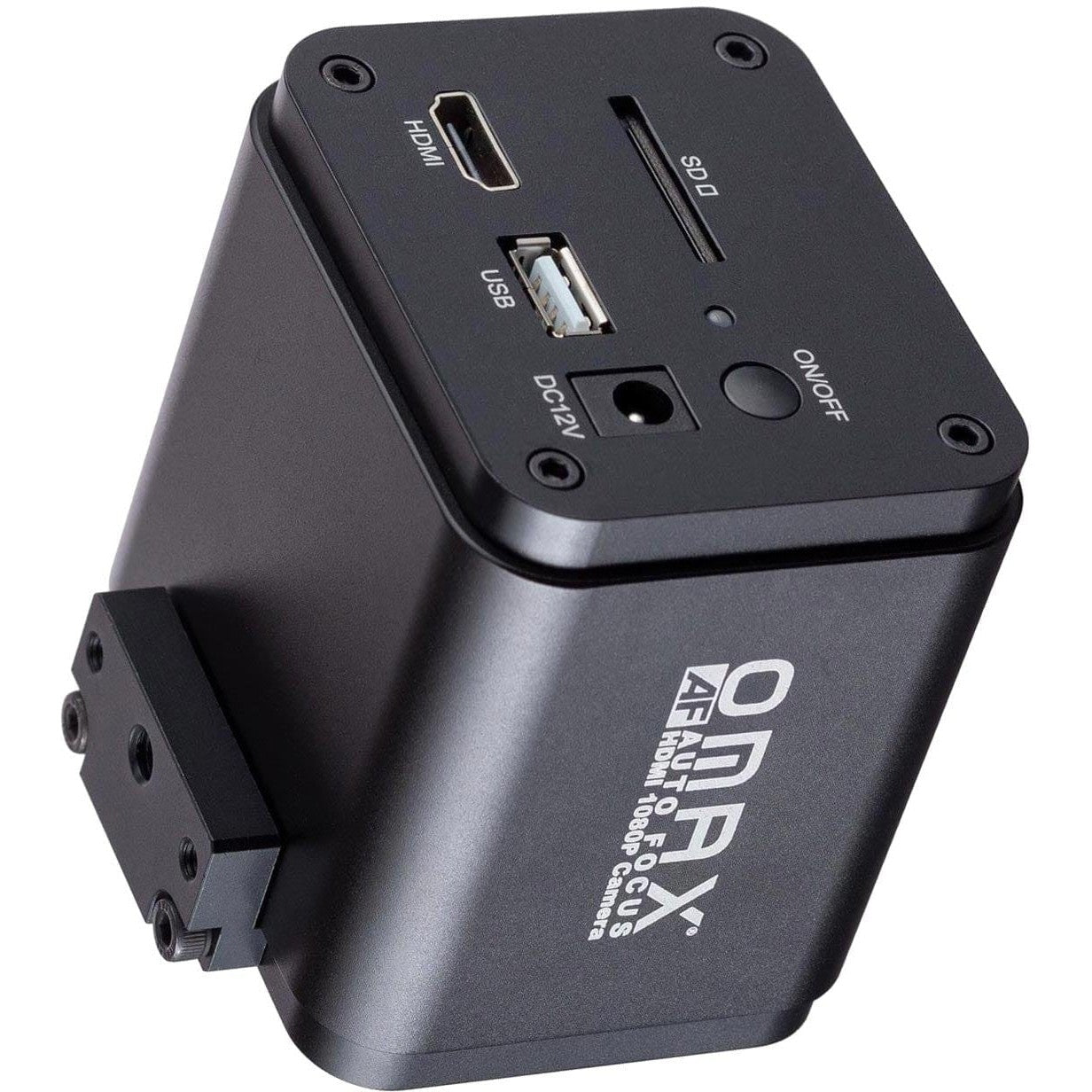

Omax 1080p Auto-focus C-Mount Camera w/ HDMI Output

SKU: A3520HDAF

Omax 1080p Auto-focus C-Mount Camera w/ HDMI Output-Jacobs Digital
Omax 1080p Auto-focus C-Mount Camera w/ HDMI Output-Jacobs Digital

Our Price

$2,627.94

$2,627.94


Loading

500

262794

Shipping Quote

About this product

  • Internal Auto-focus
  • 2MP / 1080p 60fps HDMI digital microscope camera with C-mount
  • Standalone operation with built-in recording using an SD card
  • WiFi connectivity for PC control and capture of up at 25fps
  • Excellent low-light performance. Useful for fluorescence and dark-field.
  • User-friendly Windows XP/Vista/7/8/10 software offers editing/processing and advanced features, including Stitching and Focus-stacking.

The A3520HDAF adds an all-new level of functionality and ease to your workflow. Acting as a standalone imaging system, the camera provides a real-time 1080p video stream over HDMI at 60fps. Built-in recording functions let you snap photos or record videos while you work. The auto-focus motor will reduce the adjustments needed, which is beneficial for soldering and dissection.

Connected to an HDMI monitor or TV, 1080p live video can be viewed at a super-smooth 60fps. The included USB mouse controls the camera through its easy-to-use interface. As an alternative solution, connect to the camera over WiFi for remote software control, with 25fps streaming. The included Windows software offers image development and measurement tools and advanced compositing features such as image stitching and extended depth of focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. For Mac and Linux, there is a lite version of the software that can capture video and still images and includes limited processing features.

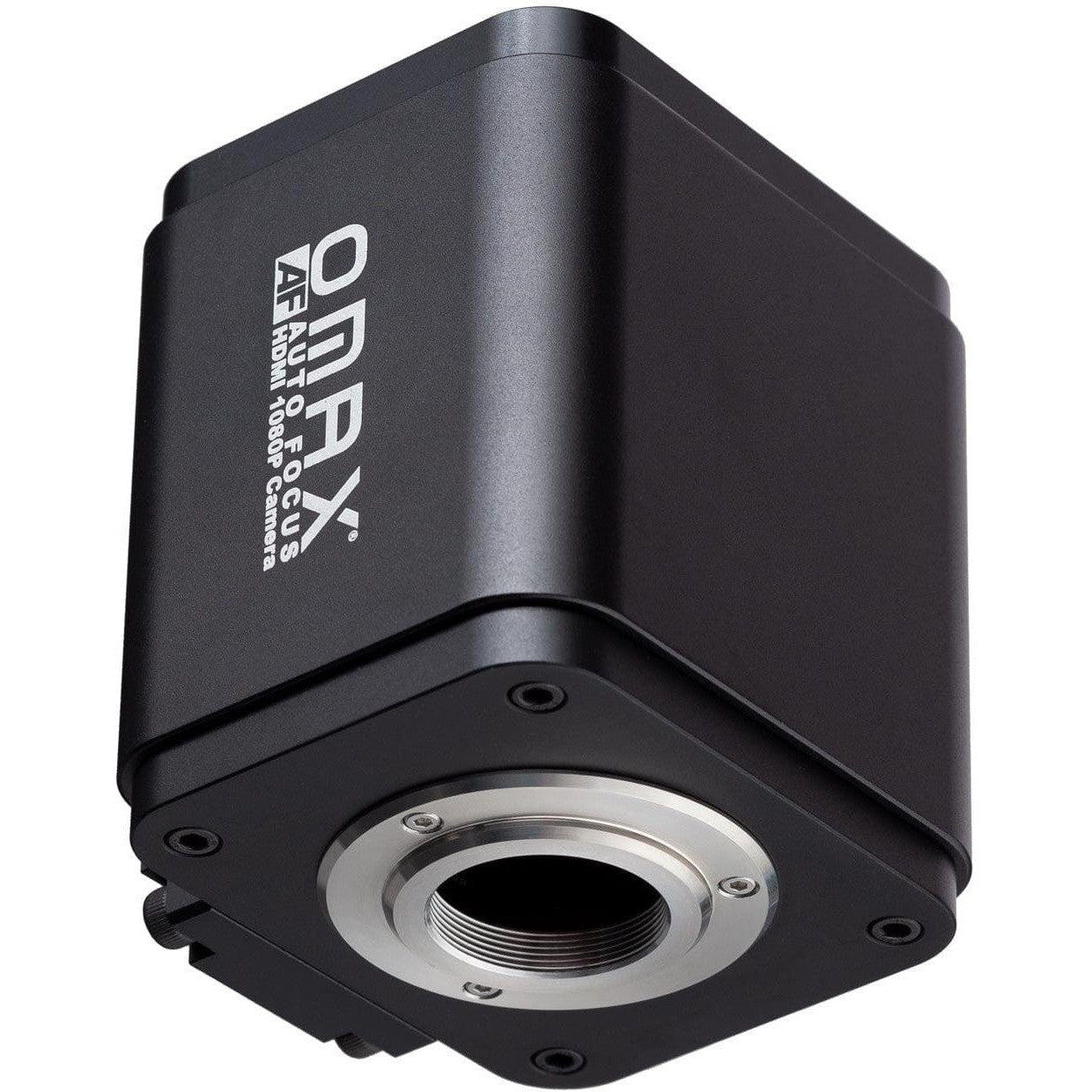

The camera uses a C-mount interface, making it compatible with a range of reduction lenses and photo ports. Notice: because of the auto-focus mechanism, C-mount lens threads should not exceed 5mm.

Sensor

Sensor Sensor Type Sensor Size Pixels
Sony IMX185 (color) CMOS 1/1.9" format (7.20 x 4.05mm) 2M
Pixel Size Shutter Sensitivity
?
Saturation Signal
3.75µm x 3.75µm Rolling Shutter 1120mV @ 1/30s (f5.6) 1440mV

Camera

Max Frame Rate(s) Connectivity Lens-mount
60fps @ 1920x1080 (HDMI)
30fps @ 1920x1080 (record)
25fps @ 1920x1080 (WiFi)
USB 2.0
Wi-fi (802.11n)
C-mount
Compensating Lens Exposure Time Compatibility
0.5X (not included) 0.06ms - 918ms Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux

PC Software

OS Requirements Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
Hardware Requirements Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maximum speed
Features
Windows Version
Live video preview
Captures of still images and video
Time-lapse capture
Exposure and white-balance controls
Dark-field correction
Digital binning
Image processing
Measurement tools, including lines, arcs, polygons
Segmentation and counting tools
Image-stitching, extended depth-of-field, HDR
Fluorescence color-mapping
Mac/Linux Versions
Live video preview
Captures of still images and video
Exposure control
Colour adjustment
Measurement tools, including lines, arcs, polygons
