Celestron Labs CB2000CF Compound Microscope

SKU: 44131

Celestron Labs CB2000CF Compound Microscope
×

Celestron Labs CB2000CF Compound Microscope

SKU: 44131

Learn more about this type of product


Have a question about this product?


Print this page

Our Price

or 12 months interest free

Gem

or 6 easy payments of $138.16

Laybuy

or 4 easy payments of $207.25

Afterpay

Loading

About this product

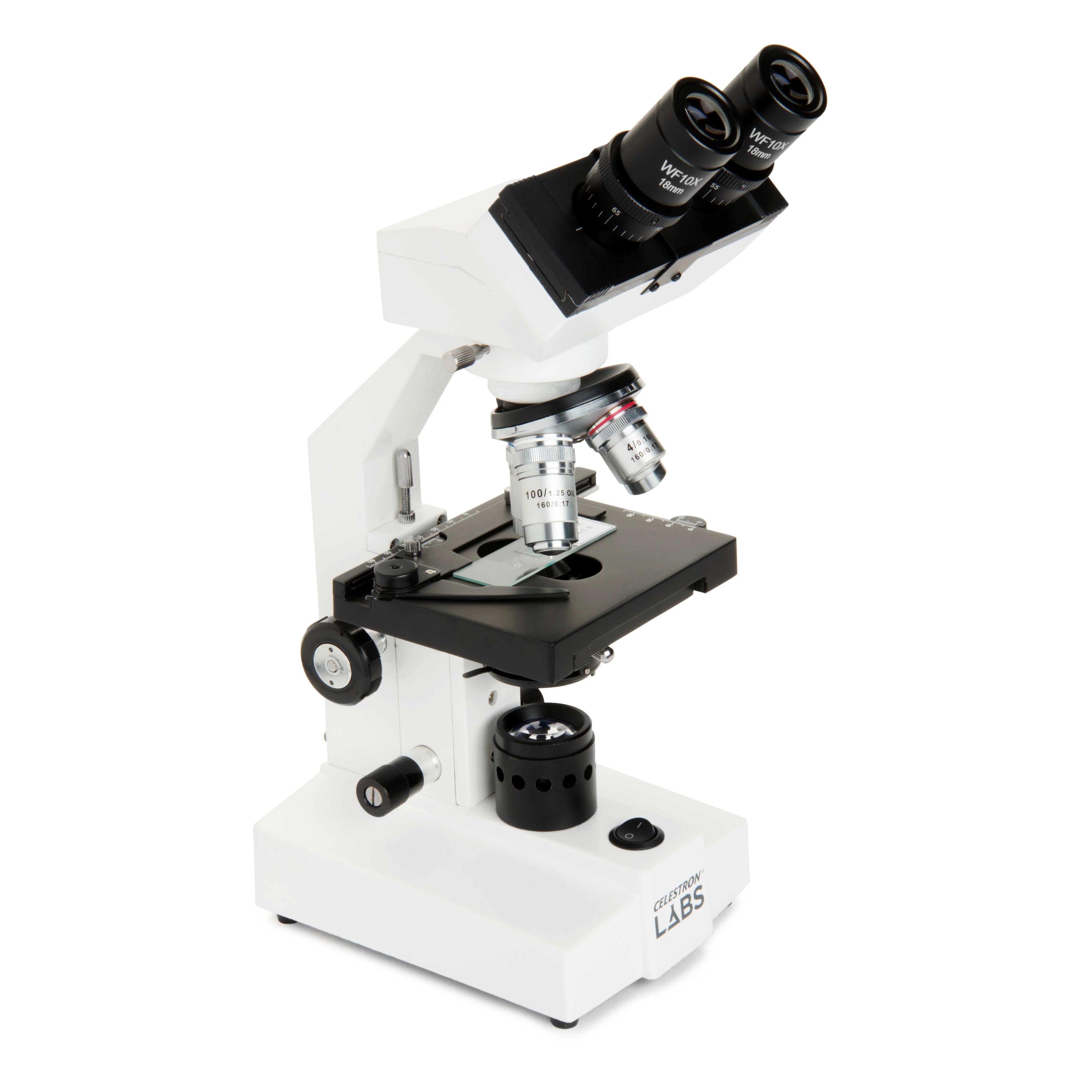

Celestron Lab's CB2000CF Compound Binocular Microscope is ideally suited for students and hobbyists with its comfortable binocular head design and broad magnification range. Its four-objective click-stop turret holds the 4x, 10x, 40x, 100x achromatic objectives and the instrument comes with two sets of eyepieces that produce magnifications from a practical 40x to a powerful 2000x.

The 4.3x4.7" stage is articulated on the X and Y axes to place the exact area of interest precisely in the centre of the stage. An adjustable-intensity halogen bulb under the stage provides the necessary illumination and the manually adjustable iris and Abbe condenser ensures the perfect amount of light and beam spread to illuminate the specimen without washing it out. Use the coarse and fine focus knobs, and the right-eye dioptric adjustment, to bring all specimens into sharp, clear focus.

Optical System

  • Two 20x widefield eyepieces
  • Two 10x wide field eyepieces, one with pointer

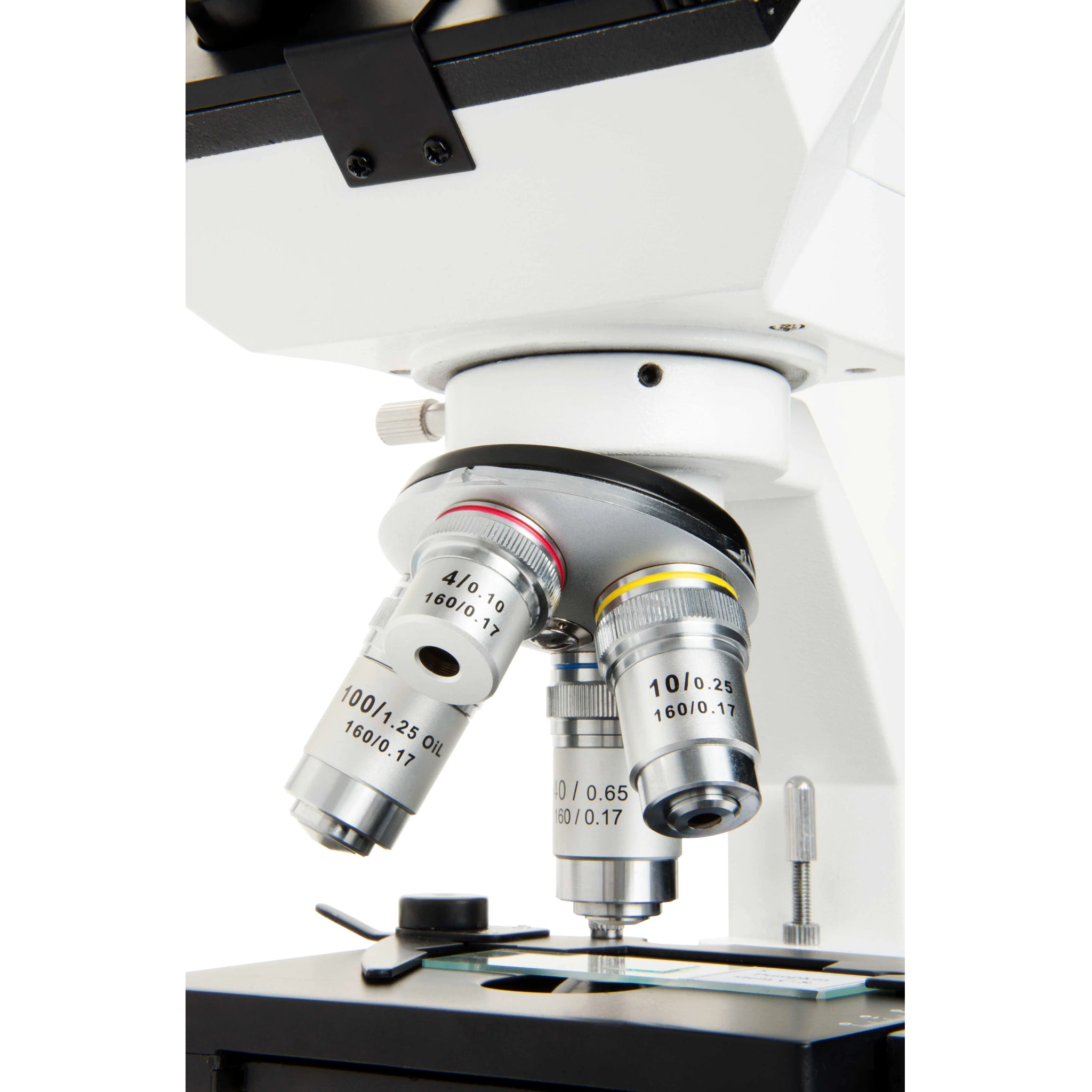

  • 4x, 10x, 40x, and 100x achromatic objectives
  • 100x objective requires immersion oil for maximum resolution
  • Four-position click-stop turret
  • 40x, 100x, 400x, and 1000x magnification with 10x eyepieces
  • 80x, 200x, 800x, and 2000x magnification with 20x eyepieces

Lighting

  • 1.25 NA Abbe condenser with three color filters
  • Removable blue, yellow, green filters
  • Lower halogen illumination, adjustable intensity
  • Manual mechanical iris adjustment

Focusing

  • Separate coarse and fine focus knobs
  • Sliding Interpupillary adjustment to accommodate a wide range of users
  • Right-eye dioptric adjustment

Stage

  • 4.3 x 4.7" mechanical rectangular stage
  • Adjustable-width locking slide/specimen holder
  • Accepts 3 x 1" (76.2 x 25.4mm) specimen slides
  • X-Y right-handed stage adjustments
  • Integrated ruler on edge
