OMAX 5MP USB 2.0 Digital Eyepiece Camera for Microscopes

SKU: A3550S-MK2

OMAX 5mp USB Digital Microscope Camera-Microscope Camera-Jacobs Photo and Digital
OMAX 5MP USB 2.0 Digital Eyepiece Camera for Microscopes
OMAX 5MP USB 2.0 Digital Eyepiece Camera for Microscopes

Our Price






Shipping Quote

When will I receive it?

About this product

This 5MP microscope digital camera has a unique design that includes a USB cable and two adapters. The digital camera captures still images, streams live videos on your computers, and is compatible with Windows (see version information below). The user-friendly software for Windows offers advanced features including Stitching, EDF (Extended Depth of Focus), and video recording. The software allows you to make notes, shapes, and watermarks with ease. You can analyze, present, and share images of samples and specimens using the software. With its easy setup, all you would need to do is slide the camera into your ocular tube or photo tube on the microscope and plug the USB cord from the camera to the USB2.0 port on your computer. With two adapters, our camera can be attached to any microscope with a 23.2mm, 30mm or 30.5mm photo port.


  • 5MP (2592x1944 pixels) high resolution color digital camera
  • Advanced editing, processing and measuring software included
  • Compatible with modern Windows operating systems
  • Supports Native C/C++, C#, Directshow, Twain, Labview

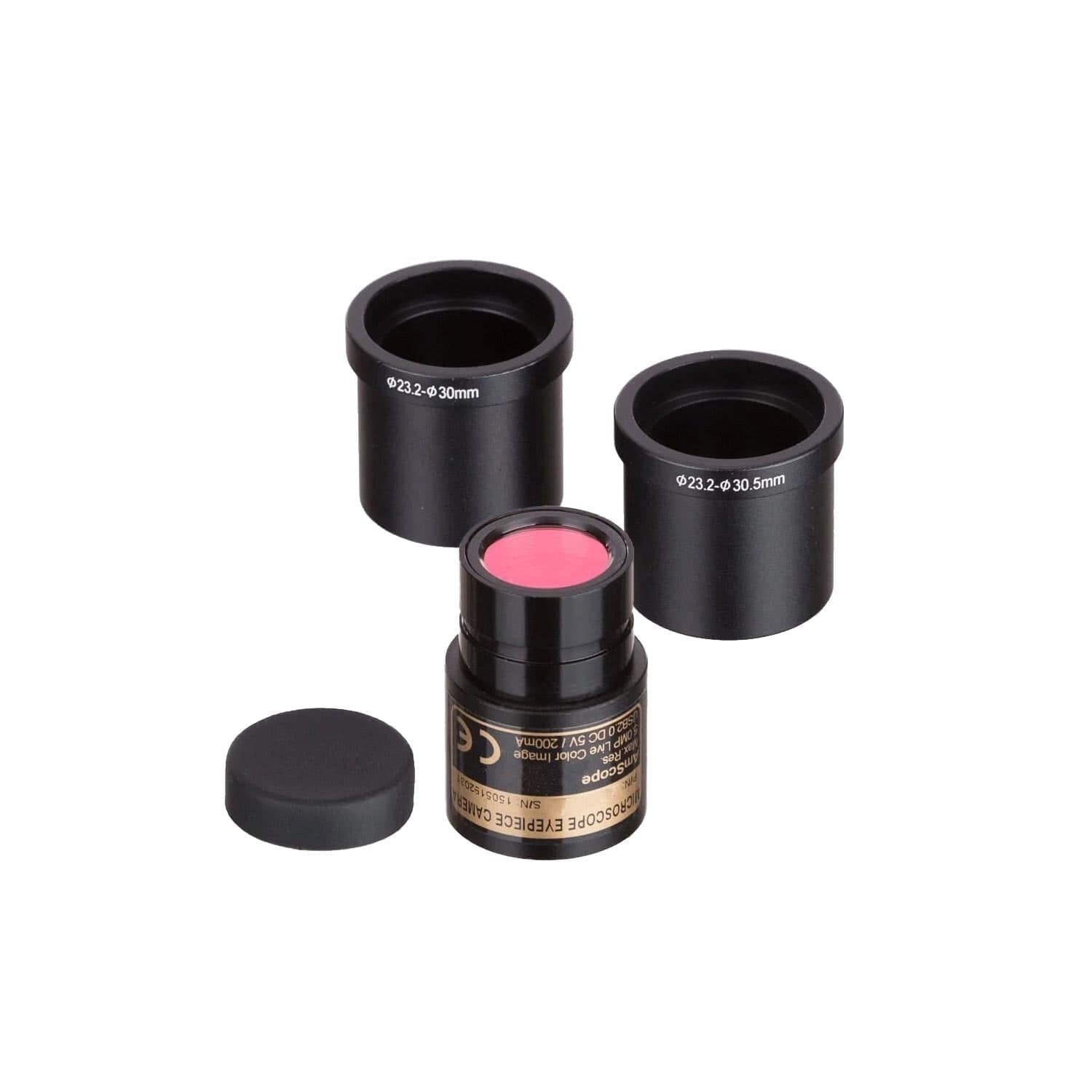

  • Fits 3 mounting sizes: 23.2mm, 30mm and 30.5mm (two mounting adapters included)


  • Model: A3550S
  • Image sensor: Aptina 1/2.5" color CMOS
  • Resolution: 2592x1944 pixels (5M pixels)
  • Pixel size: 2.2 um x 2.2 um
  • Frame speed: 2fps at 2592x1944, 3fps at 2048x1536, 5fps at 1600x1200, 7.5fps at 1280x1024
  • Interface: USB 2.0 only
  • Inserts into 23.2mm eyepiece tube
  • Adapters fit 30mm and 30.5mm eyepiece tubes
  • Dimensions: Φ27.2mmx40mm
  • Operating Environment: -10°C to 60°C
  • Power: Direct via USB port
  • Gross Weight: 0.62 kg

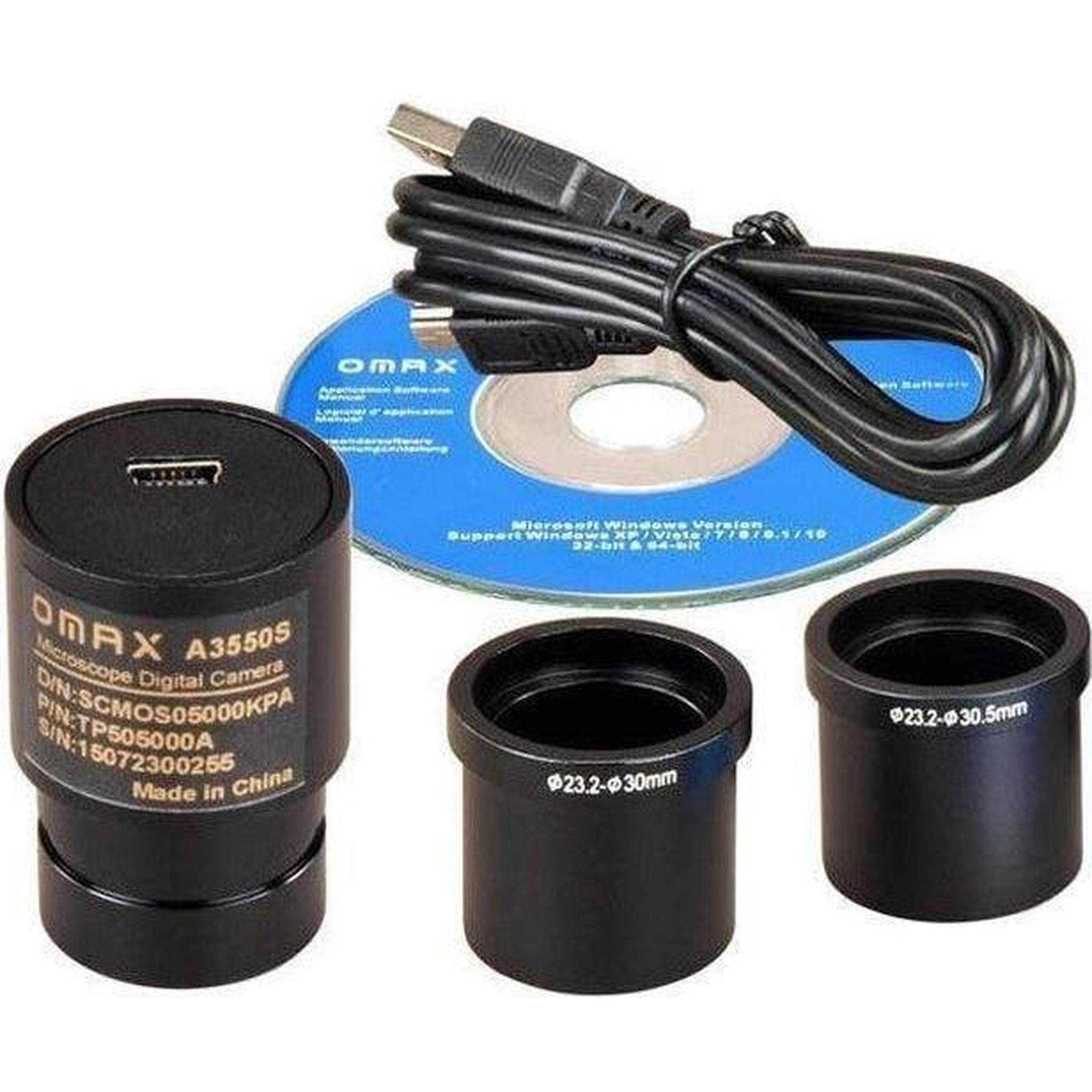

Packing List:

  • 5MP digital camera
  • 1 CD including Driver, software and user's instruction
  • 23.2mm to 30mm adapter
  • 23.2mm to 30.5mm adapter
  • USB cable
