Omax Zoom Binocular Stereo 7x-45x Microscope

SKU: V421

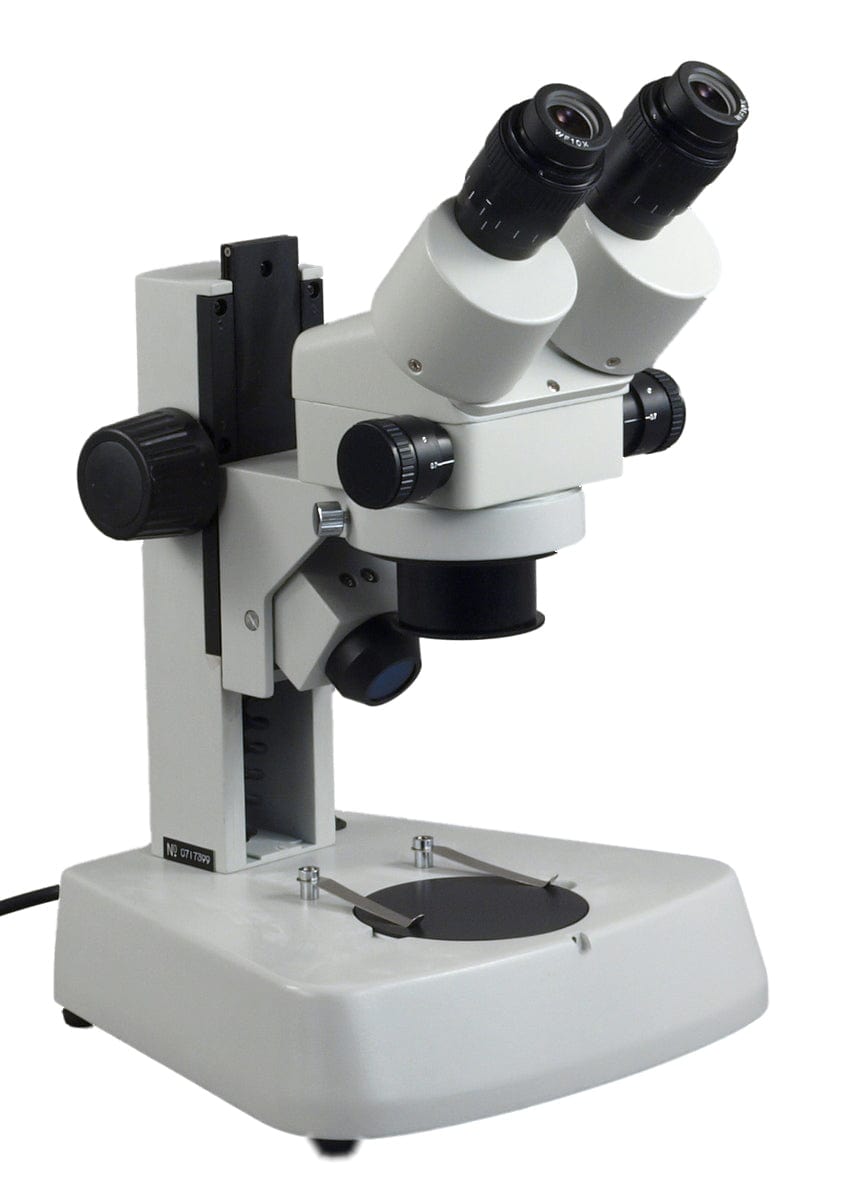

Omax Zoom Binocular Stereo 7x-45x Microscope
Omax Zoom Binocular Stereo 7x-45x Microscope
Omax Zoom Binocular Stereo 7x-45x Microscope

Our Price

$1,699.00

$1,699.00


Loading

8000

169900

Shipping calculated at checkout

When will I receive it?

About this product

Features:

  • Plug and see, no special knowledge needed
  • Top quality optical glass elements
  • High definition images
  • Zoom lenses 7x~45x, crystal clear within any range
  • Long working distance allows enough operation space

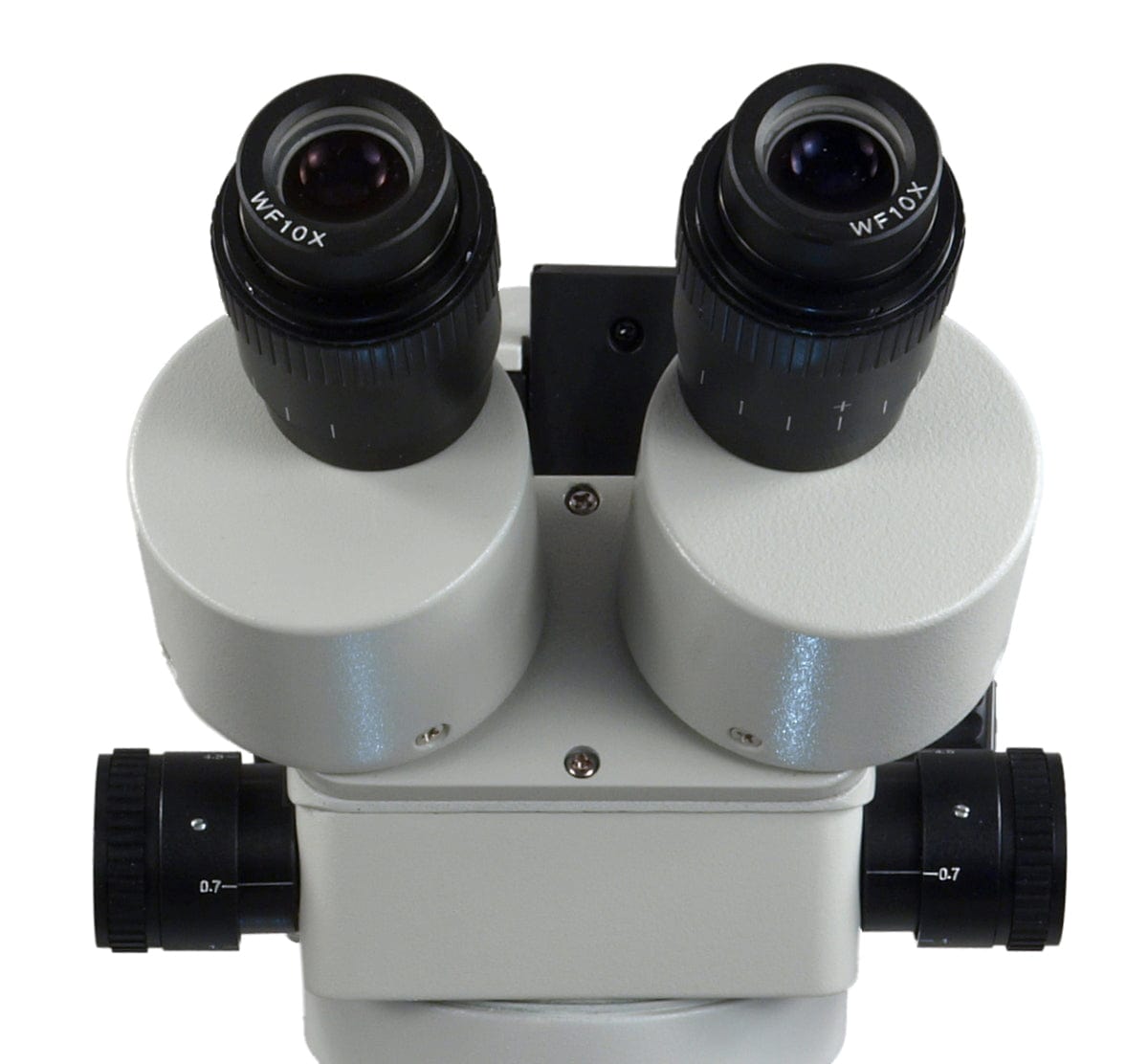

  • 45°inclined 360°rotatable binocular head
  • Individual adjustable intensity incident and transmitted lights
  • Upper (incident) light has 90° inclination range
  • Sharp erect stereo images over a wide field view
  • Both ocular tubes have diopter adjustment
  • Adjustable inter-pupillary distance to fit anyone's eyes

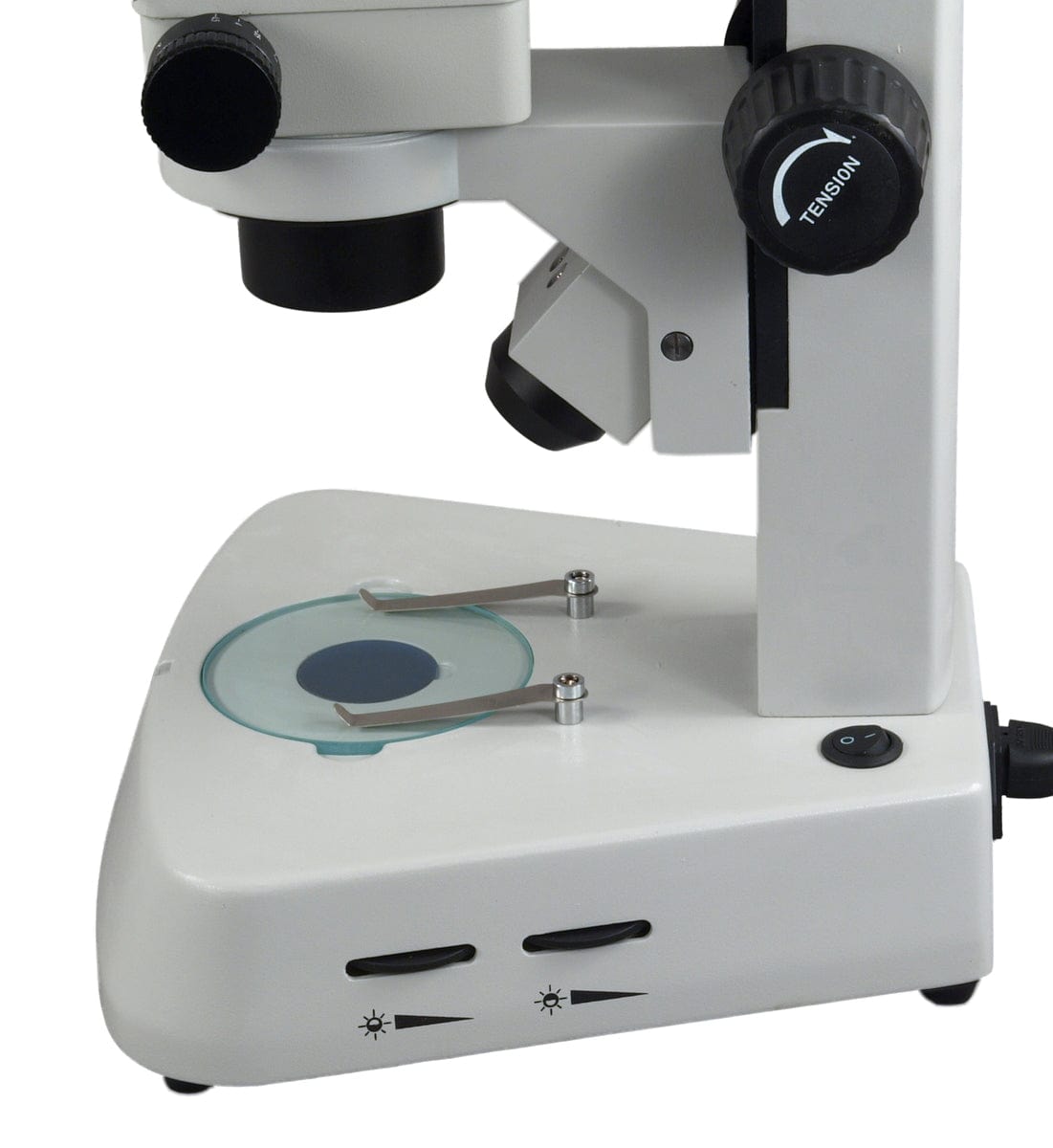

  • Tool-free focus knob tension adjustment
  • Sturdy metal framework
  • Easy mounting ring lights (sold separately)
  • Product GS and CE approved
  • Manufacturer in business 30+ years

Specifications:

  • Model: V421
  • Head: 45°Inclined 360°rotatable trinocular.
  • Eyepiece: wide field WF10X/20
  • Zoom ratio: 1:6.5
  • Objective zoom: 0.7x~4.5x
  • Total magnification: 7x~45x
  • Both ocular tubes have diopter adjustment ±5dp
  • Interpupillary distance: 2-3/16" ~ 2-15/16"(55~75mm)
  • Working distance: 3-3/4" (95mm) without 0.5x auxiliary lens and 6-1/2" (165mm) with 0.5x auxiliary lens (not included)
  • Focus adjustment stroke: 5-1/5" (140mm)
  • Incident (upper) illuminator: 12V/10W halogen, 90°adjustable inclined angle range
  • Transmitted (lower) illuminator: 12V/10W halogen
  • Each light has its own intensity control with power on/off switch
  • Main power on/off switch
  • Tool-free focus knob tension adjustment
  • Auxiliary objective thread: 50mm in diameter
  • Clear glass stage plate: 3-3/4" (95mm) in diameter
  • White/black plastic stage plate: 3-3/4" (95mm) in diameter
  • Power supply: AC100-240V/60Hz (worldwide)
  • Dimension: 10" x 10" x 18" (25.4cmx25.4cmx46cm)
  • Net weight: 12 lb ( 5.4kg)
  • Package volume equivalent weight: 32 lb (14.4kg)

Packing List:

  • Binocular stereo microscope with WF10X/20 eyepieces
  • Clear glass stage plate
  • Black/white high quality plastic stage plate
  • Rubber eyeguards
  • Stage plate lock screw
  • Power cord
  • A pack of lens cleaning paper
  • Dust cover
  • Extra halogen bulb 12V/10W with reflector
  • Extra halogen bulb 12V/10W
  • Extra fuse
  • Manual
