Orion 1.25" Variable Universal Camera Adapter

SKU: 05339

products/orion-125-variable-universal-camera-adapter.jpg1.0
Orion 1.25" Variable Universal Camera Adapter-T-Adapter-Jacobs Photo and Digital
×

Click the image to enlarge

Orion 1.25" Variable Universal Camera Adapter

SKU: 05339

Our Price


Inventory:
Loading...
×

Pickups and Delivery

In-store pickup

We don't have this item in our store right now. Please enquire for availability.

If you come to pick up your order please bring photo ID, if someone else is picking it up on your behalf please contact us prior to pickup.

Delivery estimates

Once your order has been picked up by the courier please allow 2 working days for North Island addresses, for the South Island allow 3 working days. Rural deliveries and extra-large items may take several additional days.

Shipping costs

Shipping costs are automatically calculated during checkout. The price of shipping varies based on the delivery location. Select items may be be eligible for free shipping.

Delivery of oversize items

Oversize items such as very large telescopes may only be available via pickup from a depot or a business address. For a list of available depots, click here

Security

To ensure the safe delivery of your order we require a signature with all parcels. Some exceptions may be made if you give the courier company authority to leave parcels at your preferred address.

About this product

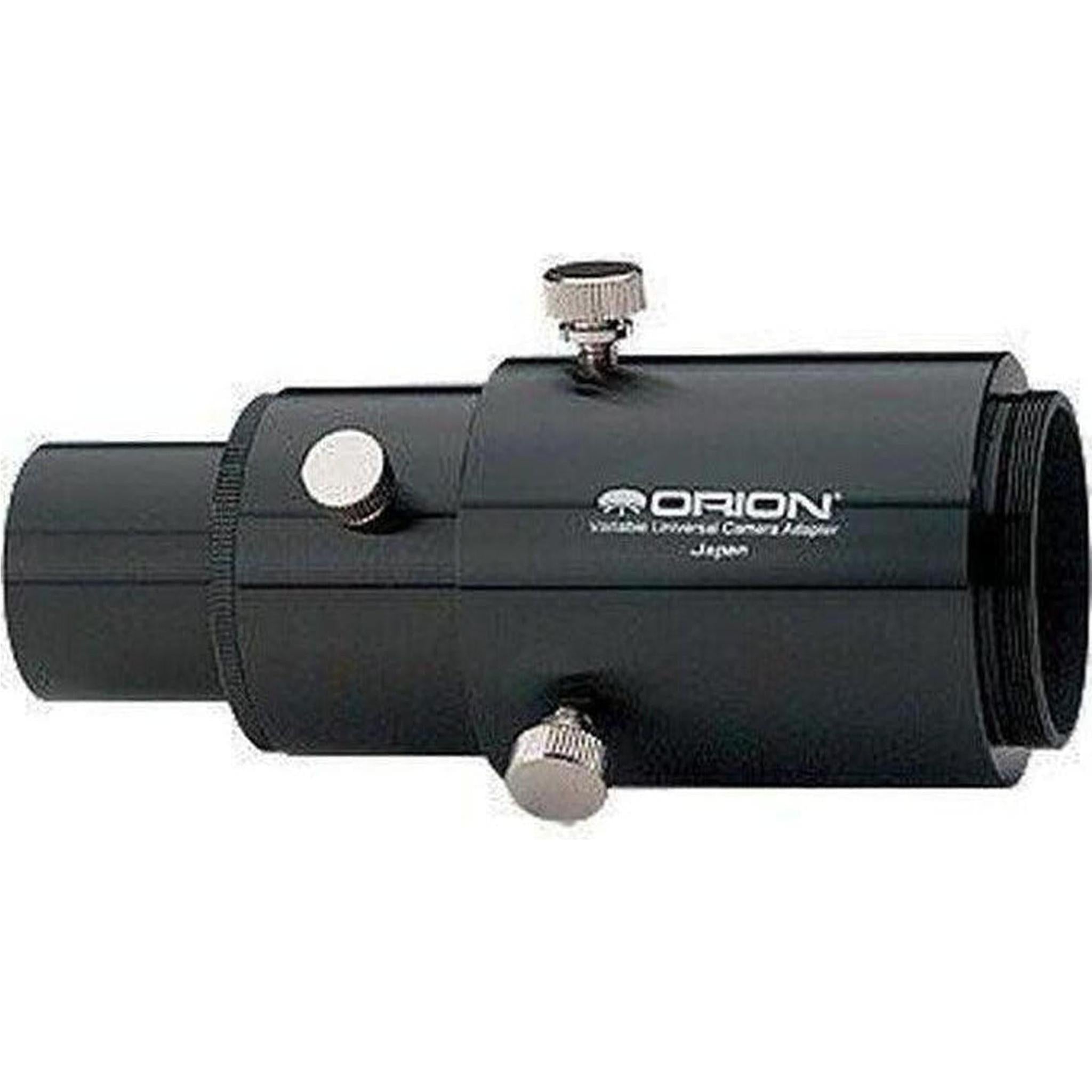

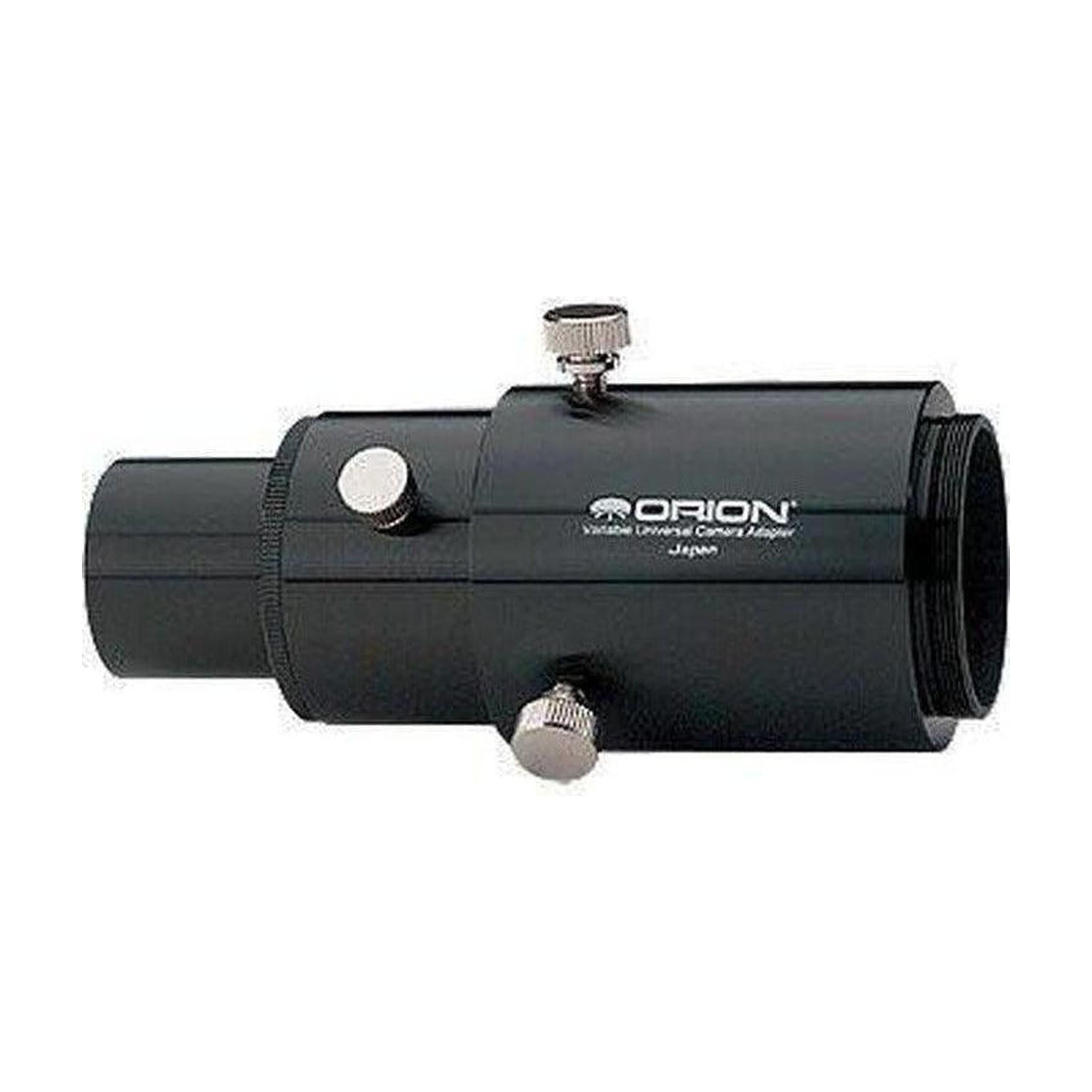

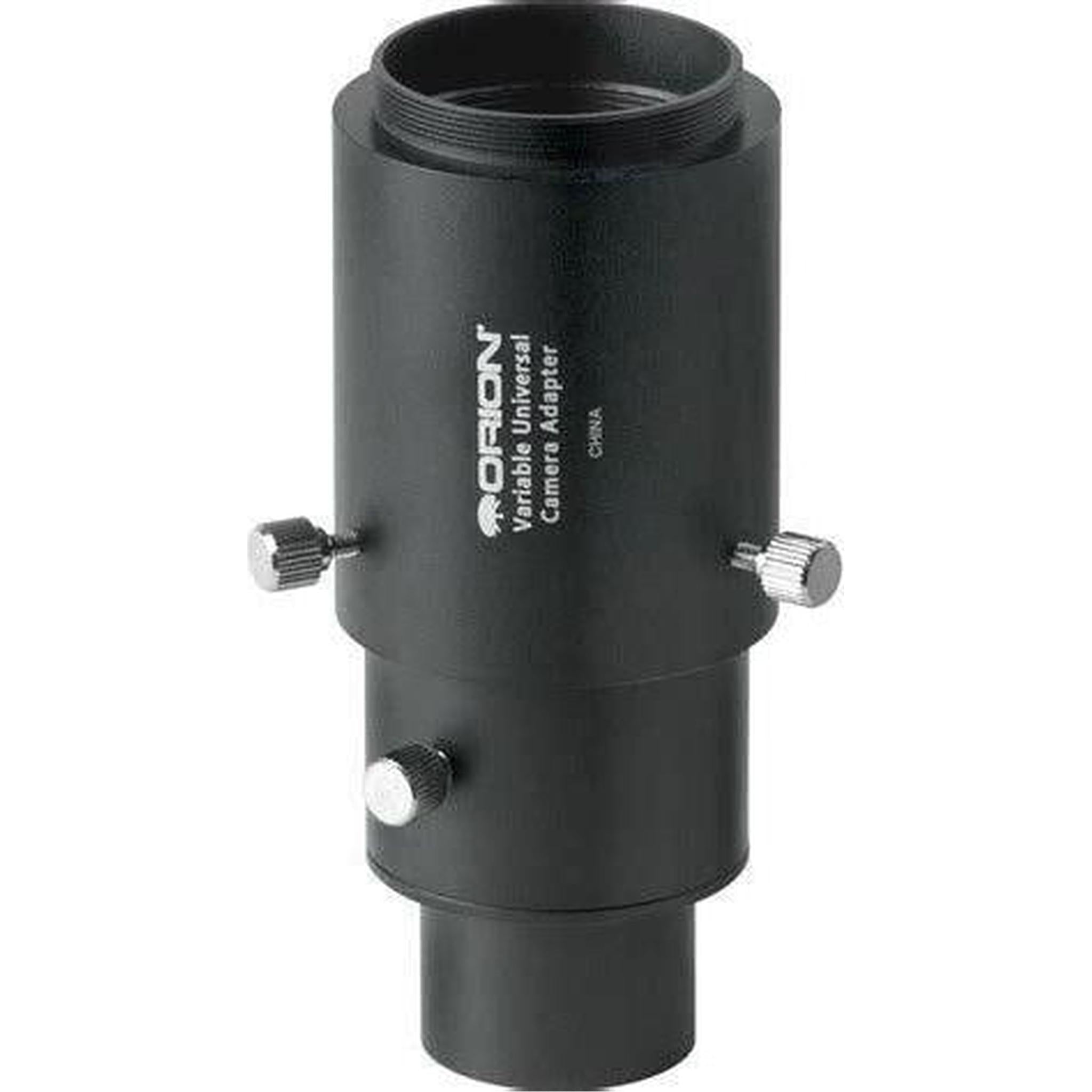

The Orion 1.25" Variable Universal Camera Adapters allow attachment of a camera body to reflector and refractor telescopes for either prime-focus or telescope eyepiece-projection photography (hence the term "universal"). The adapter's 1.25" nosepiece slides into the telescope's eyepiece holder just like an eyepiece.

05339 Callouts

The parts of the 1.25" Orion Variable Universal Camera Adapter.

This Variable Universal Camera Adapter is composed of two detachable parts: a prime-focus adapter (or "T-adapter") for prime-focus photography, and a fixed-length or variable extension tube for eyepiece-projection photography. A thumbscrew in the extension tube holds the telescope eyepiece in place. Since the Variable Universal Camera Adapter features an inside diameter of 38.3mm, you can insert any 1.25" telescope eyepiece that has an outer housing diameter of 38.3mm or less05339 Usages

Schematic for connecting the Variable Universal Camera Adapter to a camera and telescope.

This combination of prime-focus and eyepiece-projection camera adapter has a sliding barrel design that allows variable projection distances. This allows for slight changes in magnification without swapping telescope eyepieces when performing eyepiece-projection photography. Fits reflector and refractor telescopes with 1.25" eyepiece holders.

The 1.25" Orion Variable-Power Universal Camera Adapter is made of black-anodized aluminum and is compatible with 1.25" telescope focusers and many 1.25" telescope eyepieces (some eyepieces have housing diameters that are too large to fit inside the adapter). The 1.25" barrel of the adapter is threaded for use with 1.25" eyepiece filters. A T-ring for your specific camera model (sold separately) is required to couple your camera body to the adapter.

  • Adjustable length adapter lets you attach a T-ring equipped DSLR or SLR camera directly to your telescope
  • Useful for either prime-focus or eyepiece-projection astrophotography with refractors or reflector telescopes
  • Slides into 1.25" telescope focuser or 2" focuser with step-down adapter; has T-threads for attachment of camera body
  • Allows you to vary the magnification without changing the inserted eyepiece when performing eyepiece projection astrophotography
  • Requires T-ring to fit your brand of camera (T-rings sold separately)
