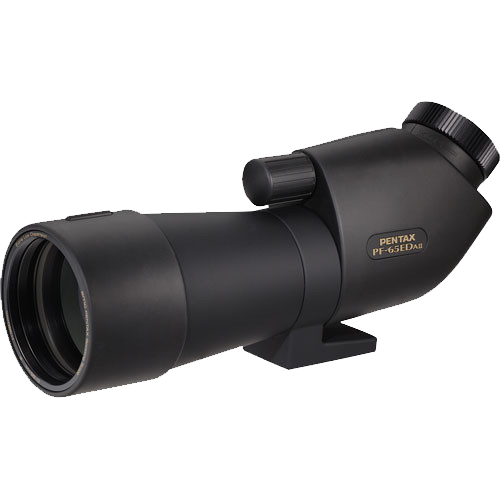

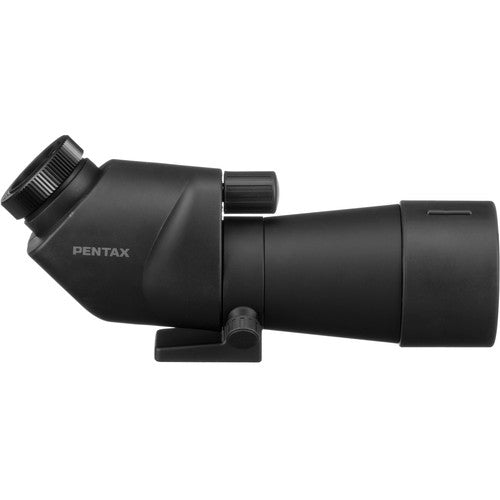

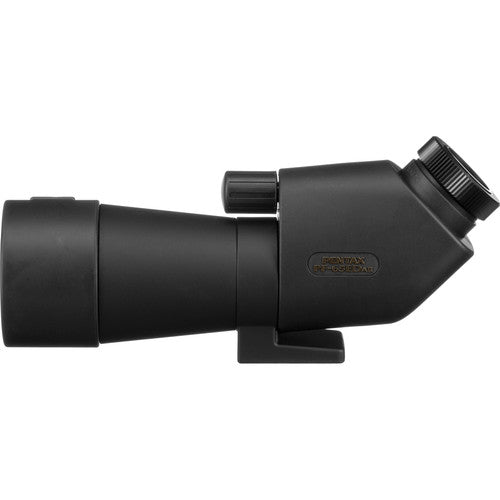

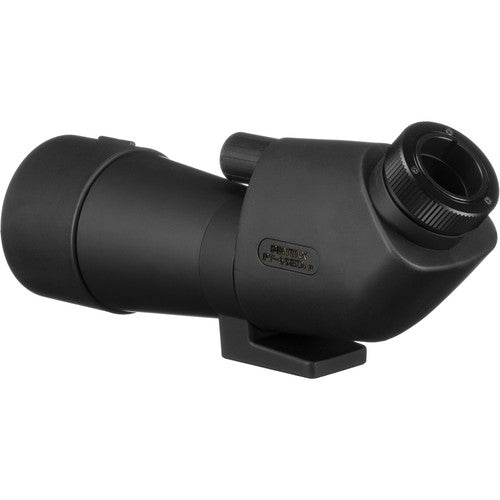

Pentax PF-65EDA II 65mm Angled Spotting Scope (requires eyepiece)

Superb Optical Performance

PENTAX made a thorough review of the optical designs utilized in its previous spotting-scope models. It then made improvements to every optical element during the scope’s development, including the incorporation of high-resolution ED (Extra-low Dispersion) optical elements in the objective lens. As a result, the PF-65EDAII provides a clear, bright image field in all types of observations, and assures outstanding image quality in high-magnification digital photography using a digital camera.

Compact, Portable Design with an 65mm Objective lens

Lightweight body with a 65mm objective lens to assure outstanding portability and maneuverability in the field.

Slanted Barrel for Easy Targeting of the Subject

The PF-65EDAII’s barrel is slanted 45 degrees upwards towards the eyepiece end to assure the most comfortable viewing position, even when the subject is at the top of a tree or high in the air.

High-Resolution ED Elements for a Sharp, Clear Image

The PF-65EDAII’s 65mm objective lens incorporates ED (Extra-low Dispersion) glass elements to deliver a sharp, high-resolution image with minimal chromatic aberrations.

smc PENTAX XF-Series Eyepieces Designed Exclusively for the 65mm Spotting Scopes

Accepts any of the three smc PENTAX XF-series eyepieces: two unifocal models with a long eye relief, and one zoom model (all optional). By removing the screw-on-type eyecup, you can mount an eyepiece on either of the PF-65EDAII’s two eyepiece receptacles (one for the unifocal models with 30.5mm in diameter and 0.5mm in thread pitch, and another for the zoom model with 43mm in diameter and 0.75mm in thread pitch). In addition to XF-series eyepieces, the PF-65EDAII also accepts any of the five high-performance XW-series eyepieces (four unifocal models and one zoom model) designed for astronomical observation, assuring greater flexibility in the choice of an eyepiece that best accommodates specific user requirements.

Other User-Friendly Features

• The PF-65EDAII is not designed for underwater use and should not be submerged in water
• Durable, shock-proof rubber housing
• JIS Class 6 waterproof construction* with dust-shielding glass element in the eyepiece receptacle for all-weather viewing
• Nitrogen-filled body to prevent fogging caused by sudden temperature changes
• Easy-to-access focus ring positioned at the top of the lens barrel to facilitate focusing operations through an easy reach by either hand
• Collet-type eyepiece receptacle for smooth installation and removal of eyepieces
• Extendible lens hood to shield the observer’s eye from excessive light and keep the objective lens surface free of dust and rain
• Sight line on the lens hood for easy targeting of the subject
• Carrying case that can be fitted to the PF-65EDAII during observation
• (PF-65EDAII)Tripod receptacle with a click-stop rotation mechanism for easy twisting of the lens barrel to position the eyepiece at the most comfortable angle without changing the direction of the lens barrel
