Sky-Watcher 0.92x Reducer/ Flattener for Esprit 100EDX

Name: Sky-Watcher 0.92x Reducer/ Flattener for Esprit 100EDX
Brand: Sky-Watcher
SKU: SWA-ESPR100FF
Price: 675.00 NZD
Availability: InStock

SKU: SWA-ESPR100FF

Sky-Watcher 0.92x Reducer/ Flattener for Esprit 100EDX

Our Price

$675.00

incl. GST excl. GST

ORDER NOW

ENJOY NOW

PAY LATER

Pay it in four interest-free payments

At checkout, select Afterpay as the payment method

No new cards, you can use your existing bank card

Complete your checkout

No long forms, online approval

Pay over four installments

Pay every 2 weeks, enjoy your purchase right away

All you need to apply is to have a debit or credit card, to be over 18 years of age, and to be a resident of New Zealand or Australia

Late fees and additional eligibility criteria apply. The first payment may be due at the time of purchase. For complete terms visit https://www.afterpay.com/terms

Shipping calculated at checkout

When will I receive it?

Request a price match

Have a question about this product?

Share

Print

Pickups and Delivery

In-store pickup

We don't have this item in our store right now, please allow for it to be transferred to our retail store.

If you come to pick up your order please bring photo ID, if someone else is picking it up on your behalf please contact us prior to pickup.

Delivery estimates

Once your order has been picked up by the courier please allow 2 working days for North Island addresses, for the South Island allow 3 working days. Rural deliveries and extra-large items may take several additional days.

Shipping costs

Shipping costs are automatically calculated during checkout. The price of shipping varies based on the delivery location. Select items may be be eligible for free shipping.

Delivery of oversize items

Oversize items such as very large telescopes may only be available via pickup from a depot or delivered to a business address. For more infomation click here. Due to less frequent collection of oversize items delivery may take 2 to 4 additional days.

Security

To ensure the safe delivery of your order we require a signature with all parcels. Some exceptions may be made if you give the courier company authority to leave parcels at your preferred address.

About this product

Sky-Watcher · Esprit EDX imaging

Make the whole frame count.Esprit 100EDX field flattener

Built around the Esprit 100EDX optical path, SWA-ESPR100FF corrects the telescope's naturally curved focal surface so off-axis stars meet a flat camera sensor with far better control. It keeps the native 550 mm focal length and f/5.5 focal ratio intact.

1.0× field flattener
SWA-ESPR100FF
Threaded imaging train
Esprit 100EDX matched

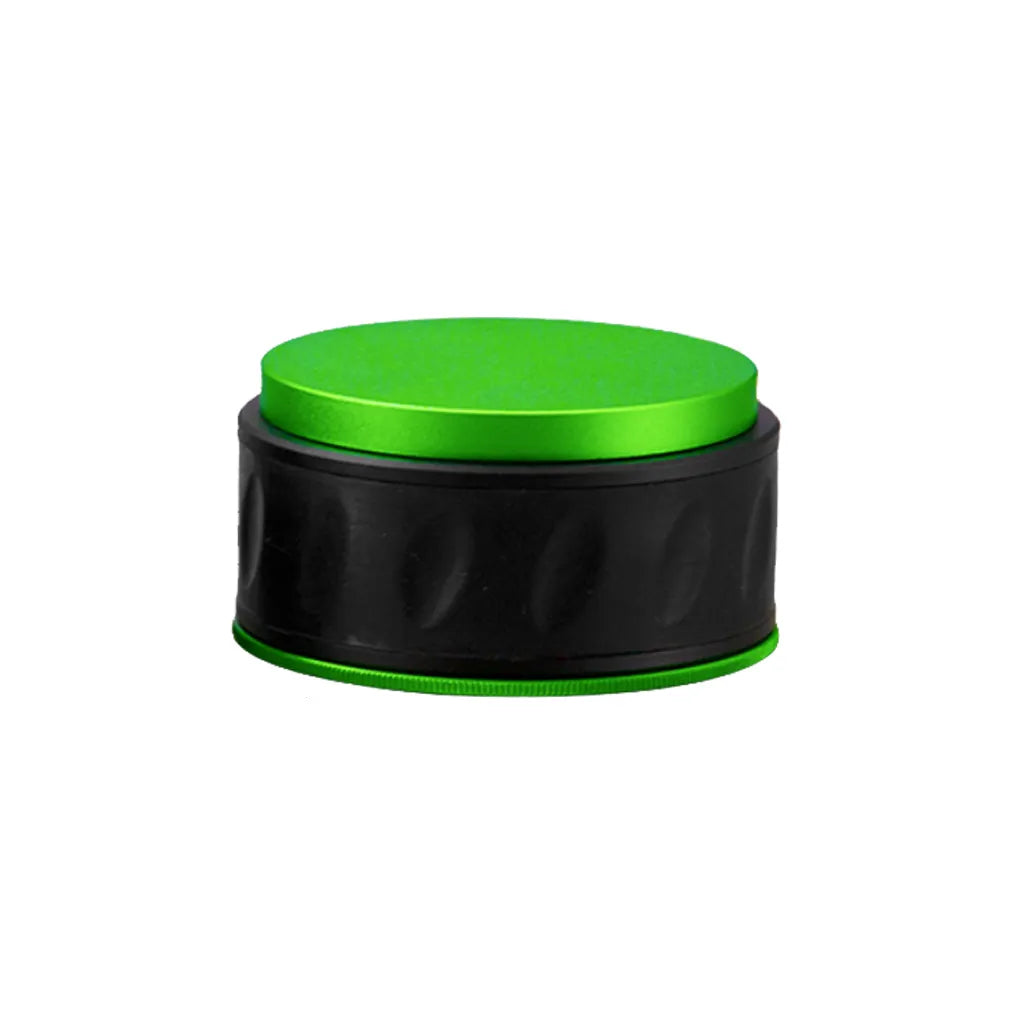

Sky-Watcher field flattener for the Esprit 100EDX, shown with its black metal body and green protective caps — **Dedicated correction at native scale**Product appearance may be refined by the manufacturer between production runs.

1.0×Field flattening without focal reduction

550 mmEsprit 100EDX native focal length retained

f/5.5Native focal ratio retained for imaging

63 mmTotal specified distance to the sensor

40 mmPublished fully illuminated field

44 mmNominal corrected field for the EDX system

Field curvature · corrected

Correct the field. Keep the focal length.

A refractor can focus the centre and outer field onto slightly different surfaces. A flat sensor cannot follow that curve, so edge stars may stretch even when the centre is sharply focused. The matched flattener reshapes the converging light so more of the frame reaches one flat focal plane.

Concept diagram for explaining field curvature; it is not a ray-trace or a scale drawing of the internal lens group.

01

Sharper off-axis stars

Correction is concentrated where a flat camera sensor needs it most: away from the centre, where native field curvature is increasingly visible.

02

Native framing retained

The field flattener does not act as a focal reducer. Image scale, framing and exposure behaviour remain those of the 550 mm f/5.5 Esprit 100EDX.

03

Matched, not universal

The correction is designed around the 100 mm Esprit optical prescription and its spacing. Matching the corrector to the tube matters.

Important: this accessory is a field flattener. It may sit inside a retailer category labelled “reducers and flatteners”, but SWA-ESPR100FF does not reduce the Esprit 100EDX focal length.

Sensor coverage · made visible

Know what 40 mm and 44 mm describe.

Published specifications separate illumination from correction. The 100EDX system is associated with a nominal 44 mm corrected field, while Sky-Watcher's corrector specification gives a 40 mm fully illuminated field. That distinction matters most at the corners of a 43.3 mm-diagonal full-frame sensor.

Sensor formats vary slightly by manufacturer. Circle and sensor dimensions are proportionally illustrated; mechanical apertures elsewhere in the imaging train can introduce additional vignetting.

44 mm

Corrected field

Large enough in nominal diameter to address the 43.3 mm diagonal of a 36 × 24 mm sensor. Corner performance still depends on exact spacing, tilt and the complete optical train.

40 mm

Illuminated field

The fully illuminated region is smaller than a full-frame diagonal. Full-frame users should expect to capture flats and preserve a clear, generously sized adapter path.

APS-C

Comfortably inside

A typical APS-C diagonal sits well inside the published illuminated field, giving the corrector more room around the sensor boundary.

Back focus · 63 millimetres

Measure from the right surface.

Back focus is an optical requirement, not simply the amount of focuser travel available. The sensor must sit 63 mm behind the flattener's published M66 reference shoulder. With the standard 8 mm M48 adapter fitted, the remaining camera train is built to 55 mm.

Connection diagram is schematic. Confirm which reference shoulder is exposed on your supplied adapter before measuring the camera train.

63 mm from the M66 shoulder

This is the complete optical distance from the flattener's camera-side reference to the sensor. Count every adapter, spacer, filter drawer, wheel, off-axis guider and the camera's own flange-to-sensor depth.

55 mm after the 8 mm adapter

With the standard M48 adapter left in place, the familiar 55 mm camera-train target remains. This is why many astronomy cameras can be configured with their supplied spacer sets.

Filters change optical distance

A practical starting allowance is approximately one-third of the filter glass thickness. A 2 mm filter may therefore need roughly 0.7 mm of additional mechanical spacing.

Tune after the mechanical build

Published spacing is the starting point. Test all four corners on a well-focused star field and adjust with thin rings only after checking tilt, thread seating and flexure.

Purpose-matched compatibility

Designed around the Esprit 100EDX.

The corrector is selected by telescope model, not simply by focuser diameter. Its lens prescription, threaded fit and working distance are matched to the 100 mm Esprit system. Do not substitute the 70, 80, 120 or 150 mm Esprit corrector.

Rear three-quarter view of the Sky-Watcher Esprit 100EDX optical tube, showing the green and white tube, mounting rings and threaded imaging focuser — **Sky-Watcher Esprit 100EDX**Telescope shown to identify compatibility and is not included with the field flattener.

Primary match

Sky-Watcher Esprit 100EDX 100 mm f/5.5 triplet refractor.

Regional legacy listing

SWA-ESPR100FF is also listed by Australasian distributors for the original Esprit 100ED. Confirm the exact tube and thread if fitting a pre-EDX model.

Not universal

Not the matching corrector for Esprit 70EDX, 80EDX, 120EDX, 150EDX or other refractor families.

Thread · space · test

Build a rigid path to the sensor.

Good corner stars depend on optical correction and mechanical discipline. Keep the path threaded, square and correctly spaced from the focuser to the sensor.

1

Expose the imaging thread

Remove the visual accessory holder or adapter specified by the telescope instructions. Keep every mating surface clean and free from grit.

2

Thread the flattener squarely

Start the thread by hand and stop if resistance appears early. A cross-threaded or incompletely seated corrector can introduce tilt before imaging begins.

3

Build the 63 mm distance

Add the physical depth of every component to the camera sensor. With the fitted 8 mm M48 adapter, target 55 mm behind its rear reference face.

4

Focus, inspect and refine

Focus near the centre, inspect all four corners at full scale and use small spacer changes only when the pattern is consistent across the frame.

Read the frame before changing spacing

All four corners change similarly

Back-focus spacing is a likely variable. Test one small change at a time and keep the centre focus consistent.

One side or one corner is worse

Check sensor tilt, adapter seating, focuser sag and cable load before treating the issue as a simple spacing error.

The whole frame is soft

Verify focus, seeing, tracking, dew and objective temperature before diagnosing field correction.

Optical and mechanical purpose

One accessory. Three jobs in the imaging train.

The flattener is both an optical corrector and a structural part of the camera train. Its value comes from matching the Esprit prescription, preserving the native focal geometry and replacing a loose push-fit path with threaded interfaces.

Flattens the focal surface

Moves off-axis focus toward the same plane as the centre so a flat digital sensor can record more consistent star shapes across the image.

Preserves native scale

No focal reduction means the Esprit 100EDX remains a 550 mm f/5.5 system. Existing framing and image-scale calculations stay valid.

Supports a threaded train

The dedicated M65/M66 body and M48 adapter give the camera train a positive mechanical path that is better suited to repeatable imaging than a simple slip fit.

Package and supporting parts

Core package

Sky-Watcher field flattener for Esprit 100EDX
Standard 8 mm M48 imaging adapter configuration
Protective caps for storage and transport

Imaging system parts are separate

Esprit 100EDX telescope and mount
Camera-specific T-ring or threaded adapter
Spacers, filter hardware, off-axis guider and camera

Comprehensive specifications

Sky-Watcher SWA-ESPR100FF.

Specifications are separated into optical behaviour, interfaces and system fit so the corrector can be checked against a real camera train before assembly.

Optical performance

Accessory type: Dedicated field flattener / field corrector
Optical factor: 1.0× — no focal-length reduction
100EDX focal length: 550 mm retained
100EDX focal ratio: f/5.5 retained
Primary correction: Field curvature and associated off-axis star deformation
Corrected field: 44 mm nominal EDX corrected field
Illuminated field: 40 mm published corrector field
Intended use: Prime-focus deep-sky astrophotography

Interfaces and spacing

Product code: SWA-ESPR100FF
Attachment: Thread-on optical corrector
Telescope side: M65×1 female thread
Corrector output: M66×1 male thread
Imaging adapter: M48×0.75 interface, 8 mm standard adapter length
Total back focus: 63 mm from the published M66 reference shoulder to sensor
After M48 adapter: 55 mm from adapter reference face to sensor
Adjustment method: Fixed optics; spacing is tuned with threaded rings in the camera train

Compatibility

Primary telescope: Sky-Watcher Esprit 100EDX
Native telescope: 100 mm aperture, 550 mm focal length, f/5.5 triplet APO
Regional listing: Also listed for the original Esprit 100ED; confirm pre-EDX tube interface before purchase
Sensor formats: APS-C comfortably within the illuminated field; full frame uses the outer corrected field and benefits from flat calibration
Other Esprit sizes: Use the model-specific corrector; not a universal 70/80/120/150 mm Esprit accessory

System requirements

Camera connection: Appropriate M48 T-ring or threaded astronomy-camera adapter
Spacing hardware: Selected to total 63 mm, including camera flange depth and all accessories
Filters: Include the optical effect of filter glass when fine-tuning spacing
Calibration: Dark, bias/dark-flat and flat-field frames according to the camera workflow
Not included: Telescope, camera, T-ring, filter system, off-axis guider and model-specific spacers

Specification note: Sky-Watcher regional material distinguishes a 44 mm corrected EDX field from a 40 mm illuminated corrector field. Full-frame corner illumination therefore depends on the complete imaging train and should be calibrated with flats. Manufacturer specifications and package presentation can change without notice.

Before first light

Protect the glass. Validate the train.

Small habits preserve optical performance and make troubleshooting faster when the first clear night arrives.

Cap both ends

Keep the supplied caps fitted whenever the corrector is off the telescope. Store it dry and protected from loose metal parts.

Clean only when needed

Remove loose dust with a blower before using approved optical cleaning materials. Avoid touching the lens surfaces.

Record the spacing

Note each component's mechanical depth and photograph the working train so a successful configuration can be rebuilt.

Capture flats

Flats correct illumination fall-off and dust shadows from the assembled train; capture them without changing focus or camera orientation.
