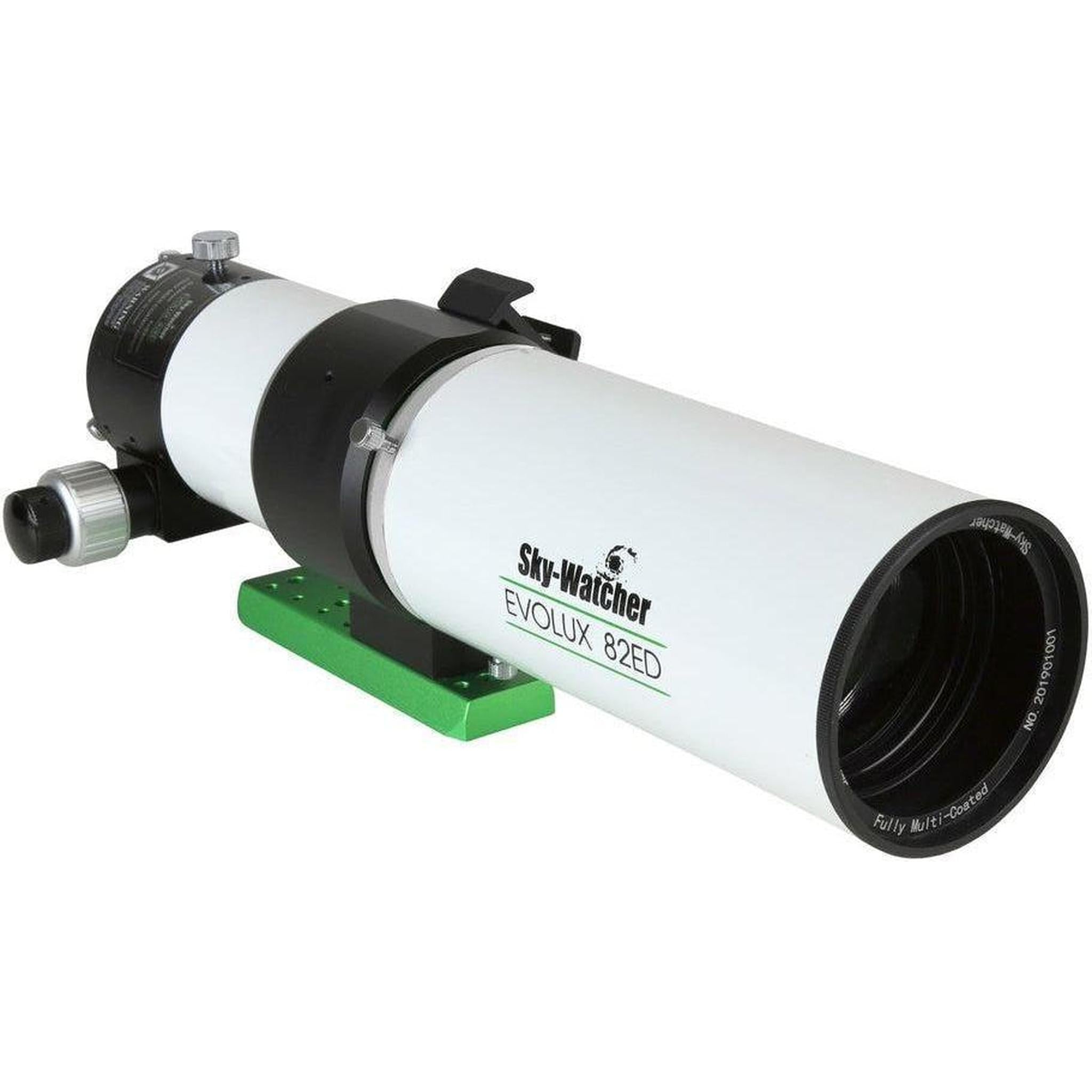

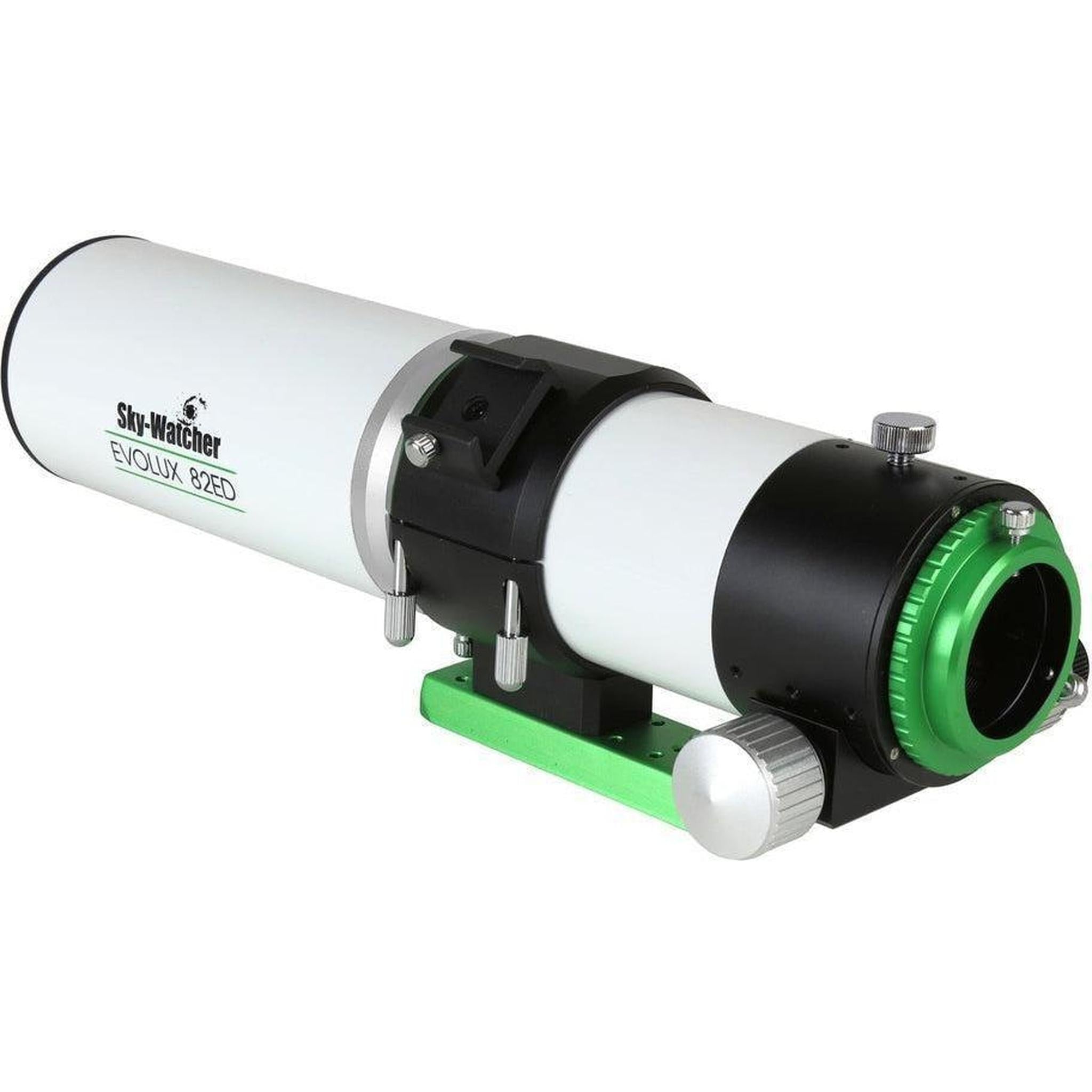

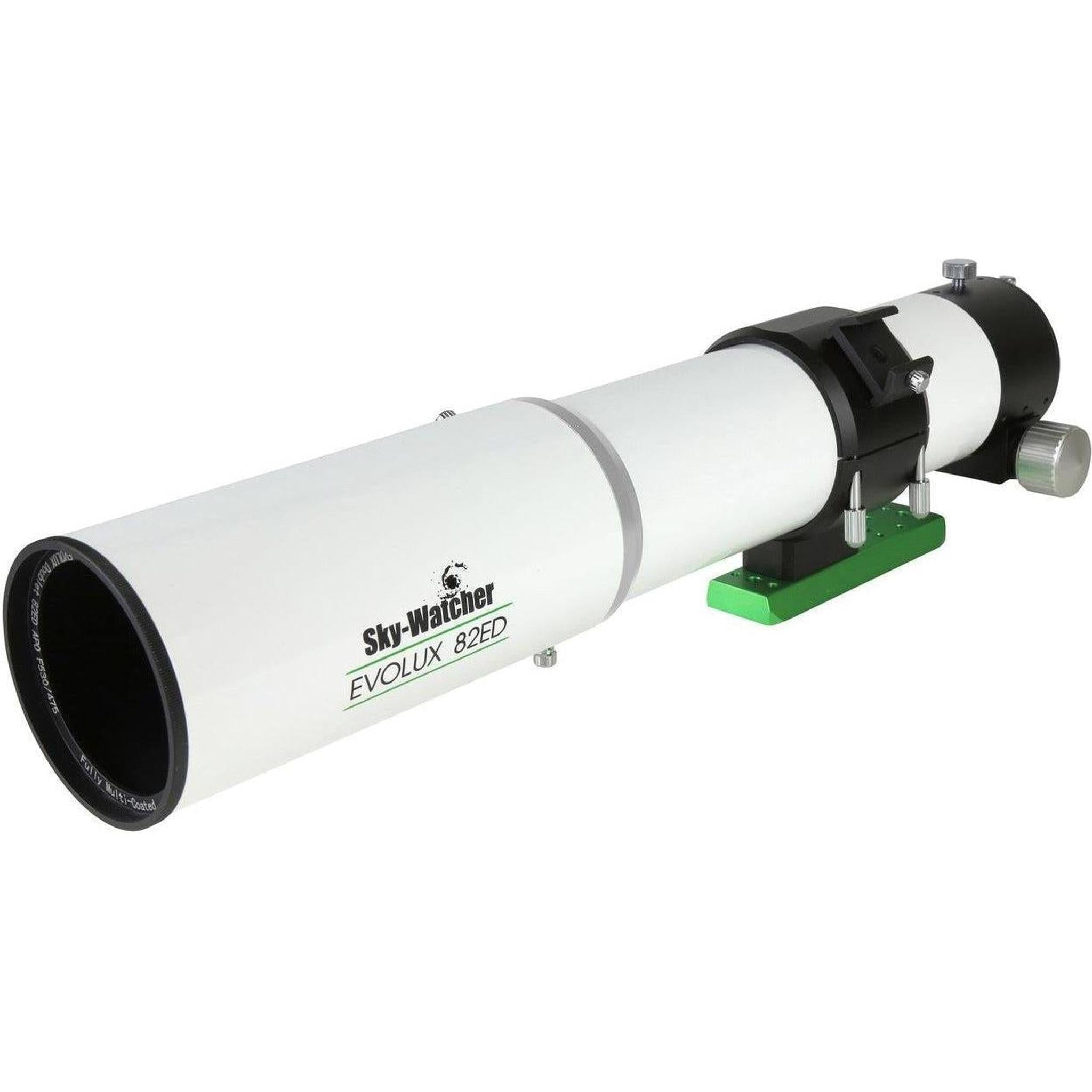

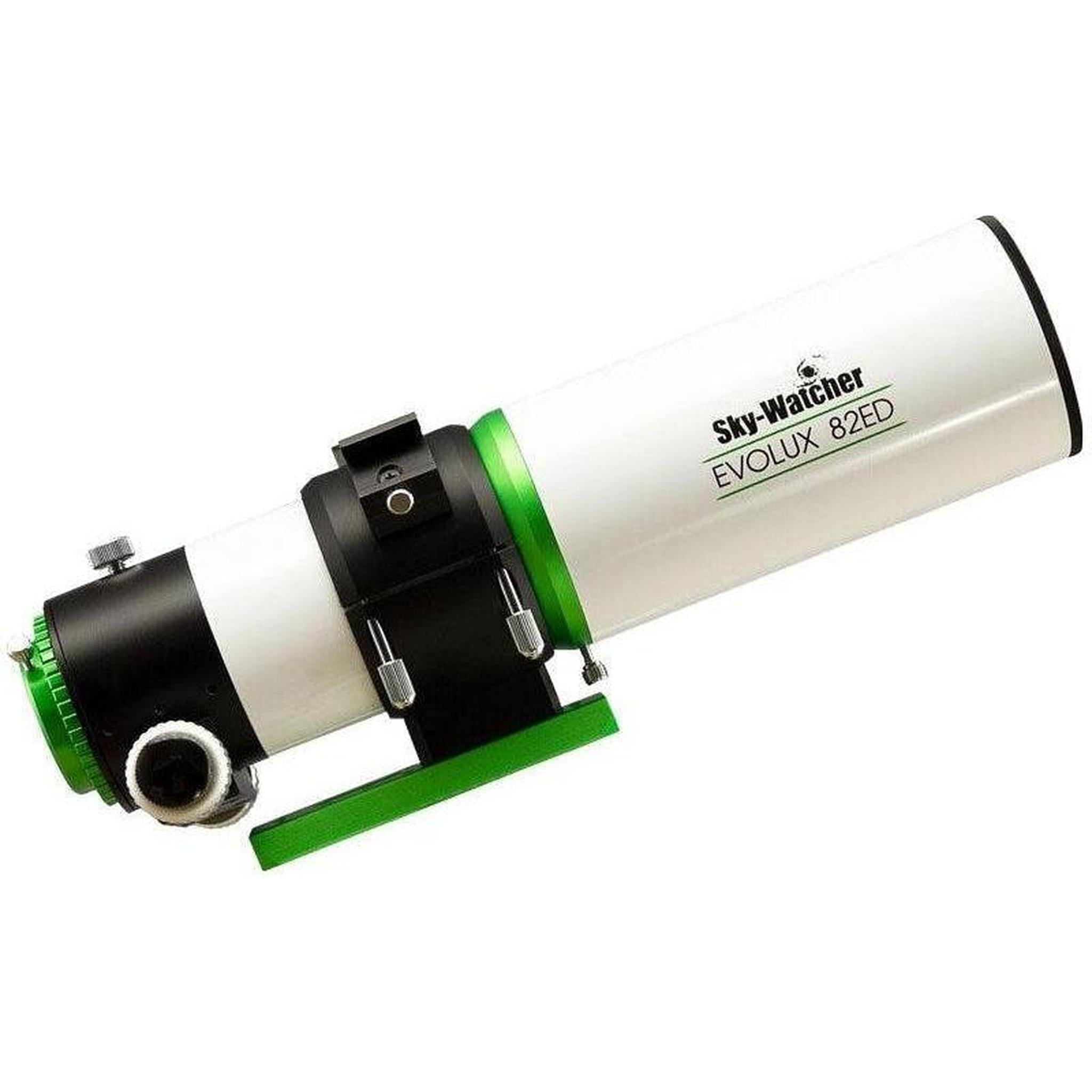

SkyWatcher Evolux 82ED Refractor OTA

SKU: SWEVOLUX-82ED

SkyWatcher Evolux 82ED Refractor OTA - Jacobs Digital
SkyWatcher Evolux 82ED Refractor OTA - Jacobs Digital
SkyWatcher Evolux 82ED Refractor OTA - Jacobs Digital
SkyWatcher Evolux 82ED Refractor OTA - Jacobs Digital
SkyWatcher Evolux 82ED Refractor OTA - Jacobs Digital
SkyWatcher Evolux 82ED Refractor OTA - Jacobs Digital
SkyWatcher Evolux 82ED Refractor OTA - Jacobs Digital

Our Price

$1,951.22

$1,951.22

Green truck Special order. Usually ships in 1-6 weeks. An order for this can be placed with our supplier, and usually ships within the specified timeframe.



Loading

4000

195122

Shipping Quote

When will I receive it?

About this product

Building on the foundation of the popular Evostar line of refractors, Sky-Watcher has developed the all new Evolux.  Designed for the savvy astrophotographer looking for a lightweight scope that still packs a punch with key upgrades in the optics and the mechanics, Evolux is a perfect fit for a widefield grab and go setup.

Sky-Watcher’s Evolux apochromatic doublet refractors are the perfect blend of superior extra-low dispersion glass and affordability. The lens assembly utilizes a proprietary combination of matched lenses, delivering tack-sharp stars with charcoal-black, contrast-rich skies. All ED glass elements feature our proprietary Metallic High-Transmission Coatings™ (MHTC™), virtually eliminating all false color while the adjustable dew shield prevents stray light and condensation from affecting your photography.

Evolux comes in a foam-lined aluminum case with a 2.4-inch dual-speed rack-and-pinion-style focuser, dual finderscope brackets, a V-style dovetail, clamshell ring, adjustable dew shield, and the optional reducer/corrector.



EVOLUX 80ED Refractor OTA

  • 82mm diameter
  • New ED (Extra-low-dispersion) glass
  • New 2-element lens design
  • Focal length=530mm / f = 6.4
  • Focal length = 480mm / f=5.8 with optional dedicated reducer/flattener for wider field of view
  • Net Weight: 2.6kg
  • Retractable dewshield for compact handling and storage
  • High precision new 61mm (2.4″) dual-speed focuser
  • Aluminum hard case
    SKU S11310
    UPC 050234113106
    Optical Info
    Optical Design Apochromatic
    Lens Coatings Fully multi-coated
    Lens Design ED Doublet (Air Spaced)
    Glass Type ED Doublet
    Optical Quality Diffraction limited (1/4 wave)
    Collimatable Cell Yes (Push/Pull Cell)
    Primary Aperture (mm) 82
    F/Ratio 6.45
    Focal Length (mm) 530
    Observational Info
    Dawes Limit 1.41
    Rayleigh Limit 1.7
    Limiting Mag. 12
    Minimum Magnification 12x
    Maximum Magnification 161x
    Light Gathering (compared to next size down) 75% (compared to Evolux 62ED)
    Mechanical Specifications
    Focuser 2.4" Dual Speed (11:1) Rack & Pinion
    Focuser: Rotatable? No
    Compression Ring Yes
    Retractable dew shield Yes
    OTA material Aluminum
    OTA Length (Retract/Ext.) 16.375"/22.25"
    Dew Shield diameter (mm) 100mm
    OTA Diameter 90mm
    OTA Weight (with accessories) 6.5 lbs
    Mounting rings Yes
    Dovetail type V-style dovetail
    Dovetail length 6"
    Optional Corrector/Reducer Specifications
    Corrector Name Evolux 82ED 0.9x reducer kit
    Optional Corrector/Reducer SKU S20207
    Reduction (reducer only) 0.9x
    Corrector - insertable or thread-on Thread-on
    Corrector thread size M56x1 female/M48 male
    Corrector back focus 55mm
    Corrector illuminated field 36mm
    Includes one ED element Yes
    F/Ratio with reducer installed 5.8
    Focal Length with reducer installed 477mm
    Corrector adapter needed? Yes
    Corrector allow for 2" filters? No (Adapter included with reducer)
    Accessories
    Eyepieces No
    Diagonal No
    Mounting Hardware Clamshell/Dovetail
    Camera Adapter No
    Flattener or Corrector No
    Collimation eyepiece No
    Finder No
    Case Yes
    Case Dimensions 19.5" x 10.75" x 7.75"
    Shipping Weight 13.2 lbs.
    Shipping Dimensions 23" x 13" x 11"
