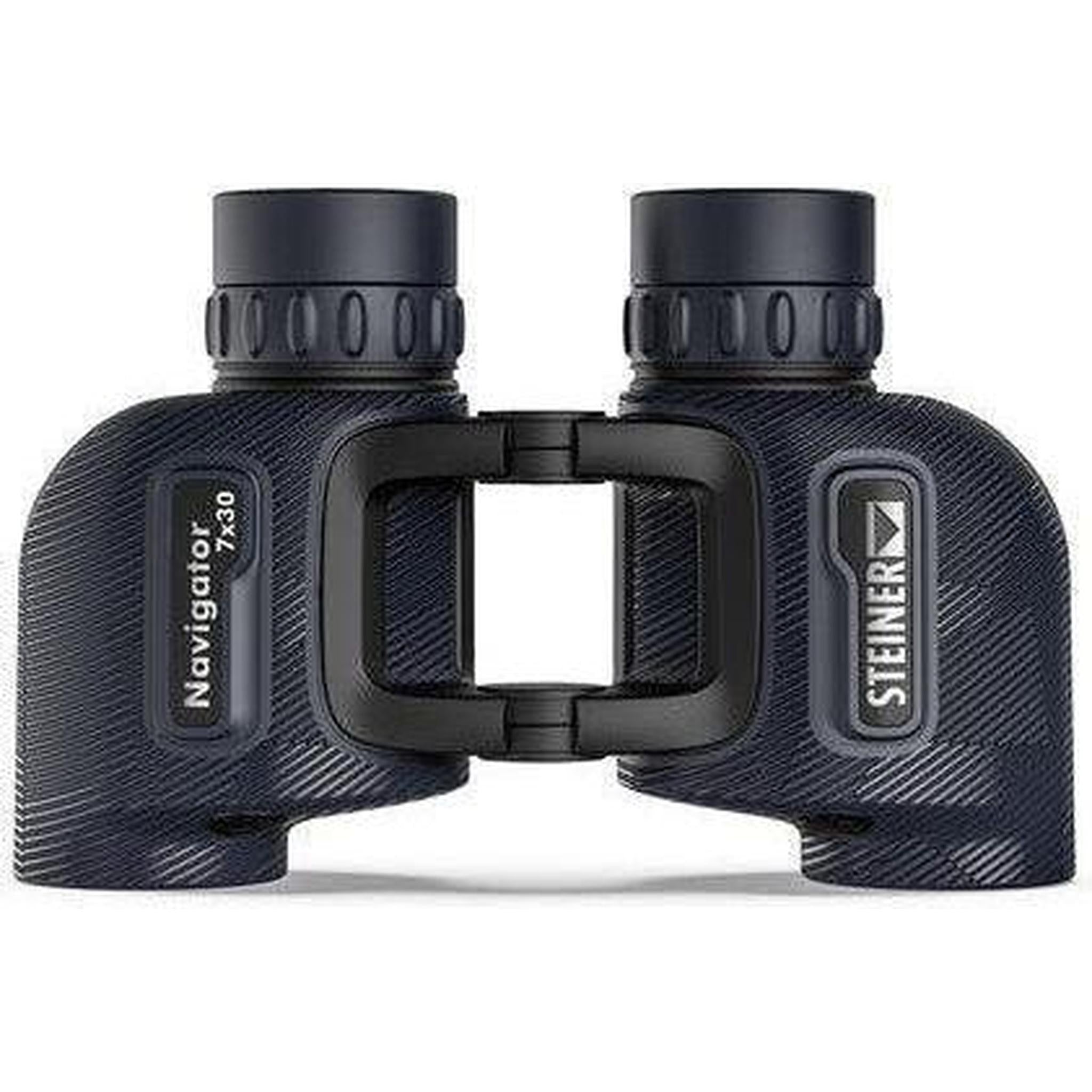

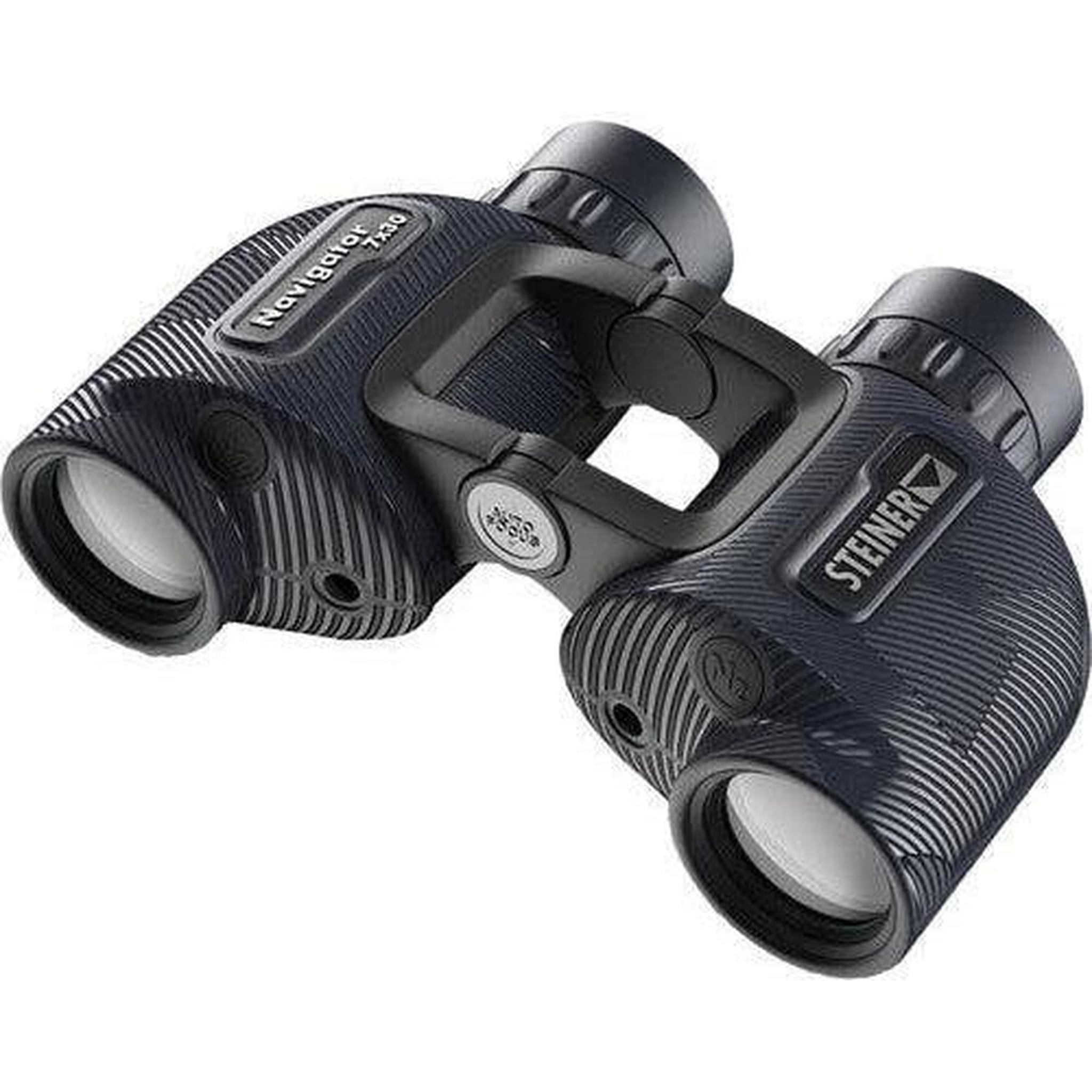

Steiner Navigator 7x30 Binocular

SKU: STN2340-0900

Steiner Navigator 7x30 Binocular
Steiner Navigator 7x30 Binocular

Our Price






Shipping Quote

When will I receive it?

About this product

The Steiner Optics's 7x30 Navigator Open-Hinge Marine Binoculars are the natural evolution of their iconic Marine series that sees the combination of a traditional Porro prism light path integrated into an ergonomic open-bridge design. The prism system is naturally balanced and comfortable to hold and the open design provides more surface area to ensure a secure grip—reducing fatigue when you spend long periods of time behind the eyepieces. Complementing these ergonomic features are high-contrast multicoatings that enhance the view and Steiner's Sports Auto Focus system which allows you to focus each eyepiece just one time, eliminating the need to refocus again, regardless of how near or far the subject is—or if it is moving.

Optical Performance

  • 7x power provides moderate magnification while helping to produce a comfortable exit pupil, despite the relatively small objectives, for easier low-light use
  • 30mm objective lenses provide improved low-light performance versus compact models, without the bulk and weight of larger-objective models
  • Traditional Porro prism design makes them balanced and comfortable to hold and presents a rich depth of field
  • Anti-reflection high-contrast multicoated optics produce neutral and accurate color fidelity to improve contrast and image brightness
  • 385.5-foot field of view at 1000 yards

Use and Handling

  • Individual eyepiece focusing Sports Auto Focus system ensures the best possible views at all distances
  • Rubber eyecups conform to the user's eye socket to block stray light and improve contrast and clarity
  • Comfortable 4.3mm exit pupil will cover most pupils as they open and dilate in low light
Sports-Auto-Focusing System:
  • Individual eyepiece focusing
  • Requires only one initial individual focus adjustment per user
  • Eliminates the need for refocusing for targets at ranges from 22 yards (20m) to infinity
  • Enables the tracking of fast targets without the need to refocus

Construction Details

  • High-visibility floatation neck strap included
  • Nitrogen filled to be resistant to internal fogging when moving through extreme changes in temperature and environmental conditions
  • O-ring sealed to be waterproof and submersible to a depth of over 16 feet (5m)
  • Corrosion-resistant NBR armor protects the optics and chassis
  • Laser-cut textured grip provides a slip-resistant grip in cold or wet weather
  • The combination of open-bridge and naturally balanced prism design presents an ergonomic balanced and comfortable feel in the hand
  • Compact 6.5" length
  • Light overall weight weighs just over a pound
Magnification 7x
Objective Lens Diameter 30 mm
Angle of View 7.3° (Actual)
Field of View 385.5' @ 1000 yd / 128 m @ 1000 m
Minimum Focus Distance 66' / 20.1 m
Exit Pupil Diameter 4.3 mm
Diopter Adjustment Yes
Focus Type Individual
Fogproof Yes, Nitrogen Filled
Water Resistance Water Resistant, IPX8
Dimensions 6.5 x 4.2 x 2" / 16.5 x 10.7 x 5.1 cm
Weight 17.6 oz / 499 g
