Swarovski NL Pure 14x52 Binoculars

SKU: NL-1U4LB0-0

Swarovski NL Pure 14x52 Binoculars
Swarovski NL Pure 14x52 Binoculars
Swarovski NL Pure 14x52 Binoculars
Swarovski NL Pure 14x52 Binoculars
Swarovski NL Pure 14x52 Binoculars
Swarovski NL Pure 14x52 Binoulcar - Jacobs Digital
Swarovski NL Pure 14x52 Binoulcar - Jacobs Digital
Swarovski NL Pure 14x52 Binoculars

Our Price

$6,635.00

$6,635.00


Loading

2000

663500

Shipping calculated at checkout

When will I receive it?

About this product

Swarovski Optik · NL Pure 52 · Green

Reach beyond the obvious.

The NL Pure 14x52 is built for the details that remain distant to conventional binoculars. Fourteen-power magnification, light-gathering 52 mm objectives and a remarkably expansive 70° apparent field combine with SWAROVISION optics for demanding observation across open country, alpine terrain and the last useful light of the day.

Colour: Swarovski Green Manufacturer code: 36014 Made in Austria
14×Magnification
52 mmObjective diameter
93 mField at 1,000 m
91%Light transmission
1,020 gApproximate weight
4 mSubmersion tightness
SWAROVISION optics

Fourteen-power detail. A view that still feels open.

The 14× system enlarges fine structure at long range, while its 5.3° true field translates into a broad 70° apparent viewing angle. Field-flattener lenses preserve useful definition toward the edge, and the 52 mm front lenses give the optical system more light-gathering area to support observation when distance and fading light arrive together.

Magnification icon

14× long-range reach

Resolve distant plumage, antler structure, animal markings and terrain detail with forty percent more linear magnification than a 10× binocular.

Wide field of view icon

93 m field of view

See 93 metres across at 1,000 metres—279 feet at 1,000 yards—without the cramped feeling often associated with high-power binoculars.

Binocular objective icon

52 mm / 91%

The 52 mm objectives provide approximately 53% more front-lens area than 42 mm objectives, while the optical system is specified for 91% light transmission.

Balanced lightweight design icon

27.0 twilight factor

The combination of 14× magnification and a 52 mm aperture produces the highest ISO twilight factor in the NL Pure family.

Long-range perspective

Built for the observation that takes time.

At 14×, small differences become visible sooner: feather pattern, horn profile, ear position, movement across a distant face. The NL Pure 52 places that reach in a body designed for hand-held scanning, forehead-rest stability or fully supported tripod observation.

Observer carrying the Swarovski NL Pure 52 in warm backlight at the end of the day

Large 52 mm objectives extend useful observation into the difficult light around dawn and dusk.

Observer using a Swarovski NL Pure 52 binocular on a tripod beside a lake

The dedicated tripod connection turns 14× reach into a calm, highly resolved view during extended glassing.

Swarovski NL Pure 14x52 Green fitted with the optional FRP forehead rest

The optional FRP forehead rest adds a third contact point to quiet small hand movements at fourteen power.

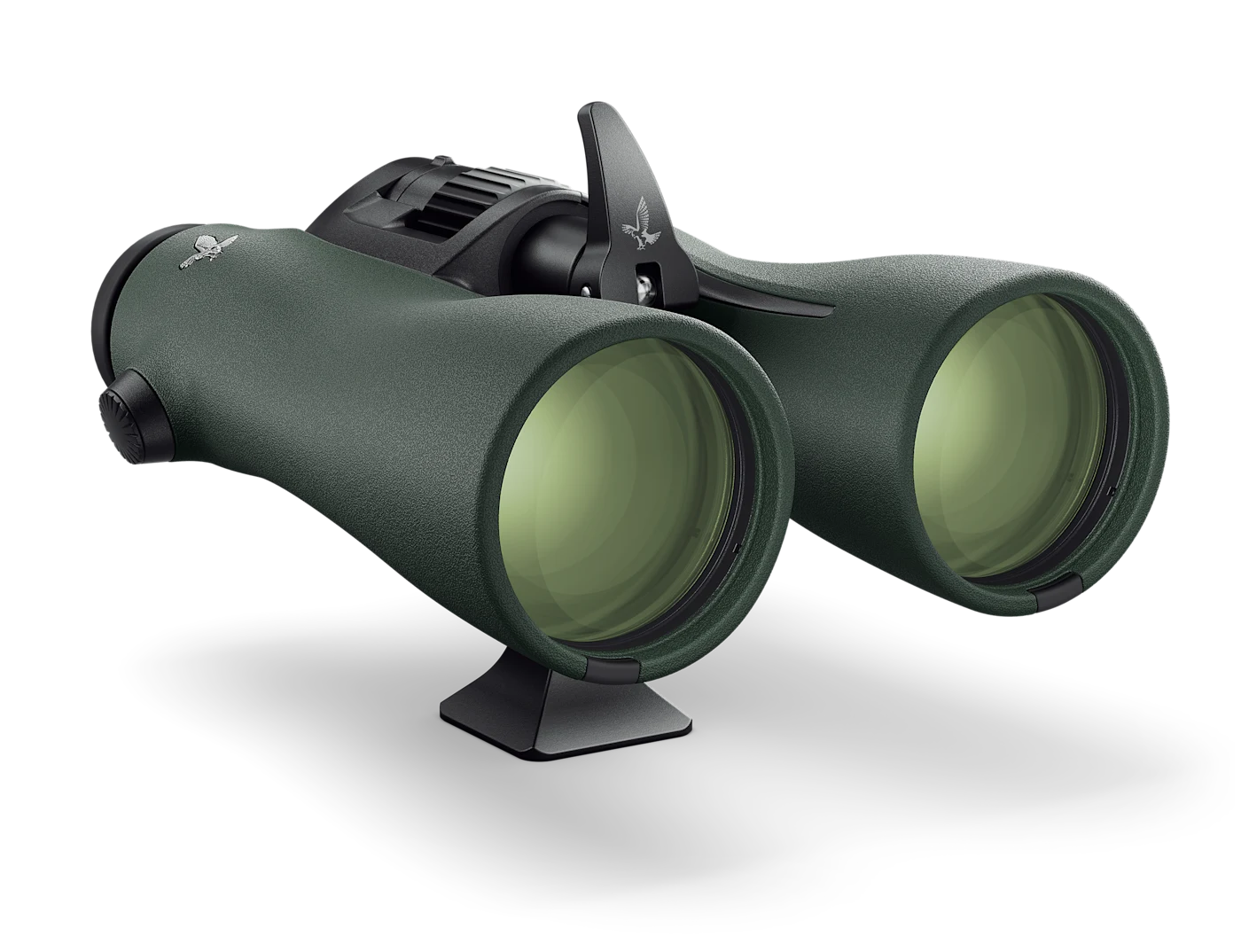

Front studio view of the Swarovski NL Pure 14x52 with the optional TAs-NL tripod adapter

A purpose-built TAs-NL interface keeps the supported setup compact and centred beneath the binocular.

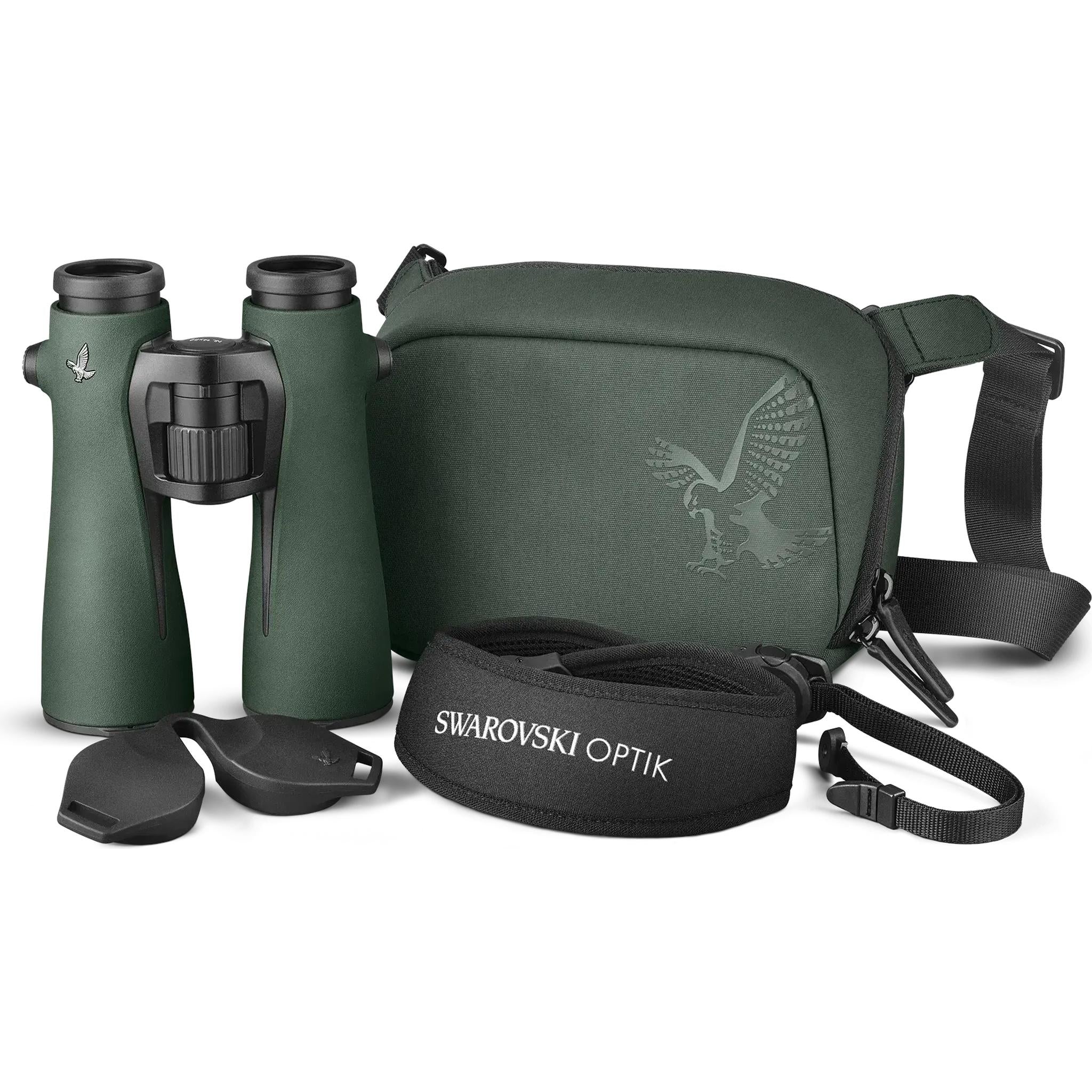

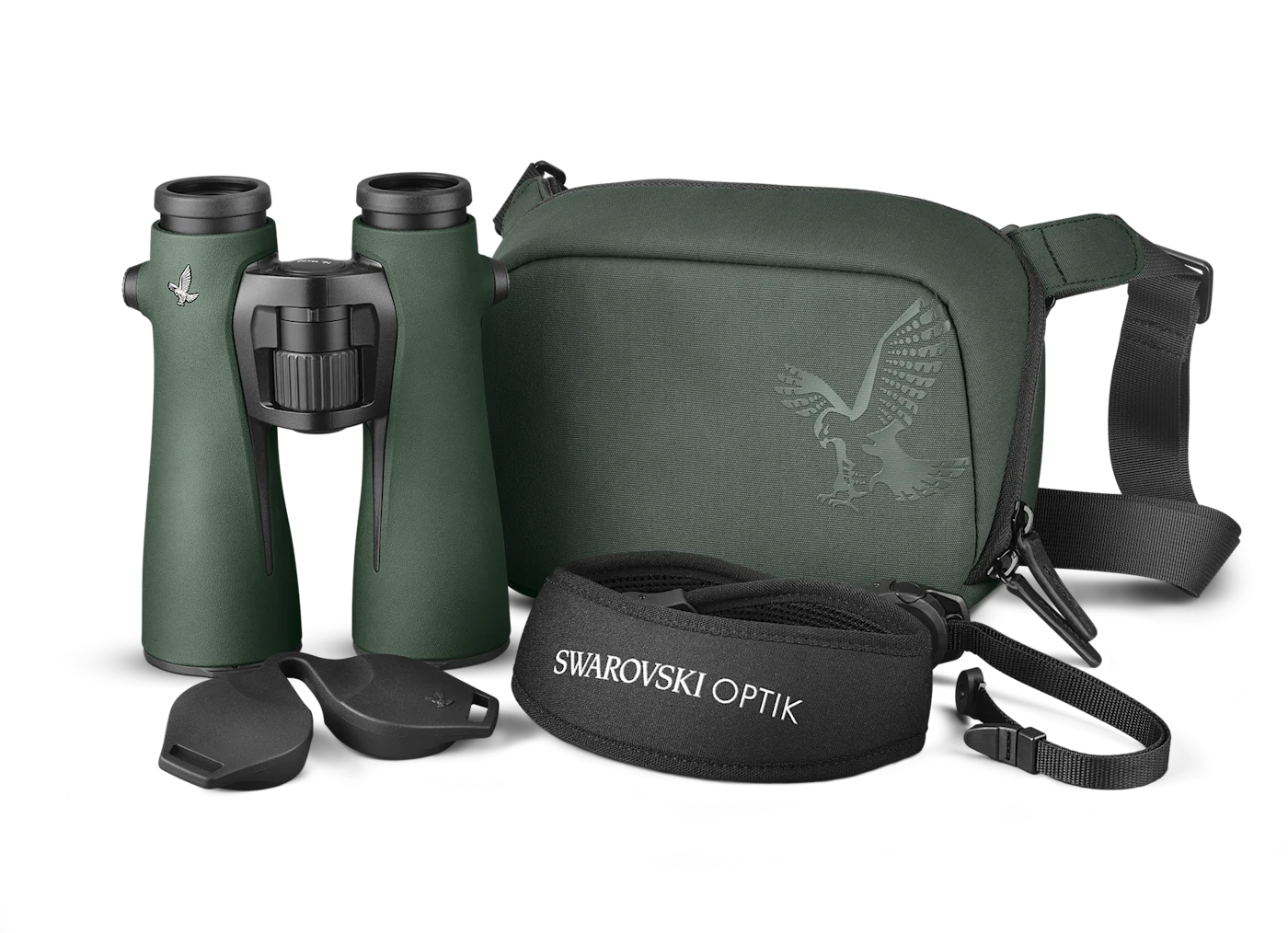

Swarovski NL Pure 52 binocular with its supplied field bag, comfort strap, covers and cleaning accessories

The supplied carrying and protection system keeps the 14×52 ready for travel, setup and field use.

High power, broad perspective

More reach without losing the landscape.

At 14×, the NL Pure shows a 93 m-wide section at 1,000 m. That 5.3° true field gives you enough context to search an open face, follow a moving animal or compare several distant subjects before committing to a closer inspection.

The eyepiece design expands that true field into a 70° apparent view. The result feels immersive rather than tunnel-like, even though distant detail is being enlarged fourteen times.

93 mAt 1,000 m
279 ftAt 1,000 yd
5.3°True field
70°Apparent field
SWAROVISION

The resolution to make fourteen power worthwhile.

High magnification is only useful when the optical system can preserve the detail it enlarges. Field-flattener lenses maintain definition across the viewing area, fluoride-containing HD glass helps suppress distracting colour fringing, and the SWAROBRIGHT prism system supports neutral colour reproduction.

SWAROTOP anti-reflective coatings help light pass efficiently through the system, while SWARODUR protects exposed optical surfaces. Together, these technologies deliver the contrast, colour fidelity and edge performance needed to distinguish subtle structure at distance.

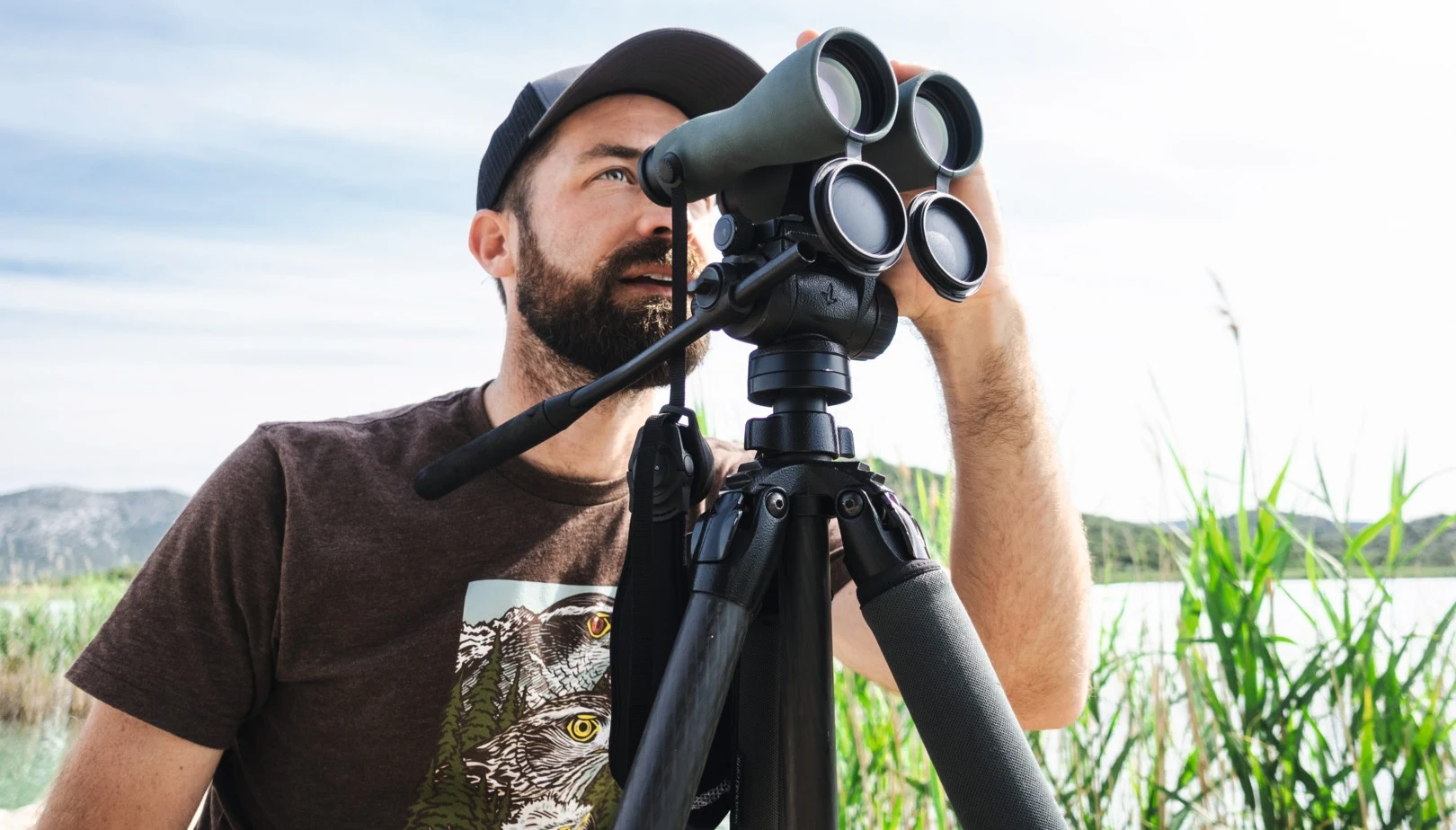

Observer using a Swarovski NL Pure 52 binocular on a tripod for steady long-range viewing
Three ways to steady 14×

Hand-held freedom. Supported precision.

The narrowed waist and oval recess follow the natural space between thumb and forefinger, giving the 1,020 g body a secure, balanced hold. The broad central focusing wheel stays within easy reach, so focus can be refined without rebuilding your grip.

For longer sessions, the optional FRP forehead rest creates a third contact point. When maximum detail matters, the dedicated TAs-NL connection transfers the binocular to a tripod so the optical resolution is no longer competing with hand movement.

Built for real weather

Mountain-ready construction.

A rigid magnesium housing carries the larger 52 mm optical system, while protective rubber armouring and inert-gas filling prepare it for changing temperatures, heavy rain and demanding field use. The NL Pure 14x52 is submersion-tight to 4 m and specified to operate from −25°C to +55°C.

4 m tightness

Sealed against water ingress to a submersion depth of 4 metres / 13 feet.

Inert-gas filled

Internal gas filling helps prevent internal fogging through sudden temperature changes.

−25 to +55°C

Specified functional temperature range for winter mornings through hot summer conditions.

Magnesium housing

A rigid, premium chassis combines structural strength with practical field weight.

Fit and viewing comfort

Adjust it precisely to you.

Four eyecup positions, 17 mm eye relief, independent diopter correction and a broad interpupillary range help place both eyes accurately behind the 3.6 mm exit pupils for one clean, shadow-free viewing circle.

17 mm eye relief

A practical exit-pupil distance supports comfortable alignment, including for many spectacle wearers.

56–74 mm IPD

Adjust the hinge spacing until the left and right images merge into one circular field.

±4 dpt

Independent diopter adjustment compensates for differences between the viewer’s eyes.

Four eyecup positions

Fully in, fully out and two intermediate stops help place the eyes at the correct distance.

Controls and connection points

Everything where it should be.

From the four-position eyecups to the dedicated tripod interface, each control is positioned for quick adjustment without interrupting observation.

Move keyboard focus to a numbered marker, hover it with a pointer, or tap it on a touch screen to reveal the corresponding part name.

Front-facing Swarovski NL Pure 14x52 Green binocular diagram with seven markers identifying the twist-in eyecups, diopter adjustment, focusing wheel, TAs-NL tripod-adapter connection, strap connector covers, 52 mm objective lenses and ergonomic open bridge
  1. 1Twist-in eyecups

    Use the four positions to set the correct eye distance with or without glasses.

  2. 2Diopter adjustment

    Balances differences between the left and right eye, with a defined zero position.

  3. 3Focusing wheel

    Moves smoothly from the 3.8 m close-focus distance through to infinity.

  4. 4TAs-NL connection

    Accepts the optional Swarovski TAs-NL tripod adapter for supported 14× observation.

  5. 5Strap connector covers

    Protect the side connection points when the carrying-strap fittings are removed.

  6. 652 mm objectives

    Collect light across two large apertures to support a 3.6 mm exit pupil, 91% transmission and a twilight factor of 27.0.

  7. 7Ergonomic open bridge

    Creates the NL Pure’s characteristic waist and gives the fingers a natural, secure hold.

Supplied removable components Universal comfort strap Eyepiece cover Objective lens covers Objective-cover filler pieces Strap-loop connectors
Set up and operate

A precise view in a few steps.

Start with the eyecups and interpupillary distance, then calibrate the diopter. These settings establish the complete viewing field and keep both eyes sharply focused.

NO GLASSESGLASSES

1. Set the eyecups

Without glasses, twist counterclockwise fully out. With glasses, twist clockwise fully in. Use either intermediate stop if it gives a cleaner full field.

56–74 mm

2. Set eye spacing

Move the binocular halves at the central hinge until both fields merge into one circular image with no dark shadows around the edge.

FOCUS− 0 +

3. Calibrate the diopter

Focus the left eye with the main wheel, then keep that setting and use the diopter control to sharpen the image for the right eye.

3.8 m

4. Focus near to far

Turn the central focusing wheel to move continuously from the 3.8 m minimum focus distance through to infinity.

5. Manage the lens covers

Pull the objective covers down for viewing. They can be removed and the supplied filler pieces inserted when an uncovered front end is preferred.

6. Attach the carrying strap

Seat the strap-loop connectors securely in the side fittings and check both connections before carrying the binocular in the field.

Expand the system

Purpose-built accessories.

Add support, digiscoping or glare control without compromising the NL Pure’s clean handling.

The accessories below are optional and sold separately.
Swarovski NL Pure 14x52 with optional FRP forehead rest Optional · sold separately

FRP forehead rest

Adds an adjustable third contact point that helps reduce fine hand movement and improve comfort at 14×.

Swarovski NL Pure 14x52 fitted with the optional TAs-NL tripod adapter Optional · sold separately

TAs-NL tripod adapter

Locks into the dedicated NL Pure interface to reveal maximum 14× detail during long, fully supported observation.

Swarovski VPA 2 smartphone adapter fitted with CA-B clamp adapter Optional · sold separately

VPA 2 phone adapter + CA-B

Aligns a compatible smartphone camera with an eyepiece for digiscoping. NL Pure 42 and 52 models use the CA-B clamp adapter.

Swarovski WES winged eyecup set Optional · sold separately

WES winged eyecup set

Shields the eyes from distracting side light to improve viewing comfort and contrast in bright or low-angle sun.

Technical data

Complete specifications.

Optical, mechanical and environmental details for the Swarovski NL Pure 14x52 Green.

Product identification
Product Swarovski Optik NL Pure 14x52
Colour Swarovski Green
Manufacturer product code 36014
UPC / GTIN 0708026360145 / 00708026360145
Optical design Premium wide-angle roof-prism binocular; nitrogen / inert-gas filled
Country of origin Austria
Optical performance
Magnification 14×
Effective objective diameter 52 mm
Exit pupil diameter 3.6 mm
Exit pupil distance / eye relief 17 mm / 0.67 in
Field of view at 1,000 m 93 m
Field of view at 1,000 yd 279 ft
True angular field of view 5.3°
Field of view for spectacle wearers 5.3°
Apparent field of view 70°
Shortest focusing distance 3.8 m / 12.5 ft
Light transmission 91%
Twilight factor (ISO 14132-1) 27.0
Optical elements 24
Optical technologies SWAROVISION system with field-flattener lenses and fluoride-containing HD glass; SWAROBRIGHT prism coating, SWAROTOP anti-reflective coating and SWARODUR protective coating
Adjustment and handling
Diopter adjustment Left / right: ±4 dpt
Diopter correction at infinity Greater than 5 dpt
Interpupillary distance 56–74 mm / 2.2–2.9 in
Eyecups Twist-in design with four positions: fully in, fully out and two intermediate stops
Focusing Large central focusing wheel; integrated independent diopter adjustment
Tripod interface Dedicated connection for optional TAs-NL tripod adapter
Dimensions and construction
Length 174 mm / 6.9 in, with eyecups retracted
Width 131 mm / 5.2 in
Height / depth 77 mm / 3.0 in
Weight Approximately 1,020 g / 36.0 oz
Housing Compact magnesium chassis with protective rubber armouring
Colour finish Green rubber armour with black control and trim components
Environmental protection
Submersion tightness 4 m / 13 ft; inert-gas filling
Functional temperature −25 to +55°C / −13 to +131°F
Storage temperature −30 to +70°C / −22 to +158°F

Manufacturer specifications are typical values. Width and height are stated at a 64 mm interpupillary distance; length is measured with the eyecups twisted in.

Ready for the field

What is in the box.

Binocular Swarovski NL Pure 14x52 in Green
Carrying system UCS universal comfort strap for NL Pure and FSB-L functional sidebag / field bag
Lens protection Eyepiece cover / ocular rainguard and two objective lens covers
Fittings Two objective-cover filler pieces and strap / objective connector components
Care kit Microfibre cleaning cloth plus soap-and-brush cleaning kit
Documentation Operating instructions and product information

Packaging and included accessory naming can vary by market or production batch. Optional FRP, TAs, VPA 2 / CA-B and WES accessories are not included.

Official documents

Manuals and technical data.

Manufacturer documents for setup, care, specifications and compatible accessory installation.

Product information is presented for the green NL Pure 14x52, manufacturer code 36014. Always follow the current Swarovski Optik operating and care instructions.
