Swarovski TAs tripod adapter
Authorised Dealer
Our Price
$345
/
Frequently bought with

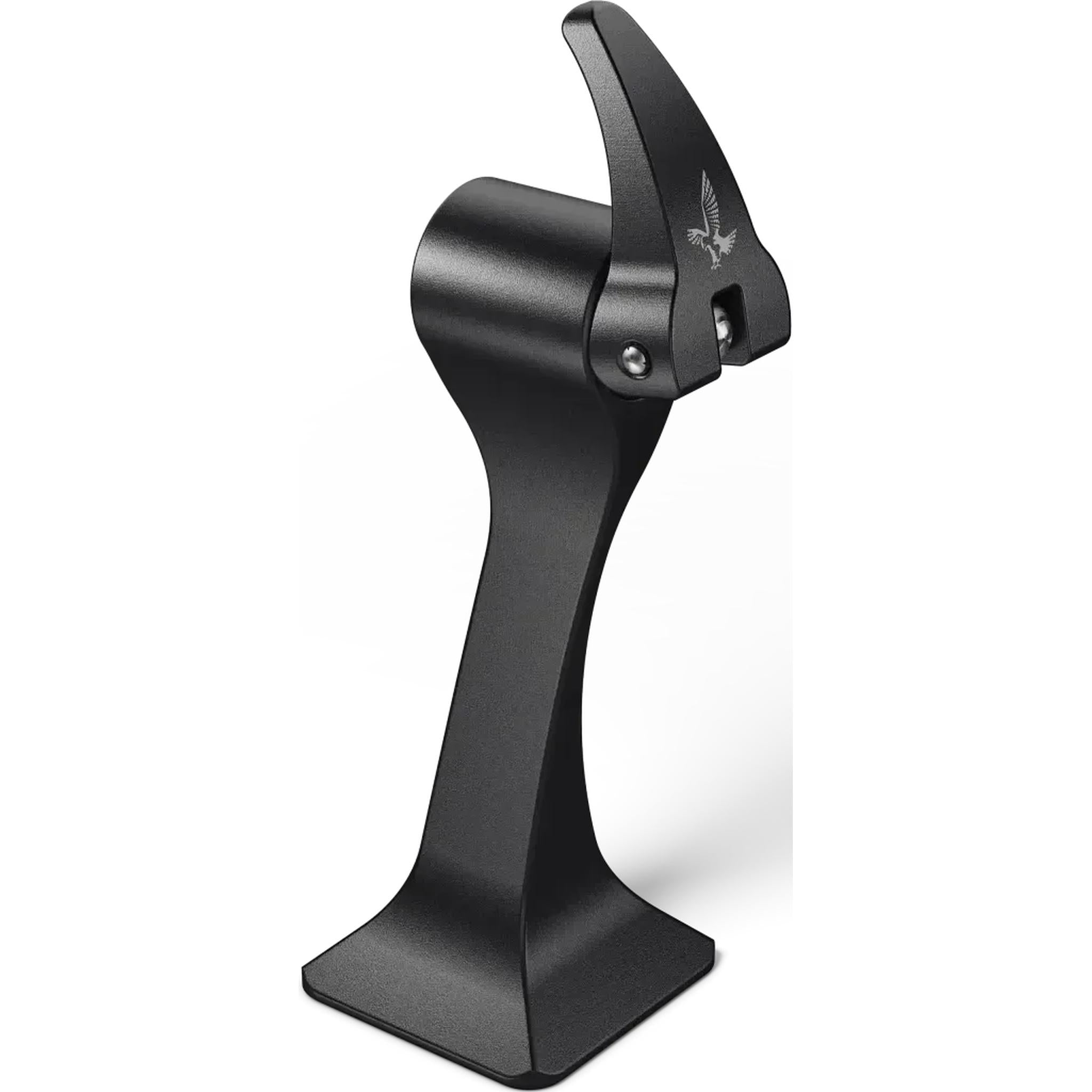

Swarovski TAs Tripod Adapter for EL Range 42 & NL Pure

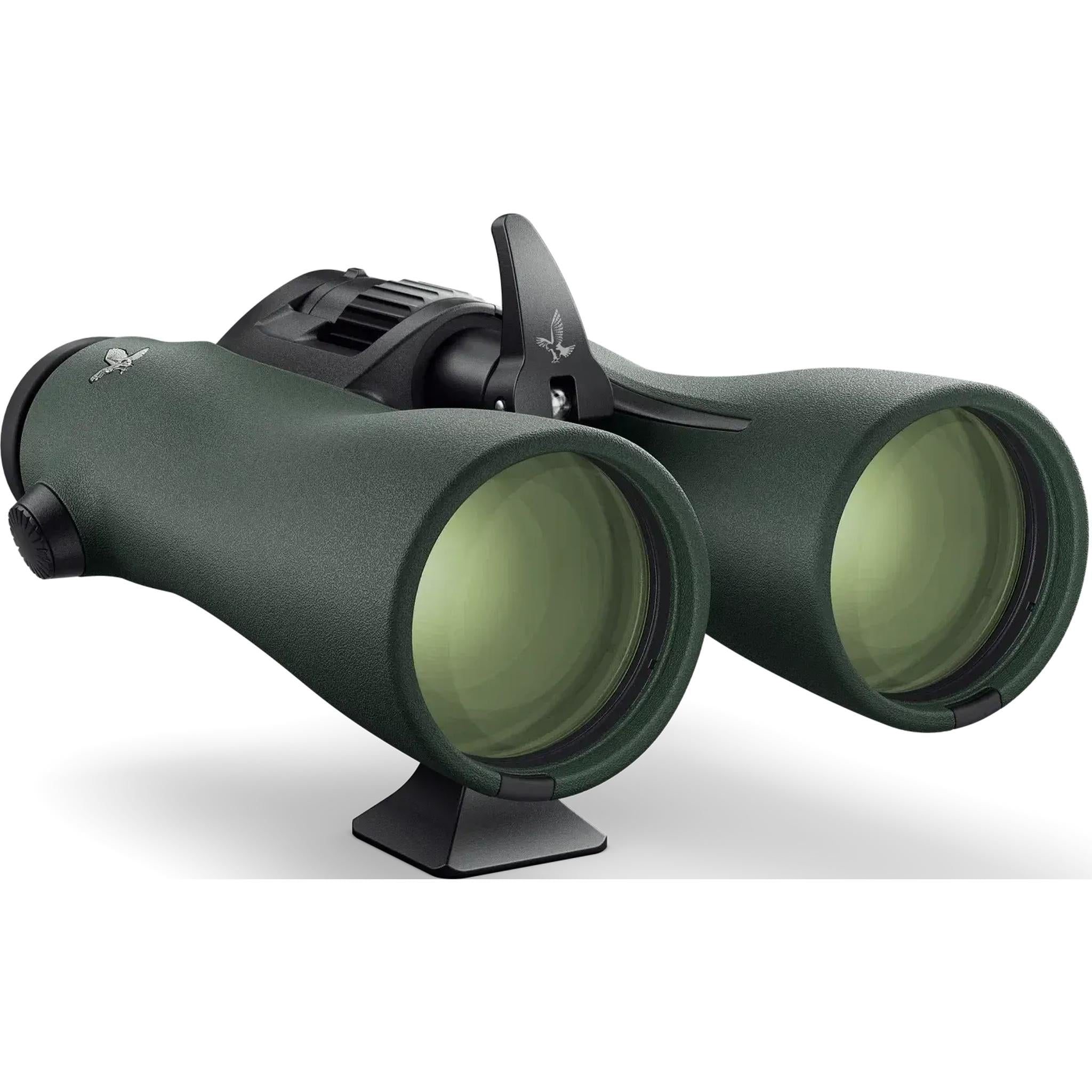

The Swarovski TAs Tripod Adapter is designed for quick, stable tripod mounting with compatible Swarovski NL Pure and EL Range 42 binoculars. It gives your binoculars a secure support point for long viewing sessions, higher magnification use, long-range observation, and steady hands-free glassing.

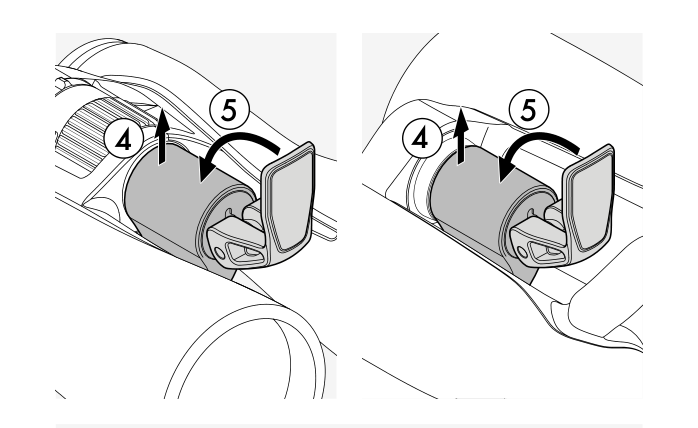

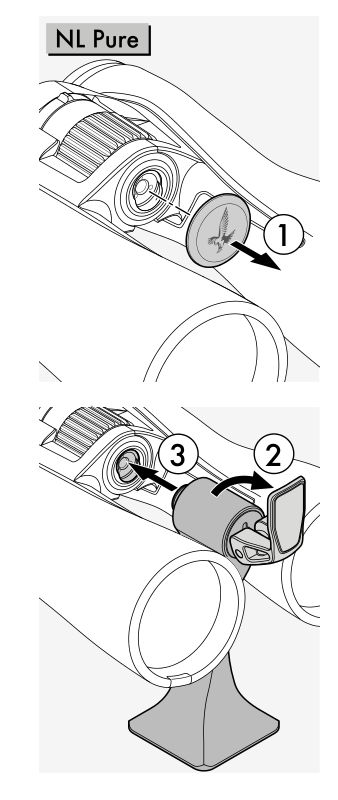

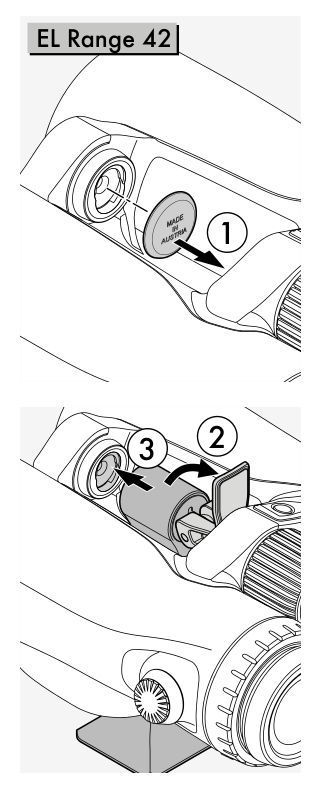

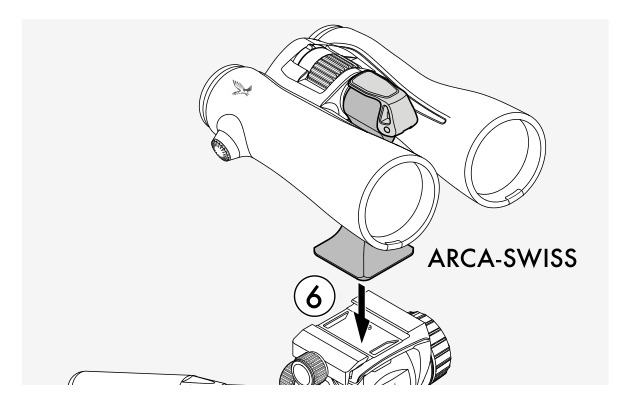

The adapter connects to the binocular using Swarovski’s dedicated TAs interface and locking lever system. The base is Arca-Swiss compatible, allowing it to mount directly to many Arca-style tripod heads, while also including a standard 1/4"-20 tripod socket for wider tripod compatibility.
Key Features
- Designed for Swarovski NL Pure and EL Range 42 binoculars
- Ideal for steady long-range and extended viewing
- Quick attachment and removal with locking lever
- Arca-Swiss compatible base
- Includes standard 1/4"-20 female tripod thread
- Useful for higher magnification binoculars such as 12x42 and 14x52 models
- Some older binoculars may require retrofitting before use
Compatible Binoculars and Model Ranges
| Binocular Range | Model / Size | Compatibility | Notes |
|---|---|---|---|
| NL Pure 32 | NL Pure 8x32 | Compatible from serial number BD1425291A | Older units up to this serial number can be retrofitted. |
| NL Pure 32 | NL Pure 10x32 | Compatible from serial number BD1425291A | Older units up to this serial number can be retrofitted. |
| NL Pure 42 | NL Pure 8x42 | Compatible from serial number AD1452771A | Older units up to this serial number can be retrofitted. |
| NL Pure 42 | NL Pure 10x42 | Compatible from serial number AD1452771A | Older units up to this serial number can be retrofitted. |
| NL Pure 42 | NL Pure 12x42 | Compatible from serial number AD1452771A | Older units up to this serial number can be retrofitted. |
| NL Pure 52 | NL Pure 10x52 | Compatible | NL Pure 52 models are listed as compatible. |
| NL Pure 52 | NL Pure 14x52 | Compatible | NL Pure 52 models are listed as compatible. |
| EL Range 42 | EL Range 8x42 | Retrofit required | Can be retrofitted by Swarovski if required. |
| EL Range 42 | EL Range 10x42 | Compatible from serial number TF1543039A | Older units up to serial number TF1443008A can be retrofitted. |
| EL Range 42 | EL Range 12x42 | Compatible | Current EL Range 12x42 models are listed as compatible. |
Product Specifications
| Product | Swarovski TAs Tripod Adapter for EL Range 42 & NL Pure |
|---|---|
| Product Type | Binocular tripod adapter |
| Brand | Swarovski Optik |
| Model / Short Name | TAs Tripod Adapter |
| Manufacturer Part Number | DF-Z792-0221A |
| EAN | 9006325103243 |
| Compatible Product Families | NL Pure and EL Range 42 |
| Binocular Connection | Proprietary Swarovski TAs interface |
| Attachment Method | Adapter pin with locking lever |
| Tripod Mounting | Arca-Swiss compatible base |
| Threaded Mount | 1/4"-20 female tripod socket |
| Main Use | Stable tripod-mounted binocular viewing |
| Best For | Long observation sessions, high magnification use, hunting, birding, nature observation, rangefinding binocular use |
| Colour | Black |
| Included Item | Swarovski TAs tripod adapter |
| Packaged Weight | Approx. 141 g / 0.31 lb |
| Box Dimensions | Approx. 147 x 114 x 61 mm / 5.8 x 4.5 x 2.4 in |
Compatibility Notes
- The adapter is intended for NL Pure and EL Range 42 binoculars.
- Some older NL Pure 32, NL Pure 42, EL Range 8x42, and EL Range 10x42 binoculars may need retrofitting before this adapter can be used.
- Check the binocular serial number before purchase if compatibility is uncertain.
- EL Range 32 models are not listed as compatible with this TAs adapter.
