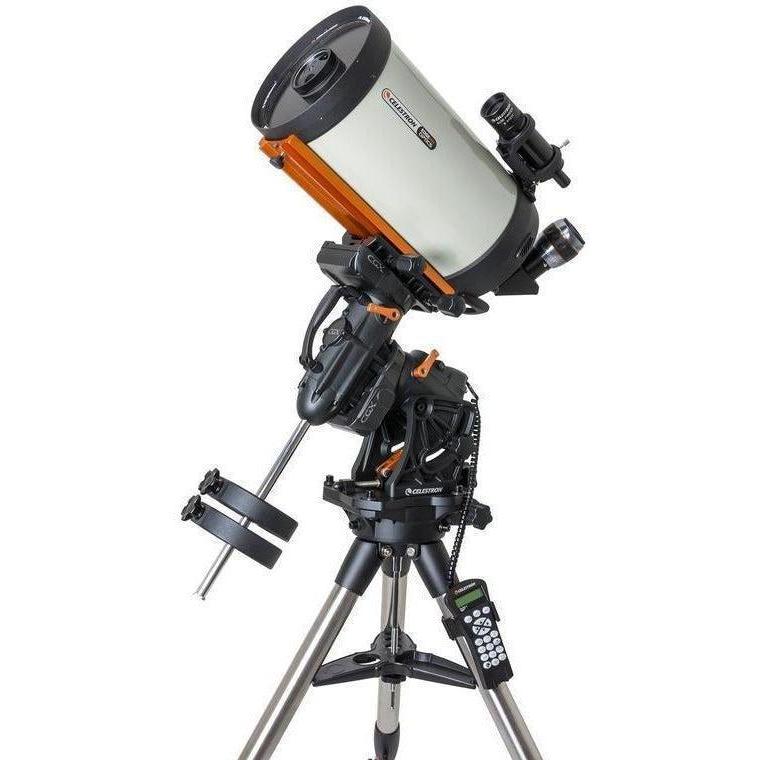

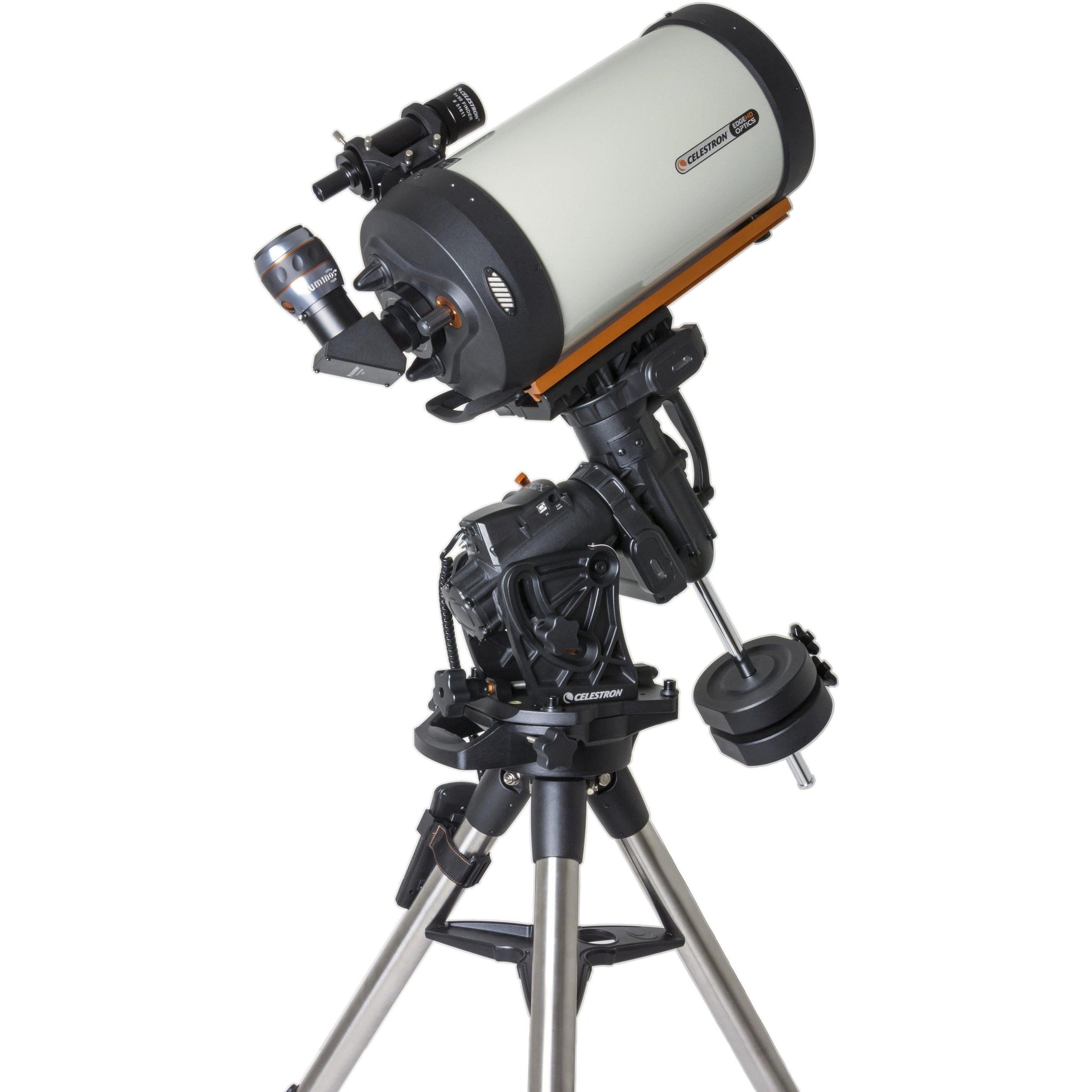

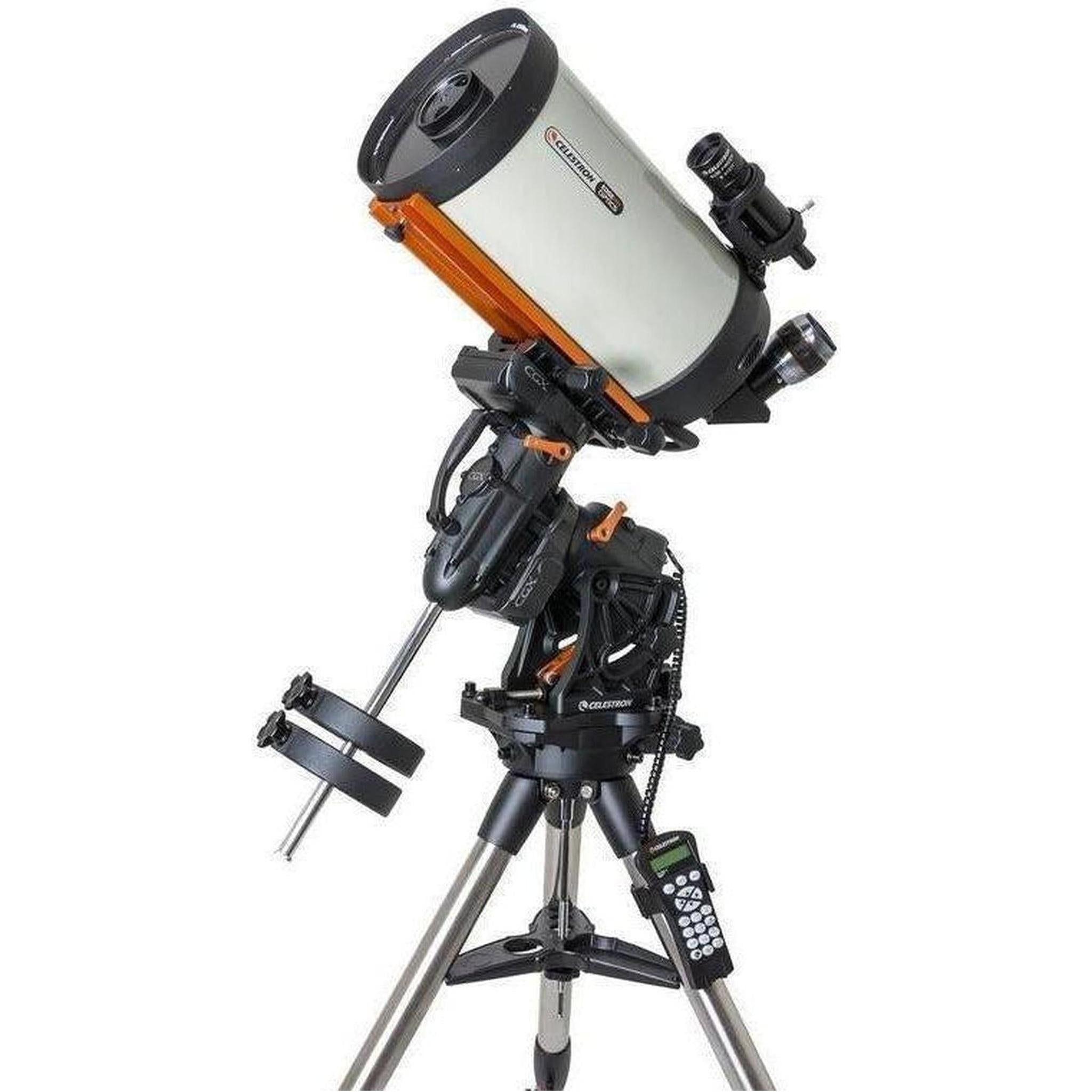

Celestron CGX EQ w/ 9.25" Edge HD OTA Telescope

SKU: 12056

products/12056_CGX_925_EdgeHD_Kit_2_570x380_2x_13a57dec-59dd-4135-b5f2-e4f6b23d1f1e.jpg1.0
Celestron CGX EQ w/ 9.25" Edge HD OTA Telescope
×

Click the image to enlarge

Celestron CGX EQ w/ 9.25" Edge HD OTA Telescope

SKU: 12056

Our Price


Inventory:
Loading...
×

Pickups and Delivery

In-store pickup

We don't have this item in our store right now, please allow 1-3 months for it to be transferred to our retail store.

If you come to pick up your order please bring photo ID, if someone else is picking it up on your behalf please contact us prior to pickup.

Delivery estimates

Once your order has been picked up by the courier please allow 2 working days for North Island addresses, for the South Island allow 3 working days. Rural deliveries and extra-large items may take several additional days.

Shipping costs

Shipping costs are automatically calculated during checkout. The price of shipping varies based on the delivery location. Select items may be be eligible for free shipping.

Delivery of oversize items

Oversize items such as very large telescopes may only be available via pickup from a depot or a business address. For a list of available depots, click here

Security

To ensure the safe delivery of your order we require a signature with all parcels. Some exceptions may be made if you give the courier company authority to leave parcels at your preferred address.

About this product

GENERAL FEATURES

  • 9.25" HD Optical Tube Assembly
  • CGX EQ Mount and Tripod
  • Celestron's premium StarBright XLT coatings provide maximum light transmission
  • A 9x50 finderscope, 2 mirrors diagonal for more comfortable viewing, and wide-angle 23 mm Luminos 2" eyepiece are all included

HD FEATURES

  • Experience our best optical performance with EdgeHDs coma-free optics for pinpoint stars all the way to the edge of today's largest imaging sensors and widest eyepieces
  • Aluminium optical tube with tube vents featuring an integrated 95-micron mesh filter allows hot air to be released from behind the primary mirror. Mirror support knobs hold the mirror in place and reduce image shift during imaging
  • Versatile design accommodates 2 focal ratios: native f/10 or ultra-fast f/2 imaging with a removable secondary mirror and third-party accessories

COMPUTERIZED MOUNT FEATURES

  • All-new design. Sturdier and more rigid with quicker dampening time
  • Increased load capacity to 55 lbs.
  • Improved motors provide more torque, better slewing and tracking under heavy loads
  • Heavy Duty belt-drive system minimizes backlash while providing smooth motor operation under heavy loads
  • The spring-loaded brass worm wheel and stainless steel worm gear reduce friction and provide optimum gear mesh
  • Internal cabling for worry-free remote operation. Power input and accessory ports remain stationary while the mount slews to avoid snags
  • Internal hard stops for both axes prevents cable tension and tripod strike
  • Internal optical sensors on both axes for simple and safe remote operation
  • Home sensors allow the mount to always start in the index position regardless of orientation before a power reset
  • Limit sensors automatically shut off slewing or tracking before reaching the hard stop fail safe
  • Brand new control software developed in conjunction with PlaneWave Instruments for professional level control operation and imaging
  • The software includes multi-point mount modelling for extremely precise pointing accuracy and many more additional features for remote astroimaging
  • Wider tripod stance for improved stability
  • Adjustable EQ head position to optimize the center of gravity over the tripod and fully utilize the increased 3§-65§ latitude range
  • Dual-fit CG-5/Vixen and CGE/Losmandy dovetail saddle

IMPROVED TRIPOD INCLUDES:

  • 2" steel legs with height index marks for quick levelling
  • "Jack of all trays" can hold three 1.25" eyepieces, two 2" eyepieces, your smartphone, or other accessories
  • +20§ of additional tracking past the meridian on either side
  • Tripod legs can be collapsed with accessory tray installed for faster setup and transport

IMPROVED ERGONOMICS:

  • Two handles for easy pickup and transport
  • All-new ergonomically designed dovetail clamping knobs
  • Innovative and improved polar alignment adjustment system
  • All-new ergonomic latitude adjuster for smooth and easy adjustment under full loads
  • Optional add-on polar axis finderscope - coming soon

ELECTRONICS:

  • All-new NexStar+ hand control with USB port
  • Two AUX accessory ports to support wireless/WiFi alignment and operation with StarSense AutoAlign and SkyPortal WiFi Module accessories (sold separately)
  • USB 2.0 port, used to connect directly to PC with the included software
  • Autoguider port
  • PPEC ready
  • Threaded 12VDC power input barrel connector
  • Internal Real Time Clock (keeps time and site information saved)

Specifications:

Optical Tube Info:
Optical Design EdgeHD
Aperture (mm) 234.95 mm (9.25 in)
Focal Length 2350 mm (93 in)
Focal Ratio 10
Focal Length of Eyepiece 1 (mm) 23 mm (0.91 in)
Magnification of Eyepiece 1 102x
Finderscope 9x50
Star Diagonal 2" w/ 1.25" adapter
Optical Tube Aluminium
Highest Useful Magnification 555x
Lowest Useful Magnification 34x
Limiting Stellar Magnitude 14.4
Resolution (Rayleigh) 0.59 arc seconds
Resolution (Dawes) 0.49 arc seconds
Light Gathering Power (Compared to the human eye) 1127x
Secondary Mirror Obstruction 3.35 in (85 mm)
Secondary Mirror Obstruction by Diameter 36%
Secondary Mirror Obstruction by Diameter 13%
Optical Coatings StarBright XLT
Optical Tube Length 22 in (559 mm)
Optical Tube Weight 21 lbs. (9.53 kg)
Dovetail Compatibility CGE Mount

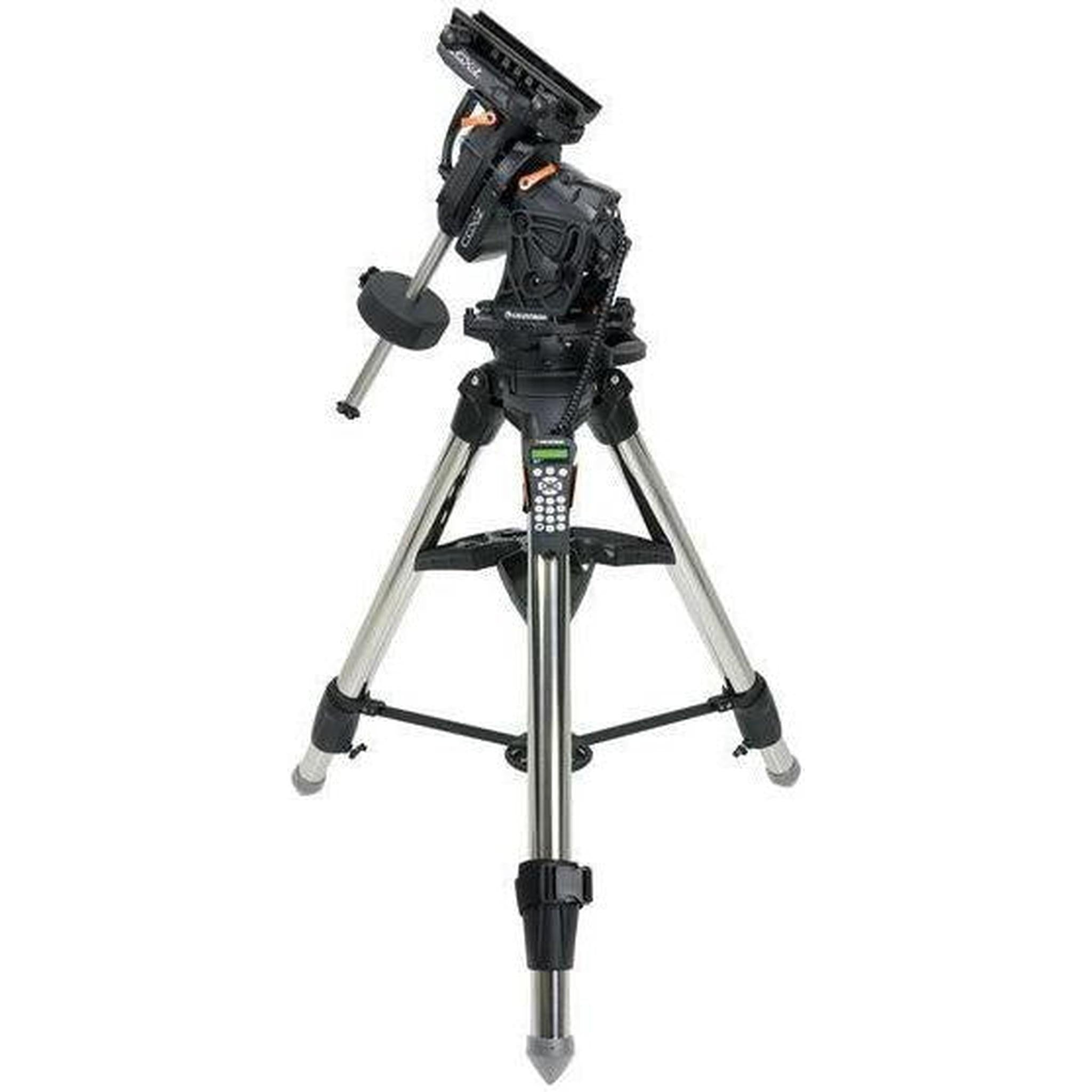

Mount Info:
Mount German Equatorial Mount
Instrument load capacity 55lbs
Tripod height adjustment range 47.25 to 77.5 including EQ head
Tripod leg diameter 2"
Latitude adjustment range 3§-65§
Tripod Weight 19.2 lbs.
EQ Head Weight 44 lbs
Max Slew Speed 5§/second (4§/second is the default)
Tracking Rates Sidereal, Solar and Lunar
Number of Auxiliary ports (for hand control and accessories) 2
Autoguide port Yes
USB Port Yes
Software New telescope control PC software
Included Items
CGX Equatorial Head
CGX Tripod
Accessory Tray
2 x 11 lbs counterweight
NexStar+ Hand Control
DC Power Cable (plugs into cigarette lighter socket)
