Celestron Labs S10-60 Stereo Microscope

SKU: 44208

Celestron Labs S10-60 Stereo Microscope
Celestron Labs S10-60 Stereo Microscope
×

Celestron Labs S10-60 Stereo Microscope

SKU: 44208

Learn more about this type of product


When will I receive it?

Have a question about this product?


Print this page

Our Price

or 12 months interest free

Gem

or 6 easy payments of $108.33

Laybuy

or 4 easy payments of $162.50

Afterpay

Loading
Delivery truck More on the way

Estimated time of arrival: Dec 16, 2021

About this product

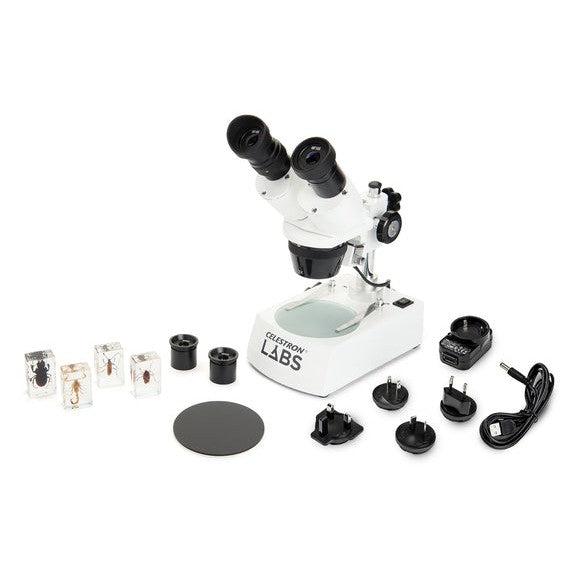

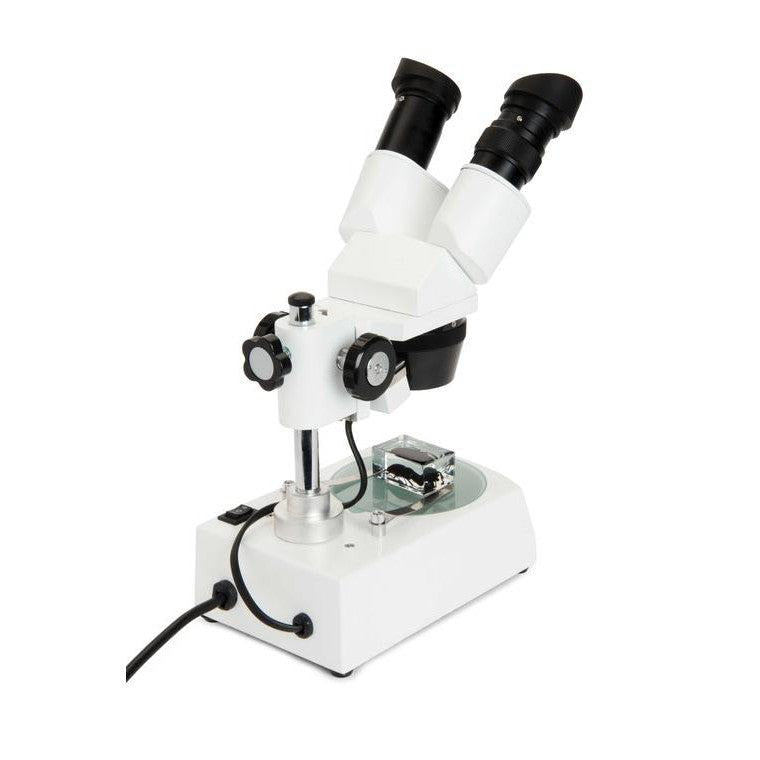

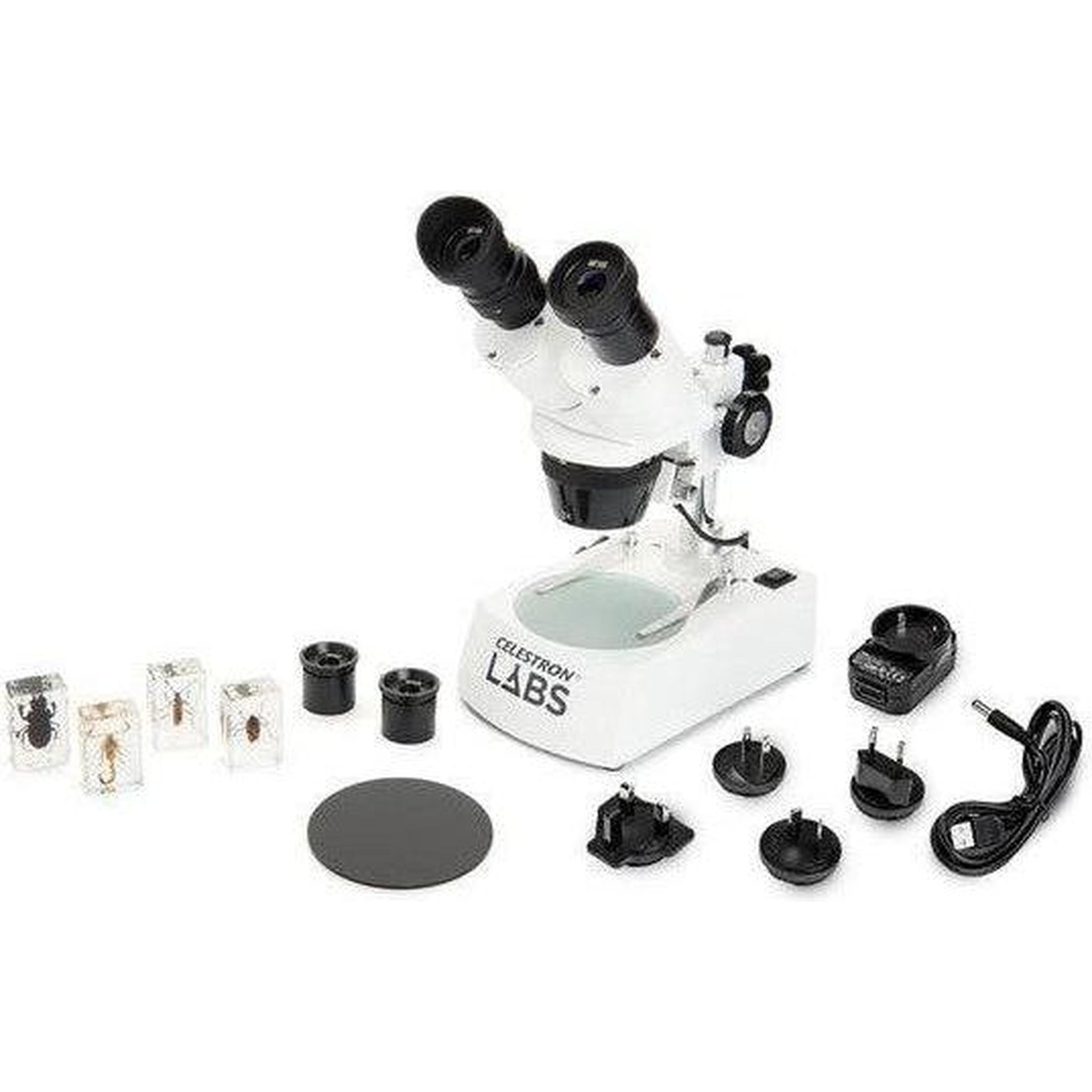

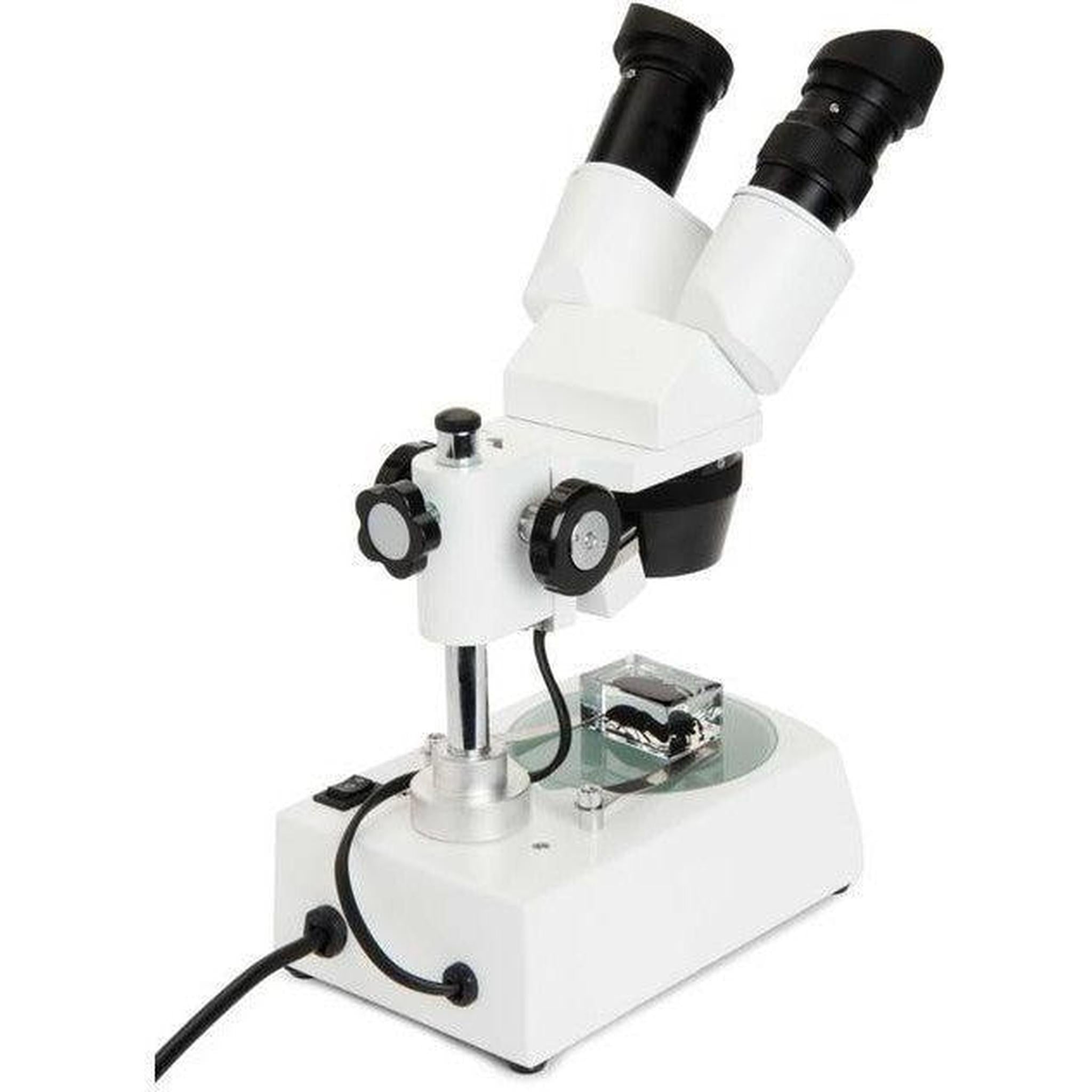

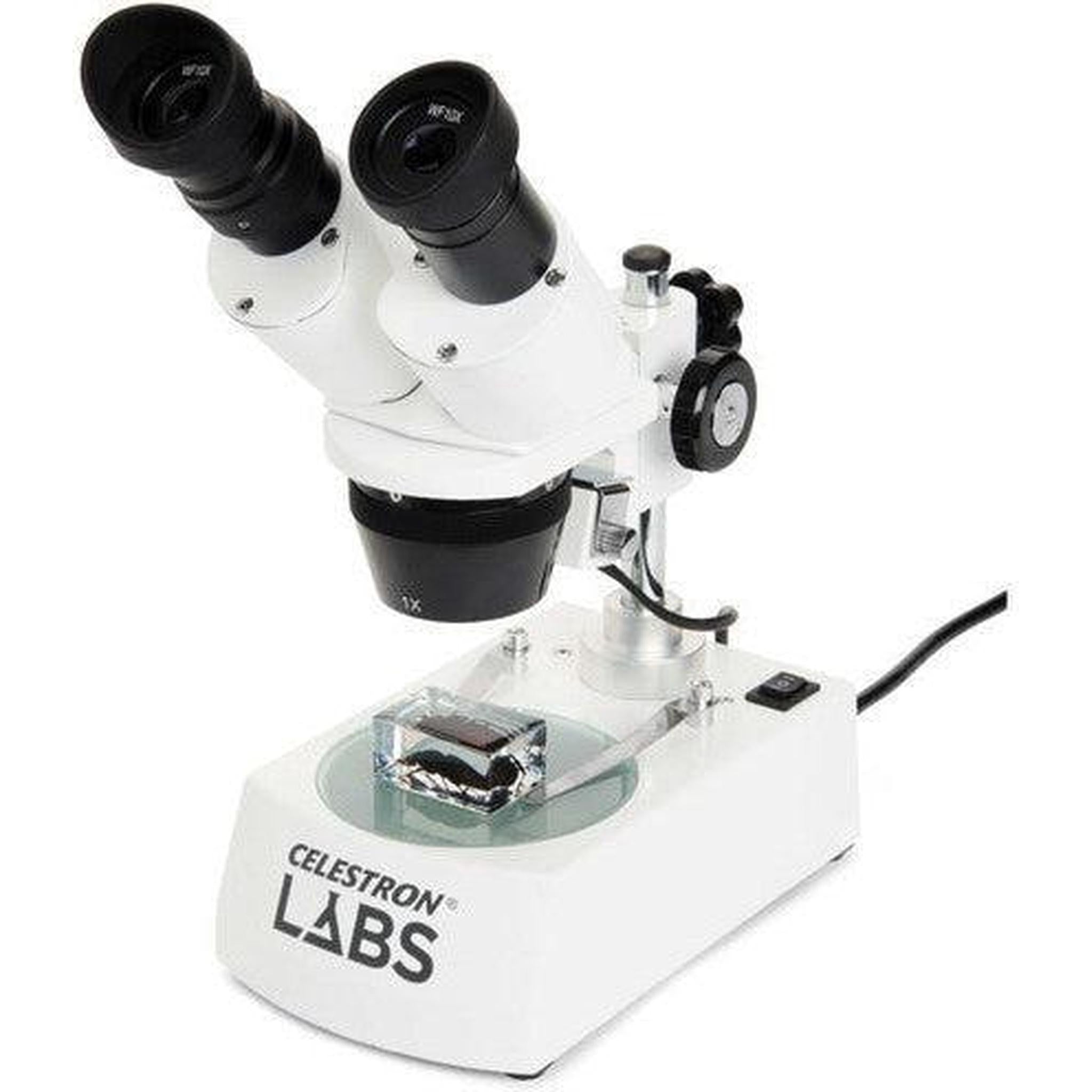

Designed for students and hobbyists, Celestron Lab's S10-60 Stereo Microscope is a versatile instrument for making detailed 3D observations of a variety of subjects such as coins, minerals, insects, leaves, textiles and documents. Dual eyepieces preserve stereoscopic vision which renders images in three dimensions, as opposed to a flat field common in single-ocular microscopes. Stereo, or dissecting, microscopes traditionally have relatively low power and a large working distance for larger subjects. This instrument has a magnification range from 10x to 60x with a maximum working distance of 2.17". The head and nosepiece are attached to the microscopes' pillar and is easily adjustable to set the correct working distance to achieve the sharpest focus.

The stage is built into the base to provide a large and stable area for specimens. Dual light sources above and below the stage and interchangeable stage plates enable users to optimize the light, depending on their subjects. Use the upper light and opaque plate to improve contrast on specimens for better viewing, and the lower light with the translucent plate to illuminate a specimen from below.



Optical System

  • Two 10x wide field eyepieces
  • Two 20x wide field eyepieces
  • Two objectives: 1x and 3x
  • Two-position rotating turret
  • 10x and 30x magnification with 10x eyepieces
  • 20x and 60x magnification with 20x eyepieces
  • Contoured eyecups block peripheral light

Lighting

  • Upper tungsten bulb illumination
  • Lower halogen bulb illumination
  • On/off switch

Focusing

  • Dual coarse focus knob, left and right sides
  • Siedentopf interpupillary adjustment accommodates a wide range of users
  • Right-eye dioptric adjustment

Stage

  • Adjustable working distance, 2.17" maximum
  • Stage is integrated into base with slide/specimen clips
  • Removable 3.7" diameter round stage plates for different viewing application
  • Translucent: Light passes through the plate and illuminates the specimen from below
  • Opaque: Optimal when using the top illuminator and helps to improve contrast on specimens for better viewing

Specs:

Microscope Type Stereo
Head 45° Inclined Binocular
Nosepiece 2-Position Nosepiece
Imaging
Objective 1x, 3x
Eyepiece 10x Wide Field
20x Wide Field
Focusing Coarse
Illumination
Illumination Type Top: Tungsten
Bottom: Halogen
General
Power Source AC Adapter
AC Input Power 110 VAC, 60 Hz
Interpupillary Adjustment 57 to 82 mm / 2.2 to 3.2"
Dimensions 11.5 x 7.6 x 4.8" / 29.2 x 19.4 x 12.1 cm (Microscope)
3.7" / 9.4 cm (Specimen Stage)
Weight 5.2 lb / 2.4 kg
