About this product

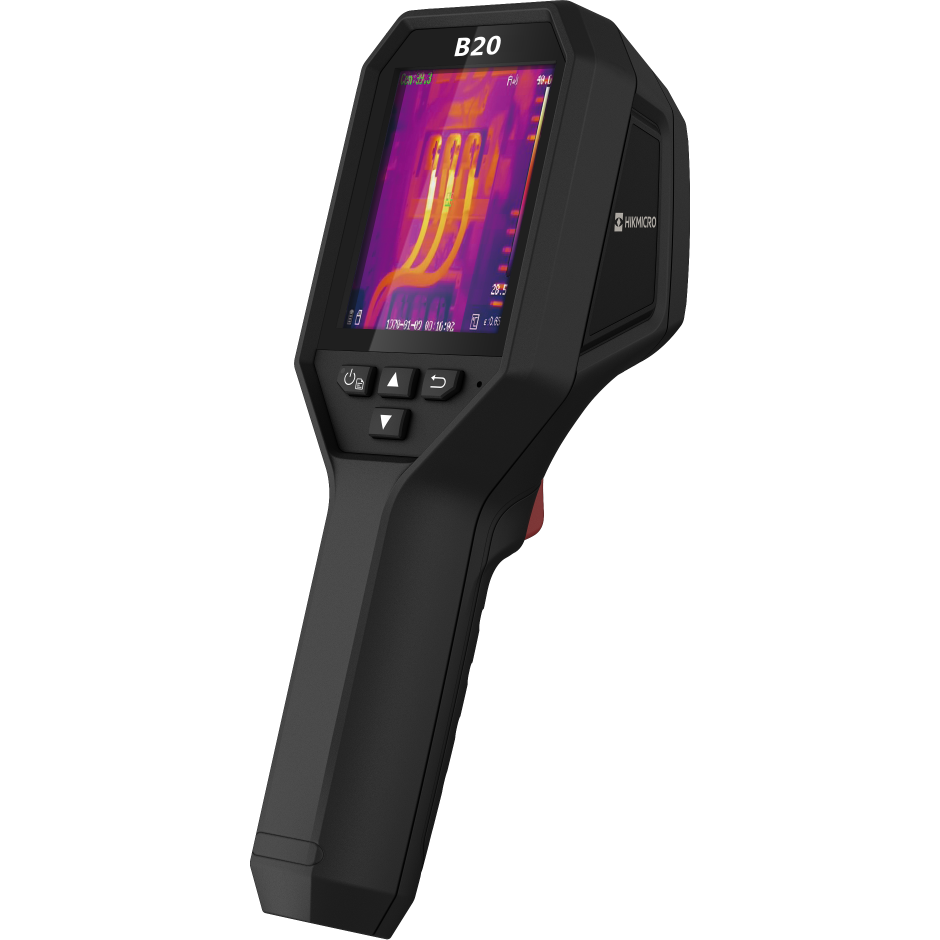

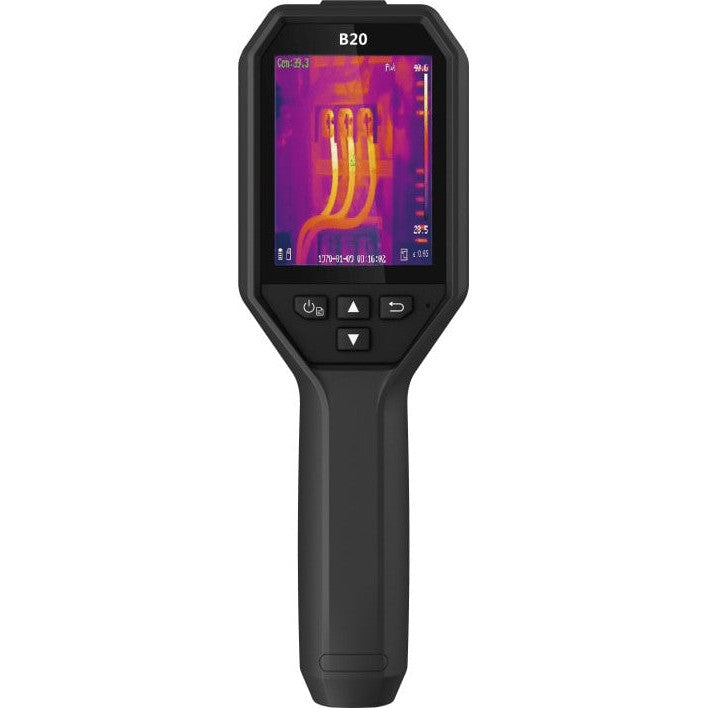

HIKMICRO B-Series Handheld Thermal Camera
Enhanced SuperIR Clarity – Built for Industrial & Business-Critical Inspections
Unlock faster, safer, and more accurate thermal inspections with the HIKMICRO B-Series. Engineered for professionals who rely on clear, actionable thermal data—from facility engineers and HVAC technicians to predictive-maintenance teams—this lightweight, rugged imager pairs SuperIR processing with a high-sensitivity 256 × 192 (49 152-pixel) VOx sensor. The result is razor-sharp thermal imagery (< 40 mK NETD) that reveals hot-spots, moisture intrusion, and mechanical defects long before they cause downtime.
B SERIES
Enhanced Thermal Clarity with SuperIR
High Image Quality
4 Images Modes
Full-screen Precise and Wide Temperature Measurement

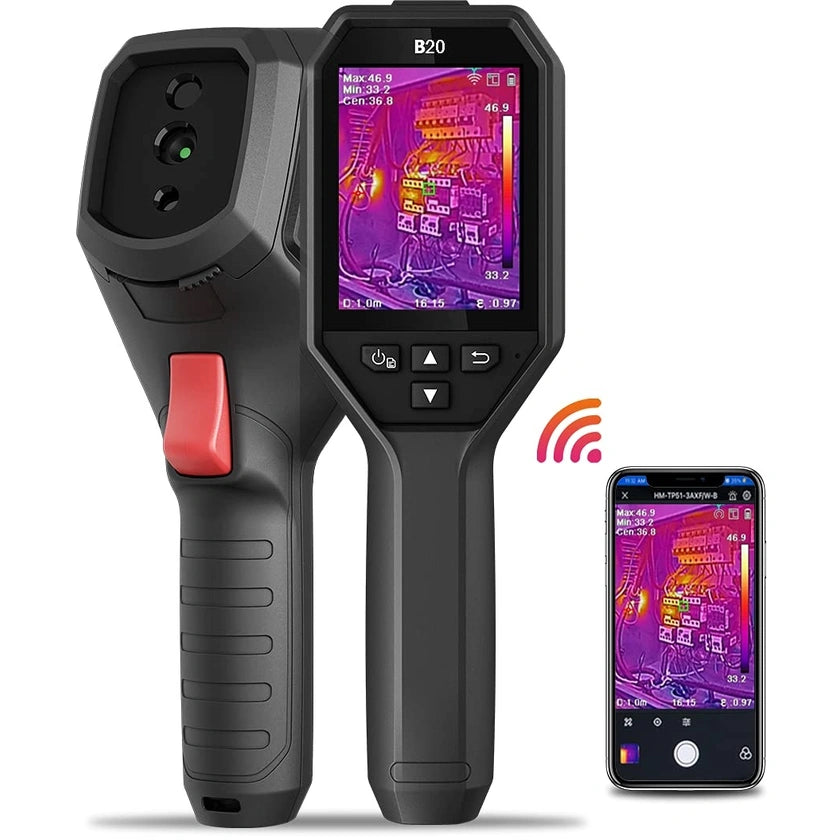

Wi-Fi Connectivity
Connect to mobile devices via built-in Wi-Fi and the HIKMICROViewer App to quickly share your images.
Innovative Macro Mode
High Temperature Alarm
Fast Image Frequency
3.2" Color LCD
Key Performance Highlights
SuperIR Enhancement – In-camera up-scaling sharpens fine detail for clearer decision-making without desktop post-processing.
Industry-Leading Sensitivity – < 40 mK NETD captures minute temperature differences critical for electrical or moisture diagnostics.
12 µm Detector Pitch – Increases spatial resolution (3.3 mrad IFOV) so you see more, even on small targets.
-20 °C … +550 °C Range – One tool covers everything from cryogenic lines to steam traps and arc-fault hotspots.
Robust Power & Data – USB-C for fast charging and UVC video cast; 21-language UI for multinational teams.
Tripod-Ready – Standard ¼"-20 mount supports long-duration monitoring or R&D thermal profiling.
Typical Applications
Electrical & Power Distribution – Identify overloaded breakers, loose lugs, or imbalanced phases before catastrophic failure.
HVAC & Building Diagnostics – Trace insulation gaps, air leaks, or underperforming coils for energy-efficiency gains.
Mechanical & Predictive Maintenance – Monitor motors, bearings, and pumps to schedule repairs on condition, not after failure.
Process & Manufacturing – Verify thermal uniformity in welds, laminates, or food-safety checks with confidence.
Why the B-Series Fits Your Workflow
Business Need
How the B-Series Delivers
Rapid, precise temperature mapping
Wide 37 ° × 50 ° FOV, 25 Hz frame rate, and four display modes (Thermal / Optical / Fusion / P-i-P) let you scan large switchboards or rotating machinery in real time.
Close-up component analysis
Innovative Macro Mode resolves fine PCB traces or bearing surfaces at just 0.3 m, exposing early-stage faults without extra optics.
Instant decision-making on site
Audible & visual High-Temp Alarms flag anomalies up to 550 °C, while Center/Hot/Cold spot presets put critical deltas on-screen immediately.
Seamless reporting & collaboration
Built-in 2.4 GHz Wi-Fi streams live views to the HIKMICRO Viewer app for remote assistance, on-the-fly annotations, and rapid JPEG export (with full measurement data).
All-day productivity
A 6-hour Li-ion battery, 16 GB EMMC for ≈ 90 000 images, and a bright 3.2" LCD keep inspections moving—no pack swaps or card juggling required.
Field-proven durability
IP54 weather-seal, 2 m drop resistance, and just 380 g total mass mean the B-Series thrives in plant rooms, rooftops, or wind-turbine nacelles.
Image Sensor
Vanadium Oxide Uncooled Focal Plane Arrays
IR Resolution
256 ~ 192 (49,152 pixels)
Pixel Pitch
12µm
Spectral Range
8 ~ 14µm
NETD
< 40mK (@ 25°C), F# = 1.0
Focal Length
3.6mm
FOV (Field of View)
37.2° ~ 50.0°
Image Frequency
25Hz
Focus
Fixed
IFOV (Spatial Resolution)
3.3 mrad
Aperture
F1.0
Minimum Focus Distance
0.3m
Picture Resolution
1600 ~ 1200 (2MP)
Optical FOV
55° ~ 42°
Display
240 ~ 320 Resolution, 3.2" LCD Screen
Color Palettes
White Hot, Black Hot, Rainbow, Ironbow
Image Modes
Thermal/Optical/Fusion/PIP
PIP
Thermal Picture in Optical Picture
Fusion
Thermal Picture and Optical Picture Combined
Object Temperature Range
-20°C to 550°C
Accuracy
Max. (± 2°C, ± 2%), for ambient temperature 15°C to 35°C and object temperature above 0°C
Measurement Presets
Center Spot, Hot Spot, Cold Spot, Point Presets, Off
High Temperature Alarm
Audible and Visual Warning
Storage Media
EMMC (16GB)
Image Storage Capacity
90,000 Images
Image File Format
JPEG with Measurement Data Included
LED Light
Yes
Wi-Fi
802.11 b/g/n (2.4GHz)
UVC Cast Screen
Yes
Level/Span
Auto/Manual
Power Supply
3.7 VDC/ 0.5A
Power Consumption
1.8W
Battery Type
Rechargeable Li-ion Battery
Battery Operating Time
6 Hours Continuous Running
Battery Charging Time
3 Hours
Menu Language
21 Languages - English, German, French, Spanish, and more
